ANALOG DEVICES ADE9112ARNZ Analogue to Digital Converter, 24 bit, 32 kSPS, Differential, SPI, Single

ADE9112ARNZ is a sampling ?-? analogue-to-digital converter (ADC) for both DC and polyphase shunt-based energy metering applications. It features two fully differential ?-? ADC channels for isolated applications where only a single voltage channel is required. It includes a high-gain, current channel best suited for use with a shunt resistor as the current sensor. It delivers system cost savings and increased robustness. The main device can drive clocks of up to three additional devices with a single crystal. The bidirectional, serial port interface (SPI) supports a daisy-chain capability, allowing access to all registers while reducing the required microcontroller pin count. It is used in applications such as shunt-based polyphase meters, electric vehicle supply equipment, DC meters, power quality monitoring, solar inverters, process monitoring, protective devices, isolated sensor interfaces.

• 4-wire SPI with bidirectional CRC and daisy-chain functionality
• Active-low IRQ hardware pin and registers for fault detection and robustness
• Ideal for both AC and DC measurement systems, unique SPI readable part ID registers
• Voltage reference is 1.25V typical at (VDD = 3.3V ±10%, AGND = 0V, DGND = 0V)
• Temperature coefficient is 12ppm/°C typical at (VDD = 3.3V ±10%, AGND = 0V, DGND = 0V)
• ±31.25mV maximum peak analogue input voltage range for current channel
• ±500mV maximum peak single-ended analogue input voltage range for voltage channels
• Single 3.3V supply for isolated and no isolated measurements
• Total harmonic distortion is -96dBFS typical at (VDD = 3.3V ±10%, AGND = 0V, DGND = 0V)

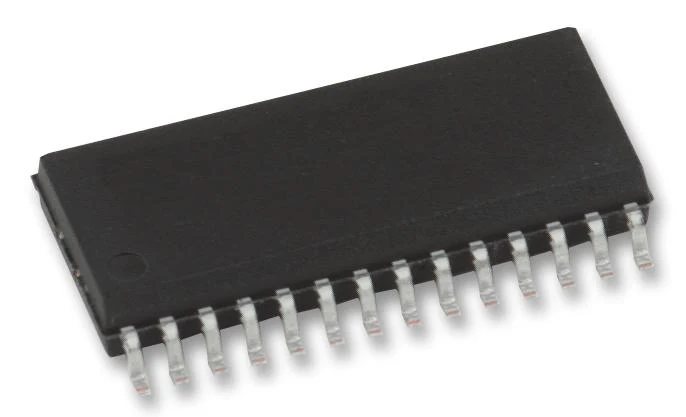

• Operating temperature range from -40°C to +125°C, 28-lead SOIC-W-FP package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
