Original: $349.92
-70%$349.92
$104.98The Story
- 15W Warm White LED
- 1900K/3100K Color Temperature
- 20° Beam Angle
- Three DMX Modes
- Selectable Dimming Curves
- Variable Strobe Rate
- 4-Button LED Menu System
- Flicker-Free Operation
- Versatile Scissor Bracket
- Includes Two Frost Filter Lenses

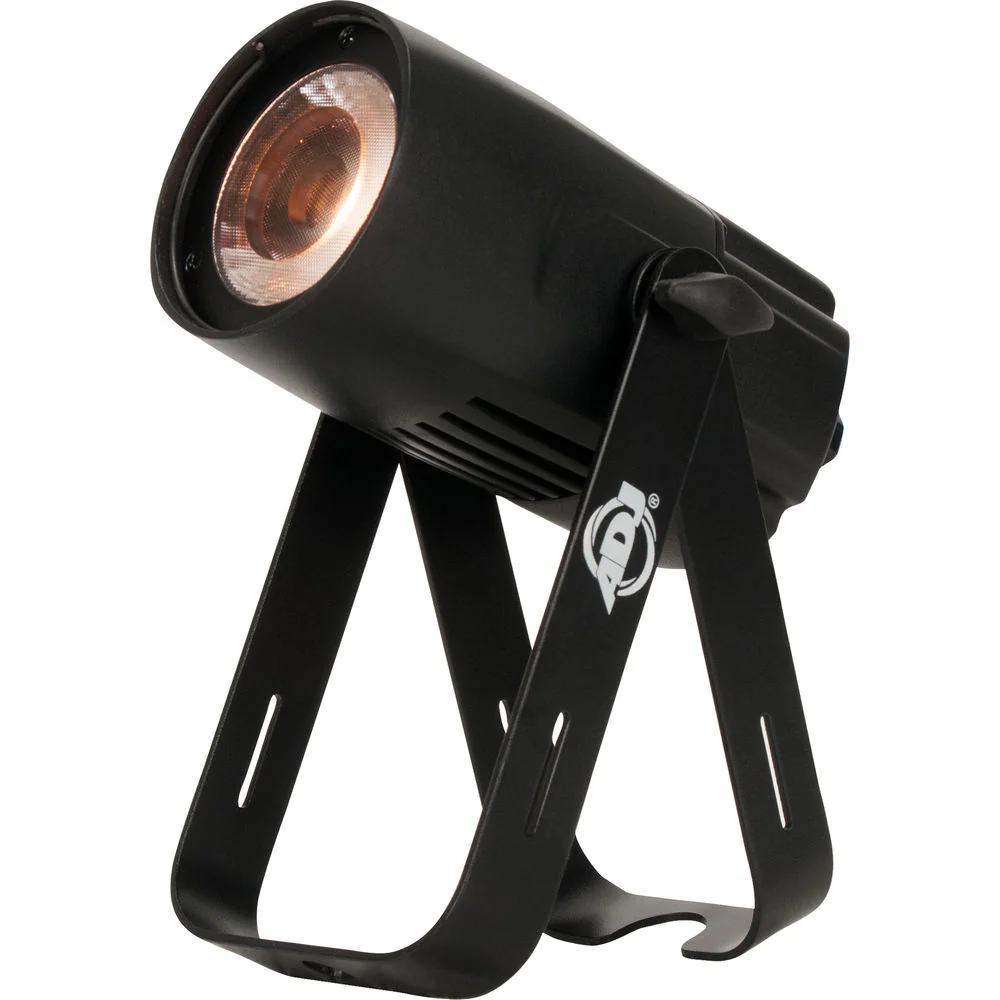

The American DJ Saber Spot DTW is a 15W LED spotlight designed to deliver a narrow beam with flicker-free operation for lighting designers and technicians in retail environments and stage, television, and film production applications. It utilizes one 15W warm white LED to produce a 20° beam angle. Its standard color temperature is 3100K, while an amber LED (available separately) yields 1900K.
Control capabilities include three DMX modes and five selectable dimming curves. The strobe rate is variable between 1 and 20 Hz. A four-button LED menu system offers direct access and DMX 3-pin jacks allow remote control functionality. The sturdy scissor bracket permits hanging or ground placement of the Saber Spot DTW. It ships with two frost filter lenses.
- 3100K color temperature (1900K amber)
- Three DMX modes�1, 2, and 4
- 0 to 100% dimming of each module
- 1 to 20 Hz variable strobe rate
- 4-button LED menu system on rear panel
- Flicker-free operation with 3.6 kHz refresh rate

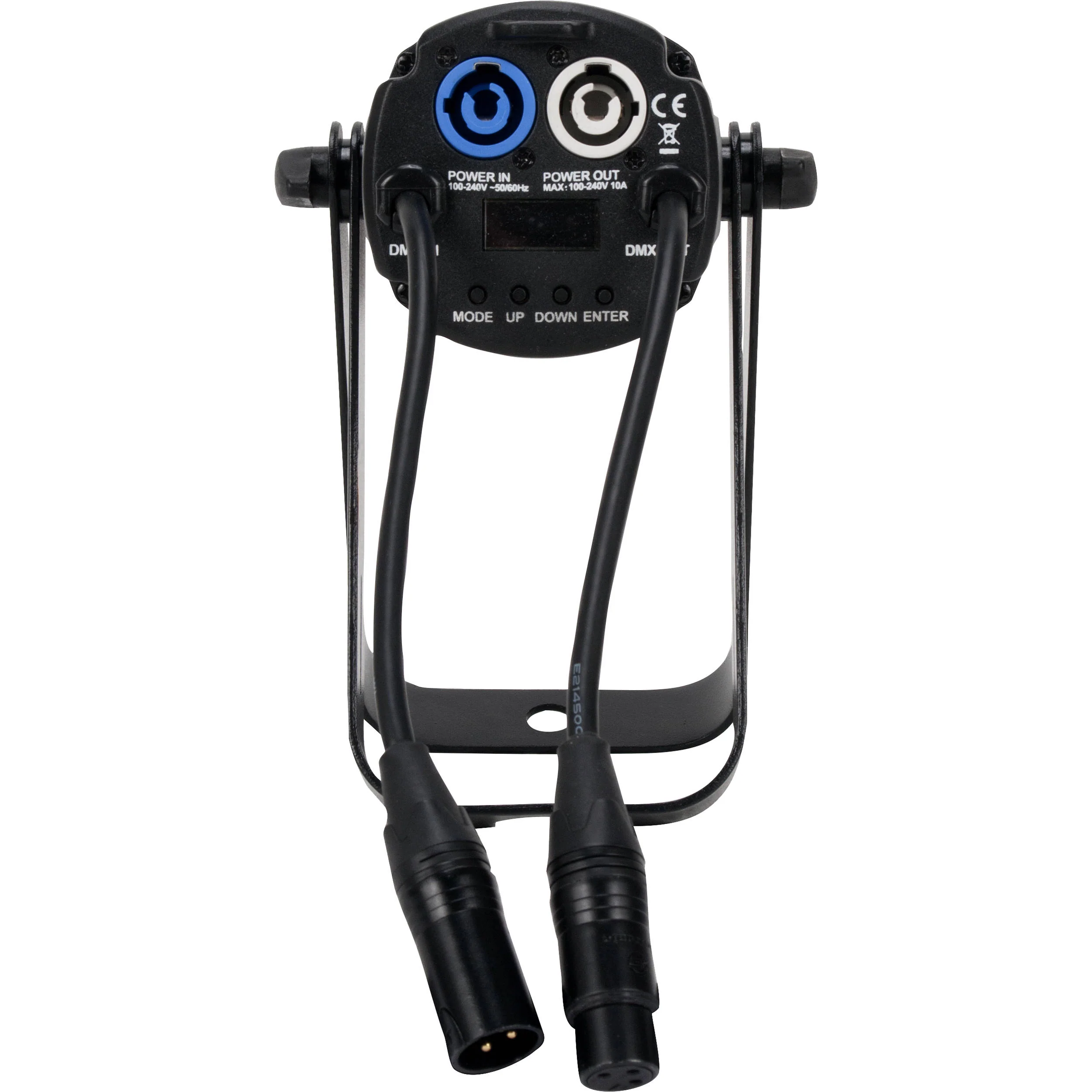

- DMX 3-pin input and output
- powerCON input and pass-through
- Scissor bracket allows fixture to be hung or set on ground
- Auto-sensing internal power supply
- Includes two interchangeable frost filter lenses
| Lamp | 15 W warm white LED |
| Lamp Life | 10,000 hours (expected) |
| Beam Angle | 20° |
| Color | Warm white |
| Color Temperature | 3100K (warm white), 1900K (amber) |
| Illuminance | 726 lux at 9.8' / 3 m |
| CRI | 92 (full on) |
| Control | DMX Modes: 3 (1, 2, or 4) Dimming Curves: 5 Dimming: 0 to 100% of each module Flicker-free (3.6 kHz) Dim to warm effect with amber LED |
| Strobe Rate | 1 to 20 Hz |
| DMX Connectors | 1 x DMX 3-pin input 1 x DMX 3-pin output |
| Power Connection Type | 1 x powerCON input 1 x powerCON pass-through |
| Power | 100 to 240 VAC, 50/60 Hz Daisy-Chain Max: 33 fixtures at 120 V, 71 fixtures at 230 V |
| Power Draw | 120 V, 60 Hz: 15 W, 0.13 A 220 V, 50 Hz: 15 W, 0.07 A |
| Power Consumption | 24 W |
| IP Rating | IP 20 (dry area, no liquids) |
| Enclosure Material | Metal housing |
| Dimensions (L x W x H) | 3.5 x 6.7 x 3.4" / 88 x 170 x 87 mm |
| Weight | 2.6 lb / 1.2 kg |
- 2 x Interchangeable Frost Filter Lenses
- Limited 2-Year Warranty
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
