Original: $759.83
-70%$759.83
$227.95The Story
- 12 x 12W RGBAW+UV LEDs
- 0-100% Dimming
- 30° Beam Angle
- DMX Channel Modes: 6, 7, 8 & 12
- 4-Button Digital Display
- 7 Built-In Programs & 63 Color Macros
- 5 Operational Modes & 5 Dimming Curves
- DMX I/O: 3-Pin & 5-Pin
- Daisy Chain powerCON In/Out
- Includes Power Cord and Gel Frame

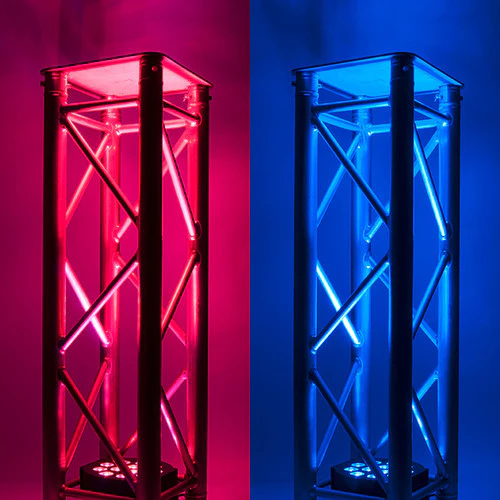

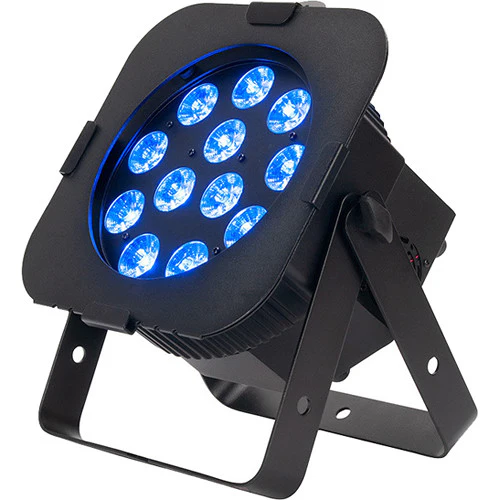

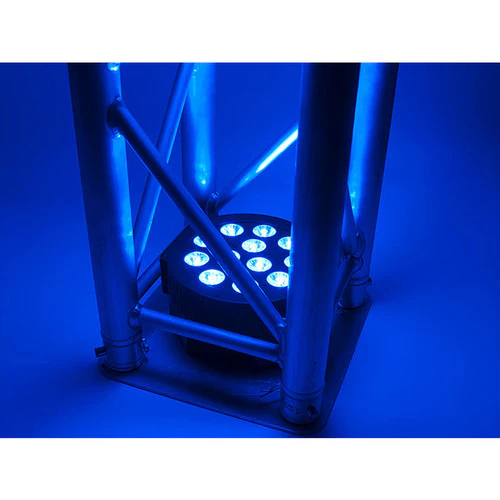

The black ADJ 12PX Hex is a 6-in-1 LED Par fixture, well suited for architectural wall washes, performance stages, and truss uplighting. The fixture utilizes twelve 12W LEDs that produce red, green, blue, amber, white, and UV colors with a 30° beam angle. The included scissor yoke allows for a variety of placement/installation options, while the rubber feet allow the unit to sit flush on the ground.

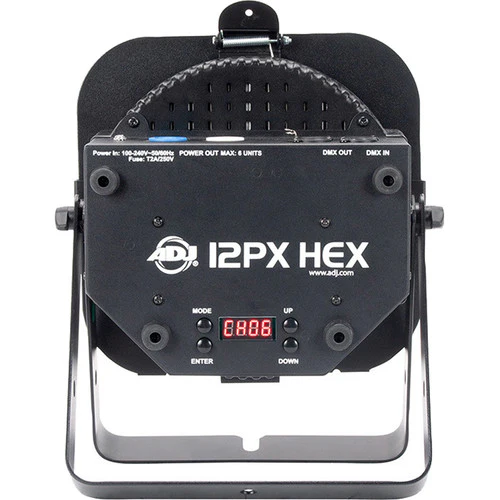

The 12PX Hex features a four-button DMX digital display on the rear panel, which allows you to select between seven built-in programs and 63 color macros. The fixture offers electronic dimming (0-100%), LED pulse and strobe effects, five selectable dimming curves (standard, stage, TV, architectural, and theater) and five operational modes including static, RGBAW+UV dimmer, program, sound-active, and DMX. The four DMX channel modes (6, 7, 8, and 12) provide a wide variety of control parameters from any compatible DMX board or software. Additionally, the unit is compatible with the optional Dotz Par RF wireless remote control.

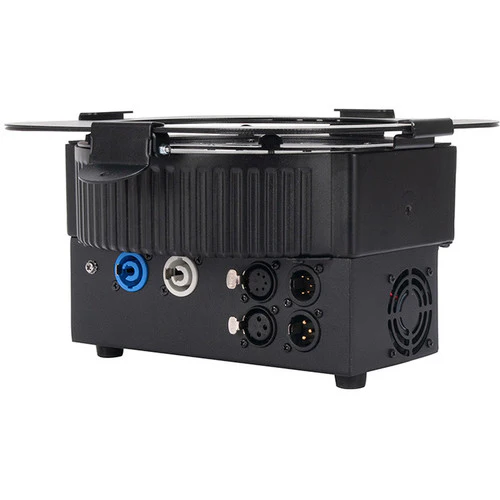

The black, all-metal housing features a side panel for connecting power and DMX, allowing the unit to lay flat. There are two sets of DMX I/O connectors with 3-pin or 5-pin configurations. The powerCON input/output allows several units to be daisy-chained. The ADJ 12PX Hex ships with a power cord and scissor yoke.
-
- Power & DMX ins/outs sit sideways so the unit can be set flat on the ground or set inside a truss
- Great as an architectural wash light or for performance stages where traditional stage lighting emits a lot of heat onto performers
- Scissor yoke + rubber feet allow fixture to be hung or set on the ground
- Flicker-free operation (no flickering on camera)
- Smooth RGBAW+UV color mixing
- All-metal black exterior housing
- Includes Gel frame to use with optional diffusion filters
American DJ 12PX HEX Specs
| Optical | Light Source: 12 x 12 W RGBAW + UV LEDs (Red, Green, Blue, Amber, White, and UV) LED Life Rated at Approximately 50,000 Hours Beam Angle: 30° |
| Control | Display: 4-Button DMX Digital Display on Rear Panel Compatibility: Dotz Par RF Wireless Remote Control (Sold Separately) Built-In Programs: 7 Color Macros: 63 DMX Channel Modes: 6, 7, 8, and 12 Channel Operational Modes: Static Color mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode, and DMX Controlled Dim Curves: Standard, Stage, TV, Architectural, and Theater Effects: LED Pulse and Strobe Electronic Dimming: 0 - 100% |
| Connections | DMX I/O: Data Linkable via 3-Pin or 5-Pin DMX Connections Power: Daisy-Chain Power from powerCON In/Out Connection Wired Digital Communication Network |
| Approvals | ETL, CE |
| Power | Multi-Voltage Operation: 100-240 VAC, 50/60 Hz |
| Dimensions (L x W x H) | 5.3 x 9.8 x 11.7" / 13.6 x 24.9 x 29.7 cm |
| Weight | 8.7 lb / 3.9 kg |
| Packaging Info | |
|---|---|
| Package Weight | 11.39 lb |
| Box Dimensions (LxWxH) | 14.0 x 12.4 x 9.75" |
