Zoom MS-90LP+ MultiStomp Looper Pedal

Serious Looping, Seriously Small

Generate serious loops with the seriously small MS-90LP+ MultiStomp from Zoom, a looper pedal with five dedicated footswitches that let you stomp your way to the ultimate loops, hands free. With eight loop FX and 68 rhythm patterns to choose from, you can create sweet-sounding masterpieces anywhere, all with a few stomps.

Each loop can store up to 90 minutes of audio, with a maximum capacity of 13 hours on the pedal, or 100 loops total. The backlit LCD display shows real-time waveform data for loops and makes navigating menus easy via the four encoders and five footswitches. 3.5mm TRS connectors are provided for MIDI syncing, and all rhythms can be synchronized to the loop tempo for perfectly fitting rhythm patterns. Stereo I/O is provided for processing stereo signals or splitting the output between two destinations. Loops can be imported or exported via USB-C. Finally, the pedal provides ample power options with support for a USB power, an external 9V power adapter, or two AA batteries (power adapter and batteries sold separately).

Simplify your looping with Undo and Stop buttons, no double taps or holds needed. Hold the Stop footswitch to clear your current loop. Access essential controls with the Loop FX and Rhythm switches.

Loop with clear, high-quality sound thanks to the flat phase response of the advanced analog circuitry. With dual A/D converters and 32-bit float technology, you can add endless layers without losing sound quality.

Add some flavor to your loops with the eight LOOP FX, including Reverse, Half Speed, Hold, and Tape Stop.

The LCD display's real-time waveform lets you know where you are in your loop. Screen colors indicate recording, playback, or using loop FX. The backlit LCD display is easy to see in most lighting situations.

The quantize feature keeps loops perfectly in time with the rhythm by automatically aligning their start and end points to the set tempo. This helps ensure all loops stay rhythmically in sync.

The MS-90LP+ offers 68 rhythm patterns in a variety of styles. Using the Rhythm Sync function, you can start and stop the rhythm and loops together.

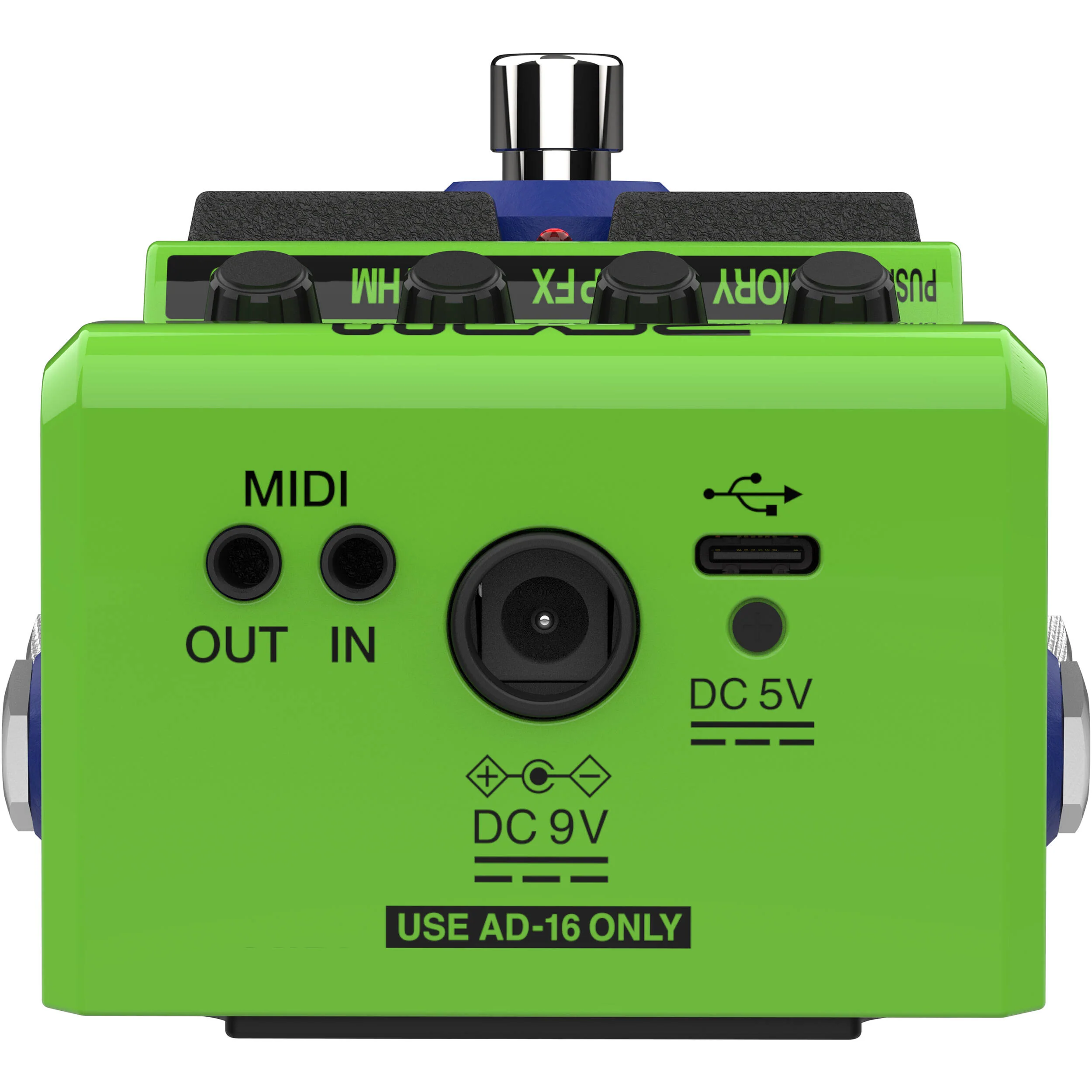

Using MIDI you can trigger memory changes with external devices. Keep the band perfectly in time by syncing the drummer's metronome to the looper via 3.5mm TRS MIDI. USB-C also can be used for MIDI functionality, as well as to import and export loops, song ideas, and backing tracks for solo or band performances.

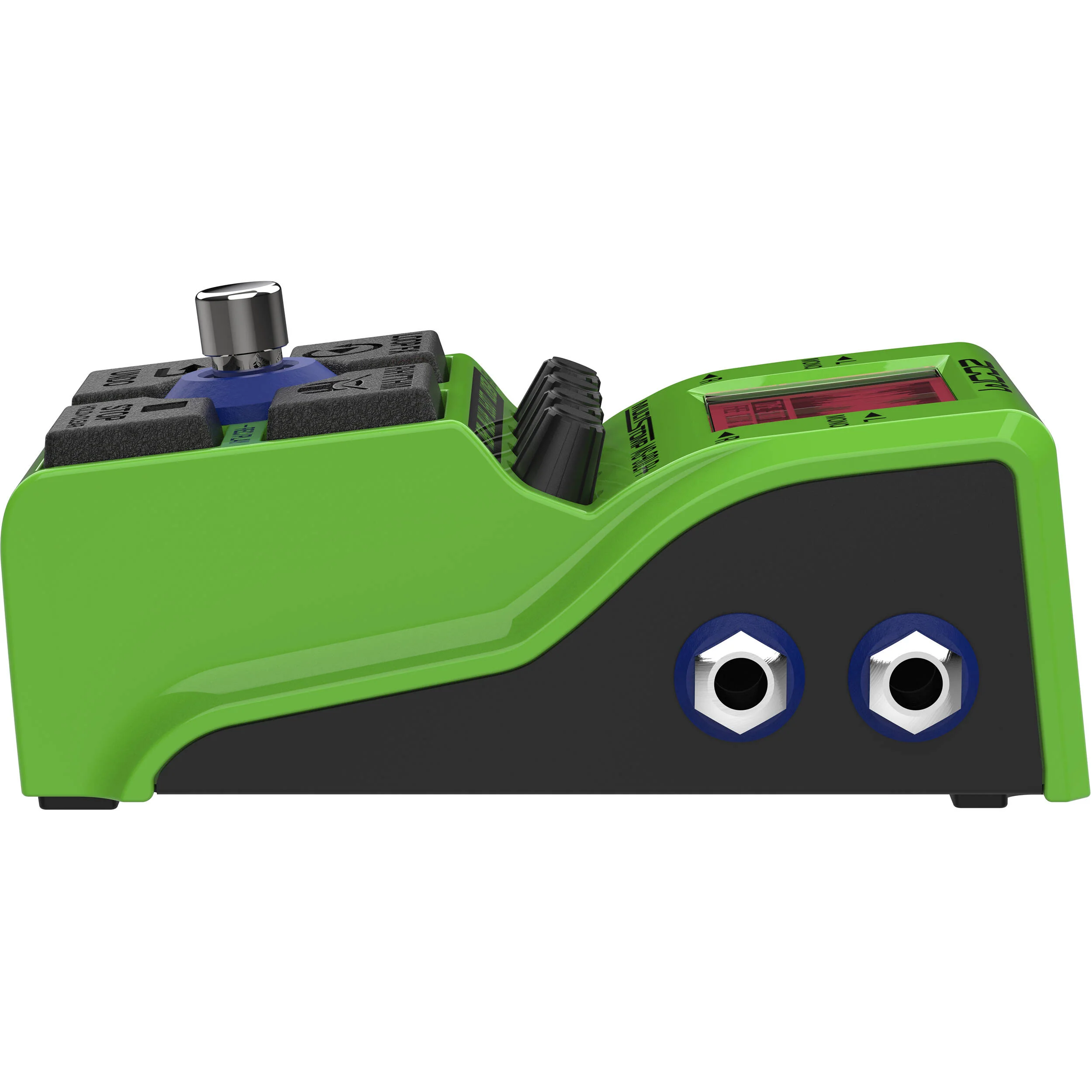

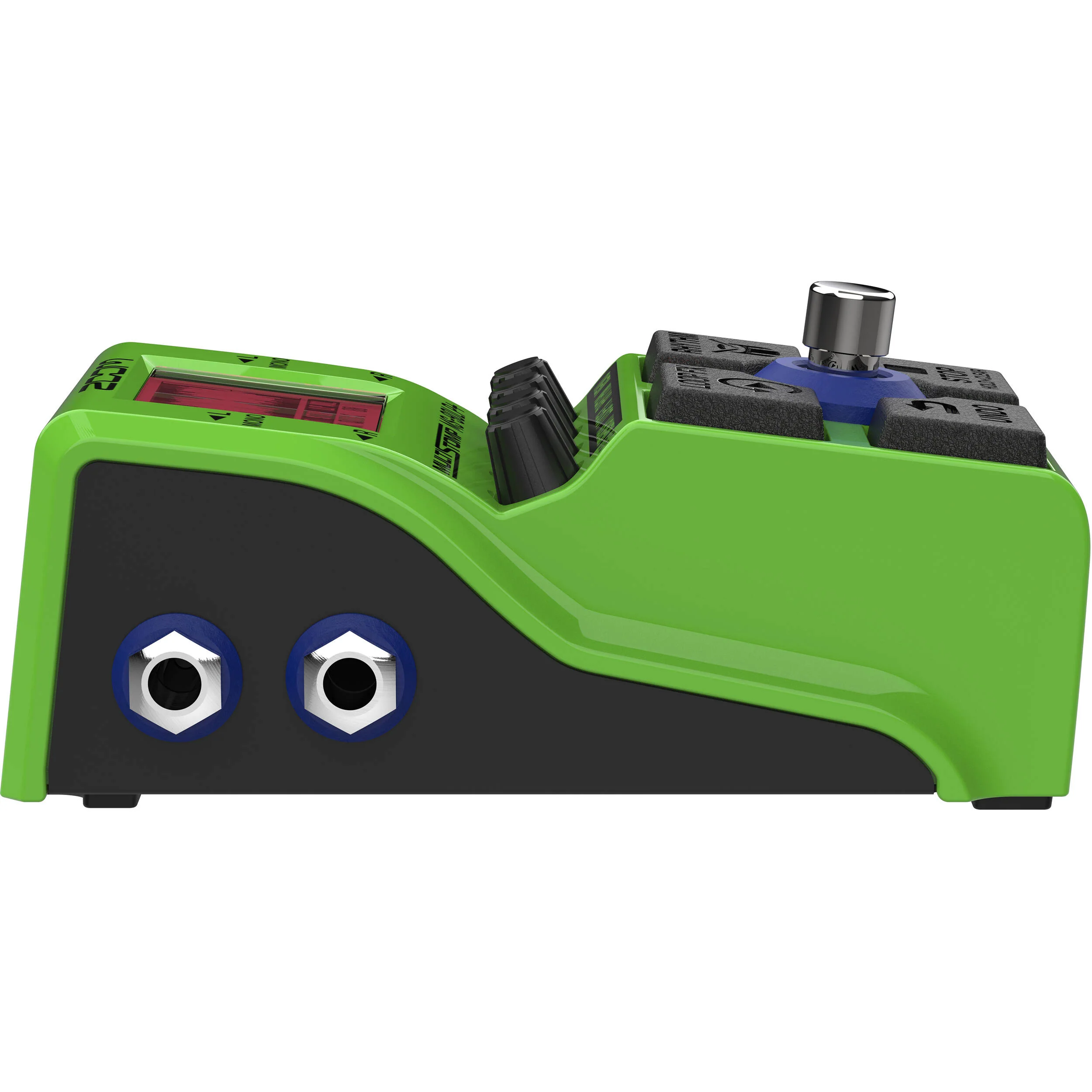

Stereo inputs and outputs allow you to connect not just guitars and basses, but also synthesizers, samplers, and keyboards. When playing live, send loops from the left output to your amp, and send rhythm tracks from the right output to the PA using the Output Split.

Zoom MS-90LP+ Specs

Audio Circuit Type	Digital
Sampling Rate	44.1 kHz
DSP	32-Bit Floating Point
Frequency Response	20 Hz to 20 kHz (±0.5 dB)
Signal-to-Noise Ratio	122 dB
Noise Floor	-100 dBu
Maximum Input Level	-20 dBu
Maximum Output Level	+7.2 dBu
Controls	4 x Encoder (Memory, Loop FX, Rhythm, Menu) 5 x Footswitch (Loop FX, Rhythm, Undo, Stop, On/Bypass)

Panel Type	LCD
Native Resolution	160 x 128
Touchscreen	No

USB I/O	1 x USB-C 2.0 Female Input/Output
Audio I/O	2x 1/4" TS Hi-Z/Instrument Input (1 Stereo Pair) 1x 1/8" / 3.5 mm TRS MIDI Input 2x 1/4" TS Hi-Z/Instrument Output (1 Stereo Pair) 1x 1/8" / 3.5 mm TRS MIDI Output

Power Source	AC Adapter with Power Brick (Not Included), USB, Battery (Not Included)
Battery Type	2x AA
DC Input Power	9 VDC at 500 mA

Color	Green
Material of Construction	Metal
Dimensions	5.2 x 3.1 x 2.4" / 13.3 x 7.9 x 6.1 cm (D x W x H)

Package Weight	1.01 lb
Box Dimensions (LxWxH)	6.3 x 4.2 x 2.7"
