Zacuto Kameleon Pro Overview

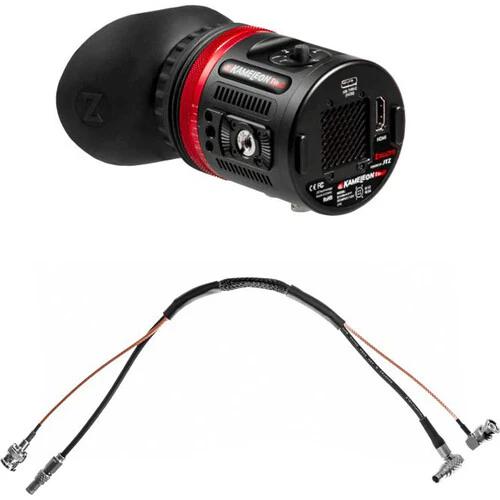

This Kameleon Pro EVF & Cable Kit from Zacuto combines an HD-resolution electronic viewfinder with a combination LEMO/BNC power/video cable. Compatible with the RED DIGITAL CINEMA RAPTOR and RAPTOR XL cameras, this viewfinder supports 4K over HDMI and 1080p60 over SDI via a BNC connector features four user-assignable buttons. Read more below about the items in this kit.
The micro-OLED Kameleon Pro EVF from Zacuto updates the original Kameleon with both waveform and vectorscope functions and a new display interface. Designed to carry you through all of your rig upgrades, the Kameleon Pro is compatible with DSLRs, mirrorless, and cine-style cameras. Co-designed with JTZ, this 1920 x 1080 resolution EVF supports up to DCI 4K input via HDMI and up to 1080p60 via SDI (BNC).
The Kameleon Pro EVF features a 10,000:1 contrast ratio, 3D LUT support, joystick control, 4-pin LEMO power input, and four user-assignable buttons. Use the built-in S-Log2, S-Log3, C-Log, and V-Log presets, or import your preferred 3D LUT via the USB Type-C input port. Imaging tools include histogram, red peaking, three levels of edge enhancement peaking, false color, anamorphic de-squeezing, and SMPTE color bars. An auto-closing rubber eyecup helps prevent burn-in, and Zacuto's patented anti-fog technology keeps your view clear in humid or cold environments. The Kameleon Pro EVF's built-in -1 to +4 diopter enables you to get a comfortable view without your eyeglasses, and for greater vision correction, four stronger diopters are available separately.
Additional Kameleon Pro EVF features include both 1:1 and 4:1 zoom ratios, selectable frame lines, freeze frame, a cooling fan, and audio meters. Two ARRI-compatible rosettes with 1/4"-20 threading enable you to mount the Kameleon Pro with either side up as you prefer.
- 0.71", 1920 x 1080 micro-OLED display with 10,000:1 contrast ratio
- Waveform, vectorscope, and histogram
- 3G-SDI, HDMI Type A, and USB Type-C connections
- Updated display interface
- Displays resolutions up to 1080p and frame rates up to 60 fps
- Supports up to DCI 4K video via HDMI and up to 1080p via BNC
- Patented Zacuto anti-fog technology
- Compatible with mirrorless, DSLR, and cine-style cameras
- Auto-closing rubber eyecup protects against burn-in
- Four user-assignable buttons
- 3D LUT import plus built-in S-Log2, S-Log3, C-Log, and V-Log
- Custom scaling/user presets
- Joystick and four programmable hotkeys
- Frame lines
- 1:1 and 4:1 zoom
- RGB, saturation, brightness, and contrast adjustments
- Audio meters
- 3D LUT import
- Peaking (red)
- Three levels of edge enhancement peaking
- False color
- SMPTE color bars
- Built-in LUTs: S-Log2, S-Log3, Log3, V-Log
- Upload additional LUTs via USB Type-C connector
- Two ARRI-type rosettes with 1/4"-20 threading and one additional 1/4"-20 mounting thread
- Adjustable diopter range from -1 to +4
- Joystick menu/function button
- Removable rubber eyepiece light trap
- Fan-cooled design
Compatible with the Kameleon Pro EVF, the 24" 2-Pin to 4-Pin LEMO & SDI Cable from Zacuto combines two cables into one with sheathing that binds them together neatly. Designed to provide both power and video signals to the Kameleon Pro EVF when used with a RED V-RAPTOR or V-RAPTOR XL camera, this cable has 2-pin LEMO-type and SDI (BNC) connectors on one end and 4-pin LEMO-type and SDI (BNC) connectors on the other.
In the Box
- Zacuto Kameleon EVF Pro
- Limited 1-Year Manufacturer Warranty
- Zacuto 2-Pin to 4-Pin LEMO & SDI Cable for Kameleon Pro EVF (24")
- Limited 1-Year Manufacturer Warranty
Zacuto Kameleon EVF Pro Specs
| Color/Monochrome | Color |
| Panel Type | OLED |
| Display Size | 0.71" / 1.8 cm |
| Screen Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | No |
| Contrast Ratio | 10,000:1 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Pixels Per Inch (ppi) | 3103 ppi |
| Image Controls | Anamorphic De-Squeeze, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Scaling, Screen Markers, Vectorscope, Waveform, Zebra |
| Video I/O | 1 x HDMI Input 1 x BNC (3G-SDI) Input |
| Video Format | HDMI DCI 4K UHD 4K 1080p 1080i 720p SDI 1080p 1080i 720p |
| Embedded Audio | HDMI SDI |
| Power I/O | 1 x LEMO 0B 4-Pin (20 VDC) Input |
| Other I/O | 1 x USB-C |
| Diopter Correction | -1.0 to +4.0 |
| DC Input Power | 7 to 20 VDC |
| Power Consumption | 5 W |
| Mounting | 1 x 1/4"-20 Female 2 x Rosette with 1/4"-20 Female |
| Dimensions | 4.9 x 2.75 x 2.83" / 12.4 x 6.99 x 7.19 cm, Including |
| Weight | 15 oz / 0.43 kg, Including |
| Package Weight | 1.45 lb |
| Box Dimensions (LxWxH) | 7.25 x 4.5 x 3.75" |
Zacuto 2-Pin to 4-Pin LEMO & SDI Cable for Kameleon Pro EVF (24") Specs
| Compatibility | Zacuto Kameleon Pro EVF RED DIGITAL CINEMA V-RAPTOR RED DIGITAL CINEMA V-RAPTOR XL |
| Connector 1 | 1 x 2-Pin LEMO 1 x SDI (BNC) |
| Connector 2 | 1 x 4-Pin LEMO 1 x SDI (BNC) |
| Color | Black |
| Cable Length | 24" / 61 cm |
| Package Weight | 0.185 lb |
| Box Dimensions (LxWxH) | 6.75 x 4.7 x 1.1" |
