Accsoon CineView HE Overview
- 1Description
- 2Wireless Transmission
- 3Video Input/Output
- 4Design

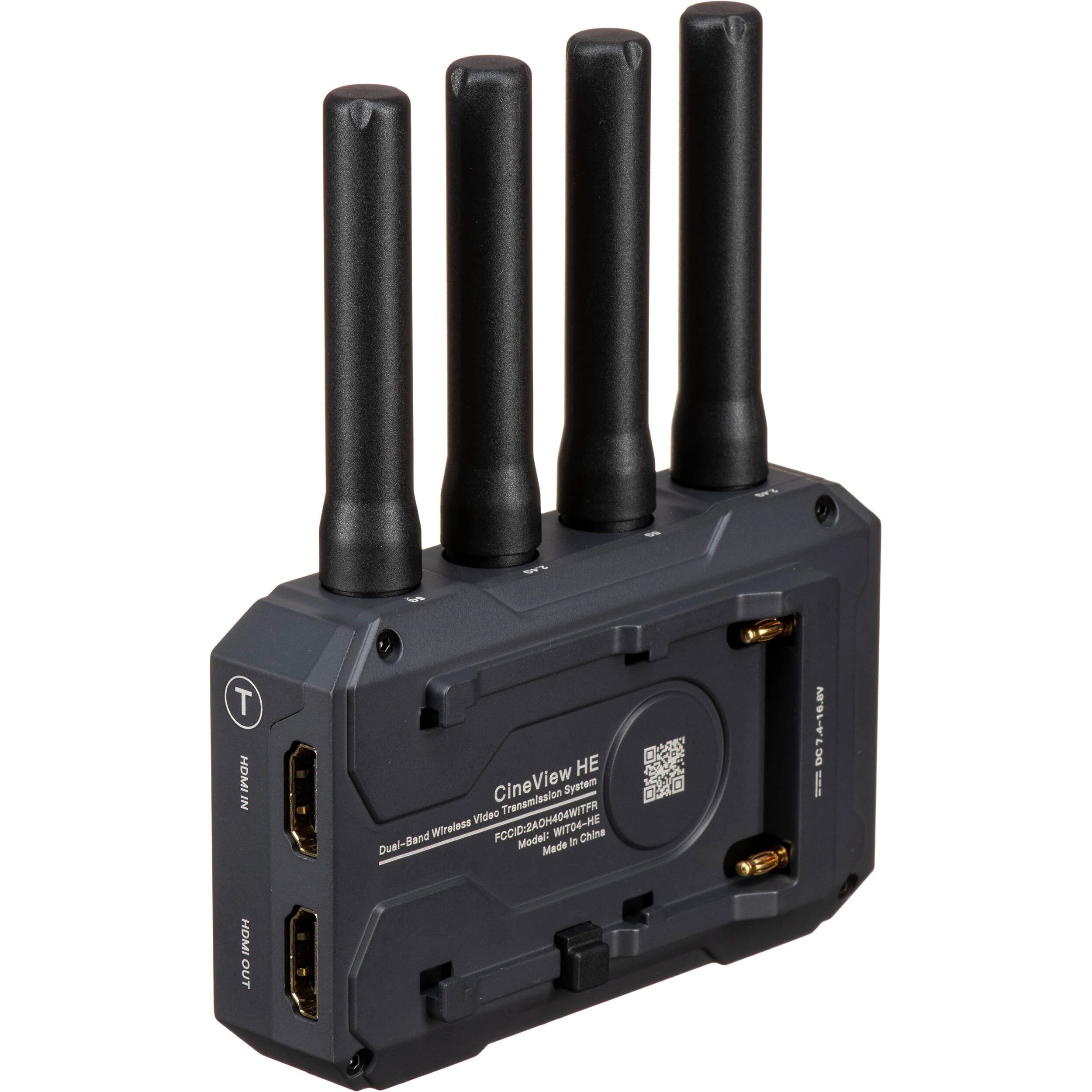

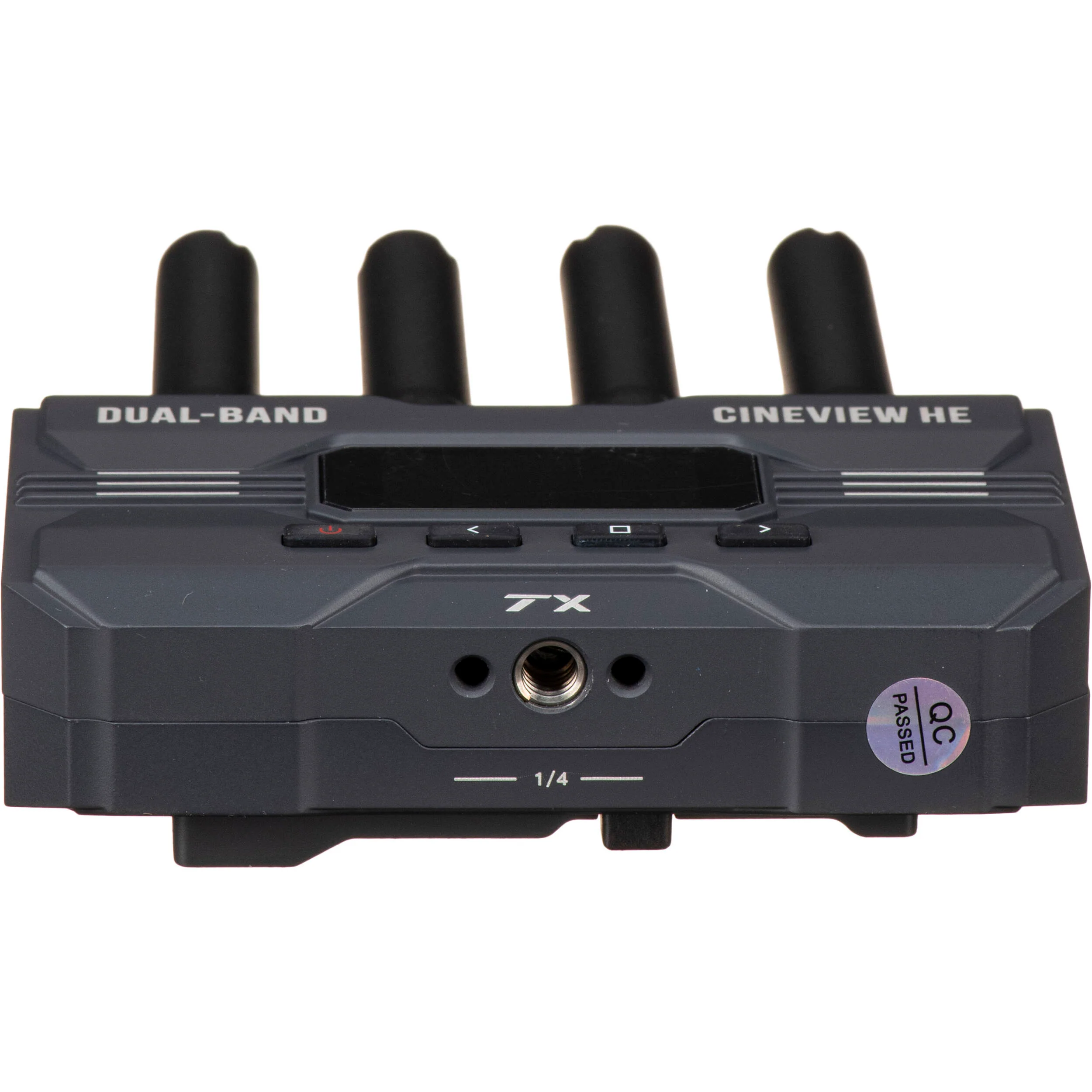

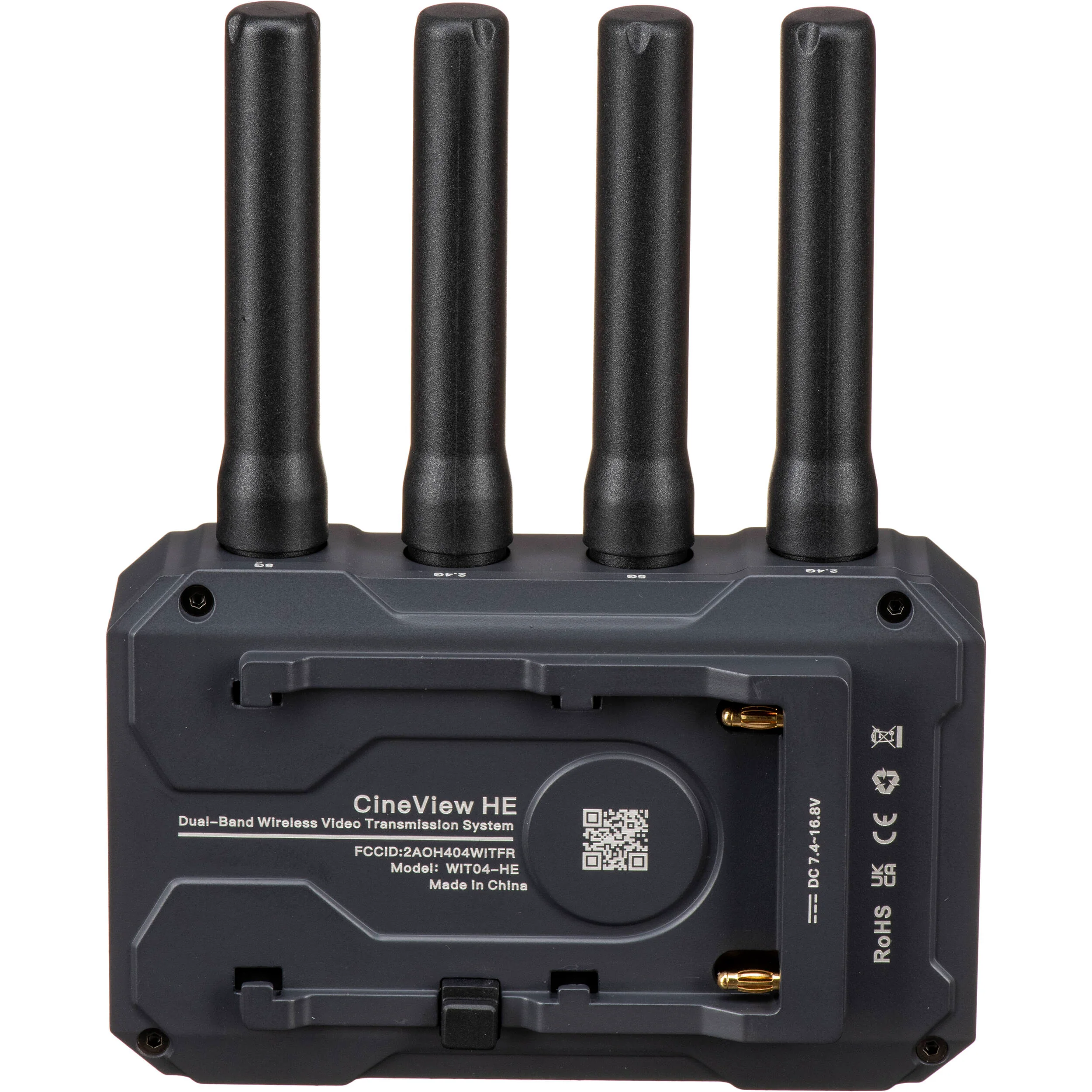

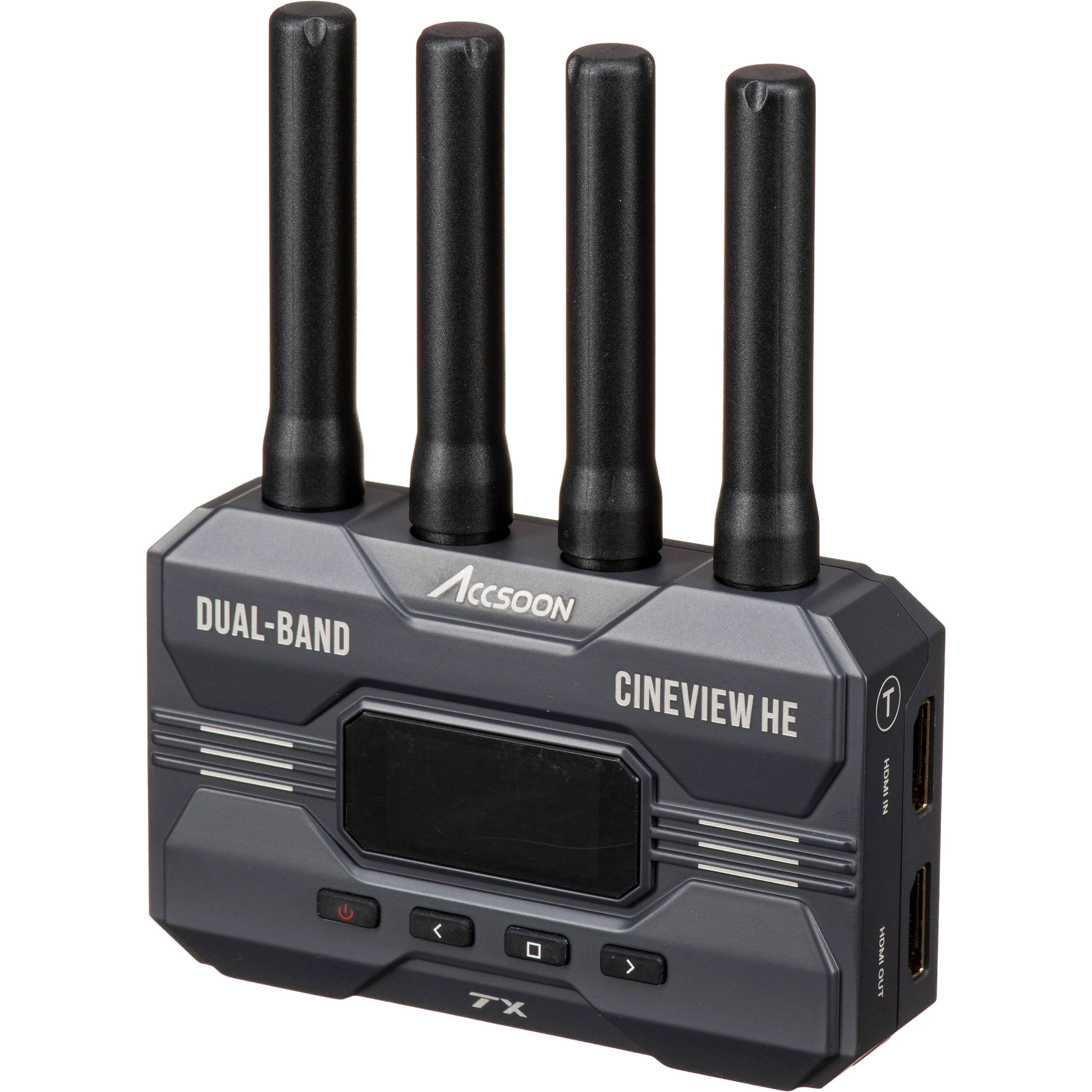

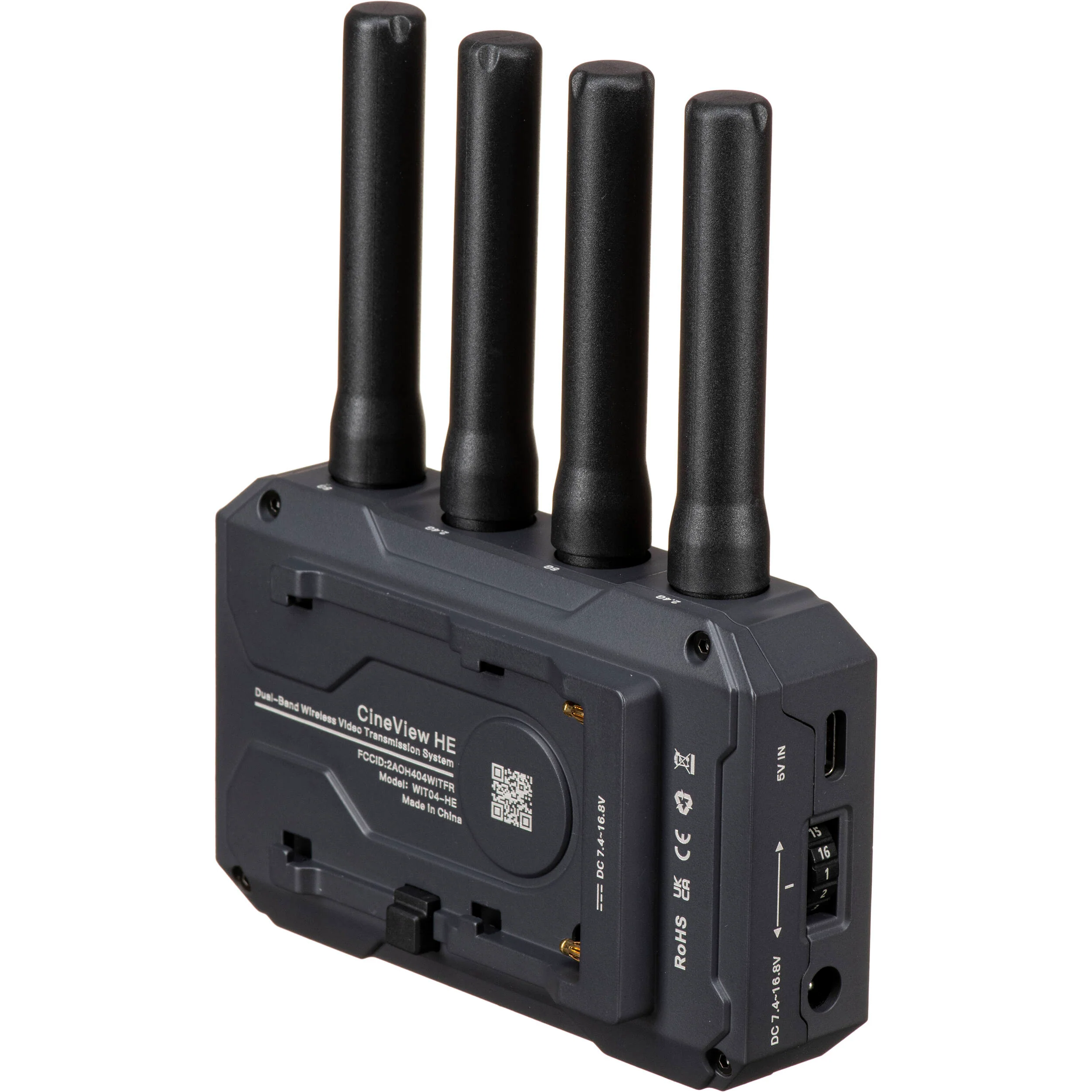

Add a transmitter to your CineView HE transmission system with this CineView HE Multi-Spectrum Wireless Video Transmitter from Accsoon. This transmitter can be added to an existing system and can transmit a 1080p60 camera signal to a separately available receiver plus up to three mobile devices. The transmitter can send signal to a total of four devices simultaneously over distances up to 1200' with only a 60ms delay. You can transmit to any mix of up to four receivers and iOS/Android smartphones and tablets using dual-band wireless signals.
The transmitter is easy to set up and pair, and it features an HDMI input and an HDMI output to a local monitor. The free-to-download companion app provides image tools such as peaking, zebras, false color for exposure, and .cube 3D LUT overlay. The transmitter features DC and USB-C power inputs, and it also supports an optional L-series battery that can power the unit for up to 12 hours.
In the Box
- Accsoon CineView HE Multi-Spectrum Wireless Video Transmitter
- Shoe Mount
Not in the Box
- Essential Transmitters & Receivers (Not Included)
- Description
- Wireless Transmission
- Video Input/Output
- Design
Accsoon CineView HE Specs
| Antenna I/O | 4 x RP-SMA Female |
| Video I/O | 1 x HDMI Input 1 x HDMI Loop Output |
| Embedded Audio | HDMI |
| Audio I/O | None |
| Power I/O | 1 x Barrel (16.8 VDC) Input 1 x USB-C (2 A / 5 VDC) Input |
| Wireless Range | 1200' / 365.8Â m |
| # of Channels | 20 |
| Frequency Range | 2412 to 2472 MHz 5180 to 5580 MHz 5660 to 5825 MHz |
| Latency | < 60 ms |
| RF Power | 17 dBm |
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Bluetooth | None |
| Mobile App Compatible | Yes *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Video Format | HDMI/Wireless 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p |
| Timecode Support | No |
| DC Input Power | 7.4 to 16.8 VDC |
| Battery Type | 1 x L-Series |
| Mounting | 1 x 1/4"-20 Female 1 x Cold Shoe |
| IP Rating | None |
| Material of Construction | Aluminum |
| Dimensions | 4.9 x 3 x 1.2" / 12.5 x 7.7 x 3.1Â cm |
| Weight | 8.1Â oz / 230Â g |
| Package Weight | 0.99 lb |
| Box Dimensions (LxWxH) | 6.3 x 4 x 2.6" |
Accsoon CineView HE Reviews
