$7,836.76The Story

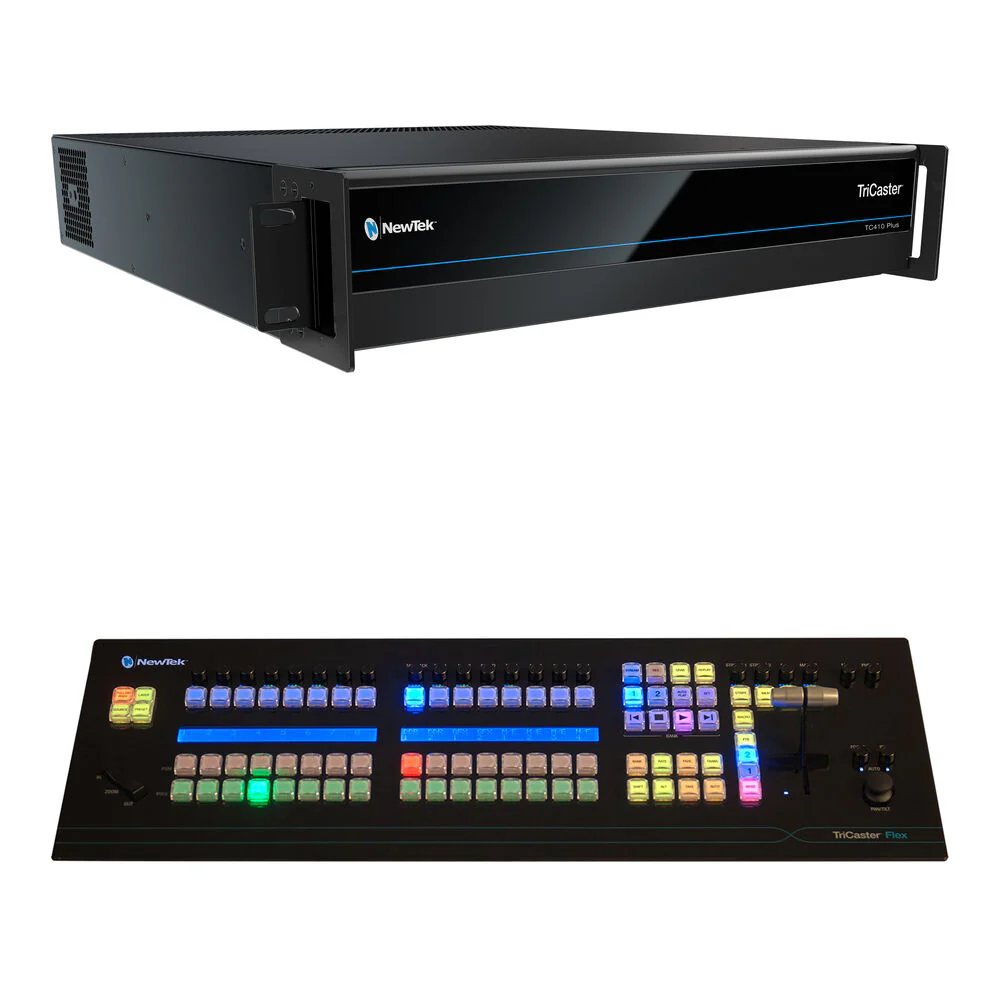

The Vizrt TriCaster TC410 Plus and Flex Control Panel Kit from outfits you with a TC410 production switcher and a Flex Control Panel unit to achieve a comprehensive live production ecosystem. The production switcher can switch between 4 HD-SDI or 8 NDI sources up to 1080p59.94. The control panel can accommodate video and audio mixing with a full-sized control interface.

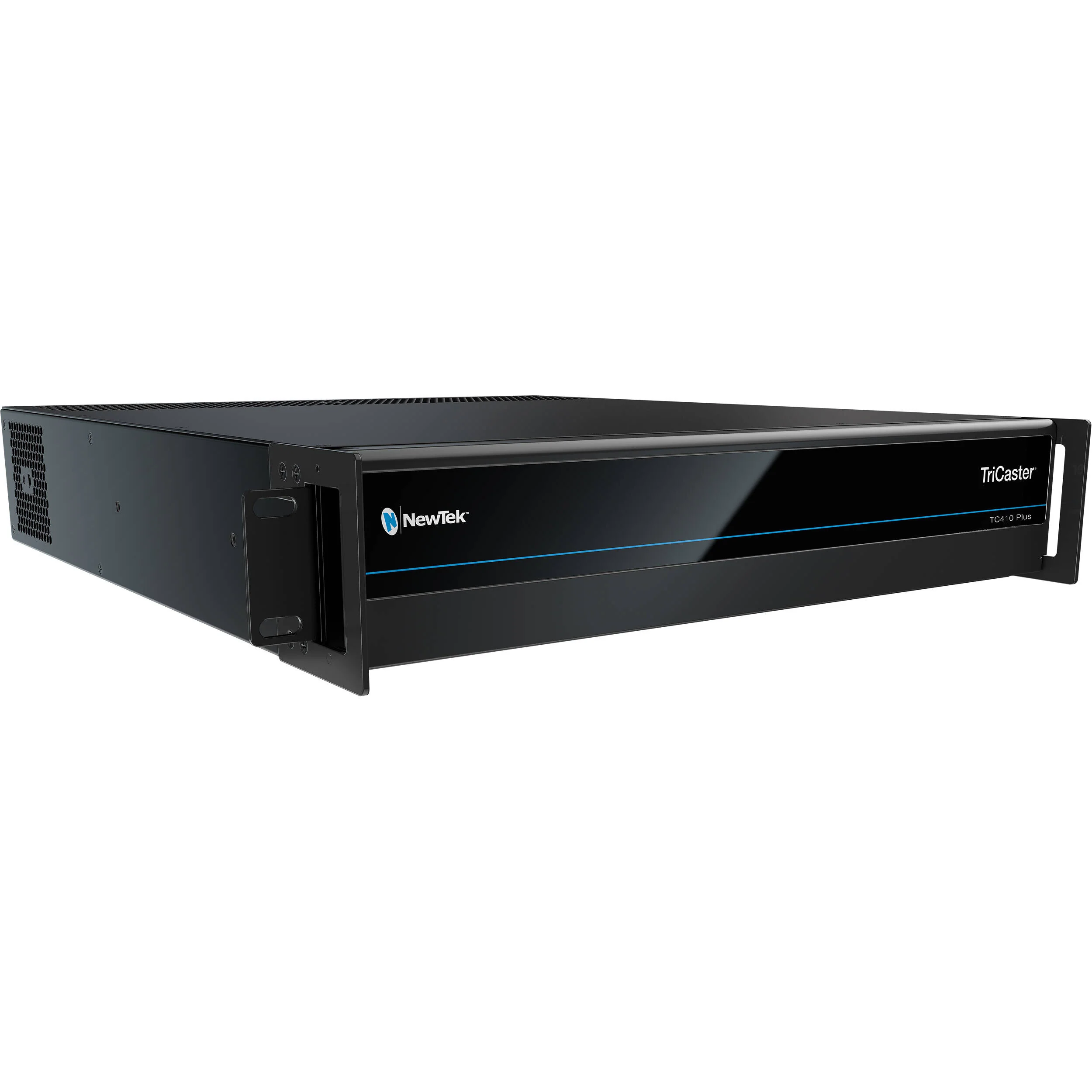

Simultaneously broadcast, stream, and record live productions from virtually anywhere with the TriCaster TC410 Plus from Vizrt. This compact, all-in-one eight-input switcher lets you easily switch between four HD/SD-SDI or eight NDI video sources, mix audio, add graphics and titles, and add advanced effects such as virtual sets and animated transitions. Featuring an intuitive and full-featured control software, the TriCaster TC410 Plus is suited for both new users and seasoned professionals.
In addition to the four HD/SD-SDI inputs, you can choose from eight NDI devices on the network, including computers, PTZ cameras, or even wireless capture devices. Two HD/SD-SDI outputs, four NDI IP video mix outputs, and two independent IP live streams are supported for sending the program output with audio to external devices and services. The SDI, NDI, and streaming formats support up to 1080p59.94 resolutions, and the TC410 Plus also supports four-channel audio mixing.
The TriCaster TC410 Plus features 3TB of internal storage and also supports recording to external storage via USB 3.0. The comprehensive switcher also supports live streaming to multiple platforms and services simultaneously. An optional control panel can also be incorporated for traditional tactile control with a T-bar and illuminated buttons.

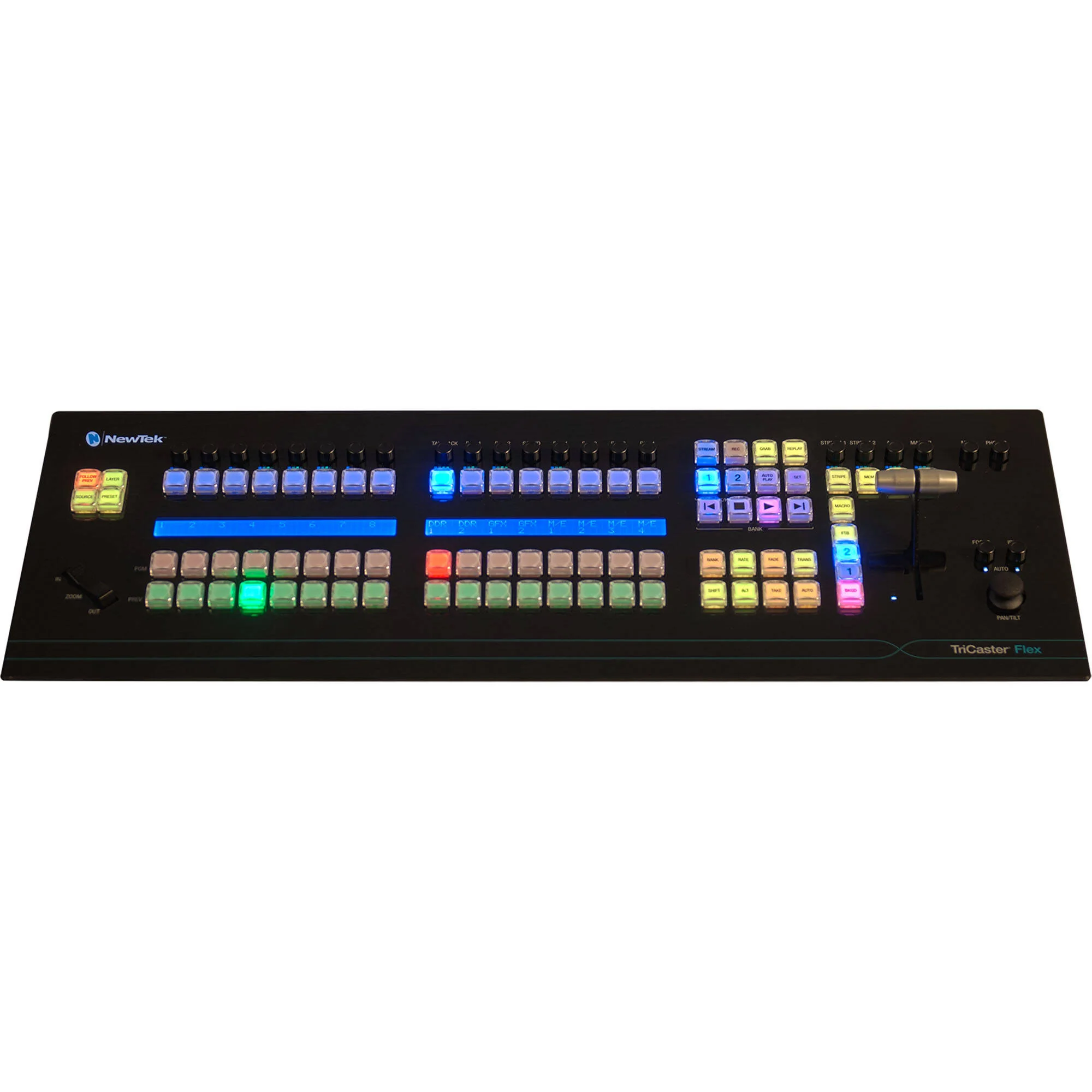

Use this NewTek Flex Control Panel in tandem with your preexisting TriCaster system to mix audio and video, control PTZ cameras, expand your audio inputs and outputs, incorporate NDI connectivity, and facilitate talkback communication in your studio space with a single panel. Tactile manual control buttons, a T-bar, and display LCD screens for labelling offer an intuitive control experience.
Two pairs of 1/4" stereo audio inputs and two pairs of 1/4" stereo audio outputs on the back of the panel expand your audio ecosystem. An RJ45 Ethernet port facilitates NDI connection. Talkback and microphone inputs and a headphone output port allow you to communicate between your camera operators and talent.
- Intuitive layout mapped to the Video Mix Engine user interface
- IP-based connectivity with support for multi-engine control over the network
- Responsive multi-bus operation with independently assignable control stripes
- Practical lighting, variable T-bar illumination, and dynamic LCD label displays
- Precision controls for expert handing of real-time video operations
- 16 direct crosspoints with bank and stripe functions
- Row lighting color follows delegated UI
- 2 x 40 character, two row LCD screens
- PTZ control delegation and zoom rocker
- Mini joystick for pan/tilt control, focus/iris control with auto function
- 12 fader controls for audio inputs/outputs, talkback, DDR 1-2, sound, record 1-4
- Four fader controls for stream 1 and 2, aux and master out, mic and headphone level
- Media players and macro control
- Stream, capture, and reply
- Transitions and T-bar
NewTek TriCaster 1 Pro
NewTek TriCaster TC1
NewTek TriCaster 410 Plus
NewTek TriCaster Mini 4K
NewTek TriCaster Mini X
Items Included
- Vizrt TriCaster TC410 Plus
- Rack Ears
- Mouse
- Keyboard
- Limited 1-Year Manufacturer Warranty
- Vizrt Flex Control Panel for TriCaster Devices
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Vizrt TC410 Plus Specs
| Compatibility |
NewTek TriCaster 2 Elite / TriCaster 1 Pro / TriCaster TC1 / TriCaster 410 Plus / TriCaster Mini 4K / TriCaster Mini X
|
| USB I/O |
2 x USB-A 2.0 Female Input
|
| Video I/O |
1x RJ45 Input/Output
|
| Audio I/O |
2x 1/4" Mic Input
1x 1/4" Headphone Output 4x 1/4" Line Input 4x 1/4" Line Input |
| Power Source |
PoE
|
| Color |
Black
|
| Dimensions |
25 x 9.1 x 3.8" / 63.5 x 23.1 x 9.7Â cm
|
| Package Weight |
14.5 lb
|
| Box Dimensions (LxWxH) |
29.6 x 16 x 8.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
