Vishay MAL215947151E3 MAL215947151E3 Electrolytic Capacitor Snap-in 150 µF 450 V ± 20% Quick Connect Snap-In 5000 Hours @ 105°C

The MAL215947151E3 is a power ultra long life snap-in keypad polarized Aluminium Electrolytic Capacitor feature non-solid electrolyte. The 159 PUL-SI series electrolytic capacitor provides low ESR and high ripple current capability. In general, aluminium capacitor is the most suitable capacitor for addressing requirements such as low and high frequency filtering and energy storage, which demand high capacitance values and power ratings. The device offers high CU/(unit cost) ratios, is small compared with other technologies and is relatively insensitive to voltage spikes. An electrochemically etched aluminium anode foil forms the first plate of the capacitor. An oxide layer on the etched aluminium foil that forms the dielectric. A paper spacer impregnated with fluid electrolyte in contact with the oxide layer to form the second plate of the capacitor. A second foil that forms the other contact with the fluid electrolyte.

• Cylindrical case with pressure relief
• Insulated with a blue sleeve
• High reliability
• Input buffer provides energy when mains input voltage is too low
• Input buffer stores energy while AC/DC converter, e.g. PFC controller, adapts to a new power level
• Input buffer prevents HF switching noise from the DC/DC converter reaching power source
• Output buffer - Current sink for inductor (current to voltage conversion), filtering
• Output buffer - Buffer energy while DC/DC converter adapts to changed power output

Applications

Power Management, Industrial, Audio

Other details

Brand	VISHAY
Part Number	MAL215947151E3
Quantity	Each
Technical Data Sheet EN

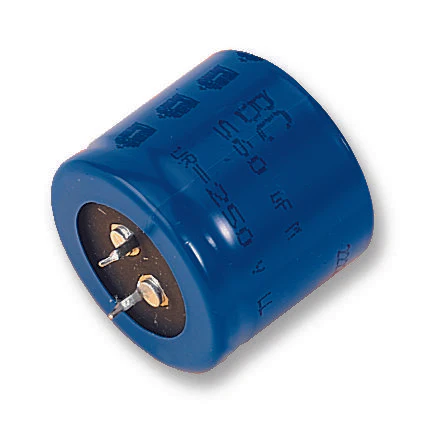

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
