Venus Optics Laowa 12mm T2.9 Lite Zero-D VV Overview

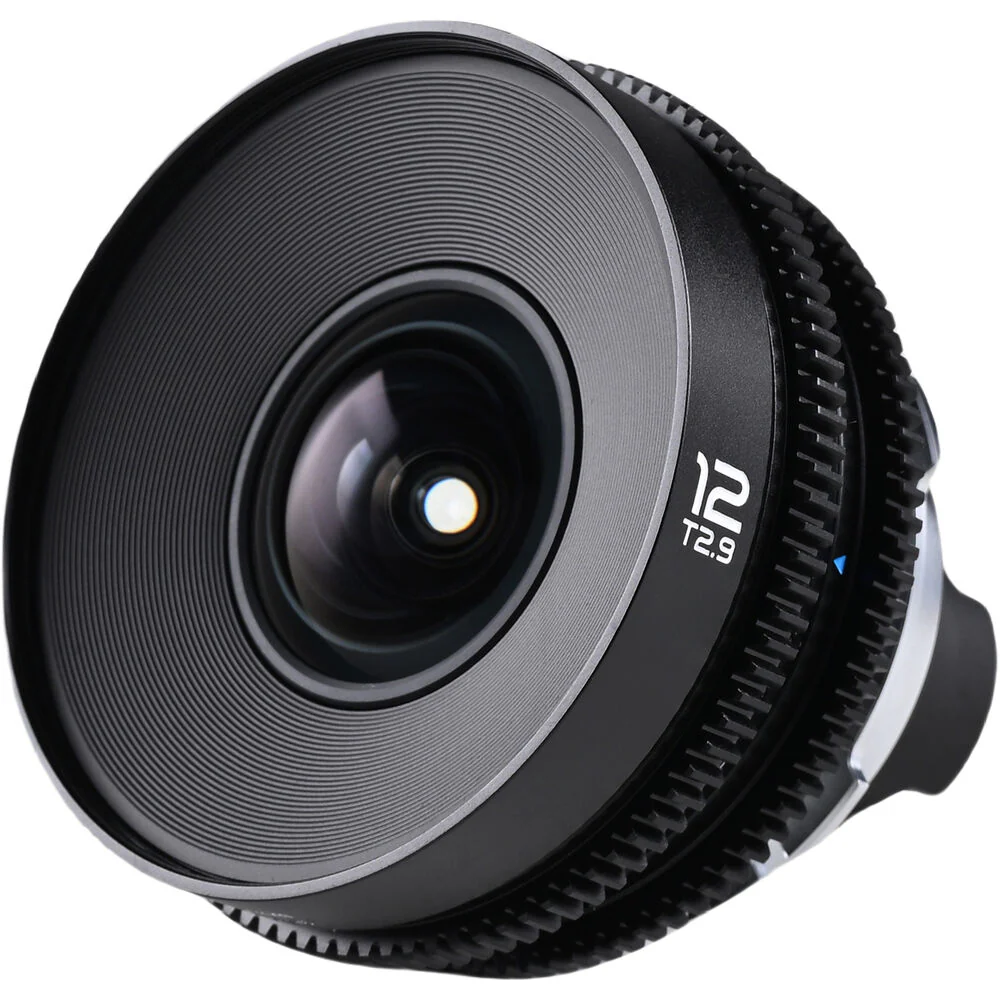

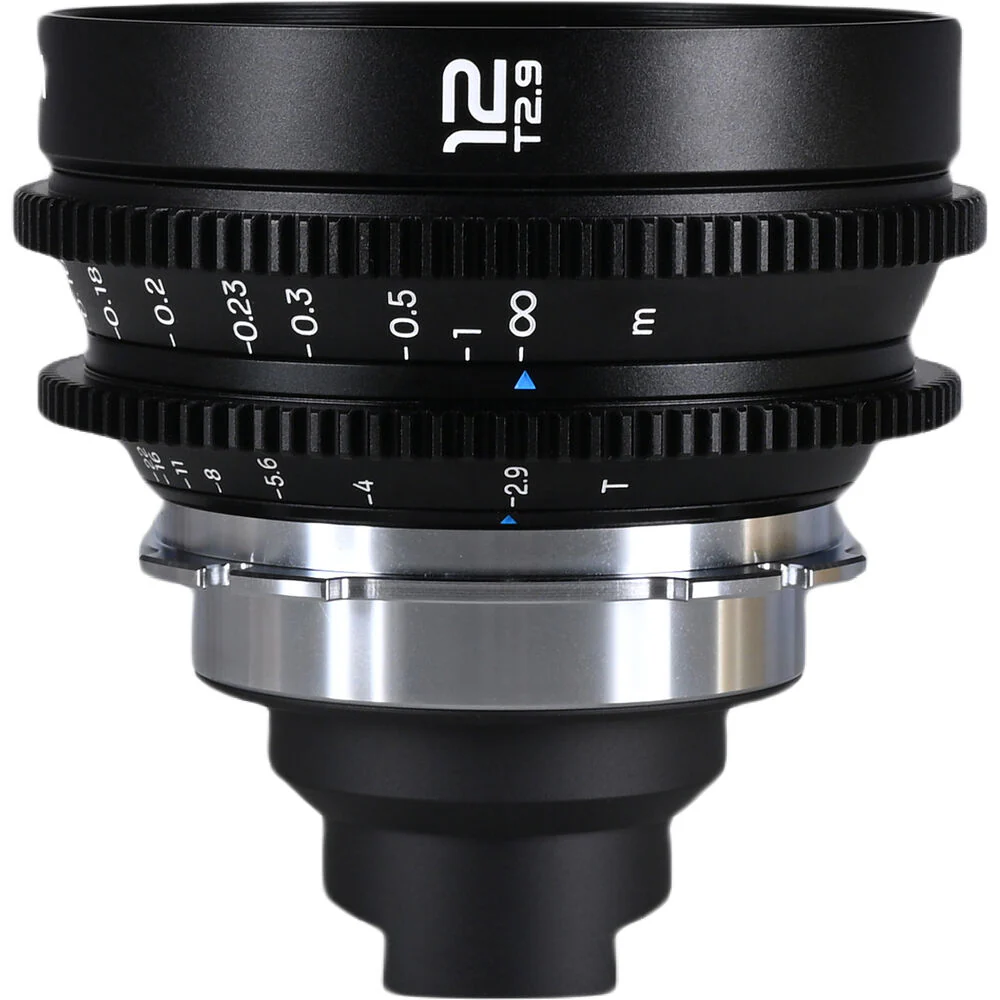

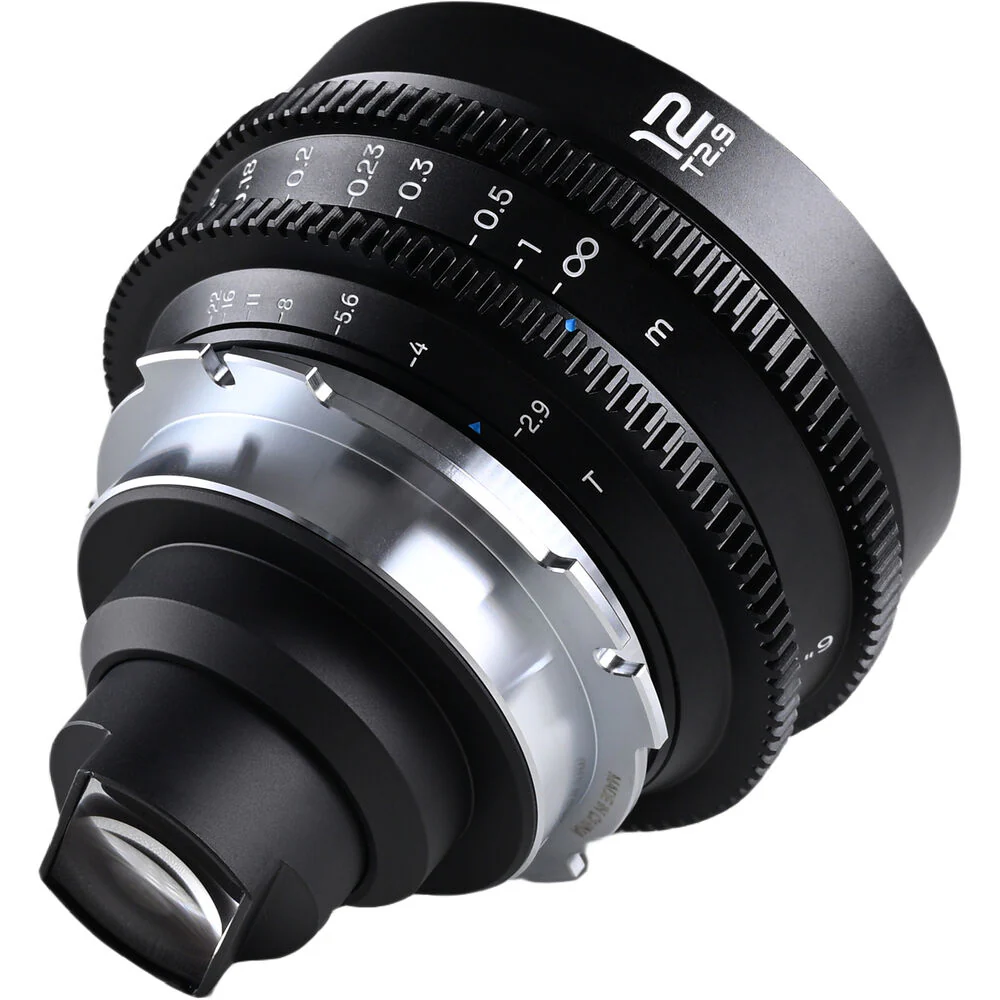

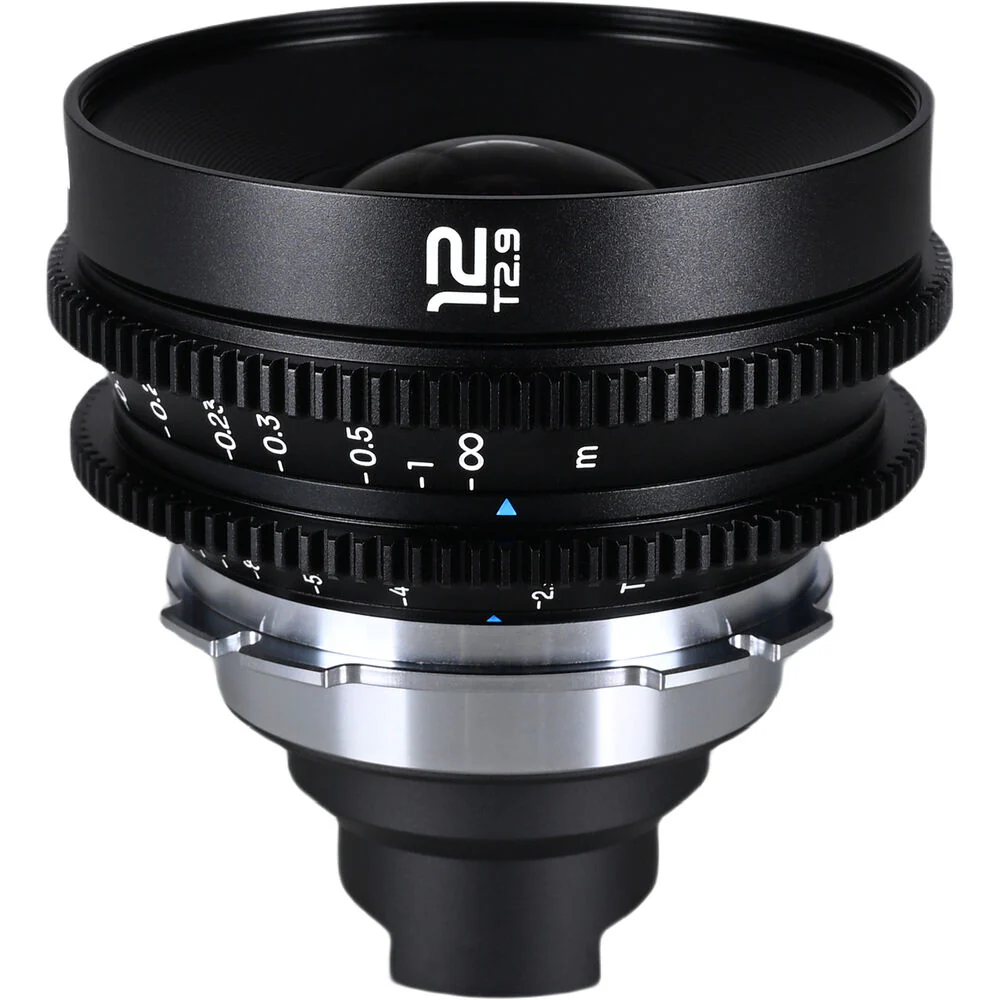

Capture wide-angle shots using a gimbal, drone, or handheld camera rig with the Laowa 12mm T2.9 Lite Zero-D VV Cine Lens from Venus Optics. The 12mm lens can be used with ARRI PL mount cameras sporting full-frame or VistaVision image sensors, making it compatible with the RED RAPTOR 8K VV and the ARRI ALEXA LF Open Gate cine cameras. This version features a mirrorless design for a more compact form factor that can be used with gimbal cameras like the Ronin 4D. The lens construction consists of 16 elements in 9 groups, a 14-blade aperture, and an aperture range of T2.9 to T22.
Its compact focal length and 122? FOV ensure you don't miss any of the action. A Zero-D design consisting of low-distortion optics helps create precise framing. Close-focusing capabilities allow you to zero in on objects 5.5" away with ease. An 80mm front outside diameter and a 77mm filter thread integrate compatible lens accessories. A shim set is included for calibration, and a hard case protects and transports the lens.
- Covers full-frame and VistaVision image sensors
- 122? FOV, 5.5" minimum focus distance
- 16 elements in 9 groups, 14-blade aperture
- 77mm filter thread, 80mm front outside diameter
Items Included
- Venus Optics Laowa 12mm T2.9 Lite Zero-D VV Cine Lens (ARRI PL)
- Shim Set
- Hard Case
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Venus Optics Laowa 12mm T2.9 Lite Zero-D VV Specs
| Focal Length |
12mm
|
| Maximum Aperture |
T2.9
|
| Lens Mount |
ARRI PL
|
| Lens Format Coverage |
VistaVision (43.2 mm Image Circle)
|
| Filter Thread |
77 mm
|
| Image Stabilization |
No
|
| Electronic Communication |
No
|
| Maximum Aperture |
T2.9
|
| Minimum Aperture |
T22
|
| Lens Mount |
ARRI PL
|
| Lens Format Coverage |
VistaVision (43.2 mm Image Circle)
|
| Angle of View |
Full Frame
Horizontal: 122? |
| Focus Scales |
Metric, Imperial
|
| Optical Design |
16 Elements in 9 Groups
|
| Filter Thread |
77 mm
|
| Minimum Focus Distance |
5.5" / 14Â cm
|
| Magnification |
1:4.76 Macro Reproduction Ratio
0.21x Magnification |
| Aperture/Iris Blades |
14
|
| Image Stabilization |
No
|
| Lens Mounting |
No
|
| Gear Rotation |
Focus: 100?
Iris: 67.5? |
| Electronic Communication |
No
|
| Diameter |
Front: 3.1" / 80Â mm
|
| Length |
1.9" / 47.5Â mm
|
| Weight |
16.2Â oz / 458Â g
|
| Package Weight |
3.825 lb
|
| Box Dimensions (LxWxH) |
9.9 x 8 x 6.4"
|
