$292.52
Original: $975.06

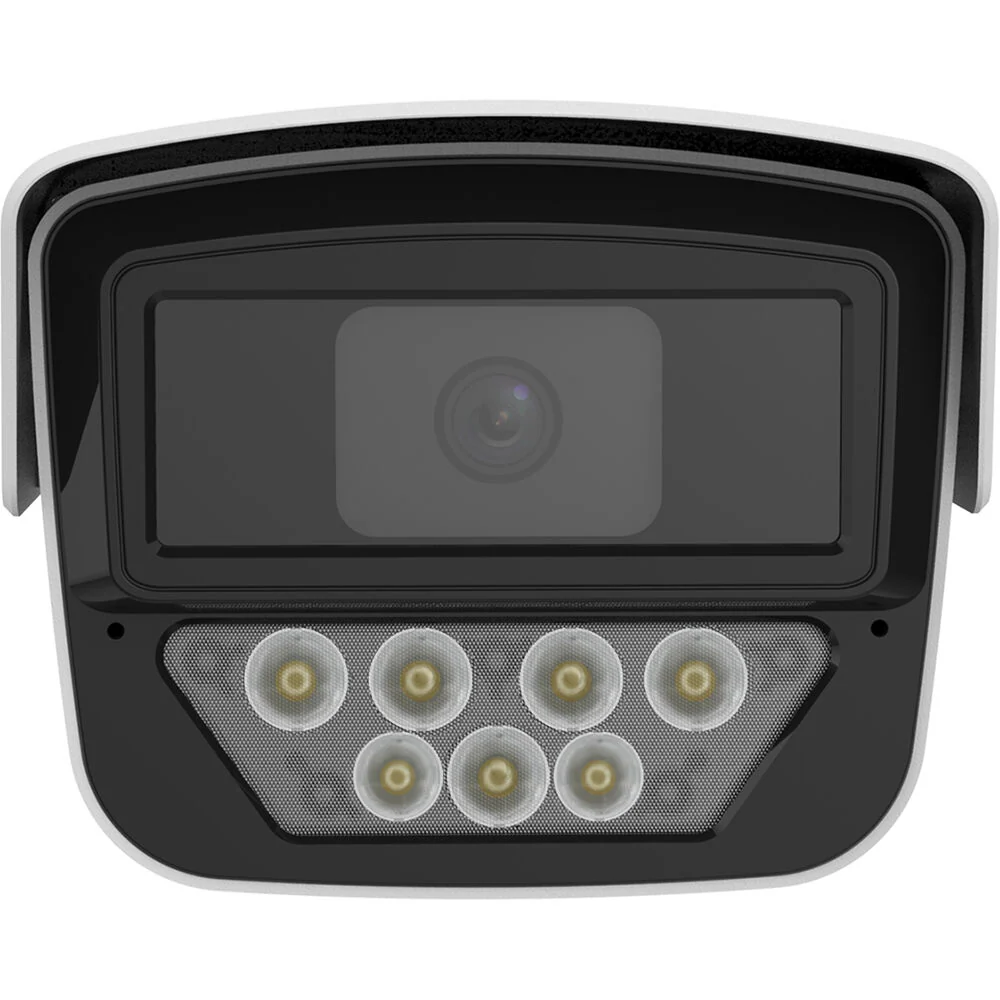

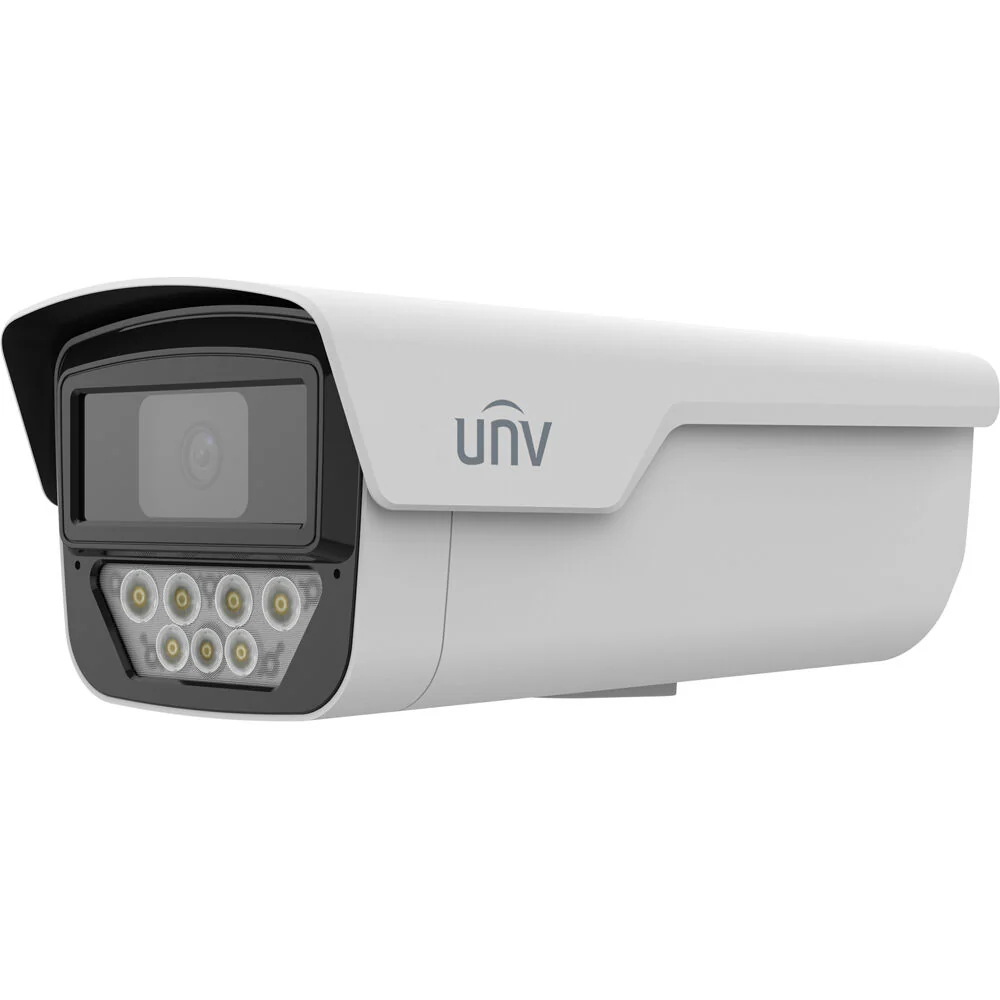

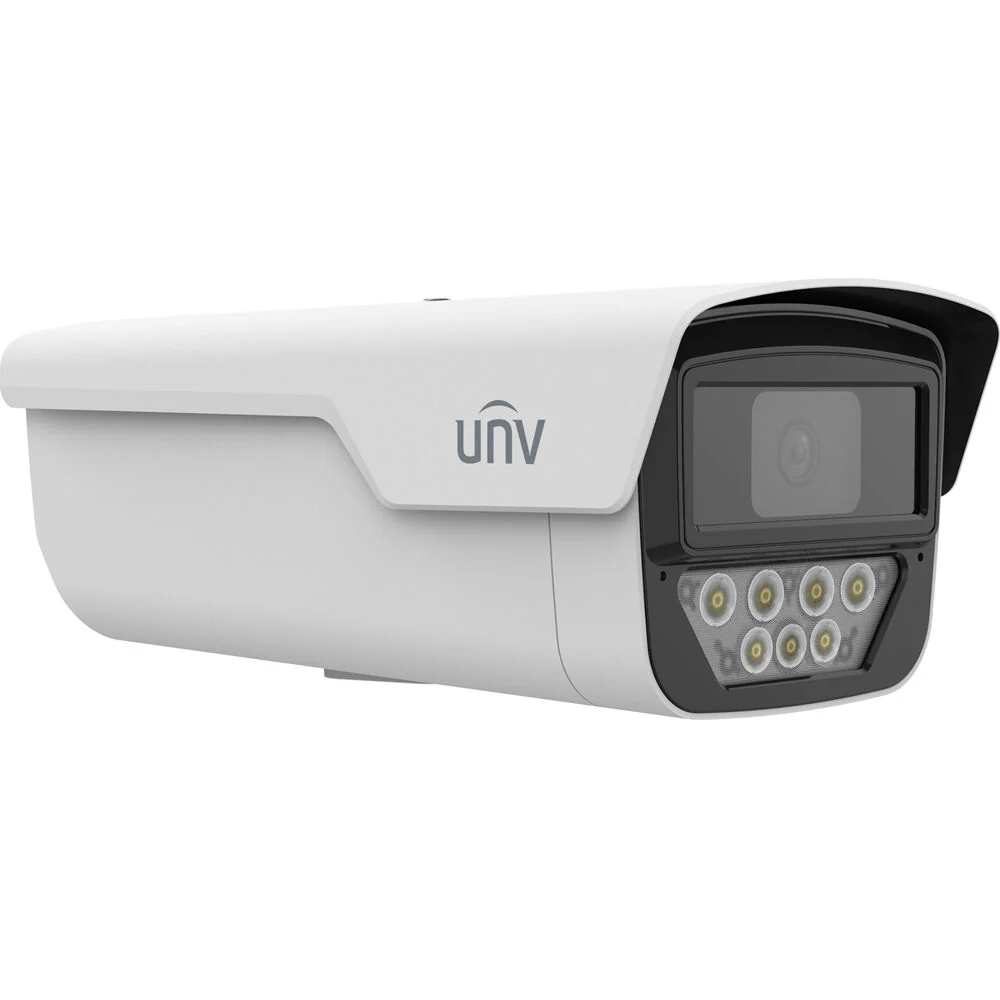

-70%Uniview IPC245LP-ADF40KC-WP ColorHunter 5MP Outdoor Network Bullet Camera—
$975.06
$292.52The Story
Uniview IPC245LP-ADF Specs
Key Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Focal Length |
4mm
|
| Field of View |
Horizontal: 96.1?
Vertical: 52.2? Diagonal: 113.5? |
| Built-In Microphone |
Yes
|
| Power I/O |
1x RJ45 (12VDC)
|
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 5 Megapixel
|
| Day/Night |
No
|
| DORI Coverage |
With 4mm Lens:
Detect: At 203.7' / 62.1Â m Observe: At 81.4' / 24.8Â m Recognize: At 40.7' / 12.4Â m Identify: At 20.4' / 6.2Â m |
Exposure Control
| Shutter Speed |
1/100000 to 1 Second
|
| Automatic Gain Control |
Yes
|
| Signal-to-Noise Ratio |
52 dB
|
| Minimum Illumination |
0.0003 Lux (Color)
|
Lens
| Focal Length |
4mm
|
| Field of View |
Horizontal: 96.1?
Vertical: 52.2? Diagonal: 113.5? |
| Maximum Aperture |
f/1
|
Video
| Supported Protocols |
Video Streaming Protocol
API/ARP/DDNS/DHCP/DNS/FTP/HTTP/HTTPS/ICMP/IGMP/IPv4/v6/NTP/ONVIF Profile G/ONVIF Profile S/ONVIF Profile T/PPPoE/QoS Layer 3 DiffServ/RTCP/RTMP/RTP/RTSP/SDK/SMTP/SNMP v1/v2c/v3 (MIB-II)/SSL/TLS/TCP/UDP/UPnP |
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
2880 x 1620 up to 25 fps |
| Multi-View Streaming |
Yes: 2 Streams
|
Control
| Camera Angle Adjustment |
Horizontal: 0 to 360?
Vertical: 0 to 90? Rotation: 0 to 360? |
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log, Watermark
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD (Unspecified Type) [512 GB Maximum]
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
G.711
|
| Built-In Microphone |
Yes
|
| Built-In Speaker |
Yes
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Audio Detection, Camera Sabotage/Tampering, Intrusion Detection, Motion Detection, People Detection, Vehicle Detection, Virtual-Line Crossing Detection
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
1 / 1
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x RJ45 (12VDC)
|
| Power Consumption |
5 W
|
Environmental
| Operating Conditions |
-22 to 140?F / -30 to 60?C up to 95% Humidity
|
| Storage Conditions |
-22 to 140?F / -30 to 60?C up to 95% Humidity
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP67)
|
General
| Materials |
Graphene, Plastic
|
| Certifications |
CAN/CSA, CE, EN, EU, FCC, IEC, NDAA, RoHS, UL, WEEE, cUL
|
| Illumination |
7x Warm Lights up to 164' / 50Â m
|
| Supported Languages |
Czech
Dutch English French German Italian Korean Latin American Spanish Polish Portuguese Russian Simplified Chinese Spanish |
| OS Compatibility |
Android/iOS
|
| Dimensions (W x H x D) |
4.9 x 4.1 x 10" / 125 x 105 x 255Â mm
|
| Weight |
1.92Â lb / 0.87Â kg (Body Only)
|
Additional Resources
No additional resources available
