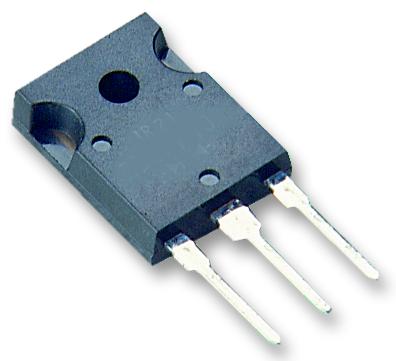

Unitedsic UJ3N120070K3S Silicon Carbide Mosfet Single N Channel 33.5 A 1.2 kV 0.063 ohm TO-247

This is a UJ3N120070K3S Silicon Carbide MOSFET , Single, N Channel, 33.5 A, 1.2 kV, 0.063 ohm, TO-247 product from UNITEDSIC with the model number UJ3N120070K3S

Product details

MOSFET Module Configuration	Single
Channel Type	N Channel
Continuous Drain Current Id	33.5A
Drain Source Voltage Vds	1.2kV
Drain Source On State Resistance	0.063ohm
Transistor Case Style	TO-247
No. of Pins	3Pins
Rds(on) Test Voltage	2V
Gate Source Threshold Voltage Max	11.5V
Power Dissipation	254W
Operating Temperature Max	175°C
Product Range	-

Other details

Brand	UNITEDSIC
Part Number	UJ3N120070K3S
Quantity	Each
Technical Data Sheet EN
