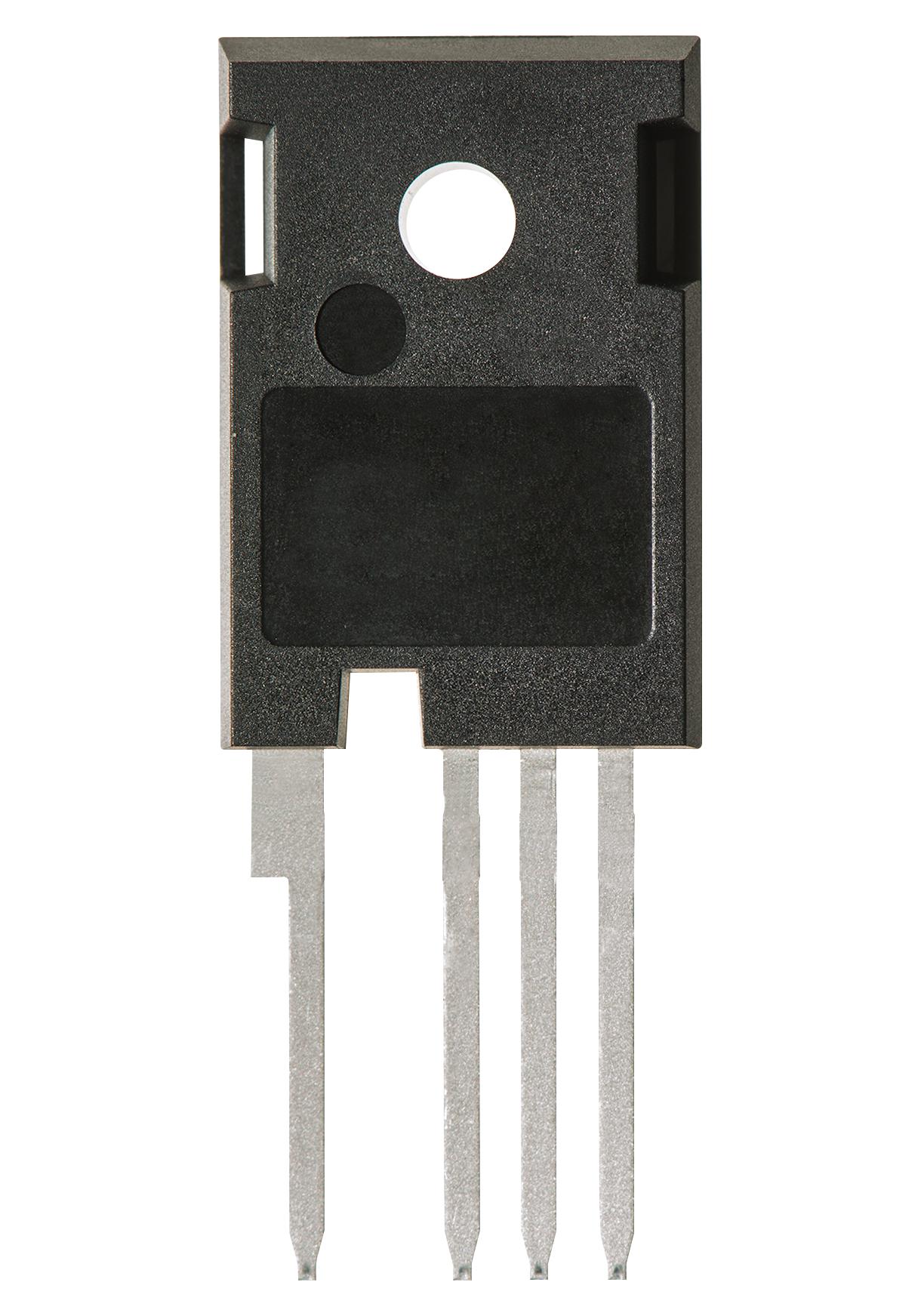

Unitedsic UF3C120080K4S Silicon Carbide Mosfet Single N Channel 33 A 1.2 kV 0.08 ohm TO-247

This is a UF3C120080K4S Silicon Carbide MOSFET , Single, N Channel, 33 A, 1.2 kV, 0.08 ohm, TO-247 product from UNITEDSIC with the model number UF3C120080K4S

Product details

MOSFET Module Configuration	Single
Channel Type	N Channel
Continuous Drain Current Id	33A
Drain Source Voltage Vds	1.2kV
Drain Source On State Resistance	0.08ohm
Transistor Case Style	TO-247
No. of Pins	4Pins
Rds(on) Test Voltage	12V
Gate Source Threshold Voltage Max	5V
Power Dissipation	254.2W
Operating Temperature Max	175°C
Product Range	-

Other details

Brand	UNITEDSIC
Part Number	UF3C120080K4S
Quantity	Each
Technical Data Sheet EN
