-70%TRENDnet TI-PG80 8-Port Hardened Industrial Gigabit POE+ DIN-Rail Switch—
$337.87
$101.36The Story

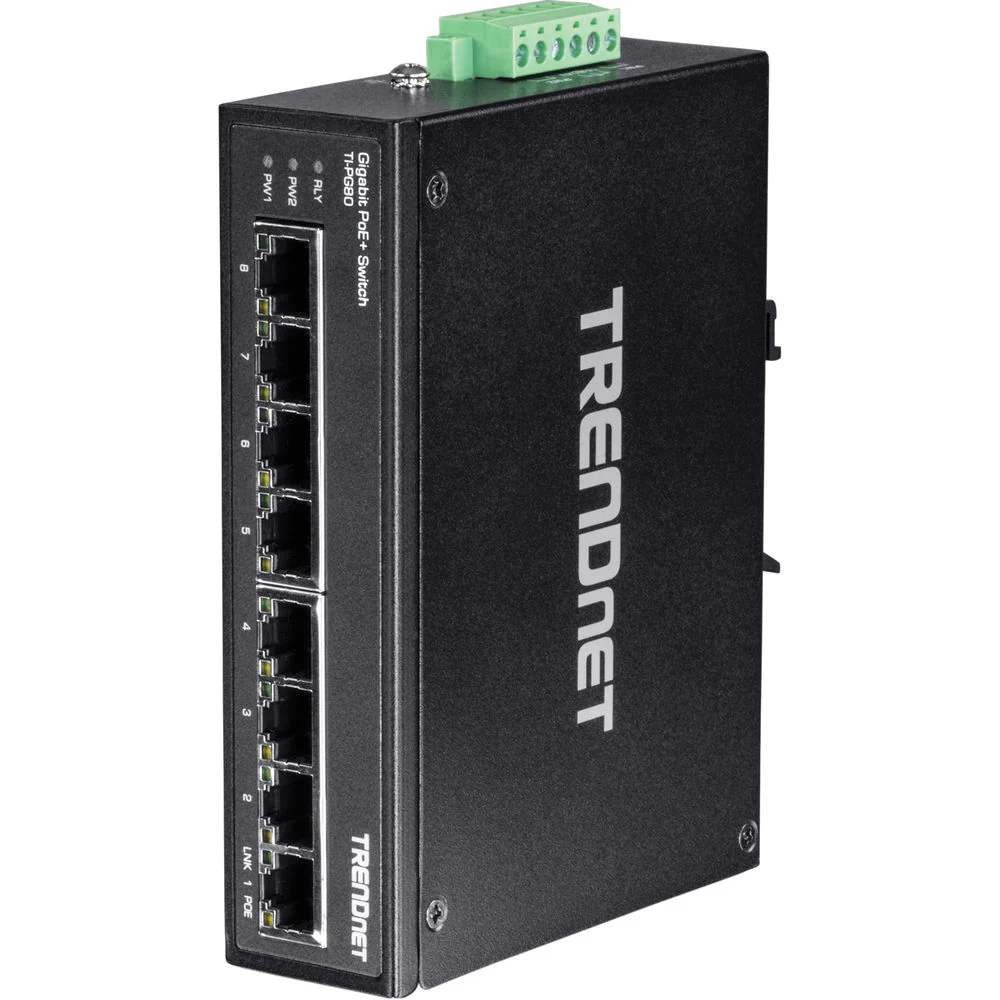

Designed for extreme industrial environments, the TI-PG80 8-Port Hardened Industrial Gigabit POE+ DIN-Rail Switch from TRENDnet features a hardened IP30-rated metal enclosure with the ability to withstand extreme temperatures from -40 to 167°F. This rail switch features eight Gigabit Ethernet ports, a 6-pin removable terminal block, LED indicators, and a grounding point. Once installed, the switch features a 200-watt PoE+ power budget and a 16 Gbps switching capacity to ensure sufficient bandwidth and PoE power is allocated to each network port. The TI-PG80 DIN-Rail Switch includes both rail- and wall-mount hardware for easy installation. Dual redundant power inputs make it easy to set up an alternate power source while the built-in alarm alerts you when the primary power source fails.
- Full PoE+ Power Budget
- Supplies up to 30 Watts of PoE/PoE+ power per port (802.3at/802.3af) with an up to 200-Watt PoE power budget
- Network Ports
- 8 x Gigabit PoE+ Ethernet ports
- DIN-Rail / Wall Mounts
- IP30-rated metal enclosure with included DIN-rail and wall-mount hardware
- Switching Capacity
- 16 Gbps switching capacity
- Redundant Power
- Dual redundant power inputs with overload current protection (power supply sold separately: model TI-S24048)
- Alarm Output
- Alarm output triggered by power failure of primary and/or redundant power
- Jumbo Frame
- Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance
- Extreme Temperatures
- Hardened switch is rated for an operating temperature range of -40 to 167°F
- Electro Magnetic Compliance
- Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards
- Certifications
- Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)
- Shock and Vibration Resistant
- Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
- Grounding Point
- Grounding point protects equipment from external electrical surges
- Additional Features
-
- Auto-negotiation
- Auto store and forward authentication
- Automatic address learning and address aging
- ESD 8 KV and surge 6 KV protection
UPC: 710931160352
- 8 x Gigabit Ethernet Ports
- Up to 200 Watt PoE+ Power Budget
- 16 Gbps Switching Capacity
- Hardened IP30 Rated Metal Switch
- Includes DIN-Rail and Wall Mounts
- Extreme Operating Temperature Range
- Dual-Redundant Power Inputs
- Built-In Overload Current Protection
- Alarm Output Triggered by Power Failure

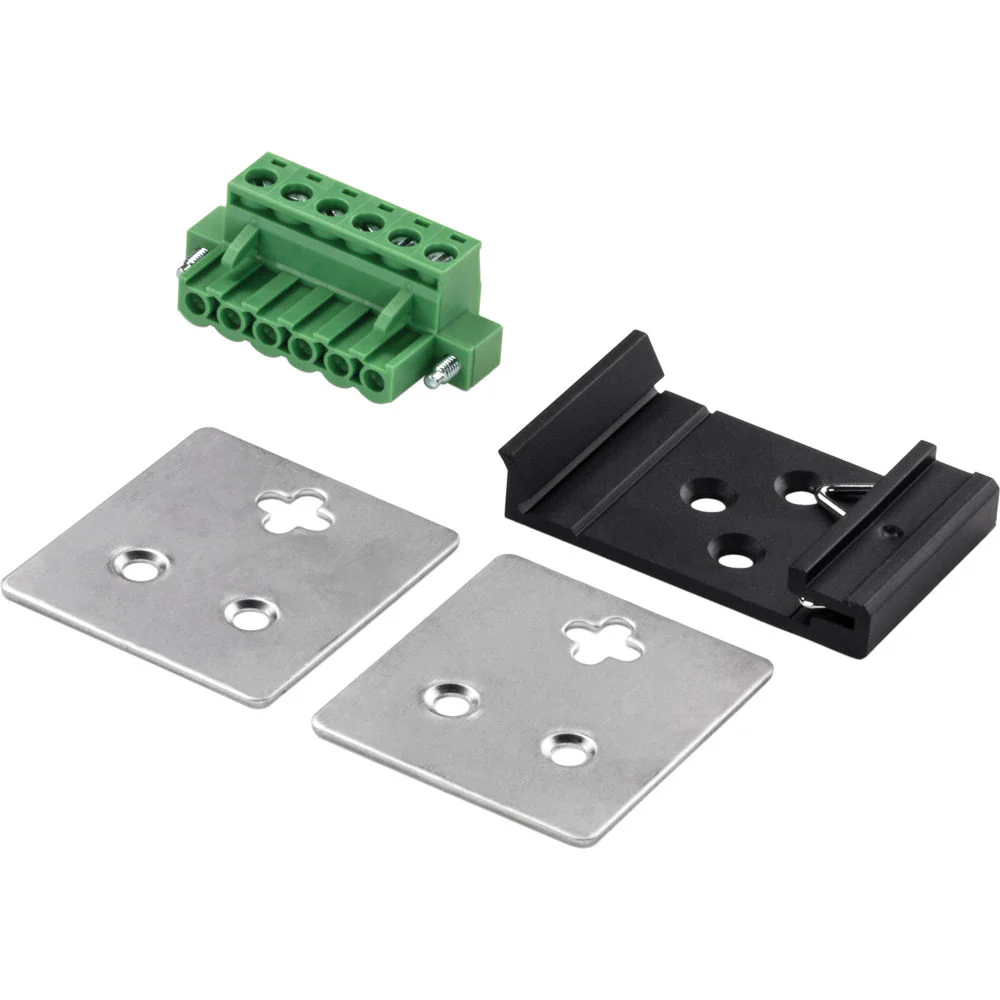

In the Box
TRENDnet TI-PG80 8-Port Hardened Industrial Gigabit POE+ DIN-Rail Switch
- Removable Terminal Block
- DIN-Rail / Wall Mount Kit
- Limited Lifetime Warranty
TRENDnet TI-PG80 specs
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af PoE IEEE 802.3at PoE+ |
| Device Interface | 8 x Gigabit PoE+ ports 6-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point |
| Data Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex) |
| Performance | Data RAM Buffer: 1024 KB Switching Fabric: 16 Gbps MAC Address Table: 8 K entries Jumbo Frame: 9 KB Forwarding Rate: 11.9 Mpps (64-byte packet size) |
| Power | Input: 48 - 56 V DC Compatible Power Supply: TI-S24048 (sold separately) Consumption: Max. 5.76 Watts (without PD) |
| PoE | PoE Budget: 200 Watts Pin 1,2 for power+ and pin 3,6 for power- (mode A) |
| Terminal Block | Redundant power inputs, alarm relay contact, 6 pin Wire range: 0.34 mm 2 to 2.5 mm 2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. - In / 0.5 Nm / 0.56 Nm Wire strip length: 7-8 mm |
| Relay Mode | Alarm Relay Contact Relay outputs with current carrying capacity of 1 A, 24 V DC Open circuit mode when two power sources are connected Short circuit mode when only one power source is connected |
| Power Consumption | Max. 5.76 Watts (without PoE) |
| MTBF | 510,304 hours |
| Housing | IP30 metal case DIN-rail mount Wall mount Grounding point 8 KV ESD protection 6 KV surge protection |
| Temperature & Humidity | Operating Temperature -40 to 167° F / -40 to 75°C Operating Humidity Max. 95% non-condensing |
| Certifications | CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) |
| Dimensions | 5.6 x 4.1 x 1.4" / 143 x 104 x 36 mm |
| Weight | 1.22 lb / 554 g |
| Packaging Info | |
|---|---|
| Package Weight | 1.8 lb |
| Box Dimensions (LxWxH) | 8.583 x 6.614 x 2.677" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
