TP-Link LS1005G Overview
-
1Description
-
2Plug-and-Play
-
3Wired Up
-
4Green Technology Switch
-
5Network Your Devices

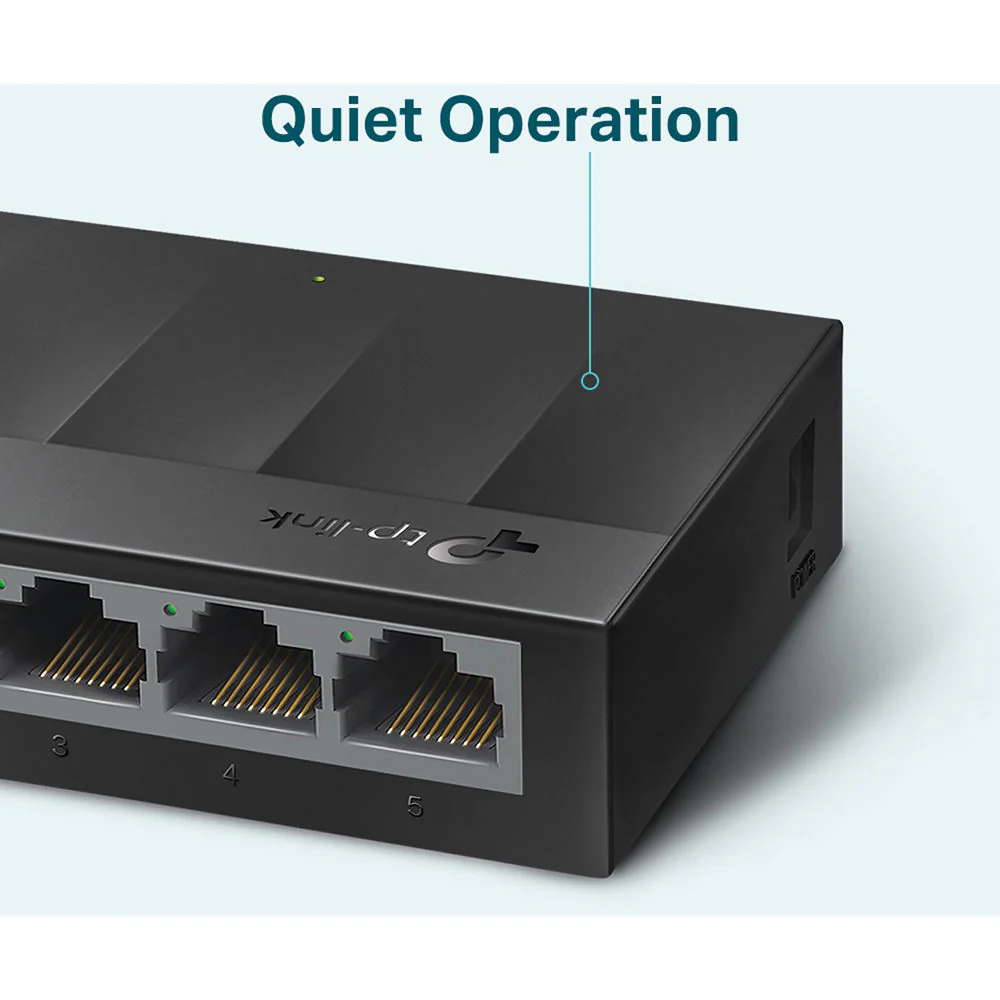

Expand your home or small office network by using the LS1005G 5-Port Gigabit Unmanaged Switch from TP-Link to connect devices such as computers, smart televisions, video game consoles, and more via wired Gigabit Ethernet connections. This 5-port unmanaged switch features a plug-and-play design with a 10 Gb/s switching capacity and 7.4 Mpps forwarding rate to handle the flow of data. The LS1005G also supports energy-efficient technologies that will automatically adjust the switch's power consumption according to each port's link status and cable length. Combined with its fanless design, the desktop switch will operate silently while saving you money on your energy bill and helping the environment.
Plug-and-Play
Simply connect the LS1005G to your router and you're ready to add Ethernet-compatible devices to your network.

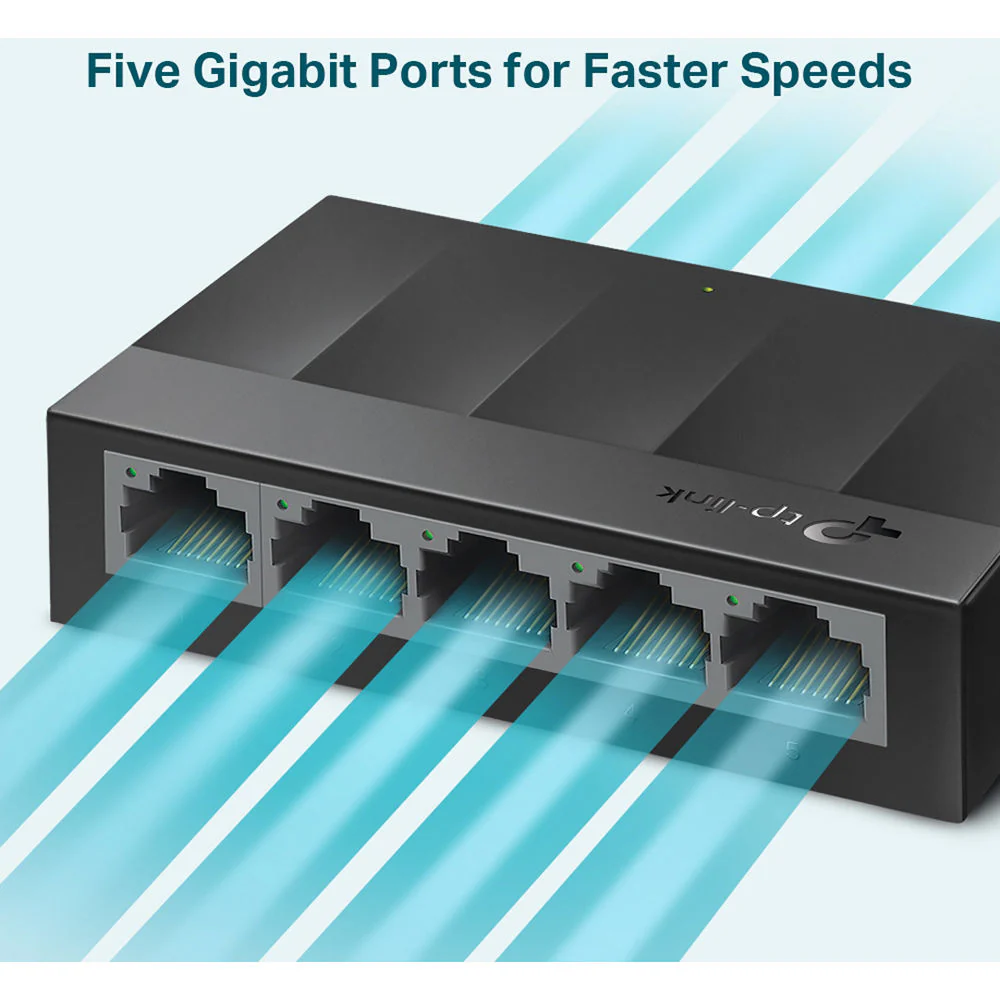

Wired Up
Connect up to five Ethernet devices for reliable speeds of up to one Gigabyte. With wired connections, you don't have to worry about signal interference.
Green Technology Switch
The LS1005G automatically adjusts its power consumption according to link status and cable length, saving you money on your energy bill while lowering your carbon footprint for the planet.
Network Your Devices
The switch allows you to add Ethernet-compatible devices such as computers, IPTVs, printers, and more to your network to share files, transmit data, and gain a reliable connection to the internet.
![]()
UPC: 845973085469
In the Box
- TP-Link LS1005G 5-Port Gigabit Unmanaged Switch
- Power Adapter
- Limited 2-Year Warranty
Table of Contents
- Description
- Plug-and-Play
- Wired Up
- Green Technology Switch
- Network Your Devices
TP-Link LS1005G Specs
Interfaces
| Ports |
5 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Console) |
Protocols
| Supported Protocols |
Auto-MDIX/MDI |
| Transmission Method |
Store-and-Forward |
| Jumbo Frames Support |
16,000 Bytes |
| MAC Address Table Size |
2K |
Standards
| Supported IEEE Standards |
802.3b, 802.3i, 802.3u, 802.3x |
Performance
| Forwarding Rate |
7.4 Mpps |
| Switching Bandwidth |
10 Gb/s (Non-Blocking) |
| Packet Buffer |
1.5 MB |
Electrical
| Power Draw |
3.7 W |
| DC Input Power |
VDC at 0.6 A |
| Power Supply Type |
Internal |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
10 to 90% |
| Storage Temperature |
-40 to 140°F / -40 to 60°C |
| Storage Humidity |
5 to 90% |
General
| Cooling System |
Passive |
| Material of Construction |
Plastic |
| Dimensions |
3.54 x 2.83 x 0.91" / 90 x 72 x 23Â mm |
Packaging Info
| Package Weight |
0.375 lb |
| Box Dimensions (LxWxH) |
3.75 x 3.7 x 3.3" |
