Tiptop 292TRHS Overview

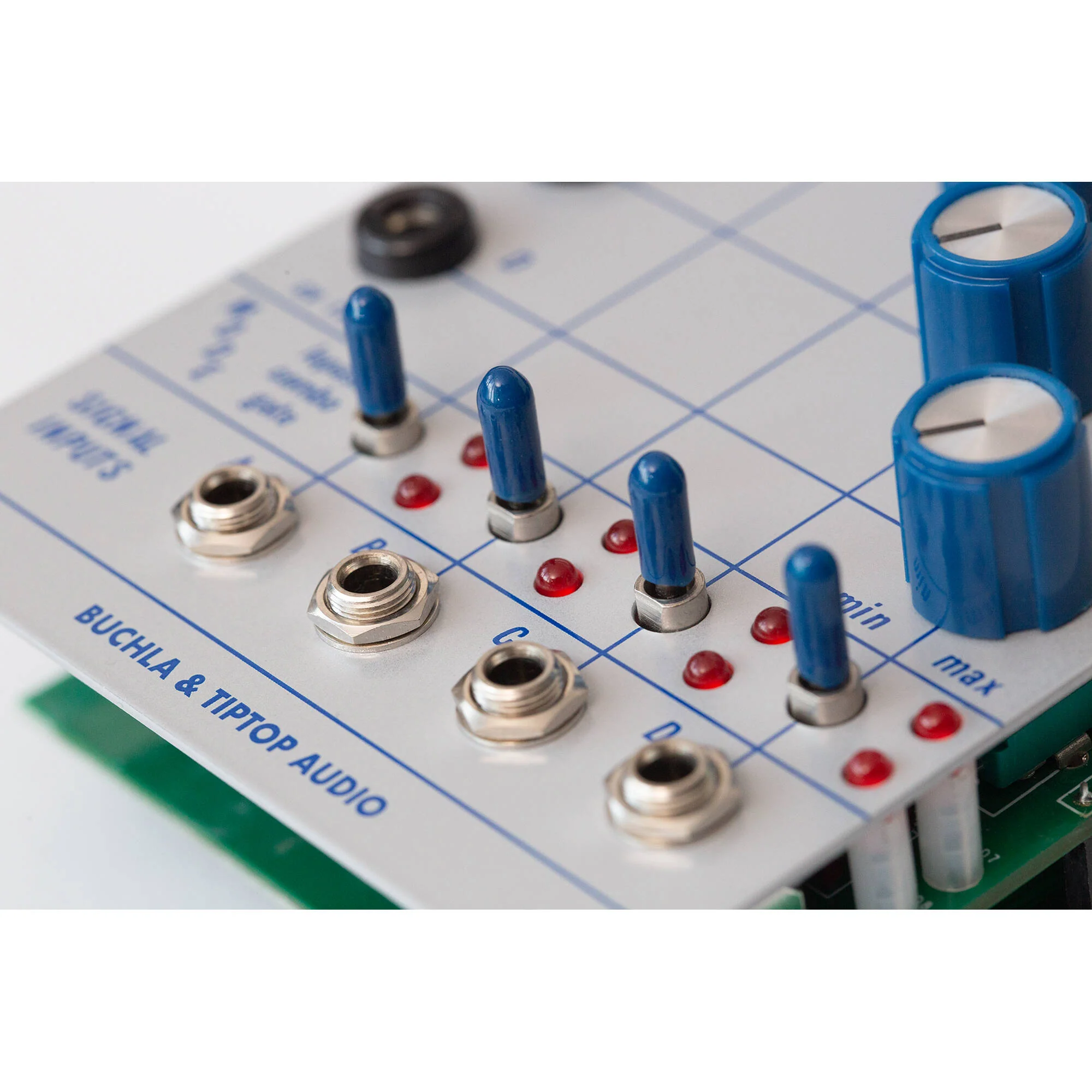

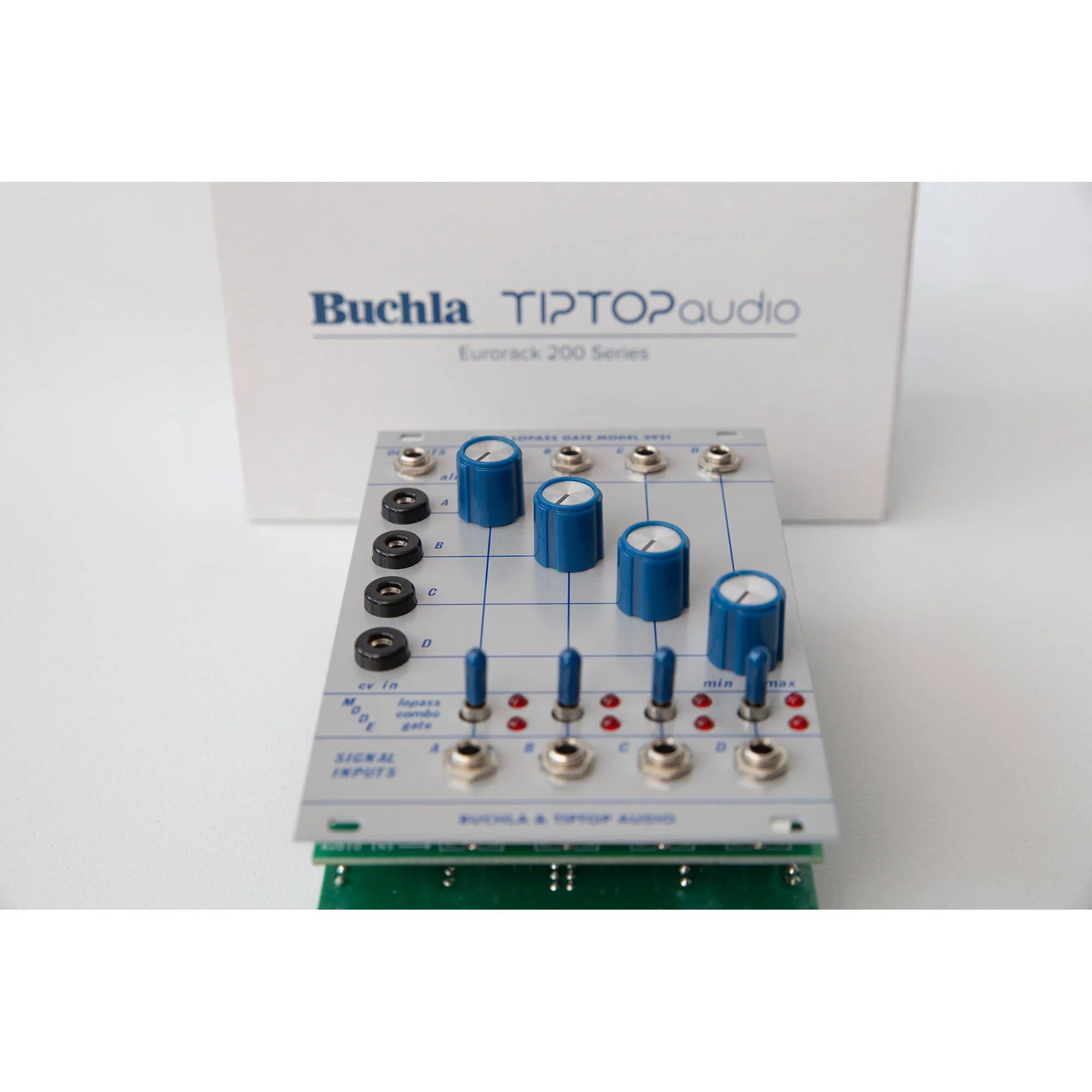

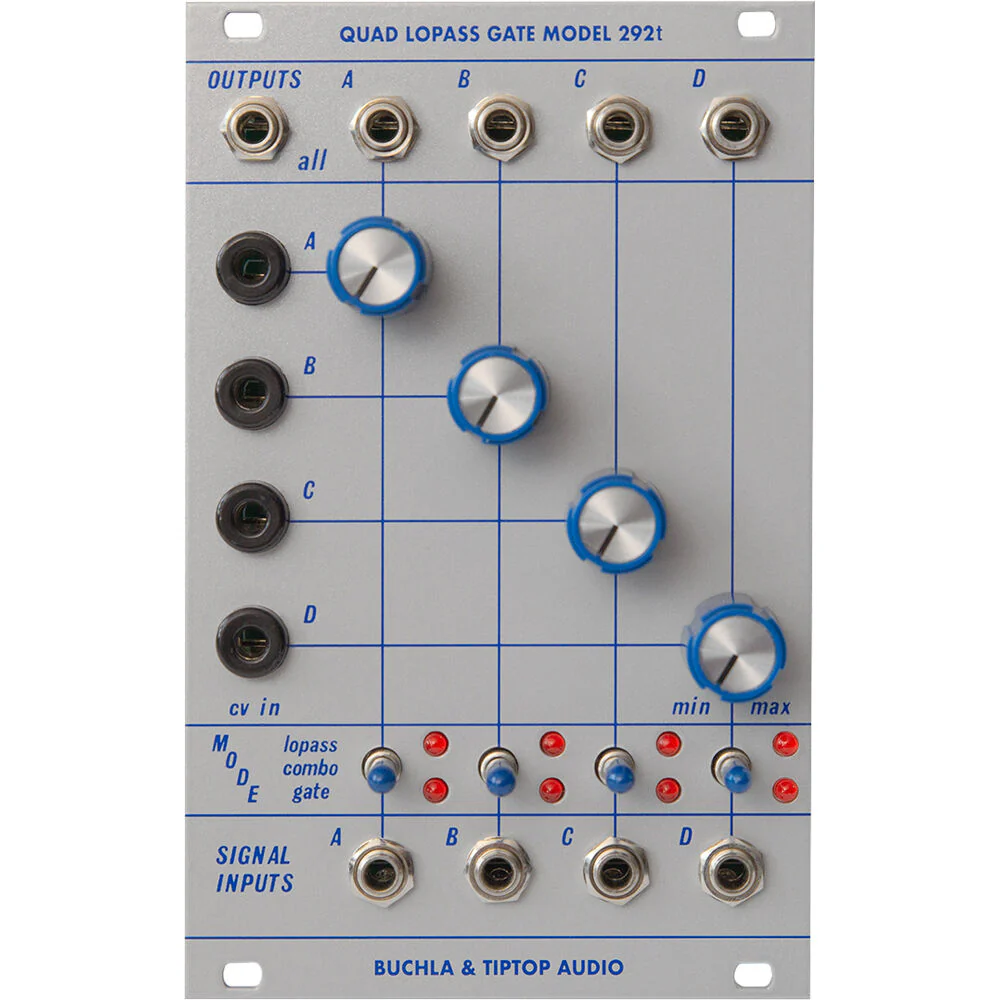

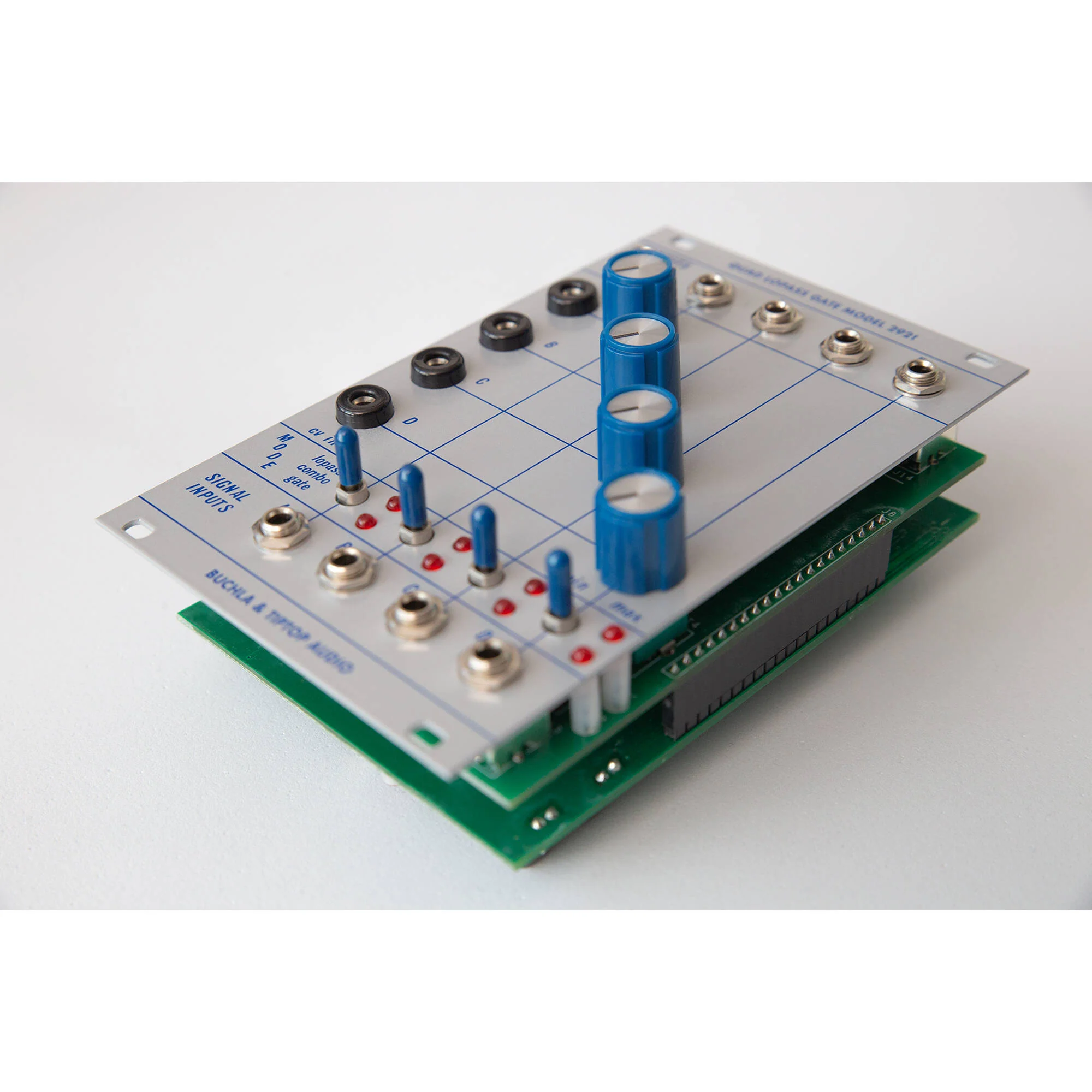

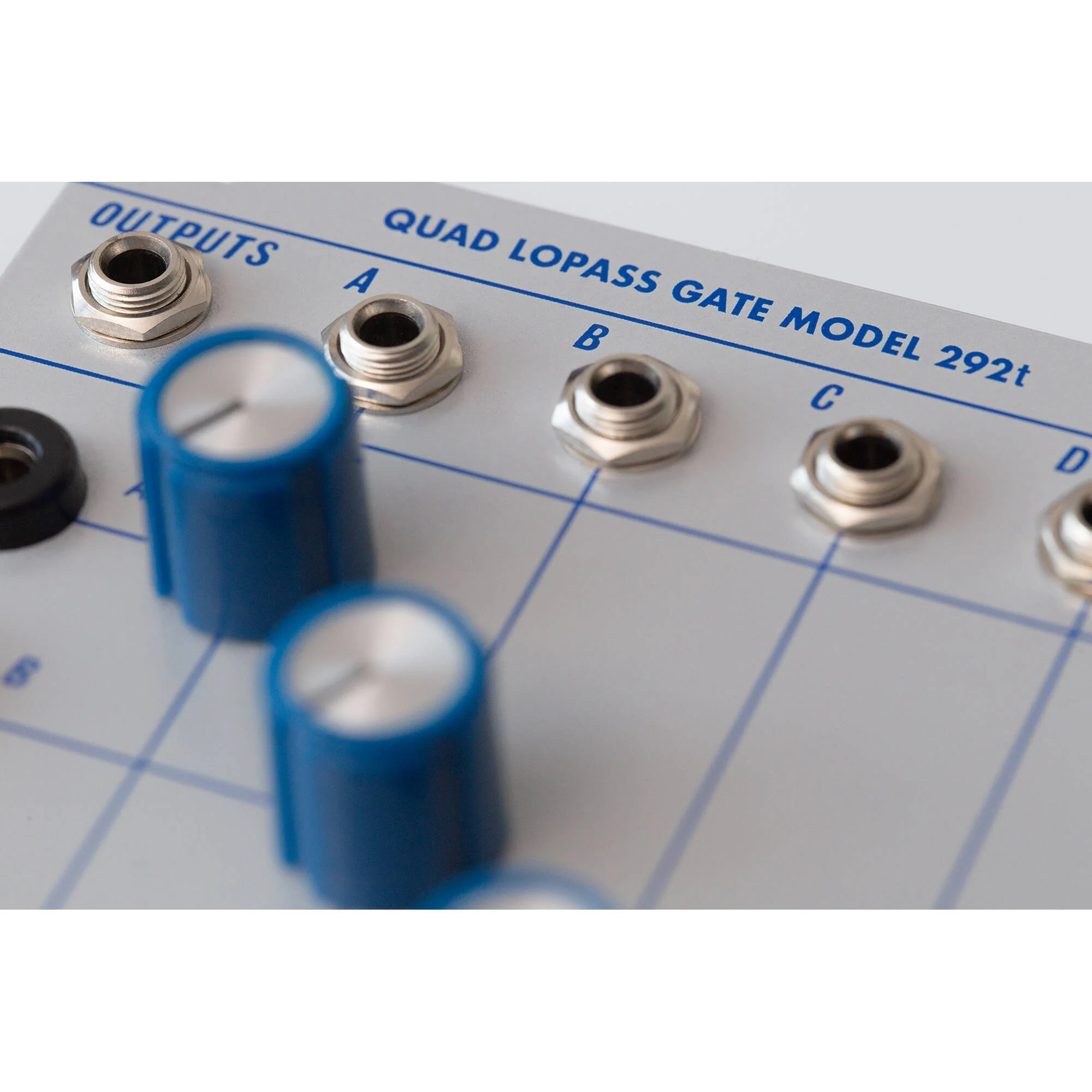

Shape your sounds organically with the TipTop Audio 292t RHS Quad Low-Pass Gate, a flexible low-pass gate module that includes four independent voltage-controlled filter/amplifiers. Each has a signal input and output, a control-voltage input that varies the unit's gain and an offset adjustment. A switch selects one of three operating modes: straight gate (VCA), low-pass filter (VCF), or a combination of the two, in which the spectral response varies as the gain is changed. The module ships with a ribbon power cable.
Note: This version of the 292t is a non-vactrol-LPG-compliant with UK and EU RoHS regulations.
- Four independently controlled signals (A, B, C, D)
- Each channel has a signal input, a CV input, and a signal output
- Additional (all) output for summed signal (4-to-1 audio mixer)
- Attenuators per channel to control CV bias or general gain
Each channel can act in one of three modes:
- Gate: Acts as a typical VCA
- Low-Pass: Acts as a lowpass filter
- Combo: A combination of the linear gate and the low-pass filter mode. It adds a subtle ringing decay to the audio
- 16 HP Eurorack format module
- Maximum depth: 1.8" (45mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 87mA, -12V: 36mA
Items Included
- Tiptop Buchla Model 292t RHS Quad Low-Pass Gate Eurorack Module (16 HP)
- Ribbon Power Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
Tiptop 292TRHS Specs
| Size |
Horizontal Pitch: 16 HP
Depth: 1.8" / 45.0 mm |
| Audio I/O |
4x 1/8" / 3.5 mm TS Hi-Z/Instrument Input
4x 1/8" / 3.5 mm TS Hi-Z/Instrument Output |
| CV Input |
4 x 3.5 mm TS Control Voltage Inputs for Each Audio Channel
|
| Power Source |
Proprietary Interface
|
| Power |
+12 V 91 mA / -12 V 85 mA
|
| Package Weight |
0.685 lb
|
| Box Dimensions (LxWxH) |
6 x 3.9 x 3.1"
|
