TipTop Audio WAYOUT BK Overview

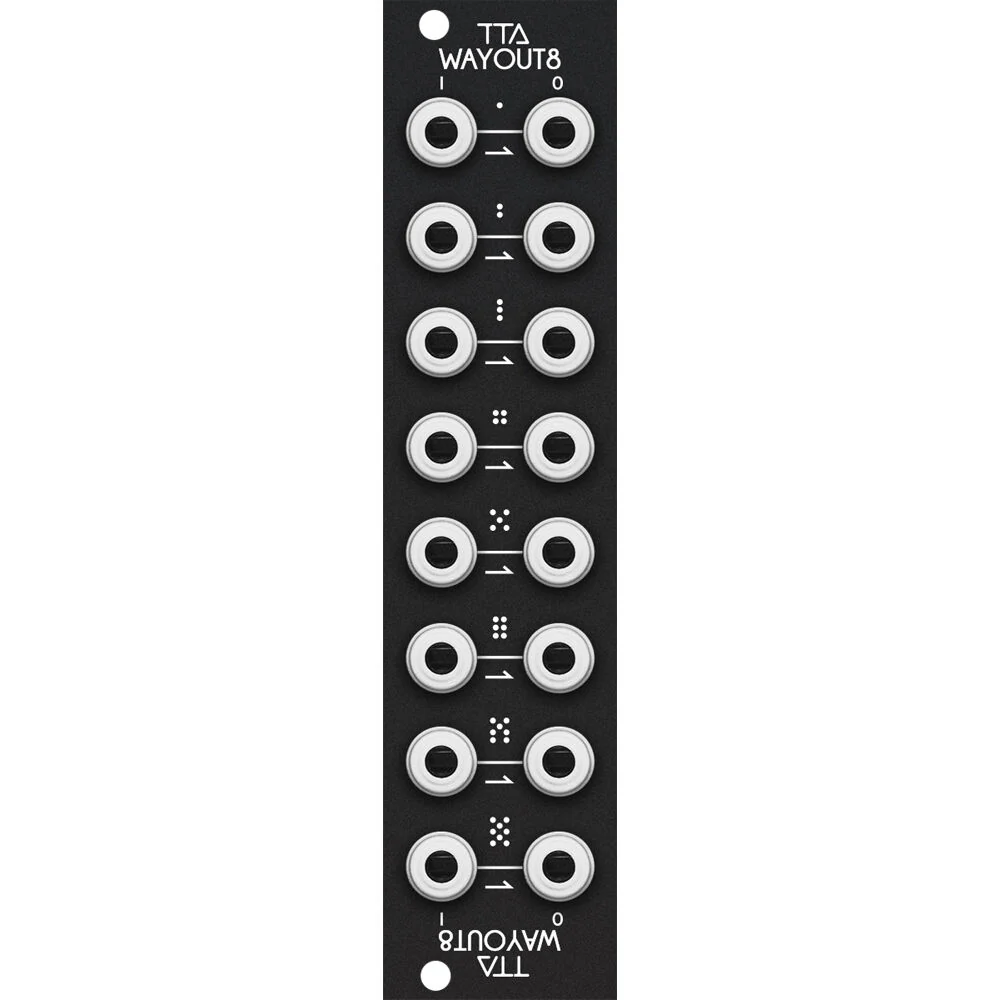

Keep your patches organized when interfacing with a DAW or another case with the black Tiptop Audio Wayout8, a patchbay in Eurorack format. The module features 8 inputs and 8 outputs. All connections are grounded to prevent noise, even when nothing is plugged into a connector.
The WAYOUT8 can be mounted two ways with outputs on the left or right, whichever is the most ergonomic placement in your case. All eight channels are passive, so they do not modify your signals and can be used for audio and CV Gate. No power is required.
- 6 HP Eurorack format module
- Maximum depth: 0.4" (10mm)
- Passive, no power required
In the Box
- TipTop Audio Wayout8 Patchbay Eurorack Module (6 HP, Black)
- Limited 1-Year Manufacturer Warranty
Additional Resources
TipTop Audio WAYOUT BKSpecs
| Sound Generation |
Analog
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
8x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input (Eurorack Compatible)
8x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible) |
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
8x 1/8" / 3.5 mm TS Input
8x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
Not Specified by Manufacturer
|
| Horizontal Pitch |
6 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Performance Functions |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
8x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input (Eurorack Compatible)
8x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible) |
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
8x 1/8" / 3.5 mm TS Input
8x 1/8" / 3.5 mm TS Output |
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
| Power Requirements |
Passive/No Power Required
|
| Eurorack Current Consumption |
Not Specified by Manufacturer
|
| Color |
Black
|
| Horizontal Pitch |
6 HP
|
| Included Accessories |
No
|
| Package Weight |
0.235 lb
|
| Box Dimensions (LxWxH) |
5.65 x 2.5 x 1.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
