4ms Quad Clock Distributor Eurorack Module (10 HP)
HomeStore

4ms Quad Clock Distributor Eurorack Module (10 HP)

4ms Quad Clock Distributor Eurorack Module (10 HP)

$432.24
4ms Quad Clock Distributor Eurorack Module (10 HP)—
$432.24

The Story

4ms QDC MODULE Overview

  • 1Description
  • 2Clocking Functions
  • 3Advanced Features
  • 4Eurorack Ready

Keep your modular system in sync with the 4ms Quad Clock Distributor, a four-channel voltage-controlled clock divider/multiplier module in Eurorack format. The QCD is a versatile head-of-the-chain master clock with master tap tempo. Each channel can be synced to the tap tempo, to the channel above, or to an external clock. Each channel also has a reset jack.

Use the Tap Tempo button to establish an interval, while five synced clock outputs generate complex rhythmic patterns. Go even further by patching multiple channels into each other's Reset and Div/Mult CV inputs. The QCD ships with a ribbon power cable and mounting screws.

Clocking Functions
  • Four CV-controlled Clock Divider/Multipliers
  • Tap tempo button and five sync'd clock outputs make the QCD perfect for head-of-the-chain "Master" clock module
  • Tap clock output runs at the tapped tempo (even if other channels are being clocked externally)
  • Create complex rhythmic patterns by patching multiple channels into each other's Div/Multi CV and Reset
  • Each of the four channels has an independent clock IN, OUT, Reset and Div/Multi CV
  • Divide or Multiply incoming clock from Ă·32 to x16 on each channel:
    • Detented knob to snap to integer division/multiples
    • CV jack to modulate Div/Mult amount
Advanced Features
  • Reset jack (per channel) restarts the clock when a trigger is received (alters phase of clock)
  • Clock input jacks are normalized top to bottom: Tap ? Red ? Black ? Blue ? Green
  • Clock outputs stop automatically when incoming clock stops
  • LEDs blink to output clocks' tempos
  • 5V clock output pulses, fully buffered. Default is square-wave, and PW is controllable with expander
  • Daisy-chain multiple QCDs or other clock modules using Tap Out jack
  • Header on the PCB to connect to Quad Pingable LFO (QPLFO) to provide four CVs that can be skewed, and CV  envelopes that can be divided or multiplied
  • Interfaces with QCD Expander for more features (Pulse Width, Inverted Gate, attenuverters for CV inputs)



Eurorack Ready
  • 10 HP Eurorack format module
  • Maximum Depth: 1" (26mm)
  • Includes power ribbon cable with 16-pin Eurorack power header
  • Power consumption: +12V: 88mA, -12V: 40mA, +5V: 41 mA

In the Box

  • 4ms Quad Clock Distributor Eurorack Module (10 HP)
  • Eurorack Ribbon Power Cable
  • Set of Mounting Screws
  • Limited 1-Year Manufacturer Warranty

Not in the Box

    Table of Contents
    • Description
    • Clocking Functions
    • Advanced Features
    • Eurorack Ready

    4ms QDC MODULE Specs

    Key Specs
    Sound Generation
    Analog
    CV/Gate I/O
    8 x 1/8" / 3.5 mm TS CV Input
    Eurorack Current Consumption
    48 mA on +12 V Rail
    40 mA on -12 V Rail
    41 mA on +5 V Rail
    Horizontal Pitch
    10 HP
    General
    Item Type
    Eurorack Module
    Sound Generation
    Analog
    Keyboard
    No
    Expression Controls
    No
    Number of Pads
    No
    Display
    No
    Sounds
    Maximum Polyphony
    Not Specified by Manufacturer
    Built-In Effects
    No
    Built-In Speaker
    No
    Synthesis
    Oscillators
    No
    Mixer
    No
    Amplifiers
    No
    Envelopes
    No
    Filters
    No
    Sequencing & Recording
    Sequencer
    No
    Arpeggiator
    No
    Connectivity
    Audio I/O
    No
    Pedal Support
    No
    MIDI I/O
    No
    CV/Gate I/O
    8 x 1/8" / 3.5 mm TS CV Input
    Patch Points
    No
    Sync I/O
    4 x 1/8" / 3.5 mm TS Clock Input
    5 x 1/8" / 3.5 mm TS Clock Output
    Network I/O
    No
    USB
    No
    Media/Memory Card Slot
    No
    Audio Performance
    Included Software
    No
    Mobile App Compatible
    No
    *As of July, 2023: Check with manufacturer for the most up-to-date compatibility
    Power
    Power Requirements
    Eurorack Power
    Eurorack Current Consumption
    48 mA on +12 V Rail
    40 mA on -12 V Rail
    41 mA on +5 V Rail
    Physical
    Color
    White
    Horizontal Pitch
    10 HP
    Included Accessories
    No
    Packaging Info
    Package Weight
    0.46 lb
    Box Dimensions (LxWxH)
    6.3 x 5 x 3"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    4ms Quad Clock Distributor Eurorack Module (10 HP) - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

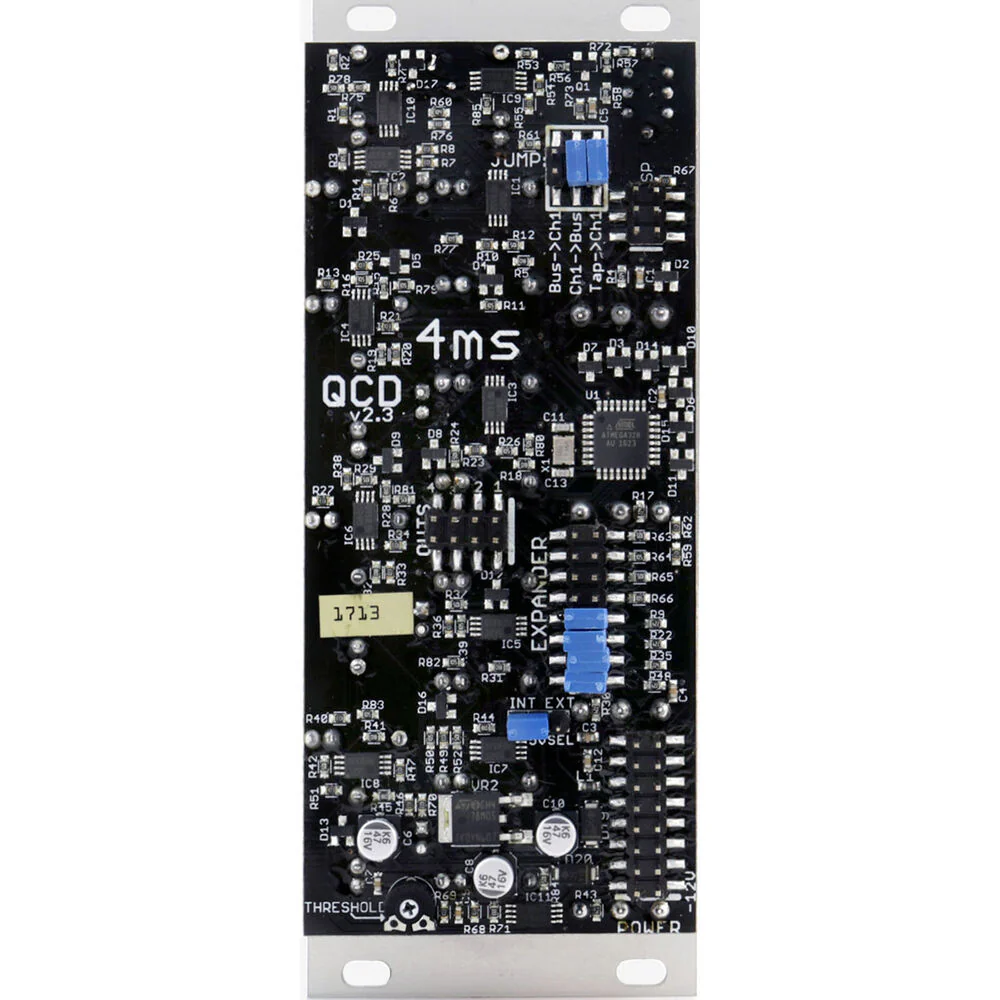

    4ms Quad Clock Distributor Eurorack Module (10 HP) - Image 3
