TipTop Audio MIXZ Mixer Eurorack Module (10 HP, White)

At a Glance

• Low-cost analog, multichannel mixing module
• For mixing audio, CV, and gate signals
• Two 4-channel mixers or one 8-channel mixer
• High-quality mixing circuitry
• Plenty of headroom
• Smooth, organic merge of dynamics and excellent channel separation

Mixer Sections

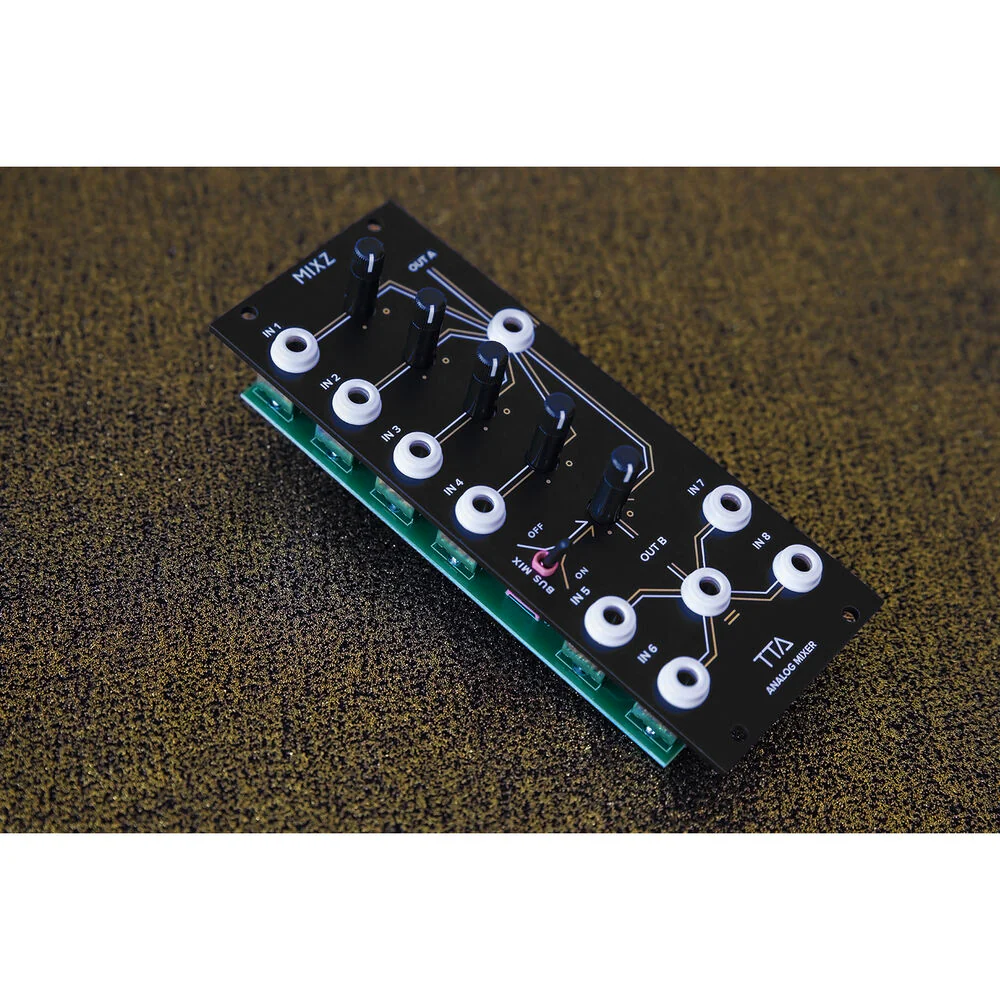

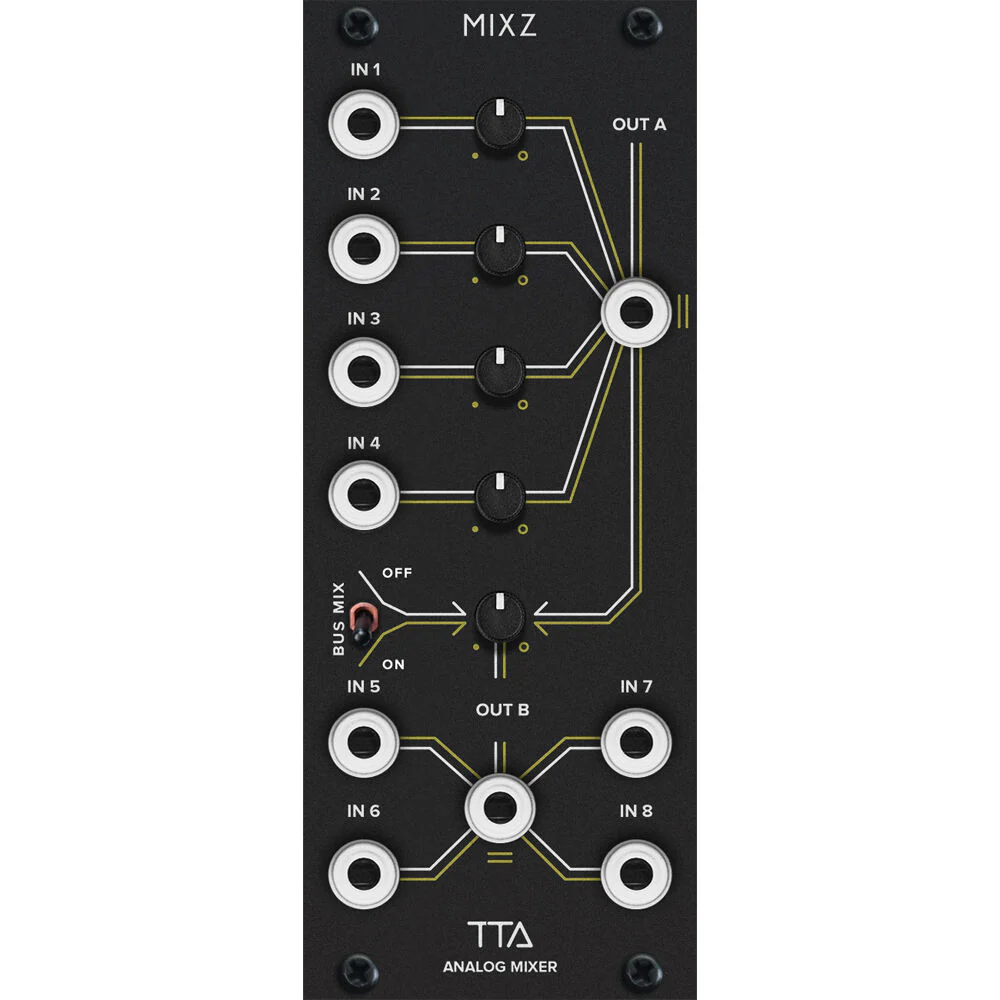

MIXZ has three sections:

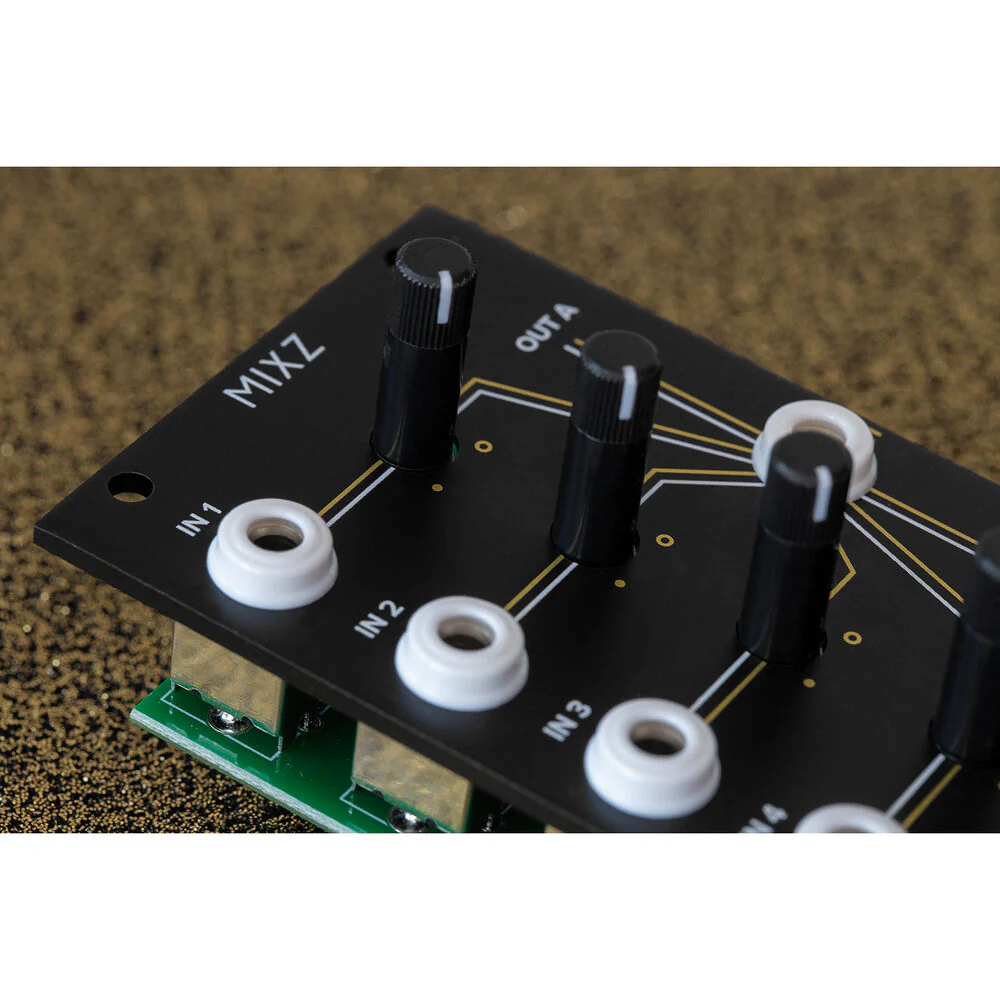

• Mixer A: a low-noise 4-channel mixer with independent gain control for each channel.

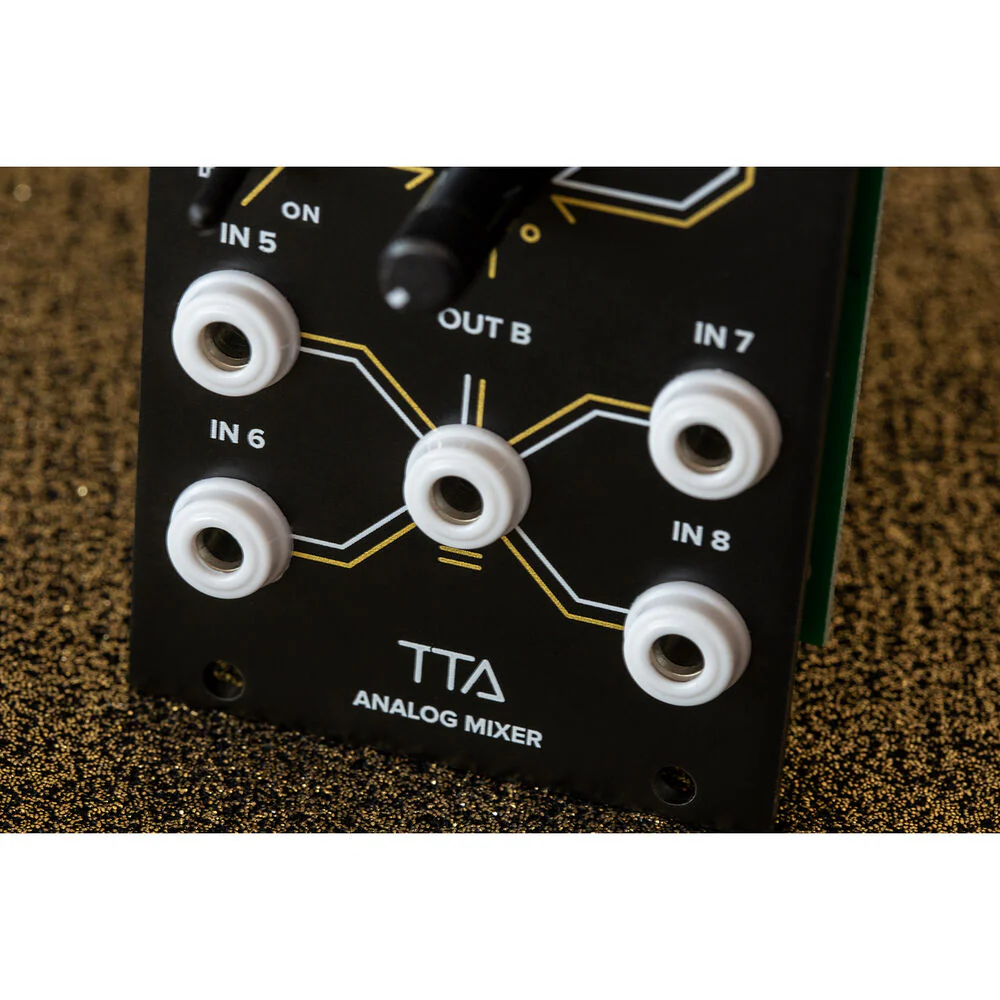

• Mixer B: a low- noise 4-channel mixer with master gain control.

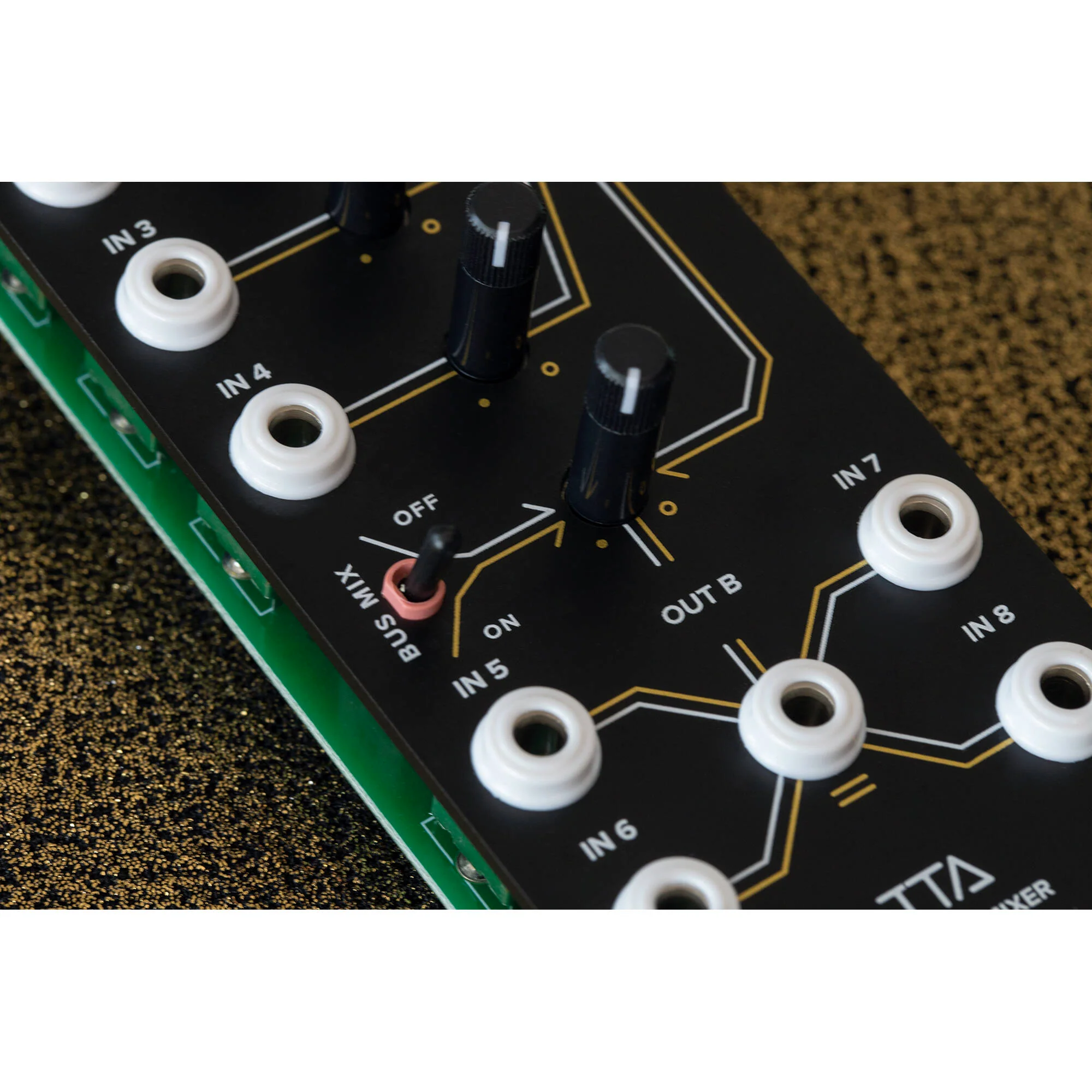

• Bus Mix: a multichannel mixer that mixes signals from modules utilizing the Tiptop MixBus.

Mixer A and B can be configured as either two independent, 4-channel mixers or as a single 8-channel mixer. If the output of Mixer A is not in use, then Mixer A will be routed internally to Mixer B forming the 8-channel mixer.

Bus Mix Technology

Tiptop Bus Mix is a new method Tiptop Audio developed to mix audio signals through connectors on the back of the module instead of patch cables. Although this technique is not ideal for a low-noise mix, it proved to be useful for some applications, including mixing drum modules, which all have a Bus-Mix-enabled output. The result is that your drum modules are always available and mixed on the master out of the MIXZ with a flip of a switch. This will save you time and frees up cables for repatching sound again and again, while keeping the channels of MIXZ free to bring other signals into the mix.

Eurorack Ready

• 10 HP Eurorack format module
• Maximum depth: 1.7" (43mm)
• Includes ribbon power cable with Eurorack power headers
• Power consumption: +12V: 14mA, -12V: 14mA

TipTop Audio MIXZ BKSpecs

Sound Generation	Analog
Audio I/O	8x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input (Eurorack Compatible) 2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible)
MIDI I/O	No
CV/Gate I/O	No
Patch Points	8x 1/8" / 3.5 mm TS Input 2x 1/8" / 3.5 mm TS Output
Eurorack Current Consumption	14 mA on +12 V Rail 14 mA on -12 V Rail
Horizontal Pitch	10 HP

Item Type	Eurorack Module
Sound Generation	Analog
Expression Controls	No
Number of Pads	No
Built-In Speaker	No

Oscillators	No
Mixer	External Audio (Level)
Amplifiers	No
Envelopes	No
Filters	No

Sequencer	No
Arpeggiator	No

Audio I/O	8x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input (Eurorack Compatible) 2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible)
MIDI I/O	No
CV/Gate I/O	No
Patch Points	8x 1/8" / 3.5 mm TS Input 2x 1/8" / 3.5 mm TS Output
Sync I/O	No

Power Requirements	Eurorack Power
Eurorack Current Consumption	14 mA on +12 V Rail 14 mA on -12 V Rail

Horizontal Pitch	10 HP
Included Accessories	No

Package Weight	0.335 lb
Box Dimensions (LxWxH)	5.8 x 4 x 2.4"
