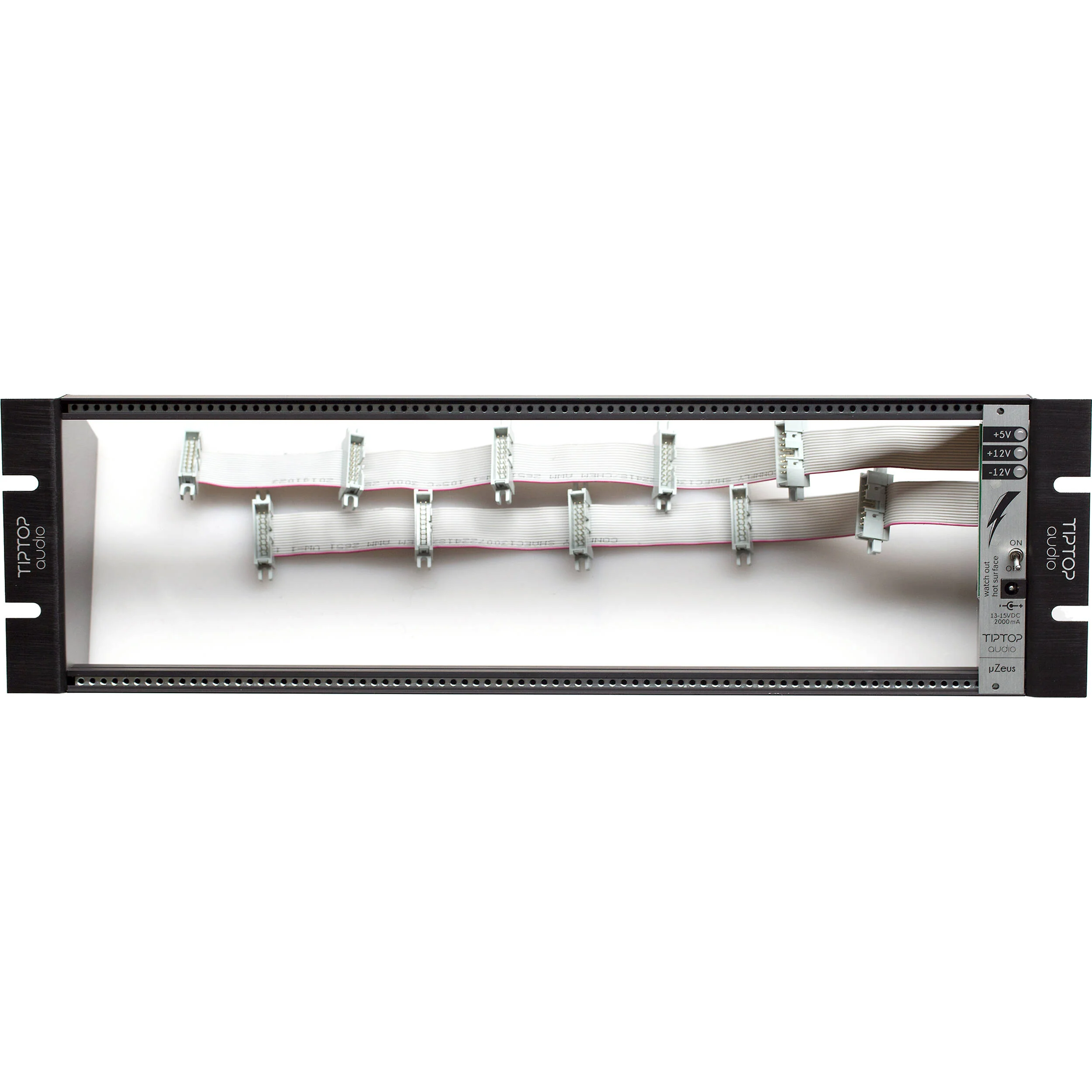

TipTop Audio Happy Ending Kit Eurorack Modular Kit with Power (Black)

Build your own custom case or enclosure with the Tiptop Audio Z-Rails, a pair of black, 84 HP mounting rails for the Eurorack modular synthesizer format, designed to be used for professional and DIY case mounting assemblies.

Z-Rails are made from anodized rails, each containing a zinc-plated metal threaded strip with 3mm threads at 5.08mm spacing. The rails are easily installed using Z-Ears or Z-Rail Brackets (sold separately). The rails can also attach directly to any frame with just two M4 screws, one for each side of the individual Z-Rail. The M4 screws are not included as they are size dependent on the thickness of the material the rails will be attached to. M4 screws are included with Z-Ears and Z-Rails Brackets.

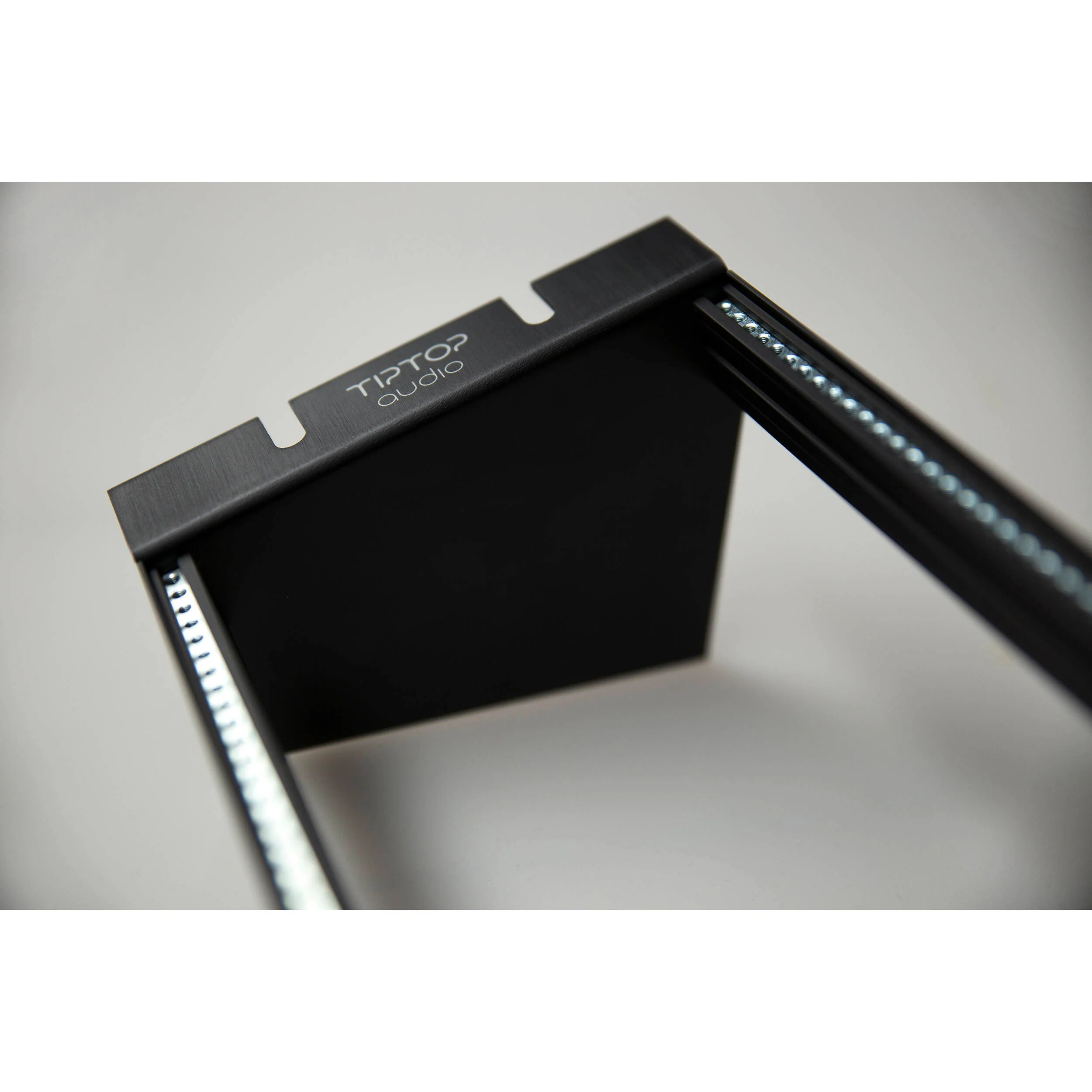

Enjoy your favorite Eurorack modules on a desktop or in a 19" rack with the black Tiptop Audio Z-Ears Tabletop/Rackmount, a pair of standard 3 RU rack ears for use with separately available Z-Rails. The ears can be used as a desktop Eurorack frame or attached to standard 19" rack. The ears are made of anodized aluminum with a fine bead blast texture. Connect the ears to a pair of Z-Rails (sold separately) using the four included M4x10 screws.

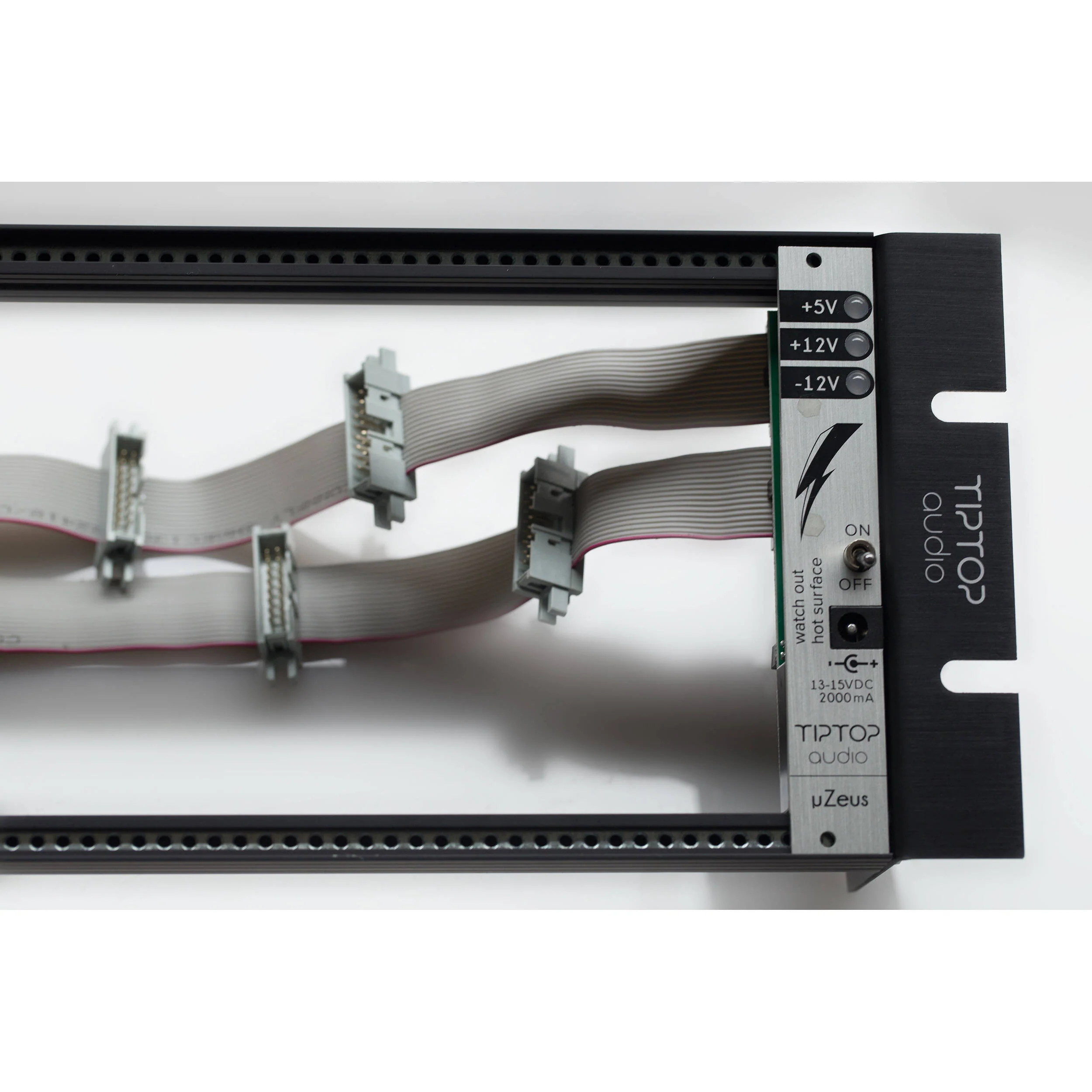

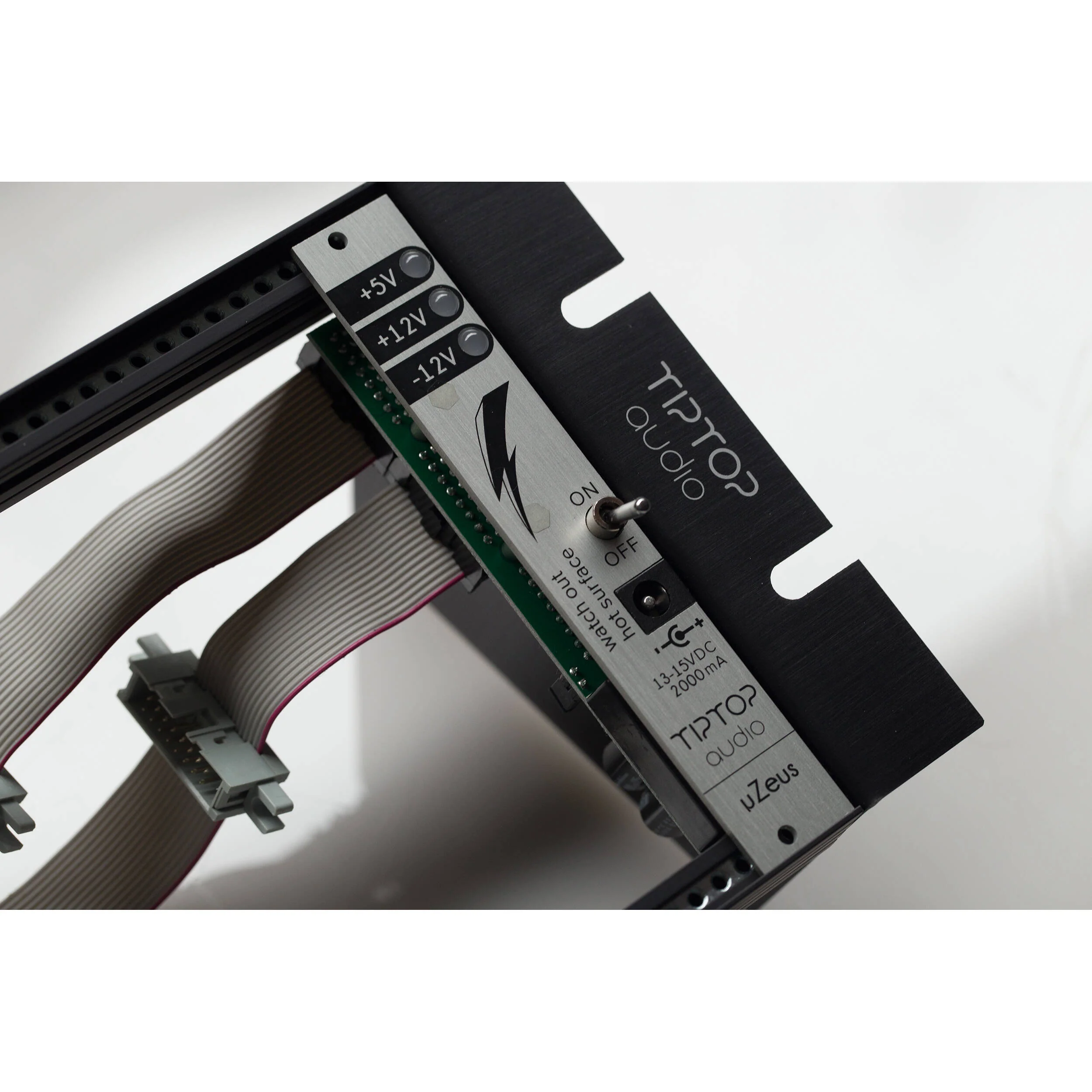

Power a small modular system with the black Tiptop Audio µZEUS, a 4 HP micro power supply module for Eurorack format synthesizers. It includes two Flying Bus Boards, each with five 16-pin keyed connectors. Simply install in your case, plug in your modules, and you are good to go.

The ?ZEUS mixes linear and switching power technology that can produce up to 2000mA at +12V, 500mA at -12V, 170mA at +5V. For power, it can use the lower cost Tiptop 1000ma (separately sold) or the more powerful 3000ma µZEUS-Boost adapter (separately sold) to reach full capacity. Standard 15V power adapters are compatible as well.
