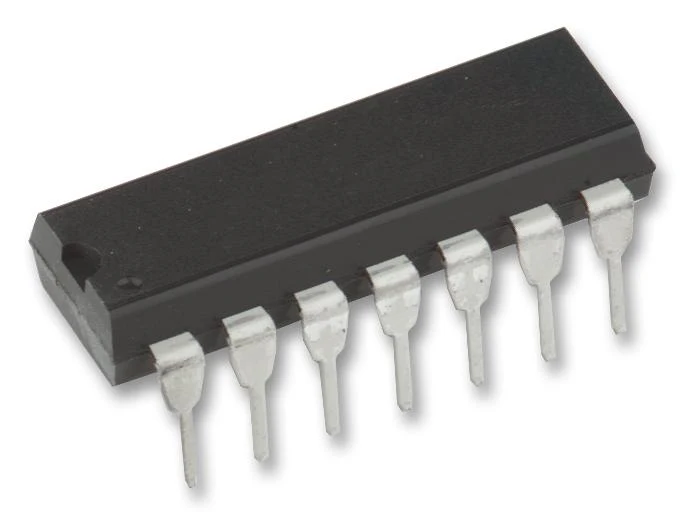

Texas Instruments TL074BCN Operational Amplifier 4 3 MHz 13 V/µs 7V to 36V DIP 14 Pins—
$2.37
The Story
The TL074BCN is a low-noise JFET-input Operational Amplifier incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The device features high slew rates, low offset-voltage temperature coefficient, low-input bias and offset currents. The low harmonic distortion and low noise make the TL07xseries ideally suited for high-fidelity and audio pre-amplifier applications. Offset adjustment and external compensation options are available within the TL07x family.
- Low power consumption
- Wide common-mode and differential voltage ranges
- Low input bias and offset currents
- Output short-circuit protection
- Internal frequency compensation
- Latch-up-free operation
- Common-mode input voltage range includes VCC+
- 0.003% Typical low total harmonic distortion
- 18nV/?Hz at f=1kHz Typical low noise
Power Management, Motor Drive & Control, Alternative Energy, Signal Processing, Audio
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TL074BCN |
| Quantity | Each |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
