$9.34

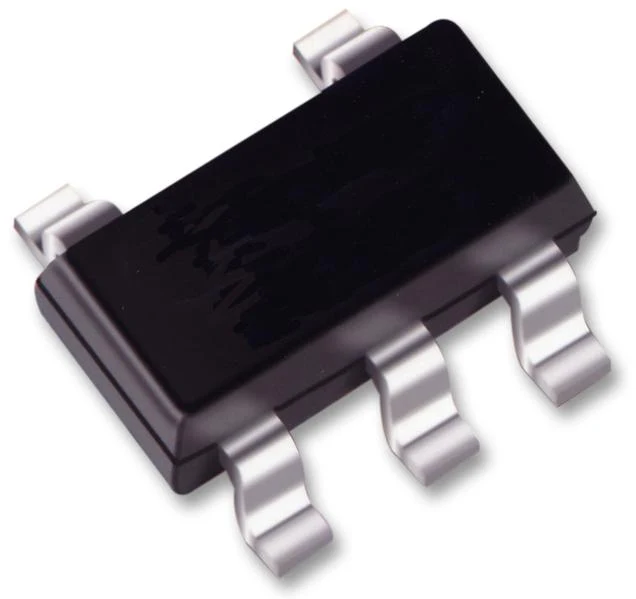

Texas Instruments OPA694IDBVT Operational Amplifier 1 1.5 GHz 1.7 kV/µs 7V to 12.6V SOT-23 5 Pins—
$9.34
The Story
The OPA694IDBVT is an ultra-wideband low-power Current Feedback Amplifier features high slew rate and low differential gain/phase errors. An improved output stage provides ±80mA output drive with <1.5V output voltage headroom. Low supply current with >500MHz bandwidth meets the requirements of high-density video routers. Being a current feedback design, the OPA694 holds its bandwidth to very high gains-at a gain of 10, the OPA694 will still provide 200MHz bandwidth. RF applications can use the OPA694 as a low-power SAW pre-amplifier. Extremely high 3rd-order intercept is provided through 70MHz at much lower quiescent power than many typical RF amplifiers.
- 690MHz High gain of 2V/V bandwidth
- 5.8mA Low supply current
- 675MHz High full-power bandwidth
- 0.03%/0.015° Low differential gain/phase
- Green product and no Sb/Br
Signal Processing
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | OPA694IDBVT |
| Quantity | Each (Supplied on Cut Tape) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
The OPA694IDBVT is an ultra-wideband low-power Current Feedback Amplifier features high slew rate and low differential gain/phase errors. An improved output stage provides ±80mA output drive with <1.5V output voltage headroom. Low supply current with >500MHz bandwidth meets the requirements of high-density video routers. Being a current feedback design, the OPA694 holds its bandwidth to very high gains-at a gain of 10, the OPA694 will still provide 200MHz bandwidth. RF applications can use the OPA694 as a low-power SAW pre-amplifier. Extremely high 3rd-order intercept is provided through 70MHz at much lower quiescent power than many typical RF amplifiers.
- 690MHz High gain of 2V/V bandwidth
- 5.8mA Low supply current
- 675MHz High full-power bandwidth
- 0.03%/0.015° Low differential gain/phase
- Green product and no Sb/Br
Signal Processing
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | OPA694IDBVT |
| Quantity | Each (Supplied on Cut Tape) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
