$5.87

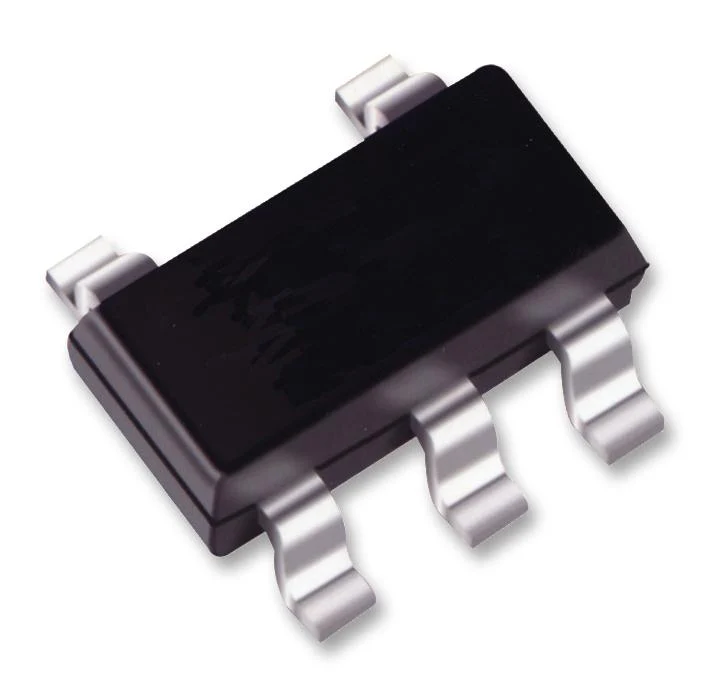

Texas Instruments OPA192IDBVR Operational Amplifier 1 10 MHz 20 V/µs 4.5V to 36V ± 2.25V 18V SOT-23 5 Pins—
$5.87
The Story
The OPA192IDBVR is a high voltage precision Operational Amplifier with rail-to-rail input/output. This device offers outstanding DC precision and AC performance. Unique features such as differential input-voltage range to the supply rail, high output current (±65mA), high capacitive load drive of up to 1nF and high slew rate (20V/µs) make the OPA192 a robust, high-performance operational amplifier for high-voltage industrial applications.
- EMI/RFI filtered inputs
- Differential input voltage range to supply rail
- ±5µV Low offset voltage
- ±0.2µV/°C Low offset voltage drift
- 5.5nV/?Hz at 1kHz Low noise
- 140dB High common-mode rejection
- ±5pA Low bias current
- 1mA/amplifier Low quiescent current
- 1nF High capacitive load drive capability
- Green product and no Sb/Br
Test & Measurement, Signal Processing, Sensing & Instrumentation
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | OPA192IDBVR |
| Quantity | Each (Supplied on Cut Tape) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
