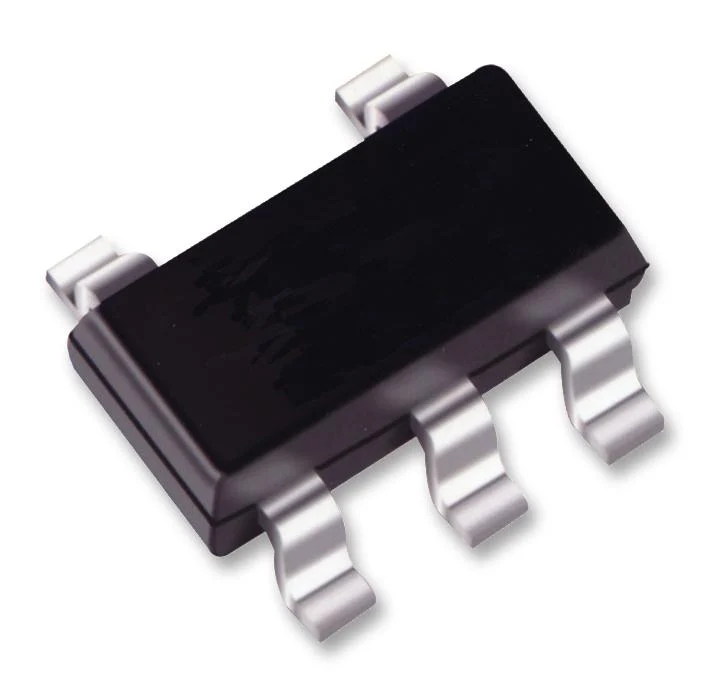

-70%Texas Instruments LP2980AIM5-5.0/NOPB Fixed LDO Voltage Regulator 2.1V to 16V 120mV Dropout 5Vout 50mAout SOT-23-5—
$1.38
$0.41The Story
The LP2980AIM5-5.0/NOPB is a 5V fixed output ultra-low-dropout (LDO) Linear Regulator designed specifically to meet the requirements of battery-powered applications. Using an optimized VIP (Vertically integrated PNP) process, the device delivers unequalled performance in all specifications critical to battery-powered designs, Dropout voltage - typically 120mV at 50mA load and 7mV at 1mA load. Ground pin current - typically 375µA at 50mA load and 80µA at 1-mA load. Sleep mode - less than 1µA quiescent current when ON/OFF pin is pulled low. Minimum part count - requires only a 1µF capacitor on the regulator output.
- Ultra-low-dropout voltage
- 0.5% Output voltage accuracy
- <1µA Quiescent current when shutdown
- Low ground pin current at all load currents
- High peak current capability (150mA typical)
- Fast dynamic response to line and load
- Low ZOUT over wide frequency range
- Overtemperature and overcurrent protection
- Green product and no Sb/Br
Consumer Electronics, Computers & Computer Peripherals, Power Management, Imaging, Video & Vision
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LP2980AIM5-5.0/NOPB |
| Quantity | Each (Supplied on Cut Tape) |
| Product Change Notice EN |  |
