$0.39
Original: $1.31

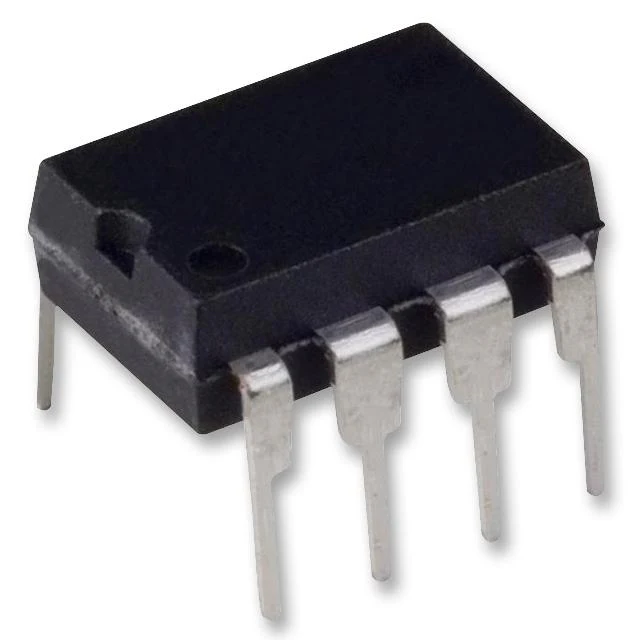

-70%Texas Instruments LM211P Analogue Comparator High Speed 1 115 ns 3.5V to 30V DIP 8 Pins—
$1.31
$0.39The Story
The LM211P is a single high-speed Voltage Comparator designed to operate from a wide range of power-supply voltages, including ±15V supplies for operational amplifiers and 5V supplies for logic systems. The output levels are compatible with most TTL and MOS circuits. This comparator is capable of driving lamps or relays and switching voltages up to 50V at 50mA. All inputs and outputs can be isolated from system ground. The outputs can drive loads referenced to ground, VCC+ or VCC-. Offset balancing and strobe capabilities are available and the outputs can be wire-OR connected. If the strobe is low, the output is in the off state, regardless of the differential input.
- 165ns Fast response time
- Strobe capability
- Can operate from single 5V supply
- Configuration control and print support
- Green product and no Sb/Br
Automation & Process Control, Sensing & Instrumentation, Computers & Computer Peripherals
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LM211P |
| Quantity | Each |
