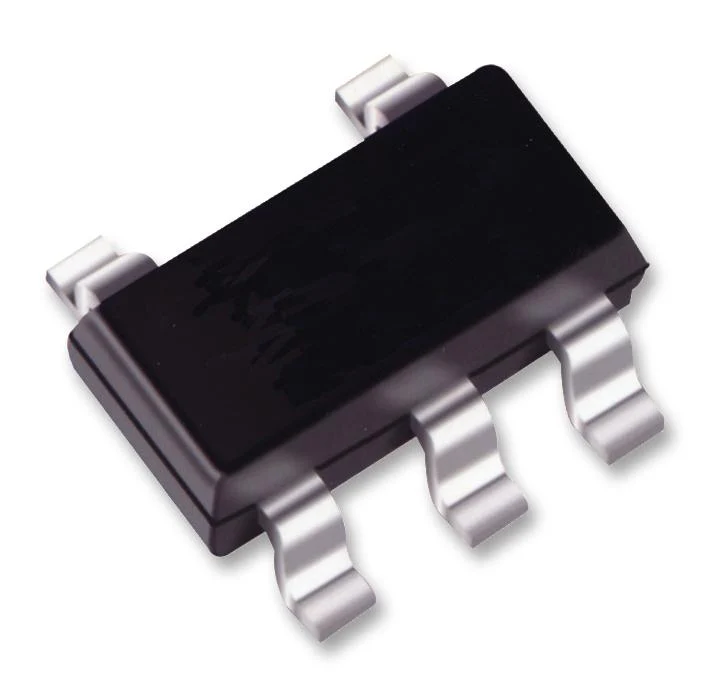

Texas Instruments INA138NA/250 INA138NA/250 Current Sense Amplifier Unipolar 1 2 µA SOT-23 5 Pins -55 °C 150

The INA138NA/250 is an unipolar high side measurement current shunt monitor in 5 pin SOT-23 package. The device converts differential input voltage to current output. This current is converted back to voltage with an external load resistor that sets any gain from 1 to over 100. Although designed for current shunt measurement the circuit invites creative applications in measurement and level shifting. Quiescent current of 25µA permits connecting power supply to either side of current measurement shunt with minimal error.

• Wide supply and common mode range from 2.7V to 36V
• Common mode rejection ratio (CMRR) is 120dB
• Input bias current of 2µA
• Bandwidth is 800KHz at ROUT=5Kohm
• ±2mV offset voltage over -40°C to 125°C temperature
• Independent supply and input common mode voltages
• Single resistor gain set
• Operating temperature range -40°C to 125°C

Applications

Automotive, Communications & Networking, Portable Devices, Power Management, Consumer Electronics

Warnings This device has limited built-in ESD protection. The leads should be shorted together or device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Other details

Brand	TEXAS INSTRUMENTS
Part Number	INA138NA/250
Quantity	Each (Supplied on Cut Tape)
Product Change Notice EN
