Teradek LT 750 Overview

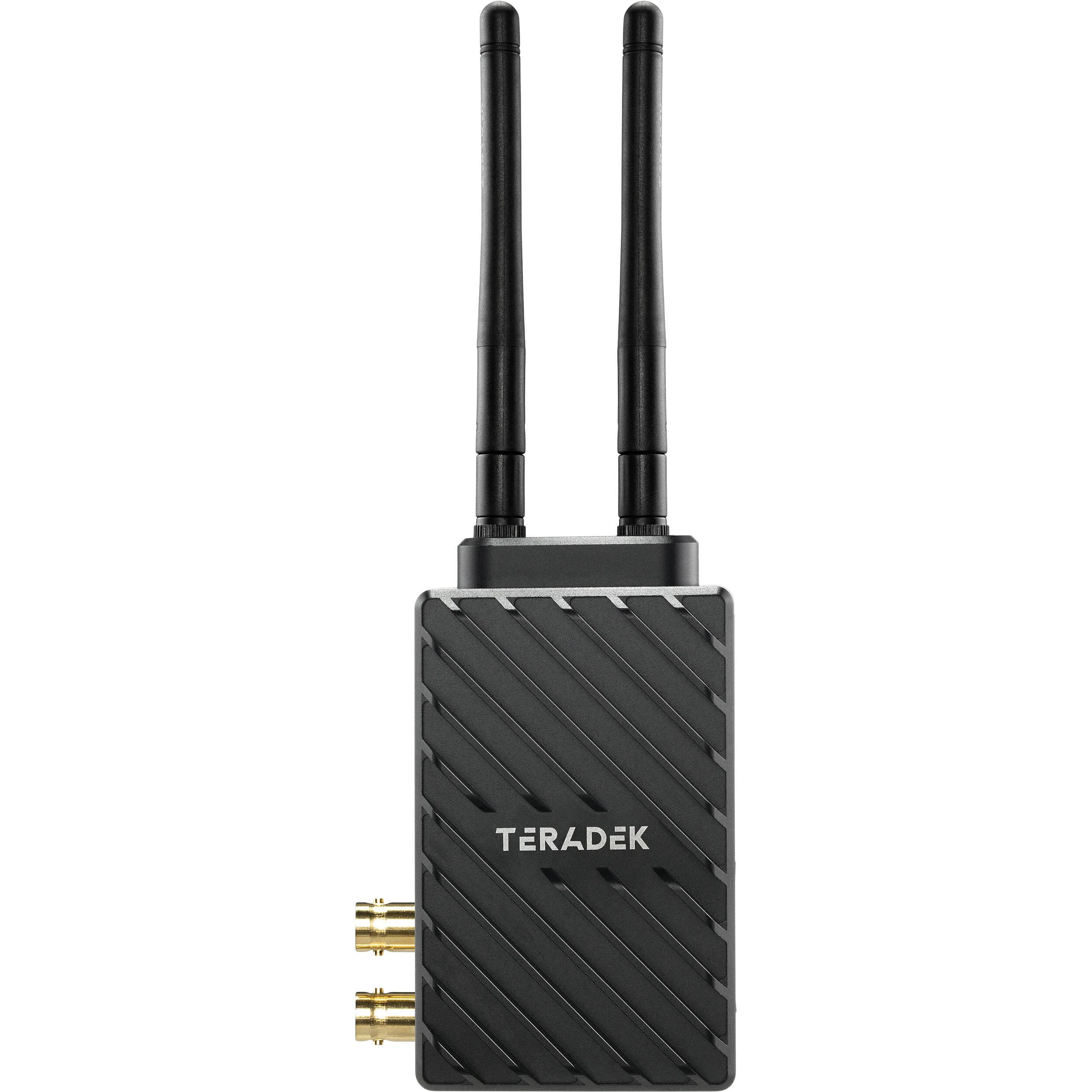

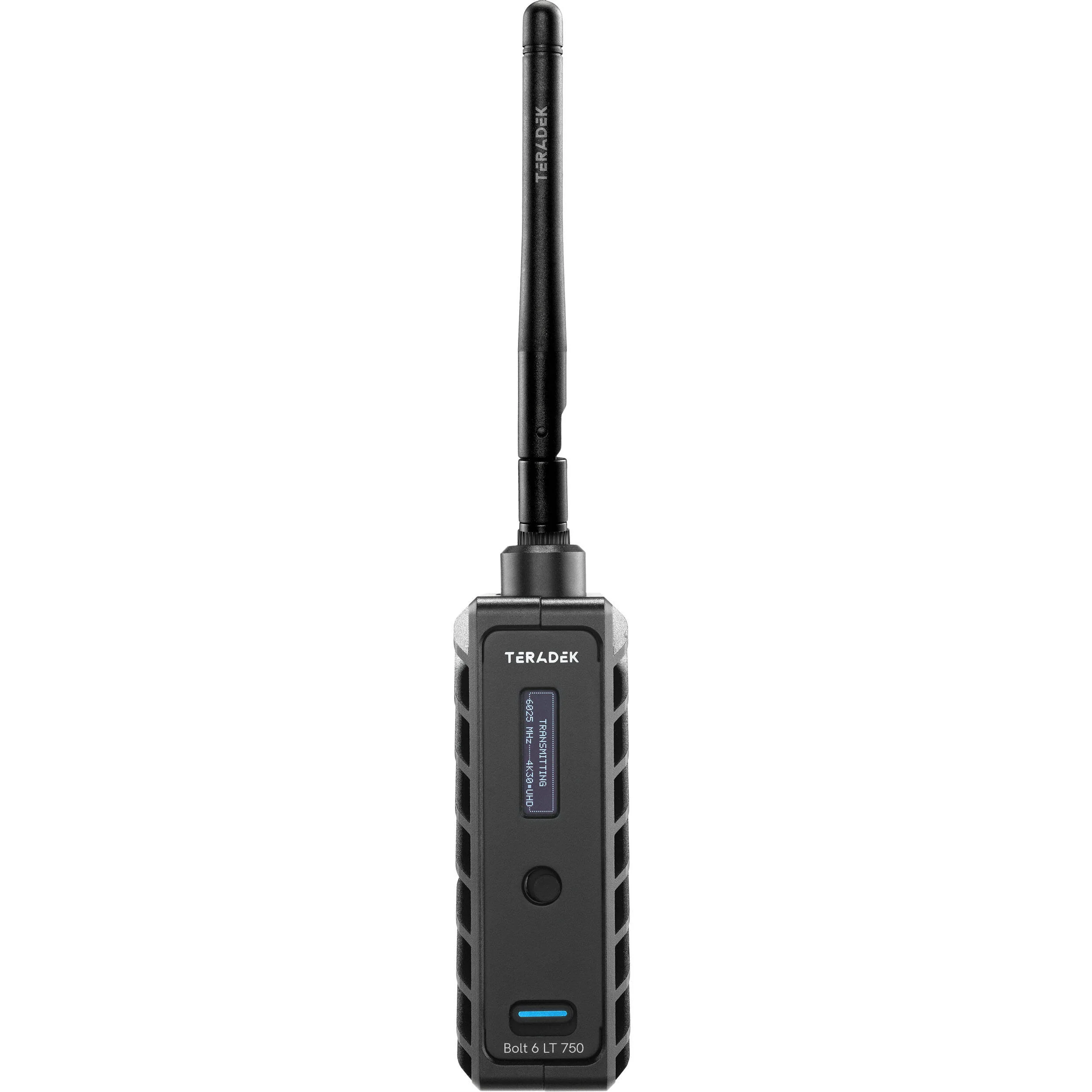

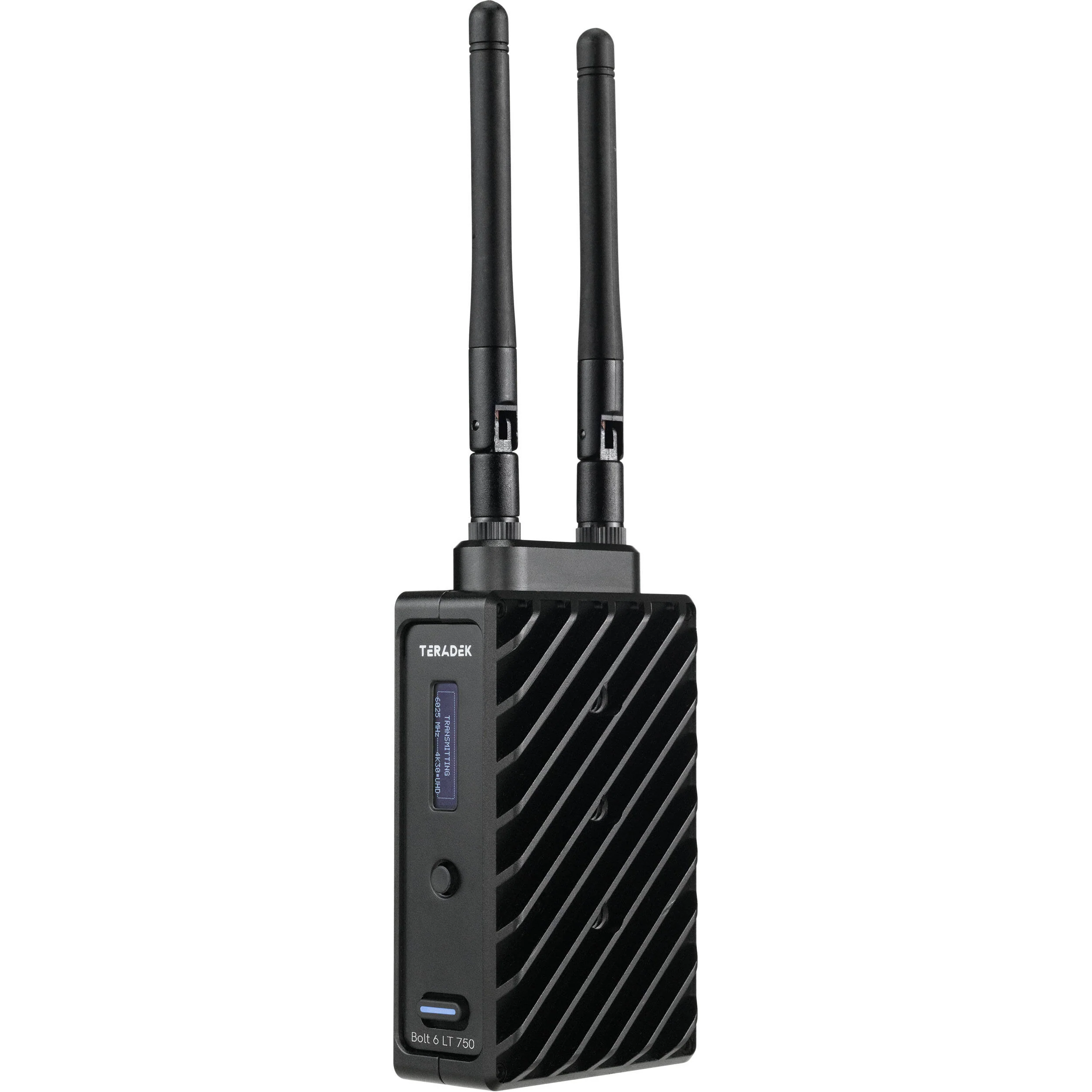

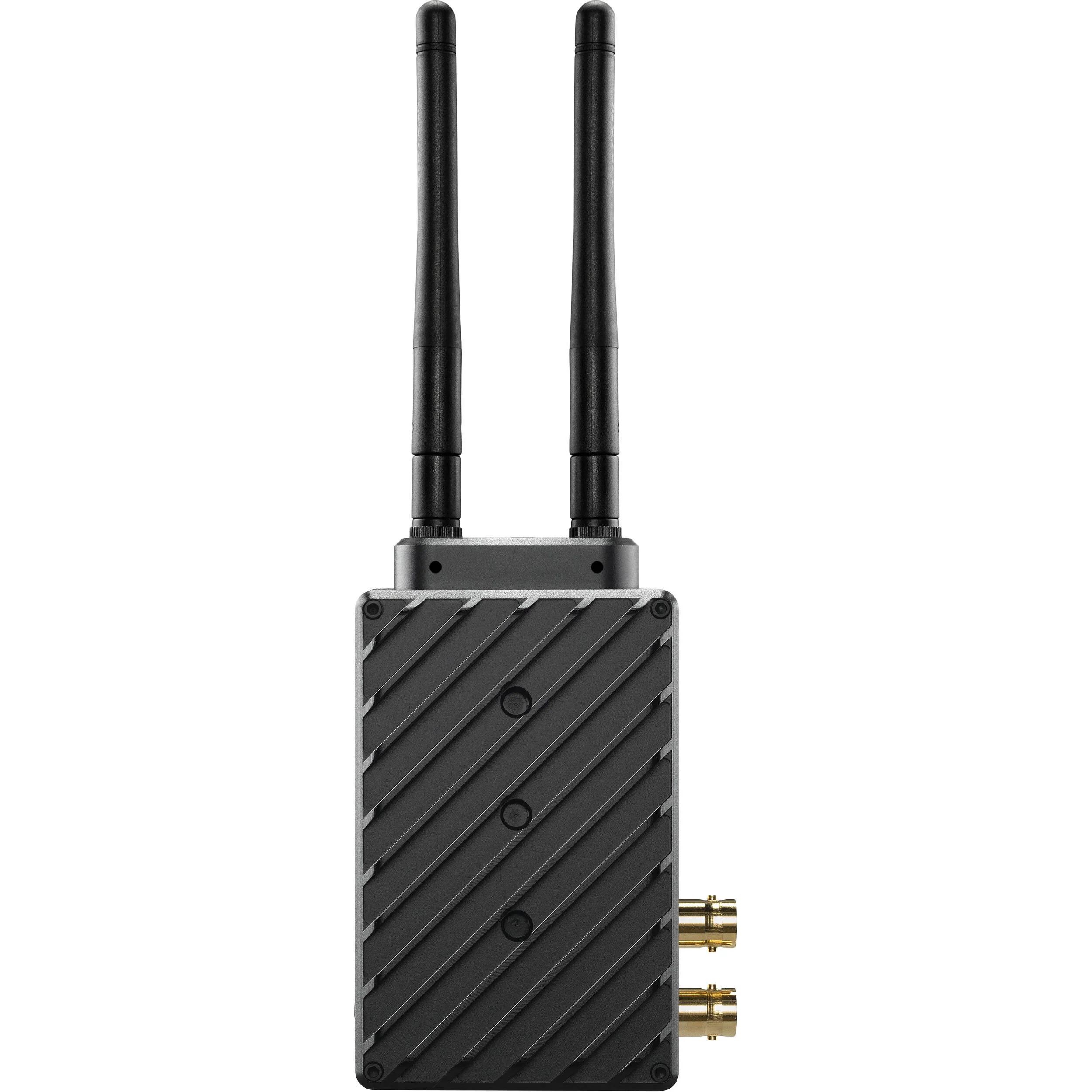

Transmit lossless HD video up to 750' with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter from Teradek. With the same form factor as the Bolt 4K LT 750, this transmitter can input video over HDMI or 3G-SDI with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter unit provides a powerful signal that can travel up to 750' line of sight. It also features a bright OLED display and an SDI loop output.
The transmitter supports transmission of video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.

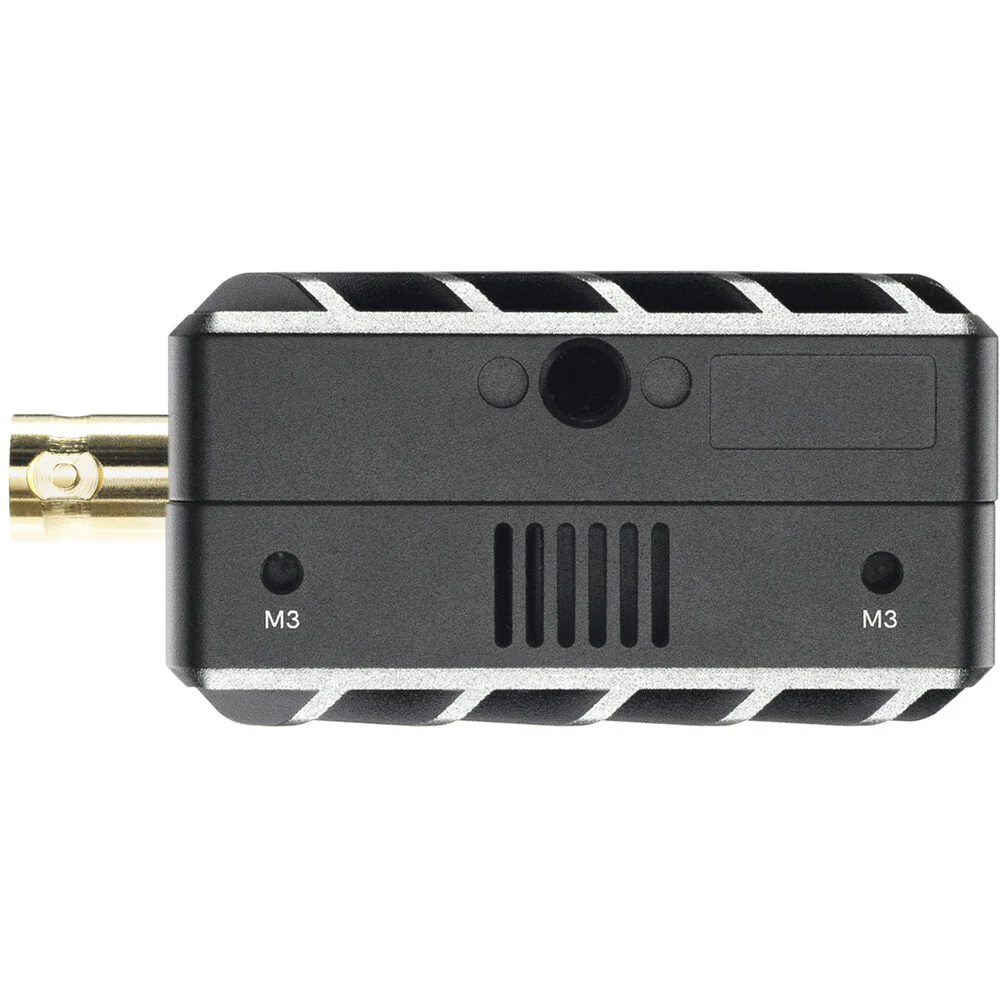

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
In the Box
- Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter
- 2-Pin to D-Tap Power Cable (18")
- USB 2.0 Type-A Male to Micro-USB Male Cable (39")
- HDMI Type A Male to HDMI Type A Male Cable (18")
- BNC to BNC SDI Cable (10")
- AC Adapter with Cable (6')
- 2 x Antenna
Teradek LT 750 Specs

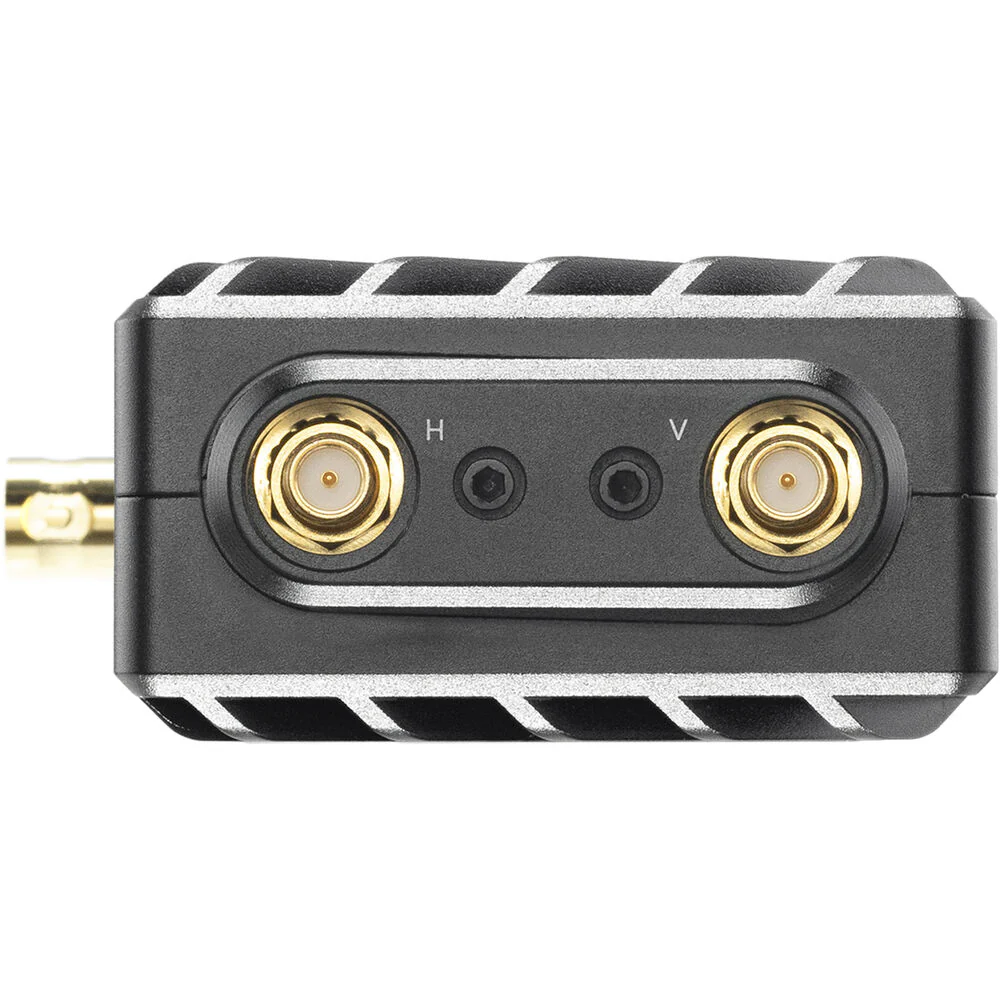

| Antenna I/O | 2 x RP-SMA Female |

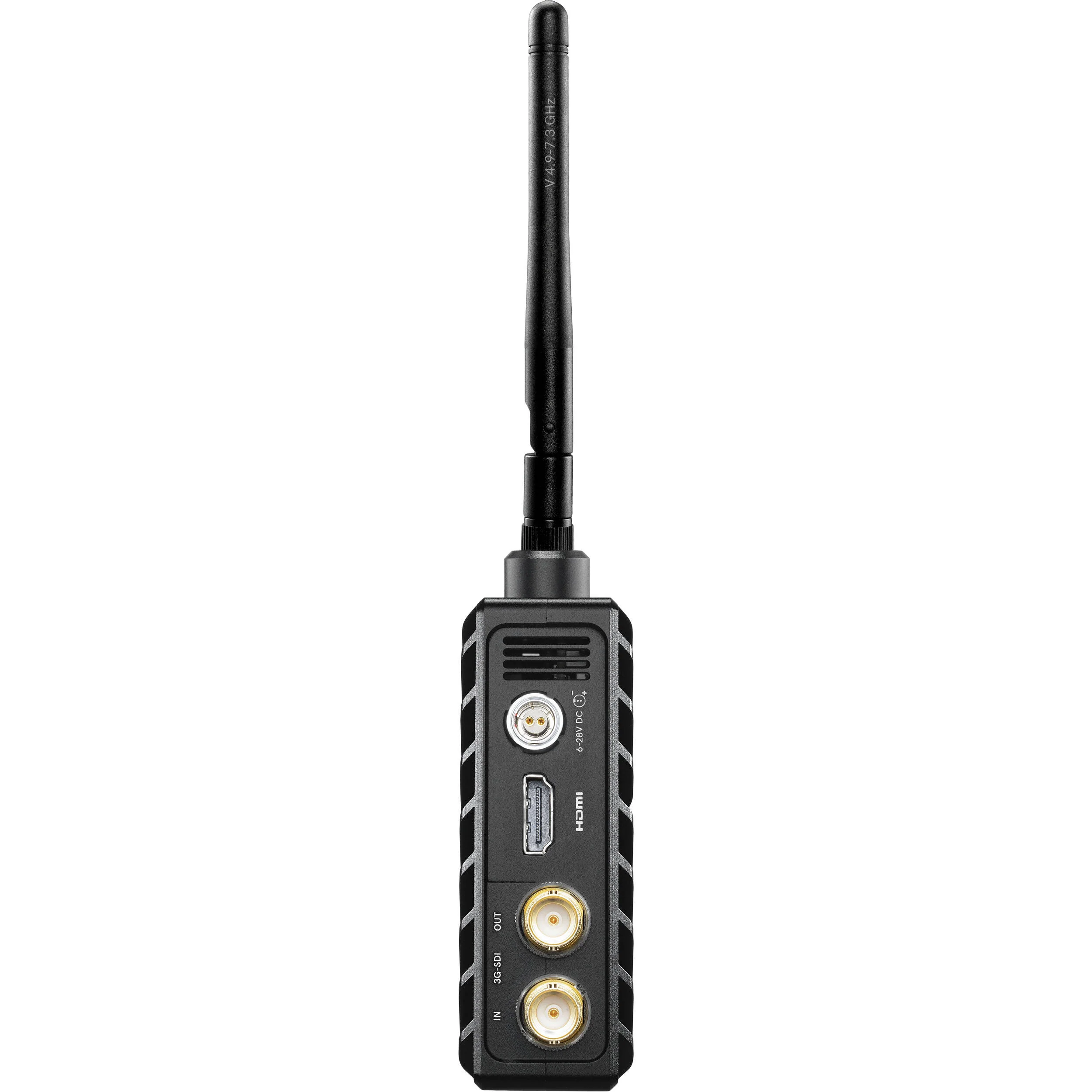

| Video I/O | 1 x HDMI 1.4b Input 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output |
| Embedded Audio | HDMI: 2-Channel SDI |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1 x Micro-USB Input |
| Encryption | 256-Bit AES |
| Wireless Range | 750' / 228.6Â m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
| DC Input Power | 6 to 28 VDC |
| Power Consumption | 9 W |
| Mounting | 1 x 1/4"-20 Female |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum |
| Dimensions | 4.1 x 2.4 x 1.3" / 103 x 60 x 33Â mm |
| Weight | 12.1Â oz / 342Â g |
| Package Weight | 3.17 lb |
| Box Dimensions (LxWxH) | 16.1 x 9 x 3.6" |
