Original: $6,378.28
-70%$6,378.28
$1,913.48The Story
Teradek LT 1500 Overview

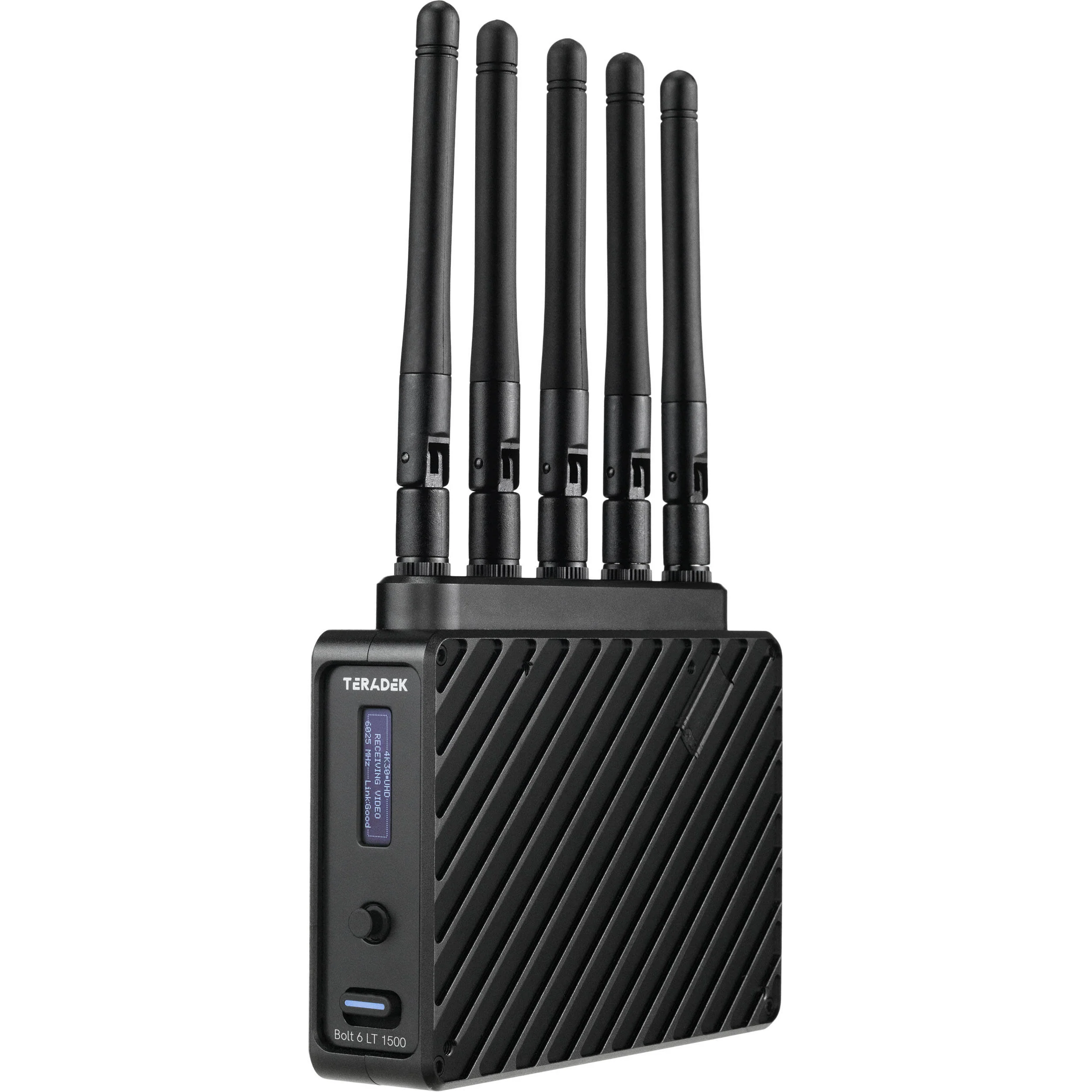

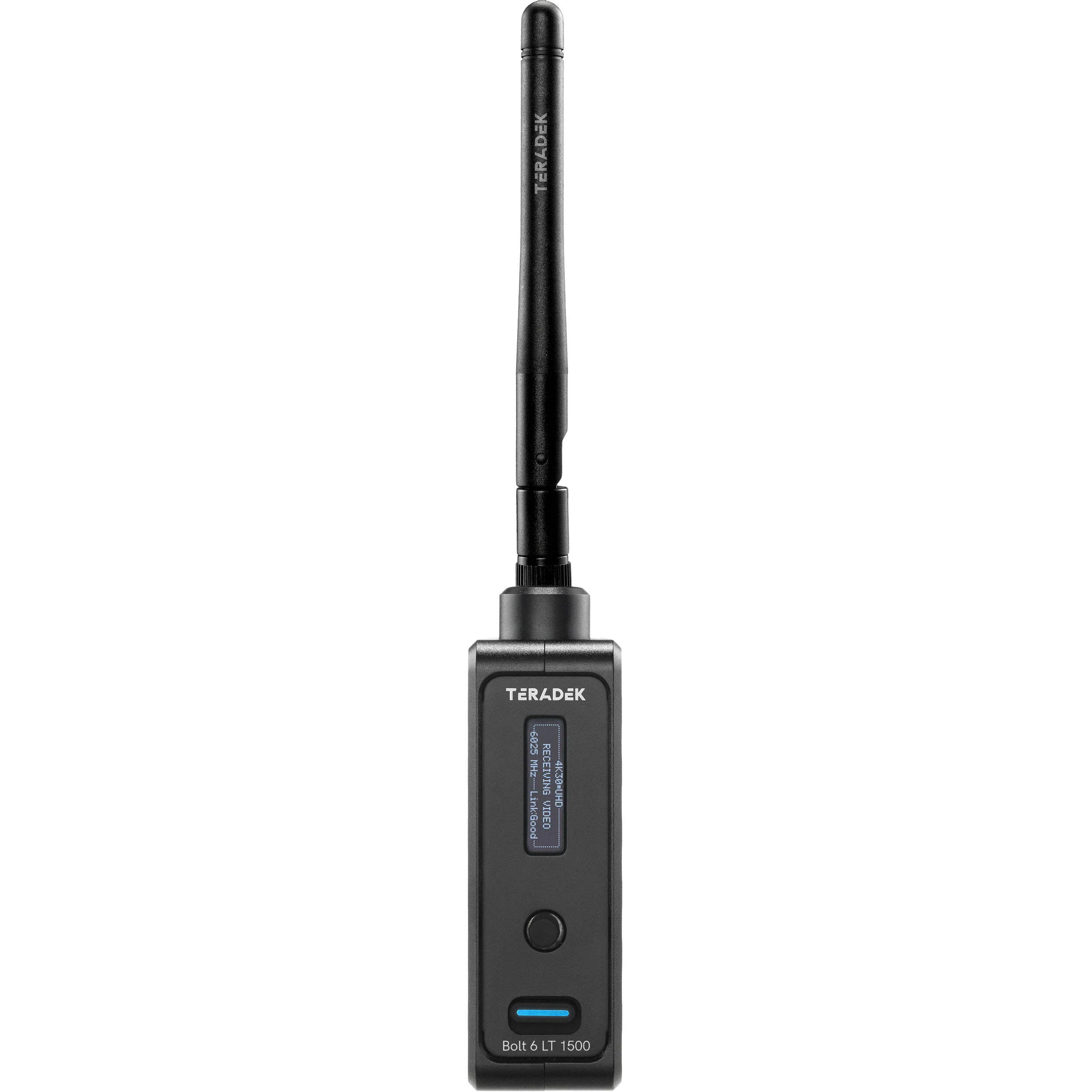

Receive lossless HD video from up to 1500' away along line of sight with the Bolt 6 LT 1500 3G-SDI/HDMI Wireless Receiver from Teradek. The unit can wirelessly receive up to UHD 4K30 video with 10-bit HDR support, features a bright OLED display, and outputs video via an HDMI or 3G-SDI port. This new line supports the 6 GHz wireless band, which is now freely available. The receiver comes with a Gold mount battery plate to power it with a high-capacity battery.
The receiver supports transmissions of up to 4K30 video from a Bolt 6 series transmitter, which can simultaneously transmit to up to six receivers. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption and RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 LT system also supports the transmission of timecode and start/stop triggers.

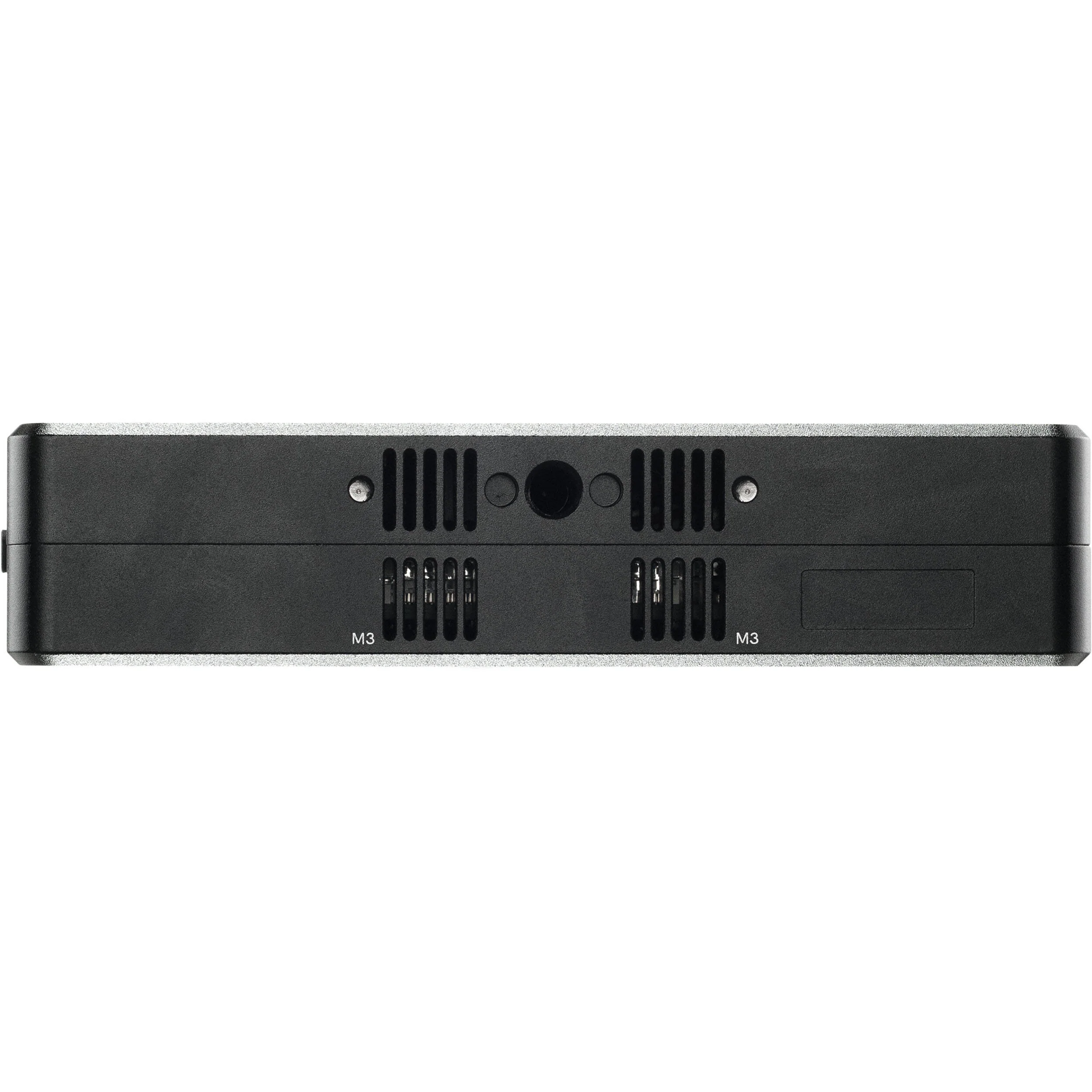

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The receiver also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your receiver on a variety of monitors or rigs.
In the Box
- Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Receiver (Gold Mount)

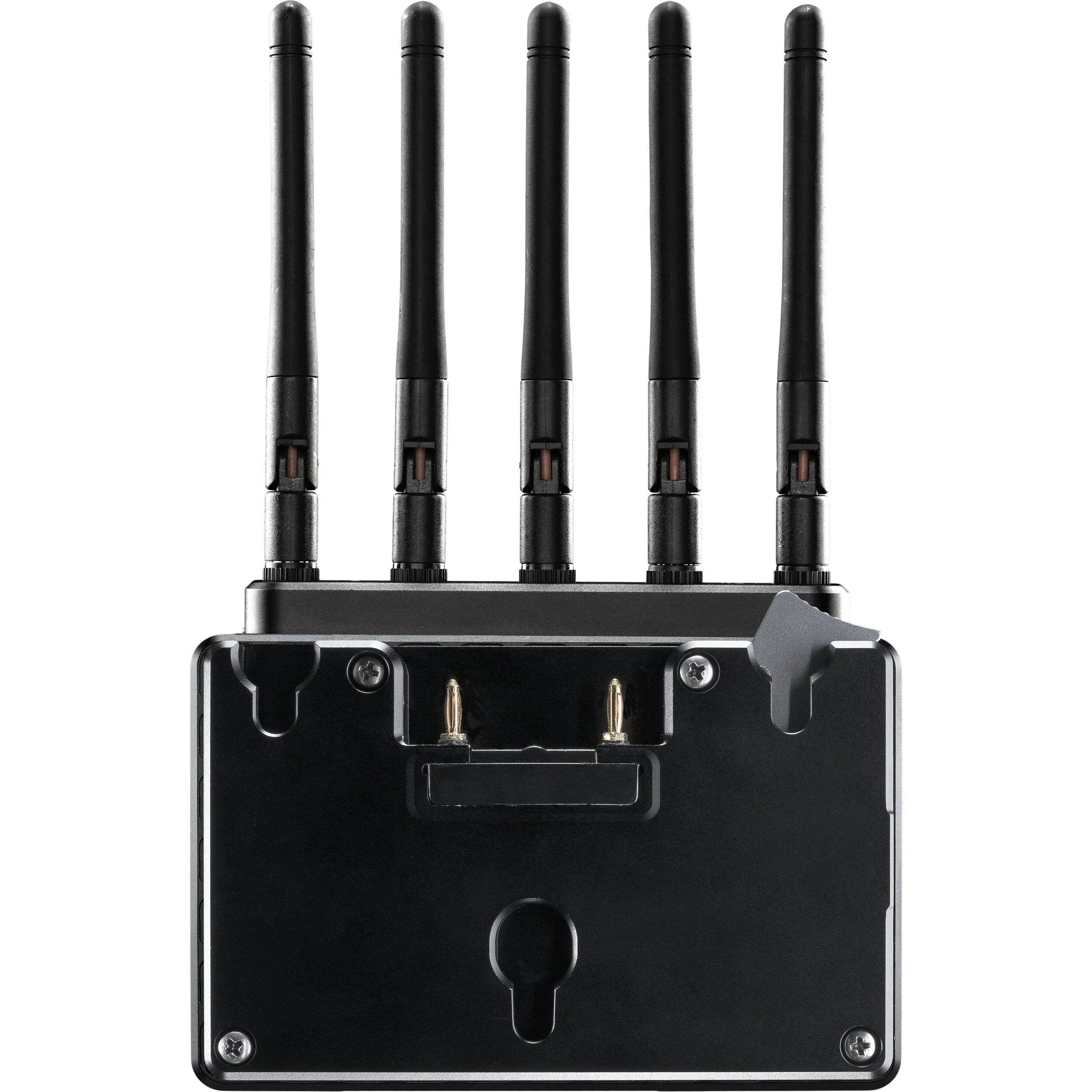

- Gold Mount Battery Plate
- 2-Pin to D-Tap Power Cable (18")
- USB Type-A to Micro-USB Type-B Cable (3')
- Ultra-Thin HDMI Type A to HDMI Type A Cable (18")
- BNC to BNC SDI Cable (10")
- AC Adapter with Cable (6')
- 5 x Antenna
- Battery Cover
- 2 x Screw
Teradek LT 1500 Specs

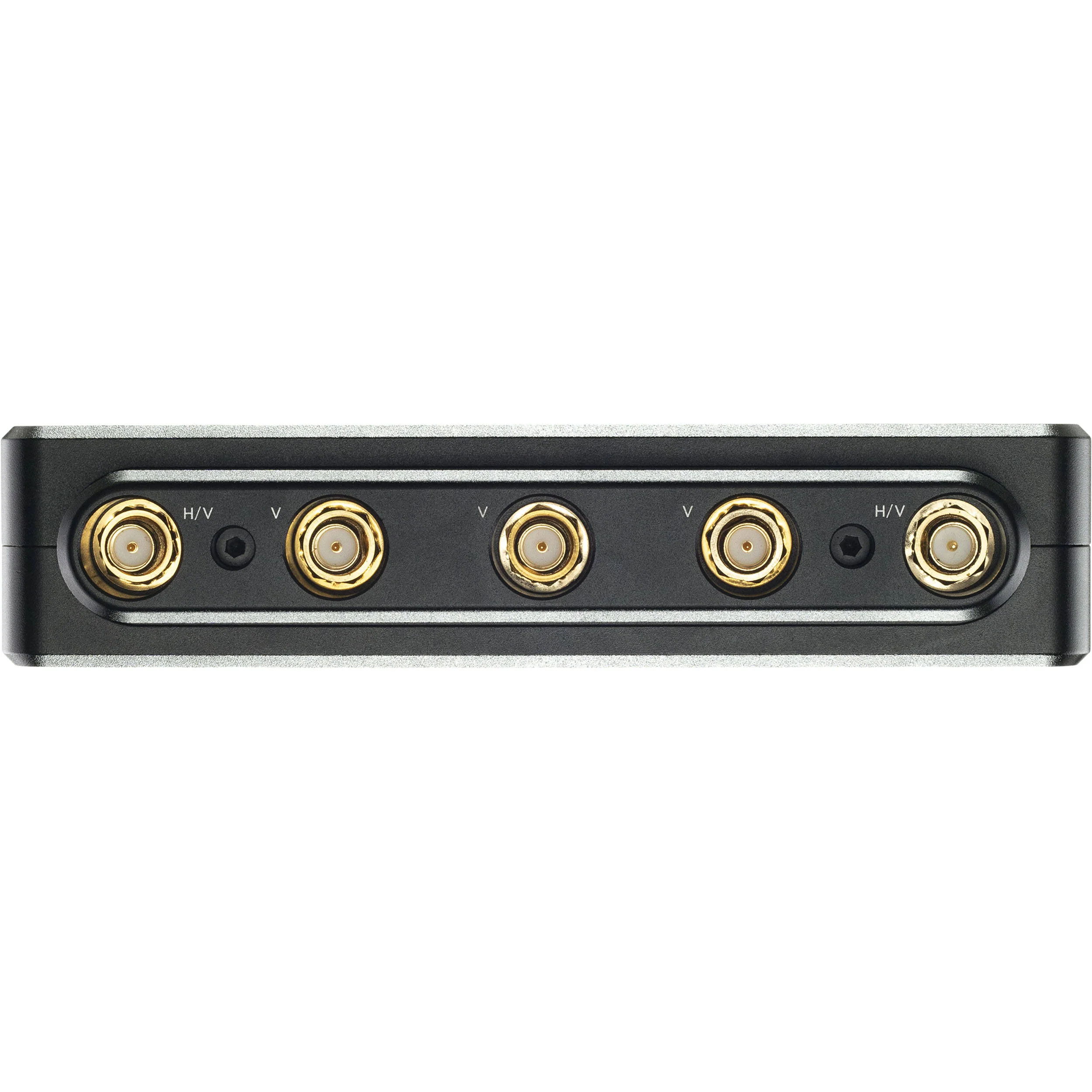

| Antenna I/O | 5 x RP-SMA Female |

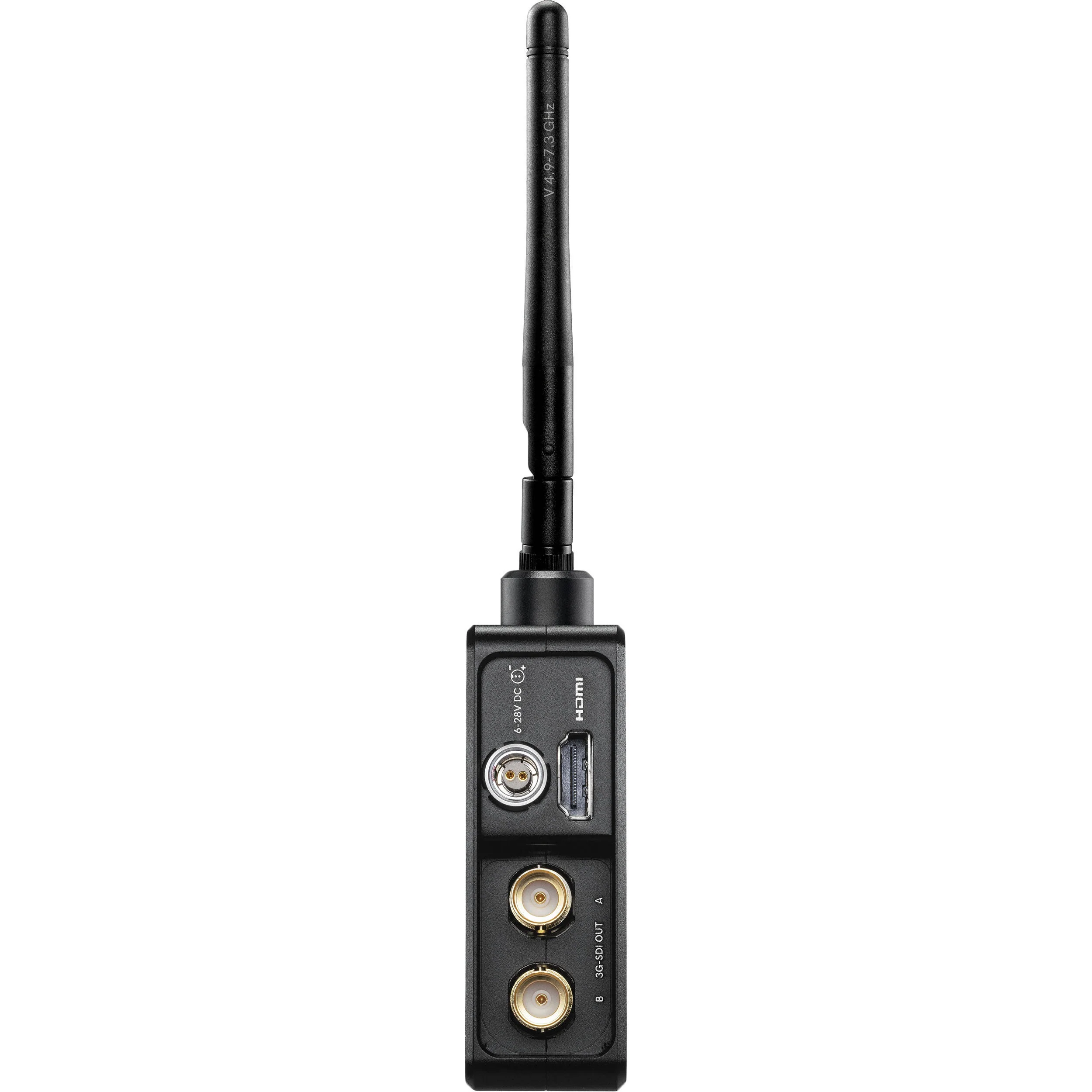

| Video I/O | 1 x HDMI 1.4b Output 1 x BNC (3G-SDI) Output |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1 x Micro-USB Input |
| Encryption | 256-Bit AES |
| Wireless Range | 1500' / 457.2Â m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 21 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
| DC Input Power | 6 to 28 VDC |
| Battery Type | 1 x Gold Mount (Interchangeable Mount) |
| Power Consumption | 11 W |
| Mounting | 1 x 1/4"-20 Female 1 x 3/8"-16 Female |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | 4.8 x 3.7 x 1.1" / 122 x 94 x 27Â mm, Excluding Battery Plate |
| Weight | 10.3Â oz / 292Â g, Excluding Battery Plate |
| Package Weight | 3.9 lb |
| Box Dimensions (LxWxH) | 16.9 x 8.4 x 3.6" |
Teradek LT 1500 Reviews
