-70%Tenveo AI Auto-Tracking 1080p SDI/HDMI/USB/IP Camera with 30x Optical Zoom—
$1,127.92
$338.38The Story
Tenveo NVMAX630A Overview

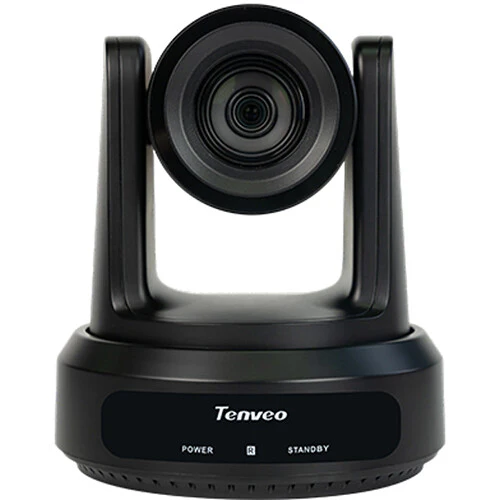

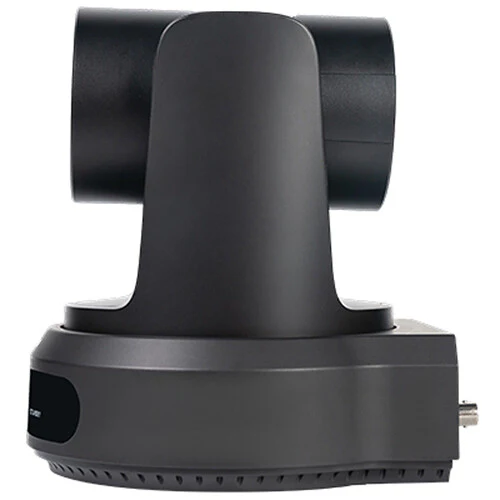

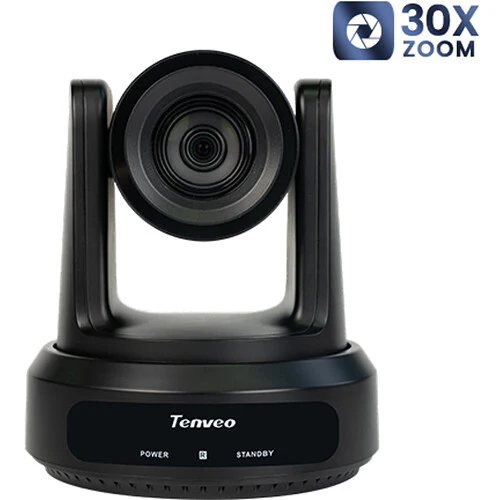

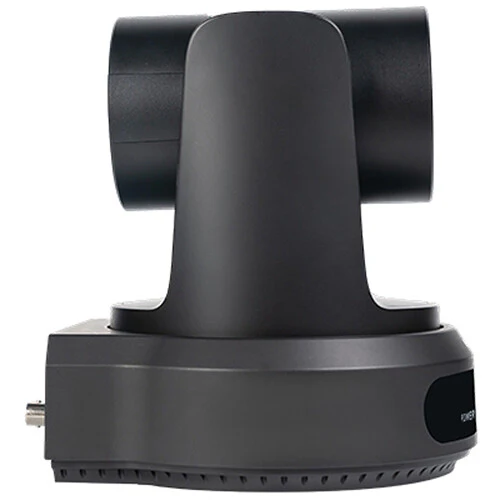

The AI Auto-Tracking 1080p SDI/HDMI/USB/IP Camera with 30x Optical Zoom from Tenveo supports up to 1080p60 video output via HDMI, 3G-SDI, and USB 3.0, and it has a LAN port for IP streaming. The integrated zoom lens features a 30x optical zoom and 16x digital zoom, and the AI auto-tracking feature keeps your subject always in frame.
Additional Details
- 4.42 to 132.6mm zoom lens with 30x optical zoom and 16x digital zoom
- Up to 1080p60 resolution capture
- Supports AI auto-tracking
- 2.07MP 1/2.8" CMOS sensor
- f/1.8 to f/2.8 aperture
- Wide 72.5 to 3.63? field of view with no distortion
- 3G-SDI, HDMI, USB 3.0, and LAN (IP) outputs
- Ceiling, wall, and tripod mounting options
- 350? horizontal rotation, 180? vertical tilt
- Horizontal and vertical auto-flip
- 2D and 3D noise reduction (DNR)
- Backlight compensation, auto/manual white balance
- High-quality low-light performance
- Up to 10 presets via lR; up to 255 presets via RS-232
- PoE support (Power over Ethernet)
Items Included
- Tenveo AI Auto-Tracking 1080p SDI/HDMI/USB/IP Camera with 30x Optical Zoom
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Tenveo NVMAX630A Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| Max Optical Zoom |
30x
|
| Max Digital Zoom |
16x
|
| Video Output |
HDMI / RJ45 / SDI/BNC / USB
1920 x 1080p up to 60.00 fps 1920 x 1080i 1280 x 720 |
| Broadcast Output |
NTSC
|
| Supported Protocols |
Camera Control Protocol
IR/VISCA/RS-232/NDI/Pelco-D/ONVIF/Pelco-P/IP |
| IP Streaming |
HTTP/ONVIF/RTMP/RTMPS/RTSP/SRT
1280 x 720 to 1920 x 1080 up to 60p |
| Wireless |
No
|
| PoE Support |
PoE 802.3af
|
| Mounting |
1x Proprietary for Ceiling/Tripod/Wall
|
Imaging
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| Focus Control |
Autofocus
|
Exposure Control
| Minimum Illumination |
0.5 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: Auto, Manual
|
Lens
| Focal Length |
4.42 to 132.6mm
|
| Max Optical Zoom |
30x
|
| Max Digital Zoom |
16x
|
| Field of View |
Diagonal: 72.5 to 3.63?
|
| Maximum Aperture |
f/1.8 to 2.8
|
Video Capture
| Video Output |
HDMI / RJ45 / SDI/BNC / USB
1920 x 1080p up to 60.00 fps 1920 x 1080i 1280 x 720 |
| Embedded Audio |
HDMI/IP/SDI/USB
|
| Broadcast Output |
NTSC
|
| Supported Protocols |
Camera Control Protocol
IR/VISCA/RS-232/NDI/Pelco-D/ONVIF/Pelco-P/IP |
| IP Streaming |
HTTP/ONVIF/RTMP/RTMPS/RTSP/SRT
1280 x 720 to 1920 x 1080 up to 60p |
Control
| Presets |
255 via RS-232
10 via IR |
| Pan/Tilt |
Pan: 350? (-175 to 175?) at 0.1 to 100?/sÂ
Tilt: 180? (-90 to 90?) at 0.1 to 80?/s |
Networking
| Wireless |
No
|
Interface

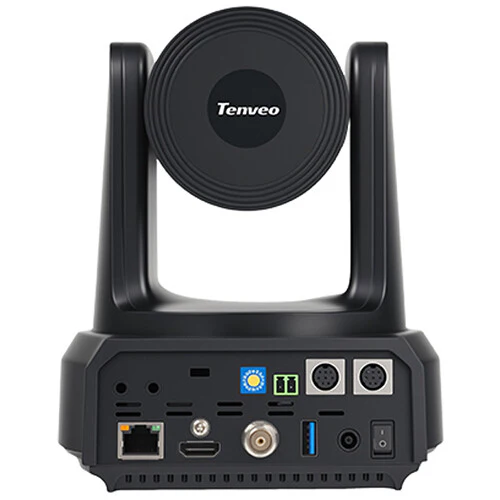

| Video I/O |
1x HDMI Output
1x BNC (3G-SDI) Output 1x USB-A 3.0 / 3.1/3.2 Gen 1 Output 1x RJ45 LAN Input/Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Built-In Microphone |
No
|
Power
| PoE Support |
PoE 802.3af
|
General
| Mounting |
1x Proprietary for Ceiling/Tripod/Wall
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Tenveo NVMAX630A Overview
The AI Auto-Tracking 1080p SDI/HDMI/USB/IP Camera with 30x Optical Zoom from Tenveo supports up to 1080p60 video output via HDMI, 3G-SDI, and USB 3.0, and it has a LAN port for IP streaming. The integrated zoom lens features a 30x optical zoom and 16x digital zoom, and the AI auto-tracking feature keeps your subject always in frame.
Additional Details
- 4.42 to 132.6mm zoom lens with 30x optical zoom and 16x digital zoom
- Up to 1080p60 resolution capture
- Supports AI auto-tracking
- 2.07MP 1/2.8" CMOS sensor
- f/1.8 to f/2.8 aperture
- Wide 72.5 to 3.63? field of view with no distortion
- 3G-SDI, HDMI, USB 3.0, and LAN (IP) outputs
- Ceiling, wall, and tripod mounting options
- 350? horizontal rotation, 180? vertical tilt
- Horizontal and vertical auto-flip
- 2D and 3D noise reduction (DNR)
- Backlight compensation, auto/manual white balance
- High-quality low-light performance
- Up to 10 presets via lR; up to 255 presets via RS-232
- PoE support (Power over Ethernet)

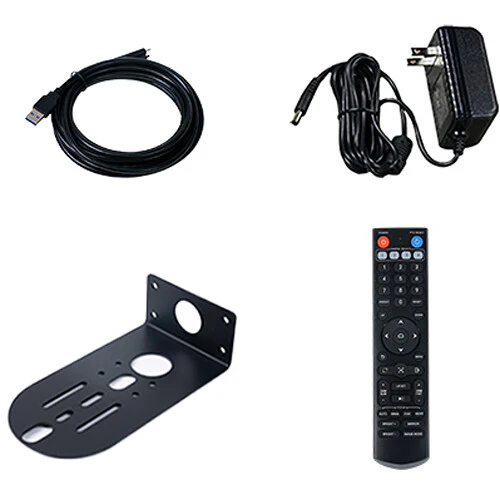

Items Included
