Original: $1,120.83
-70%$1,120.83
$336.25The Story

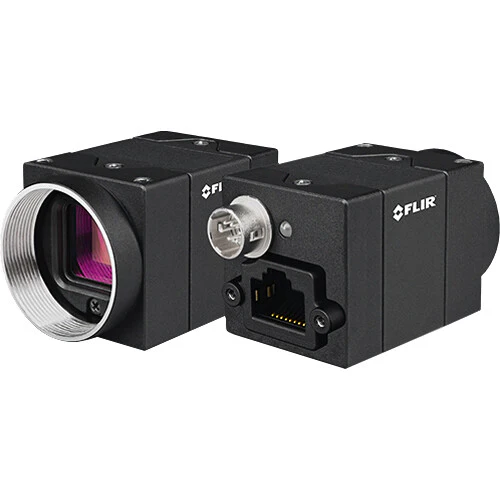

Teledyne Flir Blackfly S GigE 2MP Overview
The Blackfly S GigE 2MP Black & White Camera from Teledyne Flir captures up to 1616 x 1240 resolution video and offers Gigabit Ethernet output. Its maximum standard frame rate is 60 fps and 79 fps with turbodrive and lossless compression. Featuring a compact form factor, the high-performance camera is designed for industrial machine vision applications and meets the GigE Vision v1.2 standard. A C lens mount provides support for a wide variety of varifocal and fixed focal length lenses.
Features include a Sony IMX430 1/1.7" 2MP CMOS sensor, two custom user settings, manual/auto gain, and a global shutter. You can power the camera using a 6-pin Hirose power source or via PoE using an optional interface card.
- Acquisition modes: Continuous, Single Frame, Multi Frame
- Exposure control: hardware trigger, programmable via camera API, automatic
- Exposure range: 14 ?s to 30 seconds
- Flash memory: 6MB non-volatile memory
- Gain control: manual, automatic (AGC)
- Image buffer: 240MB
- Image processing: gamma, lookup table, and sharpness
- Partial image modes: pixel binning, decimation, ROI
- User sets: two user configuration sets for custom camera settings
- Absolute sensitivity threshold (y): 4.37 (HCG) / 8.82 (LCG)
- Dynamic range: 70.95 dB (HCG) / 71.99 dB (LCG)
- Gain range: 0 to 47 dB
- Quantum efficiency mono: 71 (HCG) / 72 (LCG) at 530nm
- Saturation capacity (e-): 10920 (HCG) / 25090 (LCG)
- Temporal dark noise (read noise): 2.60 (HCG) / 5.81 (LCG)
Items Included
- Teledyne Flir Blackfly S GigE 2MP Black & White Camera (C Mount)
- Limited 3-Year Manufacturer Warranty
Not Included
-
LensesEssential
Additional Resources
No additional resources available
Teledyne Flir Blackfly S GigE 2MP Specs
| Image Sensor |
1/1.7"-Type CMOS
|
| Sensor Resolution |
Effective: 2 Megapixel
|
| Lens Mount |
C
|
| Supports Color Recording |
No
|
| Video Output |
RJ45
1616 x 1240 |
| Partial Image Processing |
Pixel Binning/Decimation/Region of Interest (ROI)
|
| Shutter Type |
Electronic Global Shutter
|
| Video I/O |
1x RJ45 LAN Output
|
| Power I/O |
1x Hirose 6-Pin Input
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
| Voltage |
8.0 to 24.0 VDC
|
| Power Consumption |
4.2 W
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 20 to 80% Humidity
|
| Certifications |
CE, FCC, Kcc, RoHS
|
| Machine Vision Standard |
GigE Vision v1.2
|
| Dimensions |
1.2 x 1.1 x 1.1" / 30 x 29 x 29Â mm
|
| Weight |
1.9Â oz / 53Â g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
