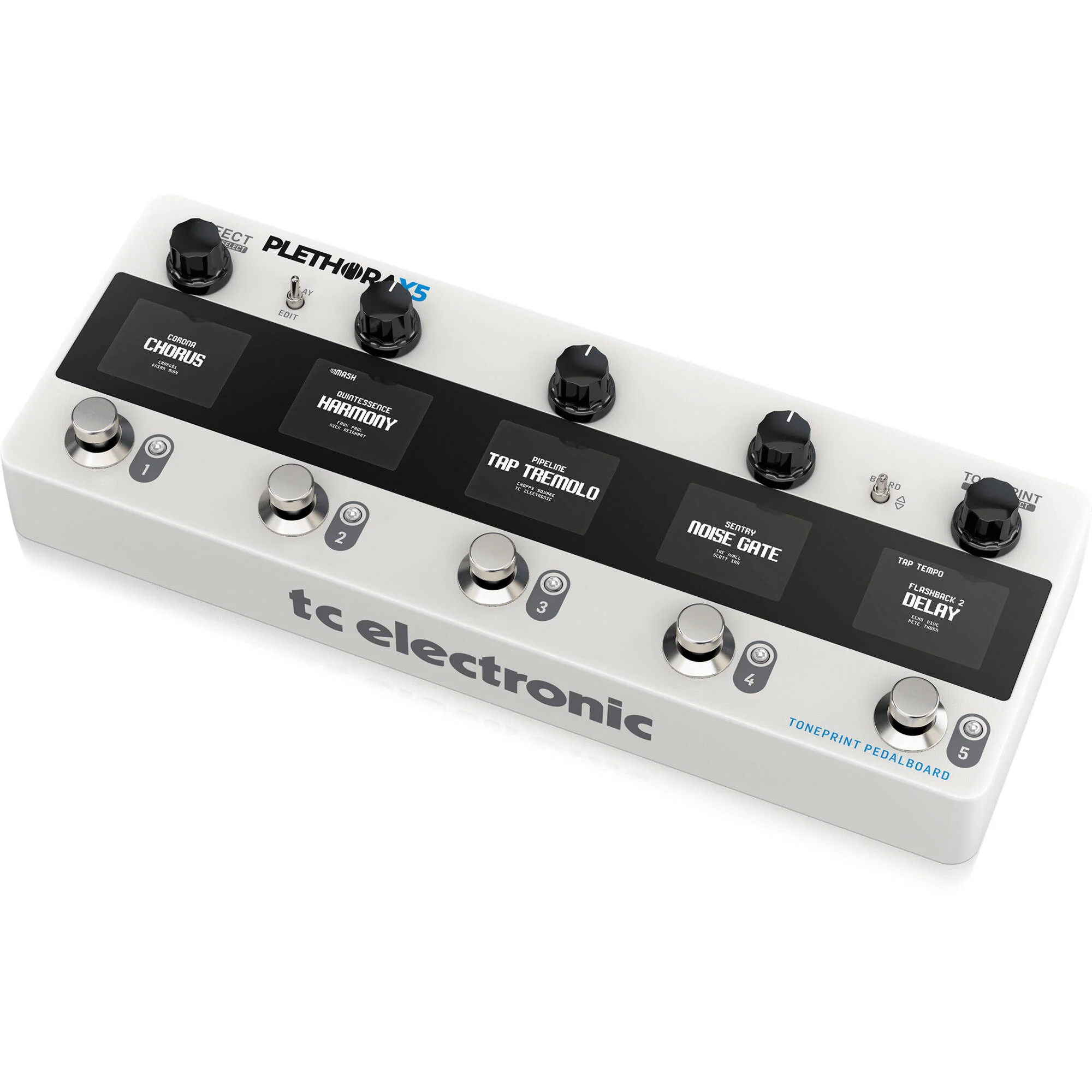

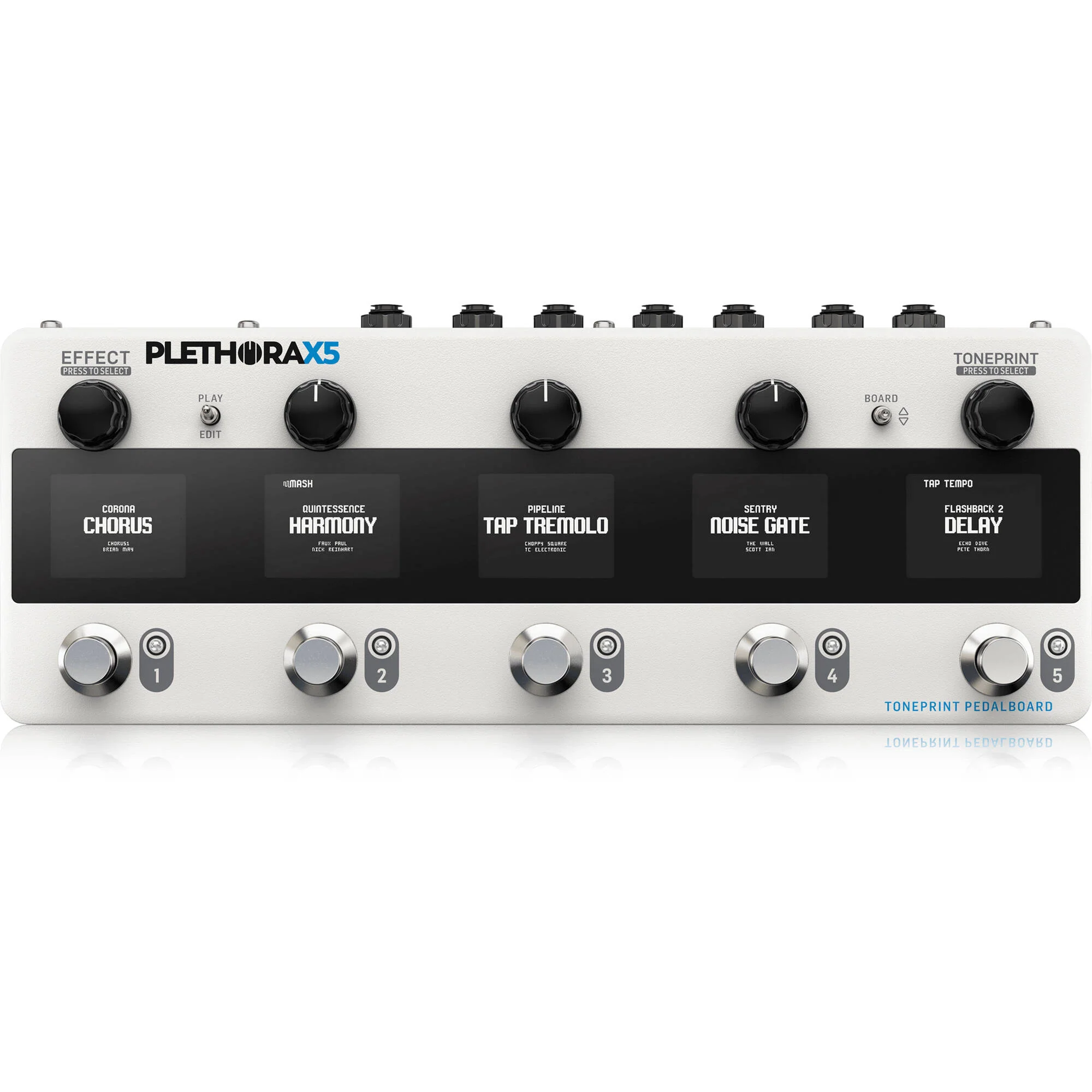

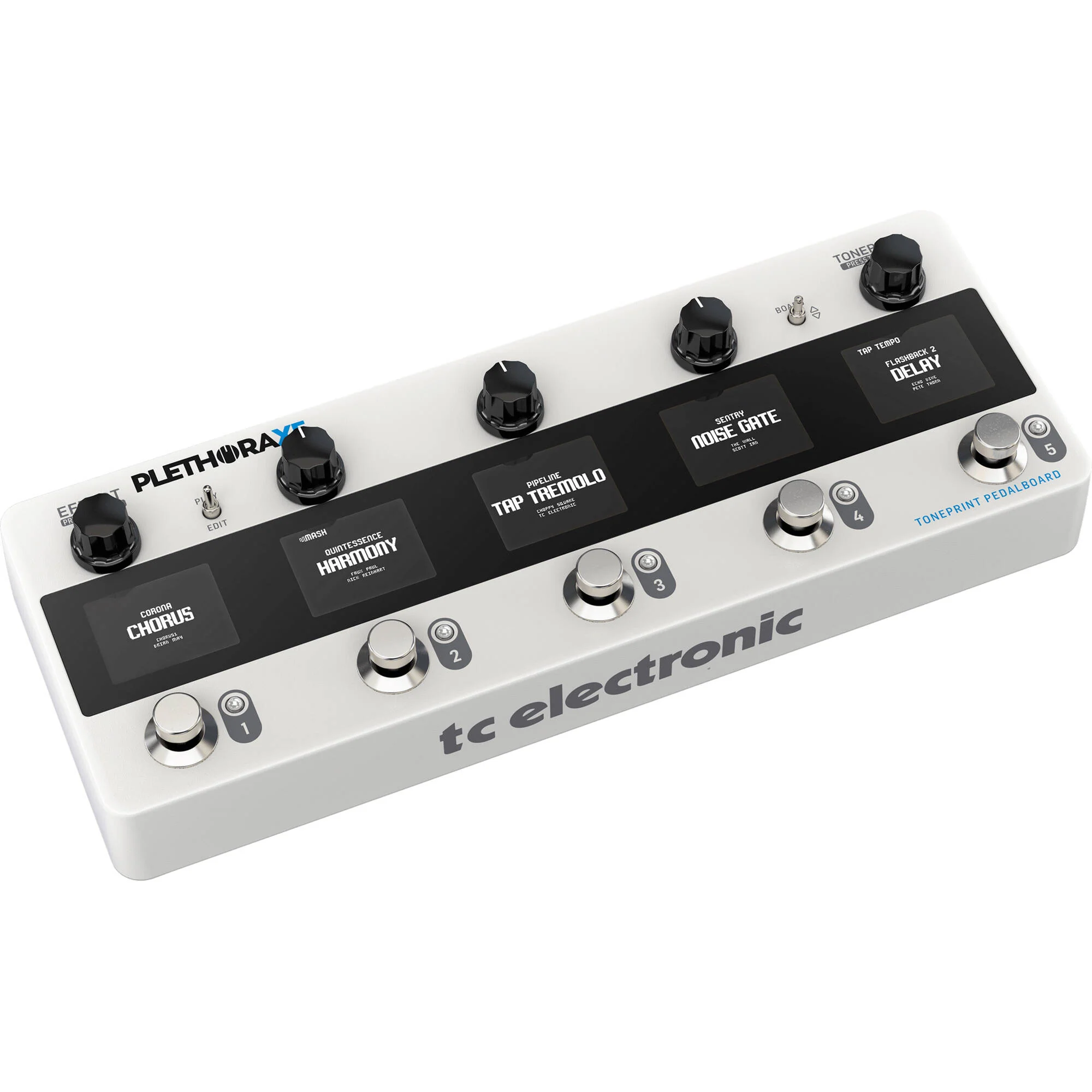

TC Electronic Plethora X5 Multi-FX Pedal

TonePrint-Enabled FX Pedal with 5 MASH Footswitches

Unleash an utter deluge of sound FX with the Plethora X5 from TC Electronic, a powerful multi-FX processor pedal designed to act as a virtual pedalboard, allowing you to assemble up to 75 TonePrints on each of the five footswitches for unlimited creativity. With customizable signal chains and up to 127 boards, Plethora X5 lives up to its namesake.

MASH technology makes each footswitch an expression controller with customizable mapping. Each TonePrint can be adjusted quickly with three simple knobs, and you can assign specific effect parameters to each knob. Low-noise stereo inputs and outputs provide you with enormous creative possibilities and plenty of headroom, an expression pedal input offers further creative wiggle room, and 5-pin DIN MIDI connections make it easy to connect Plethora X5 to external gear, such as control units for switching boards. Customize everything wirelessly via Bluetooth LE and the TonePrint app. The Plethora X5 includes a 9 VAC power adapter.

Setting up a nice pedalboard takes time. Planning, measuring, figuring out a combined current draw, and cutting touch fasteners, all before organizing cables and power cords in a way that doesn't look like the aftermath of a minor apocalyptic event. It doesn't have to be that hard.

p>Plethora X5 makes the entire board-building experience much more intuitive and fun. With the ability to create and store up to 127 custom boards tailored to your needs, you'll never run out of tones.

This is your chance to make the Flash of Fame combined delay/reverb pedal you've been craving, with an extra side of modulation and pitch shifting for a truly massive tone. It's all of your favorite TC stomps in one unit that will satisfy all your needs for pitch tracking, studio-grade compression, sultry modulation, unobtrusive noise gating, toneful reverb, epic delay, and more.

Drive pedals are at the heart of building your own tone. As such, you should have the choice to integrate your favorite stompboxes into the signal chain.

Plethora's FX insert loop lets you add your preferred flavor of gain anywhere on the board you like. You can also use the insert for a 4-cable method setup with your amplifier, letting you choose which effects go in front of your amp's input and which effects live in your amp's effects loop.

With expressive, pressure-sensitive MASH footswitches, you can create volume swells, modulation ramping, fluid mix control, and so much more. Each MASH footswitch lets you control your effects in real time by simply mashing down on the footswitch. With each MASH switch controlling up to three effect parameters simultaneously through completely customizable action curves, your always-on effects suddenly grew a whole new dimension.

Tape Deck Looper is a RAM-based looper exclusive to the Plethora. With record and playback times of 40 seconds in stereo and 80 seconds in mono, you'll have more than enough reel to lay down some dirty loops. Load up to five of these loops onto a board and position them anywhere in the signal chain.

A certain song might sometimes call for separate parameter control outside of what the MASH switches provide. Plethora X5 features an Expression input to hook up your favorite expression pedal to control any effect you like or add an extremely useful volume pedal anywhere in the board's signal chain.

Plethora X5 is the first TC pedal to feature Bluetooth, letting you connect to the TonePrint app to load custom FX. Using the free TonePrint app, you can connect your phone to Plethora and arrange your boards to get everything just the way you like it.

What would it sound like if you turned the usual order of delay into reverb upside down? Or, if you inserted your favorite sputtery octave fuzz at the end of your chain after the time-based effects?

With Plethora's Quick Swap feature, it's a breeze to experiment with pedal routing. Just hold down the footswitches of two pedals you'd like to swap around, and it's done.

Preset boards are nice, but what about the old-school stompbox experience? Hot Knobz lets you assign the three black knobs on Plethora X5 to simultaneously control any pedal parameters on your board for real-time tweaking in Play mode. Touch and feel your effects.

As an added bonus, TC Electronic included nine optional global cab simulations made in-house using a proprietary TC method. This makes direct-to-PA gigs and home recording sessions a breeze. The options even include bass cabinets for bass players.

TC Electronic PLETHORA X5 Specs

Audio Circuit Type	Digital
Buffer	True Bypass
Latency	0.8 to 2.4ms
Controls	2 x Rotary Knob (Effect, TonePrint) 3 x Rotary Knob (Programmable) 2 x 2-Way Switch (Play/Edit, Board Up/Down) 5 x Footswitch (TonePrint Board)

Panel Type	LCD
Touchscreen	No

USB I/O	1 x Mini-USB Female Input/Output

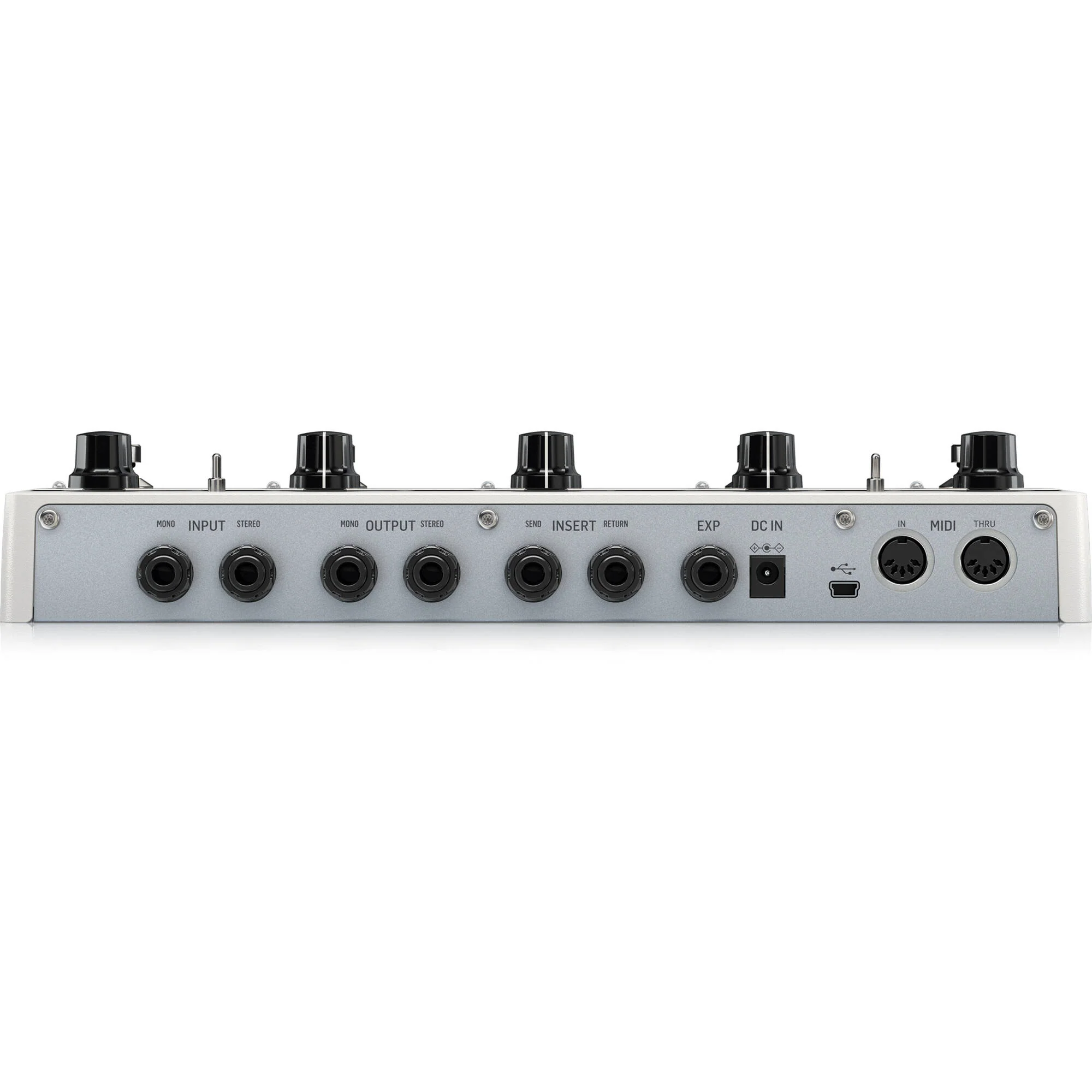

Audio I/O	2x 1/4" TS Hi-Z/Instrument Input (1 Stereo Pair) 1x 1/4" TRS Input (Expression) 1x 1/4" TS Line Input (FX Return) 1x DIN 5-Pin MIDI Input 2x 1/4" TS Output (1 Stereo Pair) 1x 1/4" TS Line Output (FX Send) 1x DIN 5-Pin MIDI Output

Wireless	Bluetooth 4.2 *Built-In
Mobile App Compatible	Yes: Android & iOS App Name: TonePrint Functionality: Adjust Settings, Firmware Update

Power Source	AC Adapter with Power Brick (Included)
DC Input Power	9 VDC
Operating Current	600 mA

Color	White
Material of Construction	Metal
Dimensions	11.8 x 4.6 x 2.1" / 30 x 11.7 x 5.3 cm (W x D x H)
Weight	3.08 lb / 1.4 kg

Package Weight	3.785 lb
Box Dimensions (LxWxH)	16.6 x 6.6 x 3.8"
