SURGEX ESP-BP-3C-126 Overview

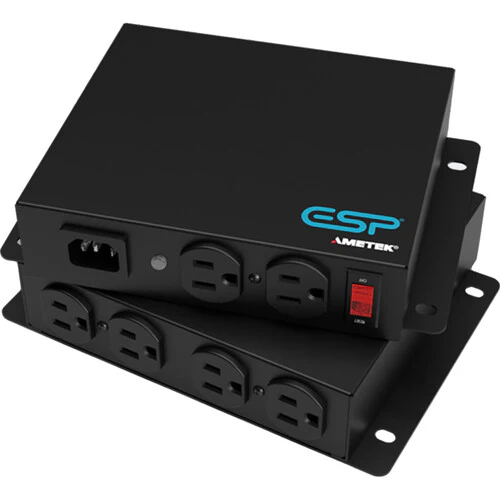

The Basepak ESP-BP-3C-126 Single Stage Surge Protection PDU from SurgeX features six NEMA 5-15R outlets and a 3' grounded NEMA 5-15P input. It supports 120V at 50/60 Hz and has a rated amp rating of 12 A. This PDU has a built-in 15 A circuit breaker with an on/off switch. Its small form factor and built-in mounting brackets allow it to be installed in a variety of places, such as under furniture, behind a display, or inside an AV cabinet.
Items Included
- SURGEX Basepak ESP-BP-3C-126 Single Stage Surge Protection PDU
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
SURGEX ESP-BP-3C-126 Specs
| Metering |
None
|
| Battery Backup |
No
|
| Outlets |
6x NEMA 5-15R
|
| Additional I/O |
No
|
| Surge Protection |
No
|
| Type |
Distributor / Power Strip
|
| Amp Rating |
12 A
|
| Number of Circuits |
Not Specified by Manufacturer
|
| Metering |
None
|
| Battery Backup |
No
|
| Typical Backup Runtime |
Not Specified by Manufacturer
|
| Integrated Lamps |
No
|
| Outlets |
6x NEMA 5-15R
|
| Wall Plug Type |
NEMA 5-15P
|
| Lamp I/O |
No
|
| Additional I/O |
No
|
| Wireless |
No
|
| AC Input Power |
120 VAC, 50 / 60 Hz
|
| DC Output Power |
Not Specified by Manufacturer
|
| Load Capacity |
1500 W
|
| Sequencing Delay |
Yes
|
| Circuit Breaker |
Yes: 15 A with Push-Button Reset
|
| Surge Protection |
No
|
| Transformer Isolated |
No
|
| Cable Length |
3' / 0.9Â m
|
| Certifications |
UL60950-1
|
| Material of Construction |
Metal
|
| Dimensions |
8.46 x 6.15 x 1.86" / 21.49 x 15.62 x 4.72Â cm
|
| Package Weight |
3.28 lb
|
| Box Dimensions (LxWxH) |
9.9 x 9.7 x 3.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
