Stmicroelectronics X-NUCLEO-SRC1M1 X-NUCLEO-SRC1M1 Expansion Board TCPP02-M18 ARM Cortex-M STM32 Nucleo New

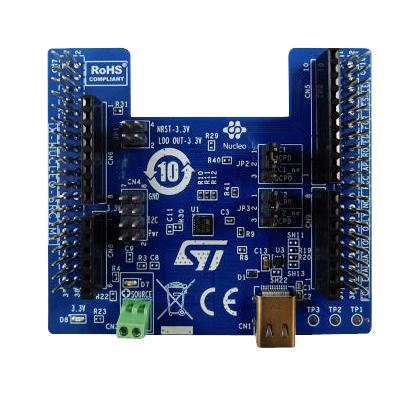

USB Type-C� power delivery source expansion board based on TCPP02-M18 for STM32 Nucleo. Expansion board allows evaluating the features of the TCPP02-M18 for the USB Type-C� and the protections for VBUS and CC lines suitable for source applications. The expansion board is designed to be stacked on top of any STM32 Nucleo-64 development board with Power Delivery (UCPD) peripheral embedded in the microcontroller.

• Supports all USB Type-Câ�¢ power delivery SPR profiles up to 100W
• Manages source role data/power configuration
• Compliant with USB 2.0 dual role data according to STM32 USB data capability
• 8/20µs surge and overcurrent protections and discharge for VBUS
• Short to VBUS protection for configuration channel pins (CC1 and CC2)
• Overvoltage and overcurrent protections and discharge for VCONN
• Common mode filter on D+/D- data lines
• Two power modes to optimize the current consumption
• Compliant with programmable power supplies (PPS)
• Free comprehensive development firmware library

Product details

Silicon Manufacturer	STMicroelectronics
Core Architecture	ARM
Core Sub-Architecture	Cortex-M
Silicon Core Number	TCPP02-M18
Silicon Family Name	-
For Use With	STM32 Nucleo Board
Kit Contents	Expansion Board TCPP02-M18
Product Range	-

Other details

Brand	STMICROELECTRONICS
Part Number	X-NUCLEO-SRC1M1
Quantity	Each
Technical Data Sheet EN
