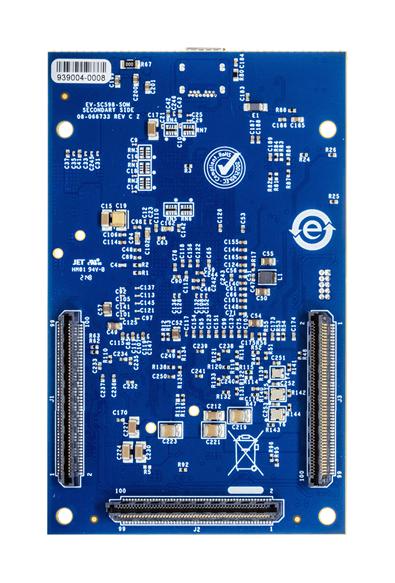

ANALOG DEVICES EV-SC598-SOM System-On-Module, ADSP-SC598, ADSP-SC59x Family, ARM Cortex-A55, 32bit

EV-SC598-SOM is a System-on-Module (SOM) board to evaluate the ADSP-SC596/8 SHARC+® audio processors. It enables evaluation and rapid prototyping of designs featuring the ADSP-SC59x Family (ADSP-SC596/ADSP-SC598) of SHARC audio processors. It provides an easy-to-use plug-n-play reference design with expansion capabilities to interface to custom hardware ahead of the release of the processor itself. When the EV-SC598-SOM board is plugged into the EV-SOMCRR-EZKIT or EV-SOMCRR-EZLITE carrier board, the resulting EZ-KIT® evaluation system can be used for fast and easy evaluation of the processor core and system peripherals/interfaces. The EV-SC598-SOM enables rapid prototyping for a wide range of applications, including immersive 3D sound and PAZ, ANC/RNC, voice-based user-interfaces and ICC, ESS and EVWSS/AVAS. Additional applications include professional audio and soundbars / home AVRs (with 3D Object and Multi-Channel Audio) and enhanced conferencing systems.

• ADSP-SC598 Dual-SHARC+ audio processor w/integrated Arm® Cortex®-A55
• 4Gb DDR3 (933MHz)
• 512Mb quad SPI flash memory and 8GB eMMC
• Power Solution Based on LT components
• FTDI USB-to-UART
• USB 3.0 power delivery
• Debug interface (JTAG)
• SOM interface connector
• CCES kit license

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
