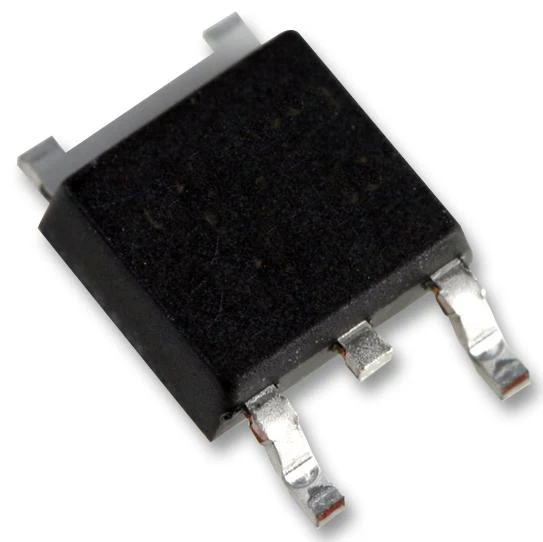

-70%STMICROELECTRONICS STB100N6F7 Power MOSFET, N Channel, 60 V, 100 A, 0.0047 ohm, TO-263 (D2PAK), Surface Mount—
$3.91
$1.17The Story
Applications
Medical
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Channel Type: N Channel |
| Drain Source Voltage Vds: 60V |
| Continuous Drain Current Id: 100A |
| Drain Source On State Resistance: 0.0047ohm |
| Transistor Case Style: TO-263 (D2PAK) |
| Transistor Mounting: Surface Mount |
| Rds(on) Test Voltage: 10V |
| Gate Source Threshold Voltage Max: 4V |
| Power Dissipation: 125W |
| No. of Pins: 3Pins |
| Operating Temperature Max: 175°C |
| Product Range: STripFET F7 |
| Qualification: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STB100N6F7 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
