The Story

Smart-AVI EKS-3202-PRO Overview

Maximize your company's efficiency by using the EKS-3202-PRO 32-Port Cat 5 KVM Switch from Smart-AVI. This KVM supports one local user by connecting a USB keyboard, mouse, and DVI-I compatible 1920 x 1200 resolution monitor. A remote user can simultaneously access the devices through the Ethernet LAN port.

Connect devices to the 32 RJ45 ports through separately purchased Cat 5 Ethernet cables and KVM adapters. One HDMI, one DisplayPort, and one VGA adapter are included. You can quickly switch between devices using on-screen controls and hotkeys. No complicated configuration is required.

Browser-Based KVM Over IP

Directly manage systems over IP networks via any browser with no need for driver or software installations.

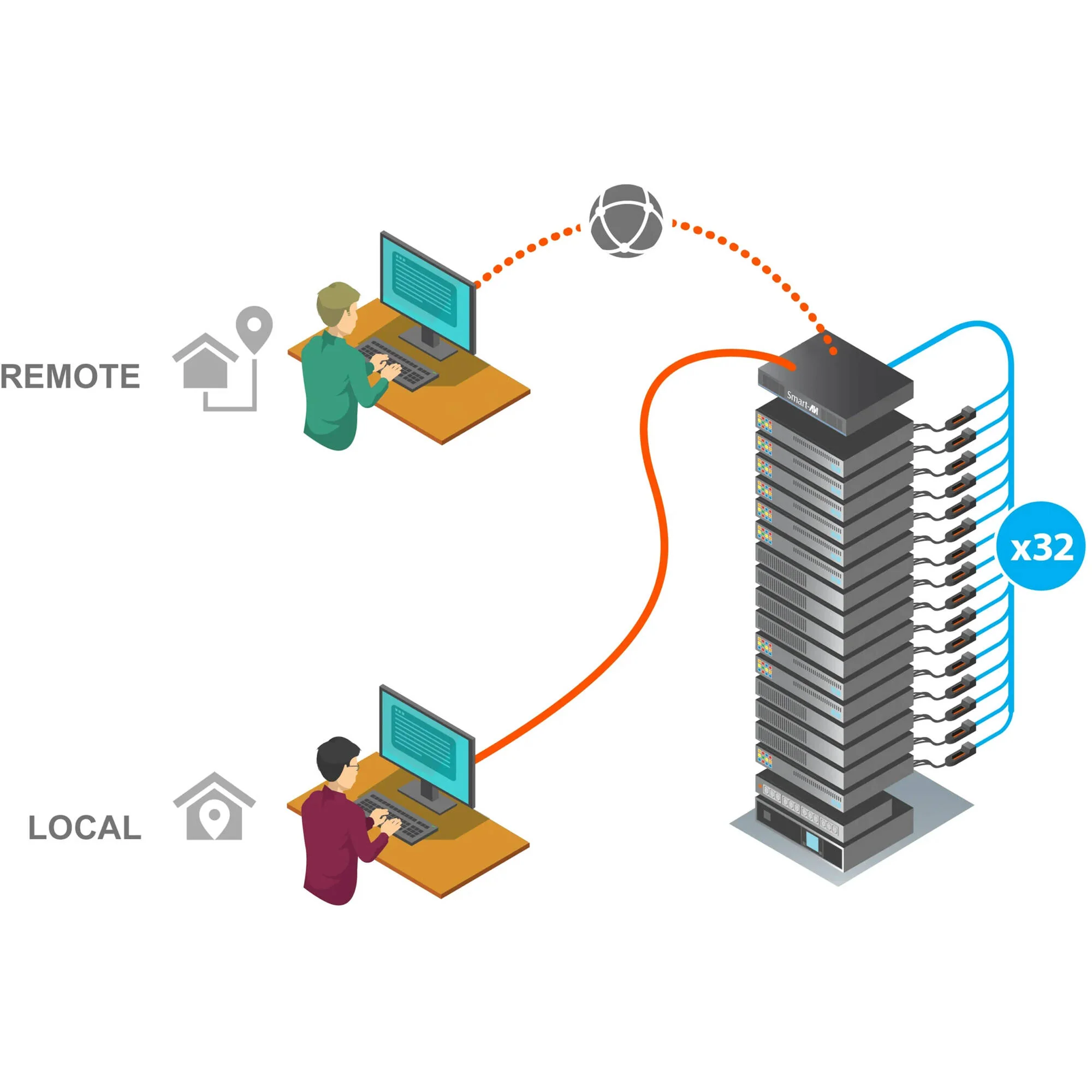

Versatile Dual-User Support

Supports two simultaneous users and controls up to 32 servers or devices. Includes three convenient adapters for HDMI, DP, and VGA video connections, offering broad compatibility and flexible server management.

On-Screen Display (OSD) and Hotkeys

Simplify navigation and control with an intuitive OSD and customizable hotkeys, allowing for quick switching and easy access to connected devices.

Full KM and Video Emulation

Ensures continuous keyboard and mouse connectivity and maintains video integrity during switching, providing users with a seamless experience across all connected servers.

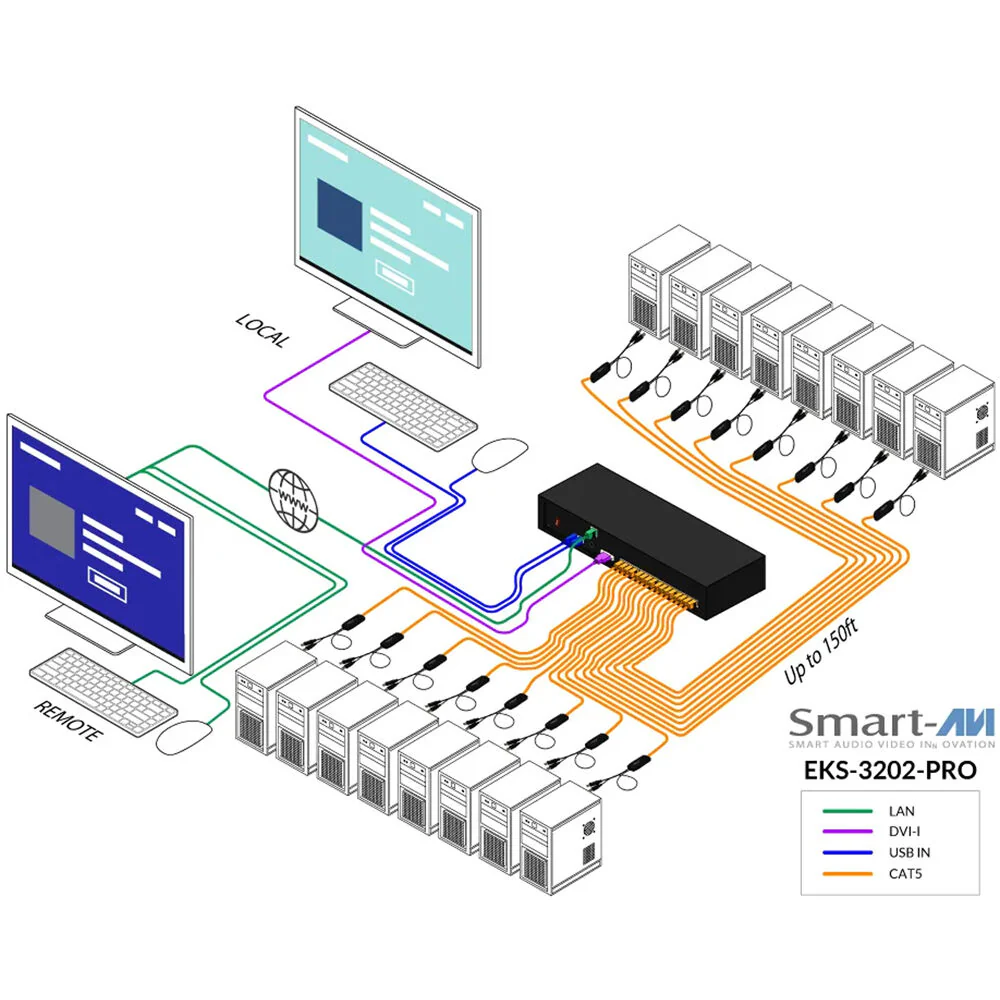

Extended Connectivity

Enables connection of servers/PCs up to 150 feet away using standard Cat 5 cables, facilitating remote setup flexibility and expansive network configurations.

Full HD Video Support

Delivers crisp Full HD video output, ensuring clear and detailed visuals for efficient remote management.

Wide Compatibility

Works seamlessly with almost all operating systems, including Windows and Unix-based platforms, accommodating diverse IT infrastructures.

UPC: 657477034955

Items Included

Smart-AVI EKS-3202-PRO 32-Port Cat 5 KVM Switch
Power Cable

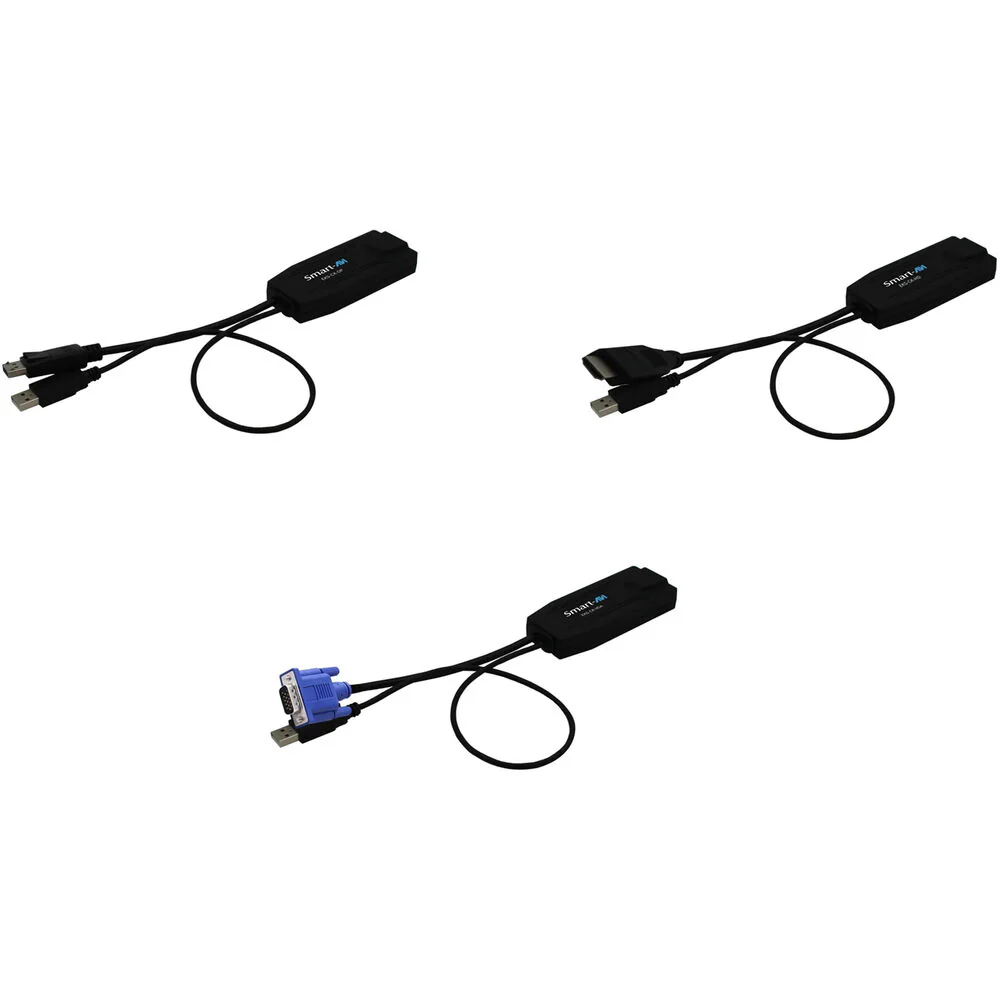

KVM Adapter (HDMI)
KVM Adapter (DisplayPort)
KVM Adapter (VGA)
Limited 1-Year Manufacturer Warranty

Additional Resources

No additional resources available

Smart-AVI EKS-3202-PRO Specs

Key Specs

# of Systems Supported	32
KVM I/O	32x RJ45
Console I/O	1x DVI-I 1x USB-A (Keyboard) 1x USB-A (Mouse) 1x 1/8" / 3.5 mm Audio-Out 1x RJ45 1x Micro-USB
Supported Resolutions	1920 x 1200 @ 75 Hz

General

# of Systems Supported	32
KVM I/O	32x RJ45
Console I/O	1x DVI-I 1x USB-A (Keyboard) 1x USB-A (Mouse) 1x 1/8" / 3.5 mm Audio-Out 1x RJ45 1x Micro-USB
Supported Resolutions	1920 x 1200 @ 75 Hz
USB Keyboard/Mouse Emulation	Yes

Power

Power Source	AC Adapter
Input Power	100 to 240 VAC, 50 / 60 Hz

Physical

Certifications	CE, FCC
Operating Conditions	32 to 122°F / 0 to 50°C at 5 to 90% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C
Housing Material	Metal
Dimensions	17.4 x 5.9 x 1.7" / 442 x 149.9 x 43.2 mm
Weight	4.43 lb / 2.01 kg
