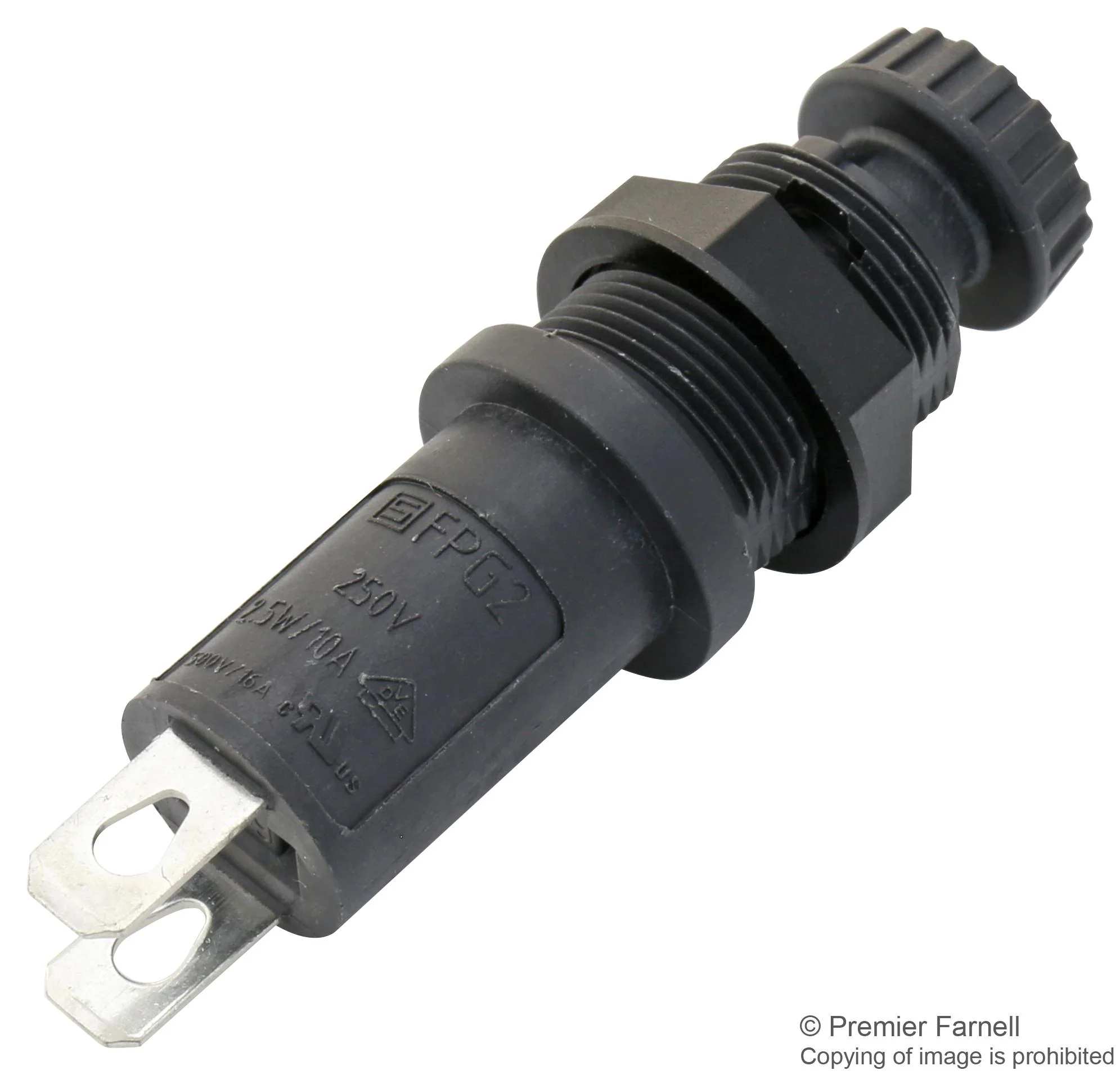

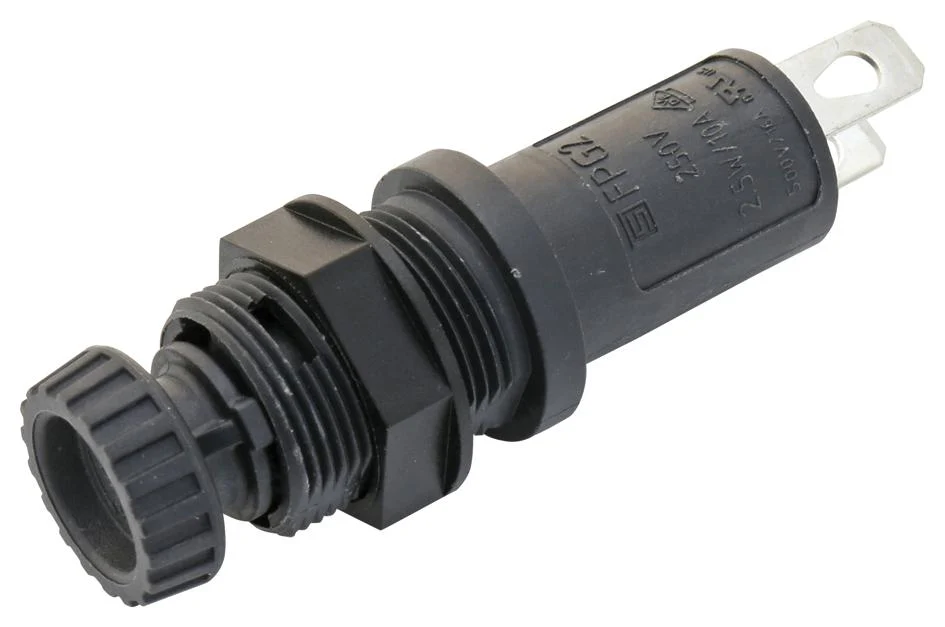

-70%Schurter 3101.0025 3101.0025 Fuseholder Panel Mount Rear Side 250V 10A 5 x 20mm Solder Fingergrip Cap IP40 PC2—
$8.91
$2.67The Story
The FPG2 series Shock Safe rear side Panel-mount Fuseholder with black thermoplastic body and tin-plated copper alloy solder or quick-connect terminals. It supports mounting by means of fixing nut. It meets the new requirements of IEC 60335-1 for appliances in unattended use (clause 30.2.3). This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
- Rated: 10A at 250V AC
- PC2 Shock-Safe category
- IP40/IP67 Protection rating
- Iron soldering methods
- UL94V-0 Flammability rating
- Slotted cap/finger grip
- <=10mR at 20mV Contact resistance
- -40 to 85°C Admissible ambient air temperature
Industrial, Consumer Electronics, Medical
Other details
| Brand | SCHURTER |
| Part Number | 3101.0025 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
| Product Change Notice EN | |
| Application Note EN | |
