$10.07
Original: $33.57
-70%Schneider Electric XB5AVB1 LED Panel Mount Indicator Pilot Light White 24 V 22 mm 18 mA IP66 IP67 Nema 4X 13—
$33.57
$10.07The Story

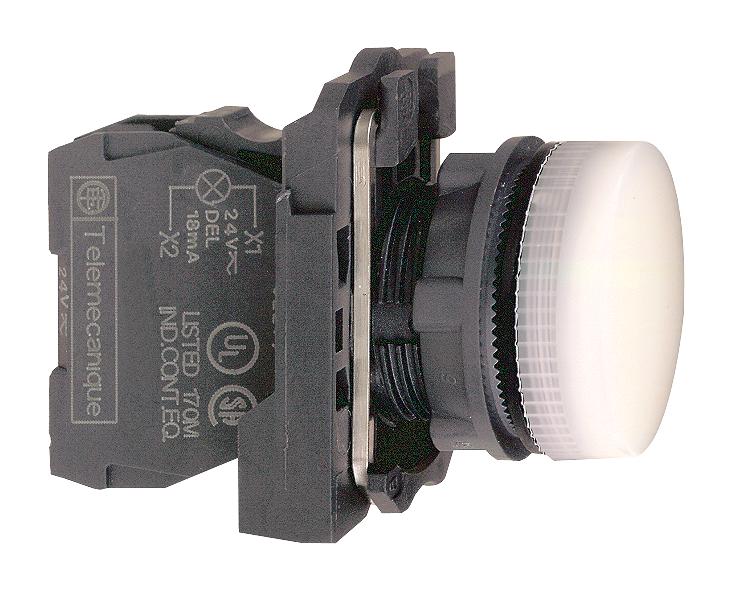

The XB5AVB1 from Schneider Electric is a Harmony XB5 white colour complete pilot light plain lens with integral LED. It has round shape signalling unit head. The device also has IP66 degree of protection conforming to IEC 60529, IK05 degree of protection conforming to IEC 50102, NEMA 4X and NEMA 13 degree of protection. It complies with CSA C22-2 number 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520 and UL 508 standards.
- Rated supply voltage of 24VAC/DC, 50Hz/60Hz
- Screw clamp terminal connections
- Mounting diameter of 22mm
- Plastic bezel material and plastic fixing collar material
- Dimension is 42mm x 30mm x 54mm (H x W x D)
- Rated insulation voltage of 250V conforming to EN 60947-1
- Rated impulse withstand voltage of 4KV conforming to EN 60947-1
- Current consumption of 14mA
- Service life of 100000h at rated voltage and 25°C
- Ambient air temperature for operation from -25°C to 70°C
Imaging, Video & Vision
Other details
| Brand | SCHNEIDER ELECTRIC |
| Part Number | XB5AVB1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Certificate of Conformity EN | |
| Manufacturer Catalogue EN | |
| Product Change Notice EN | |
| Manufacturer Product Page EN | |
| Safety Data Sheet B EN | |
| Handling Instructions EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
