Original: $2,068.60
-70%$2,068.60
$620.58The Story
Designed for use on CCD or CMOS cameras up to 2/3" format, the Schneider 21022892 lens is built for high-end inspection and measurement applications with a compact and rugged body engineered for operation in even the harshest of production environments. Maximum light transmission is achieved by using a special anti reflection coating which also serves to eliminate any stray light entering the lens, ensuring unsurpassed performance and reliability even in very close working distances.
- Designed for 2/3" Cameras
- Designed for high resolution CCD or CMOS CCTV cameras with image sensors of 2/3" or 1/2" format.
- Compact & Rugged
- Built for machine vision applications, this compact lens uses a rugged design along with a special multi-coated optical system for maximum performance and reliability even in the harshest of operational environments.
- Ring Lock
- A screw-type lock prevents focus and iris ring shift enabling its use on vibrating machinery.
- 1 Year parts & labor warranty
| Imager Size | 2/3" |
| Mount | C |
| Focal Length | 12mm |
| Aperture | F1.4 |
| Focus Operation | Manual with lock |
| Iris Operation | Manual with lock |
| Magnification Range | Infinity - 2.5 |
| Minimum Object Distance (M.O.D.) | Infinity - 12.3mm |

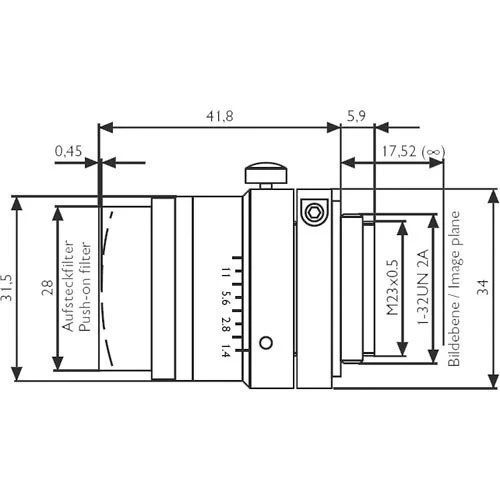

| Dimensions (HxD) | 1.5 x 1.2" 40.3 x 31.5mm |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 0.26 lb |
| Box Dimensions (LxWxH) | 2.8 x 2.8 x 2.8" |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Designed for use on CCD or CMOS cameras up to 2/3" format, the Schneider 21022892 lens is built for high-end inspection and measurement applications with a compact and rugged body engineered for operation in even the harshest of production environments. Maximum light transmission is achieved by using a special anti reflection coating which also serves to eliminate any stray light entering the lens, ensuring unsurpassed performance and reliability even in very close working distances.
- Designed for 2/3" Cameras
- Designed for high resolution CCD or CMOS CCTV cameras with image sensors of 2/3" or 1/2" format.
- Compact & Rugged
- Built for machine vision applications, this compact lens uses a rugged design along with a special multi-coated optical system for maximum performance and reliability even in the harshest of operational environments.
- Ring Lock
- A screw-type lock prevents focus and iris ring shift enabling its use on vibrating machinery.
- 1 Year parts & labor warranty
| Imager Size | 2/3" |
| Mount | C |
| Focal Length | 12mm |
| Aperture | F1.4 |
| Focus Operation | Manual with lock |
| Iris Operation | Manual with lock |
| Magnification Range | Infinity - 2.5 |
| Minimum Object Distance (M.O.D.) | Infinity - 12.3mm |
| Dimensions (HxD) | 1.5 x 1.2" 40.3 x 31.5mm |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 0.26 lb |
| Box Dimensions (LxWxH) | 2.8 x 2.8 x 2.8" |
