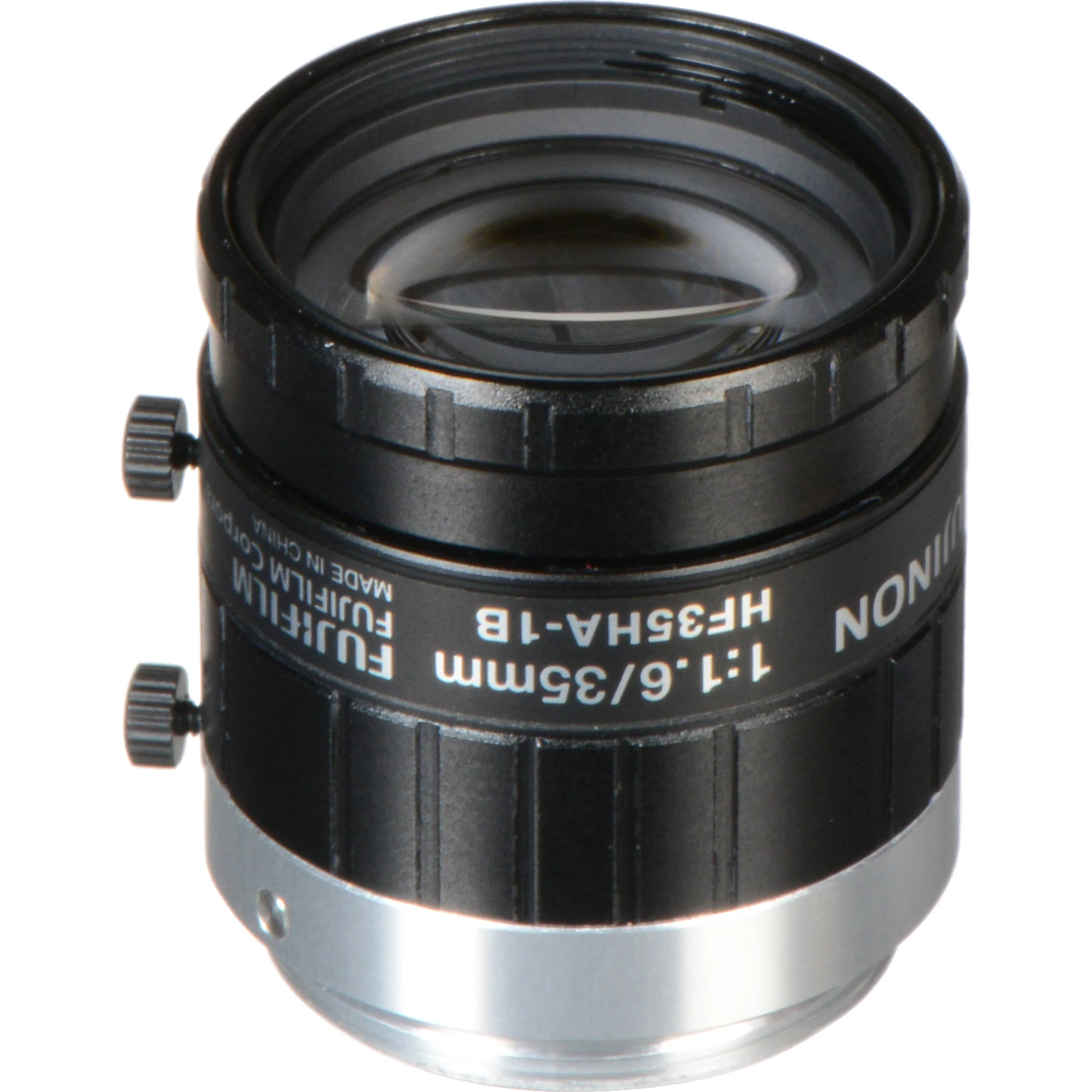

Fujinon 1.5MP 35mm C Mount Lens with Anti-Shock & Anti-Vibration Technology for 2/3" Sensors

Robust Machine Vision Lens, Metal Mount

Low Distortion Image Capture

Covers 2/3" Sensors

Fast f/1.6 Aperture

The Fujinon 1.5MP 35mm C Mount Lens with Anti-Shock & Anti-Vibration Technology is designed to provide low distortion, high-quality image capture in machine vision applications. The compact lens covers 2/3" sensors and features a fast f/1.6 aperture that ensures clear images in low light environments. Focus and iris adjustment are manual, and individual focus/iris lock tabs are provided to maintain set positions over time. Built-in anti-shock and anti-vibration technology highly reduces the need for these tabs because their primary purpose was to protect against changes caused by vibration.

The anti-shock and anti-vibration technology helps keep both the mechanical and optical elements of the lens in their original positions to maintain consistent image quality in harsh environments that produce a lot of vibration. The new feature also helps protect the lens from damage caused by accidental falls. The lens is complete with a robust build, metal mount, and smooth focus and iris ring rotation.

Key Features

• Low distortion, high-quality image capture for machine vision applications
• Covers 2/3" sensors
• Fast f/1.6 aperture
• Manual focus and iris adjustment
• Individual focus and iris lock tabs
• Built-in anti-shock and anti-vibration technology for consistent image quality
• Metal mount
• Smooth focus and iris ring rotation

Lens Mount	C
Sensor Compatibility	2/3"
Focal Length	35mm
Aperture	f/1.6 to 22
Angle of View	2/3" Sensor Horizontal: 10.8 to 14.3°
Minimum Object Distance	9.84" / 25 cm
Focus Type	Manual Focus
Iris Type	Manual
Distortion	2/3": 0.1%
Filter Thread	M25.5 x 0.5 mm
Dimensions (ø x L)	1.16 x 1.16" / 29.5 x 29.5 mm
Weight	1.41 oz / 40 g

Package Weight	0.15 lb
Box Dimensions (LxWxH)	3 x 2.1 x 2"
