- Suitable for On-Camera Boompole Use
- Short 4" Length
- Electret Condenser Element
- Supercardioid Polar Pattern
- 100 Hz to 18 kHz Frequency Response
- Enhanced RFI Rejection
- 48V Phantom Power
- XLR 3-Pin Output
- Lightweight and Rugged
- Includes Foam Windscreen Vinyl Case

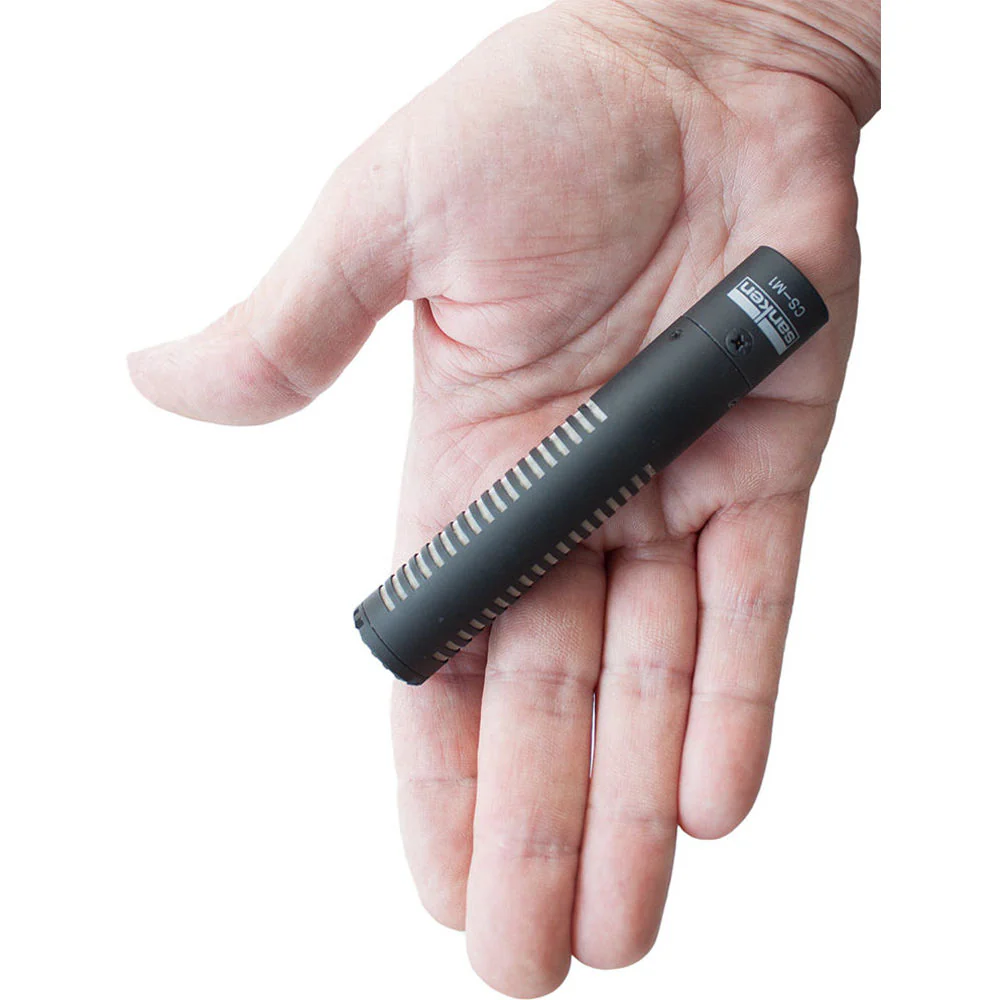

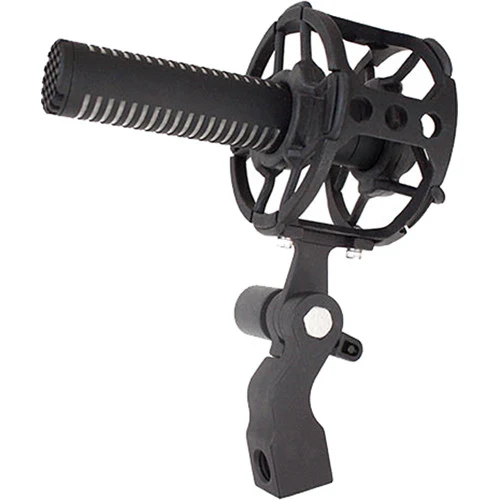

The Sanken CS-M1 is a compact and rugged supercardioid short shotgun microphone designed to deliver clear close and distant audio capture for boom operators, videographers, and audio engineers in film, television, and video production as well as ENG and music recording applications. Its short 4" length and low 1.9 oz weight make it ideal for mounting on your DSLR or boompole. The supercardioid/lobar polar pattern yields precise directionality and low coloration at the off-axis sections of the capsule. An integrated RFI shield yields enhanced rejection of radio-frequency interference.
The electret condenser element is powered via 48V phantom power and produces a frequency response of 100 Hz to 18 kHz. An XLR 3-pin output ensures compatibility with most microphone preamps. Plosives and wind noise can be reduced by attaching the supplied windscreen. The CS-M1 ships with a vinyl case for safe and convenient transport.- Ideal for mounting on your DSLR or boompole
- Compact 4" body length doesn't interfere with your camera lens
- Weighing less than 2 ounces, it won't weigh down your camera
- Supercardioid/lobar polar pattern yields sharp directivity
- Advanced RFI rejection
- 100 Hz to 18 kHz frequency response naturally attenuates commonly problematic low frequencies
- Included windscreen reduces plosives and wind noise
Sanken CS-M1 specs
| Analog Performance | |
|---|---|
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Transducer | Condenser |
| Tube | No |
| Polar Pattern | Supercardioid |
| Frequency Range | 100 Hz to 18 kHz |
| Equivalent Noise Level | 16 dB A-Weighted |
| Maximum SPL | 137 dB SPL |
| Pad | None |
| Impedance | 140 Ohms |
| Sensitivity | 79 mV/Pa at 1 kHz |
| Low-Cut Filter | None |
| General | |
|---|---|
| Output Connectors | 1 x 3-Pin XLR |
| Operating Current Consumption | 4 mA |
| Operating Voltage | 48 V ± 4 V |
| Length | 4.06" / 103 mm |
| Diameter | 0.75" / 19 mm |
| Weight | 1.9 oz / 54 g |
| Packaging Info | |
|---|---|
| Package Weight | 1.2 lb |
| Box Dimensions (LxWxH) | 10.5 x 4.5 x 3.2" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
