-70%Rycote Nano Shield Windshield Kit NS3-CB for Microphones up to 8" Longā
$819.40
$245.82The Story
Rycote Nano Shield Windshield Kit NS3-CB - 30... Overview
- 1Description
- 2Compatible Microphones
- 3Setting a New Standard
- 4Mix-and-Match Basket Design
- 5Lighter, Smaller, and More Flexible
- 6Advanced Lyre Mounts
- 7No Tools Required
- 8RF Filter and Low-Cut XLR
- 9Ready to Use Out of the Box
Smaller, lighter, and more acoustically transparent than their Modular Windshield System, the Nano Shield NS3-CB from Rycote redefines the standards of microphone windshield performance and versatility. Highly advantageous for boom operators, sound designers, and location recordists, the Nano Shield NS3-CB is a complete windshield and suspension setup with indoor and outdoor wind protection, a low-profile XLR cable with a built-in RF filter and a switchable low-cut filter, and more. Not only does the NS3-CB model fit shotgun-style microphones up to 8" long, but its mix-and-match basket design allows it to accommodate many other mic sizes by swapping optional basket halves.
Compatible Microphones
- Beyerdynamic MCE 85 PV
- RĆDE NTG5
- Sanken CS-1e
- Schoeps CMC 6 with Cut 1
- Sennheiser MKH 8060
- Other mics up to 8" long
Setting a New Standard
The Nano Shield offers an enhanced level of wind protection paired with improved acoustic transparency. The kits are smaller and on average weigh 30% lighter than Modular Windshield Kits. The updated advanced Lyre mounts are also more compliant and offer better handling noise reduction. Overall the Nano Shield Kits raise the bar for performance and versatility.

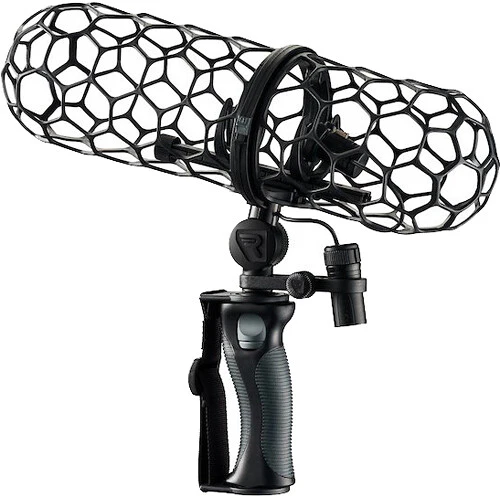

Mix-and-Match Basket Design
The Nano Shield kits use a special magnetic locking basket design, which can be configured to fit various microphone sizes by simply swapping out basket halves. Each size of basket half can interlock with any other size. They also have two manual locking sliders to hold everything secure and noise free. Quickly and easily access mics by simply pulling the halves apart.
Lighter, Smaller, and More Flexible

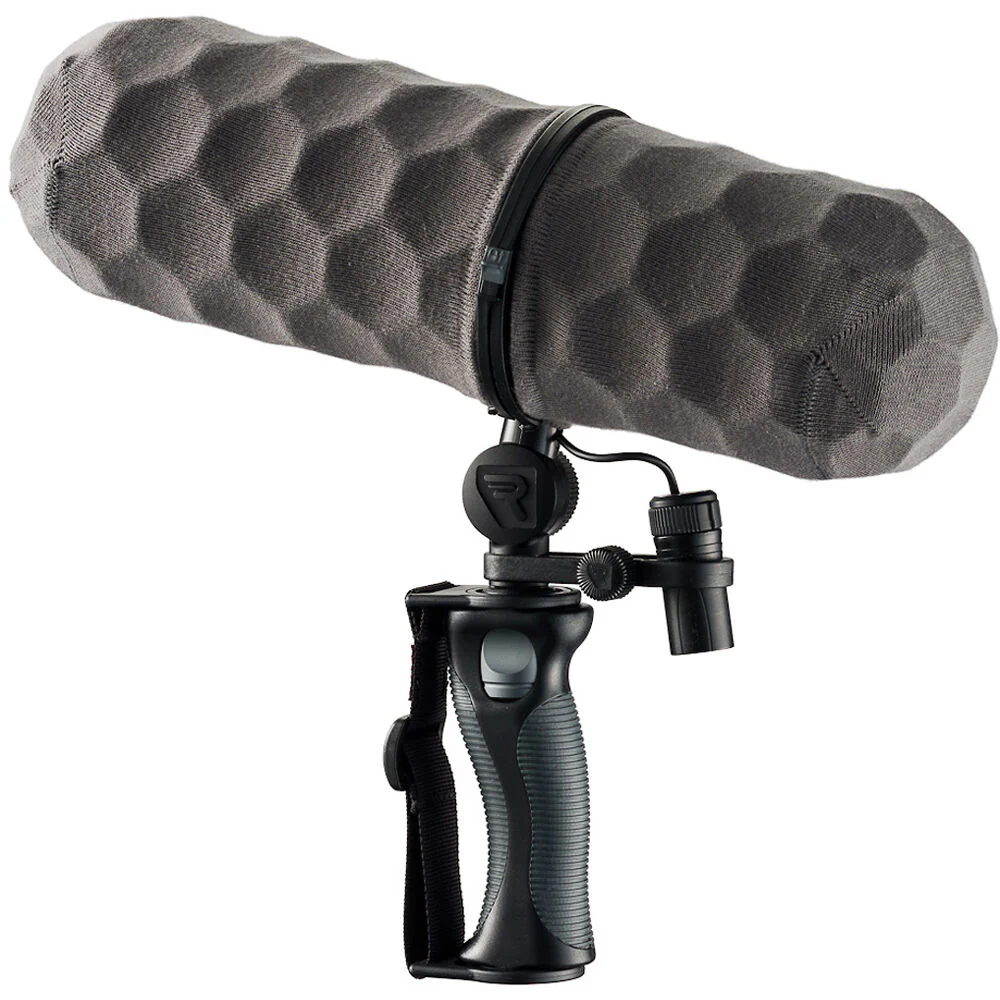

The Nano Shield kits are on average 30% lighter than standard kits and have a smaller footprint when used with the same microphones. The basket shell is made from semi-rigid material that combines strength with flexibility. Layers of extra wind shielding can easily be added as you move from indoors to outdoors.

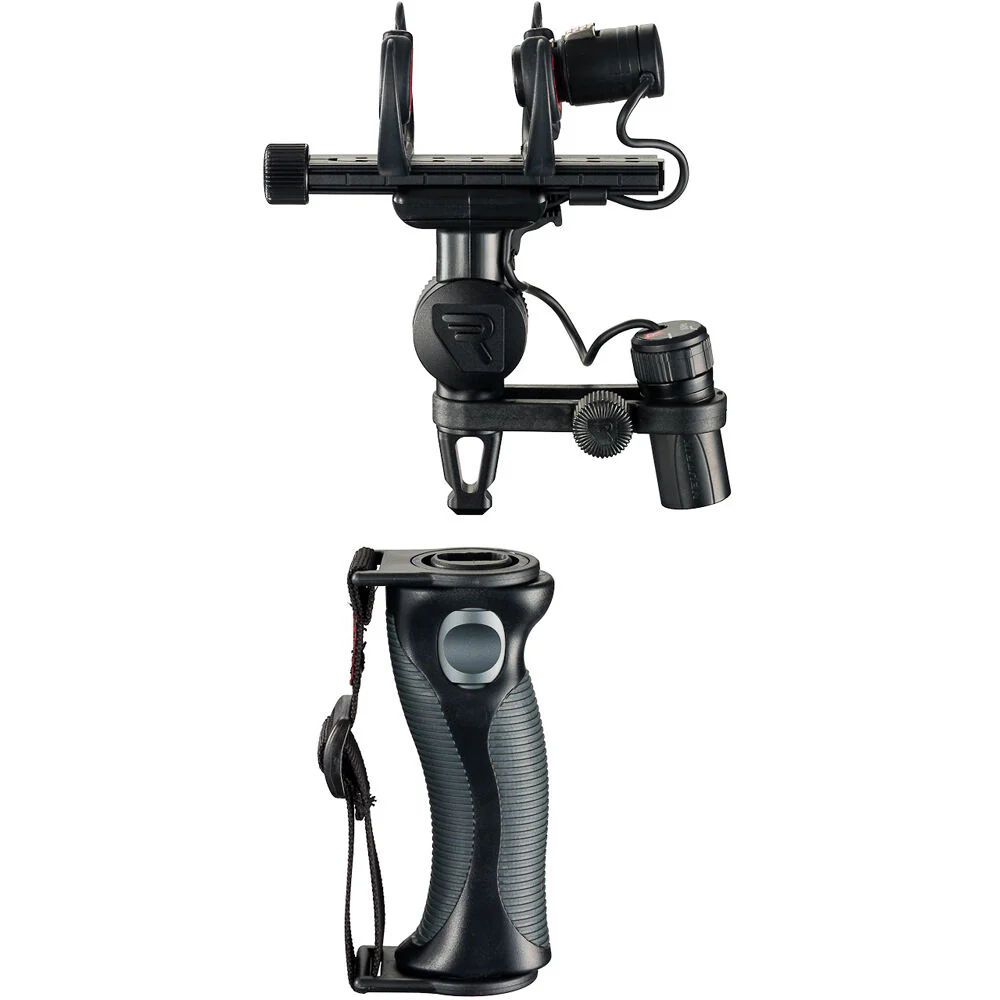

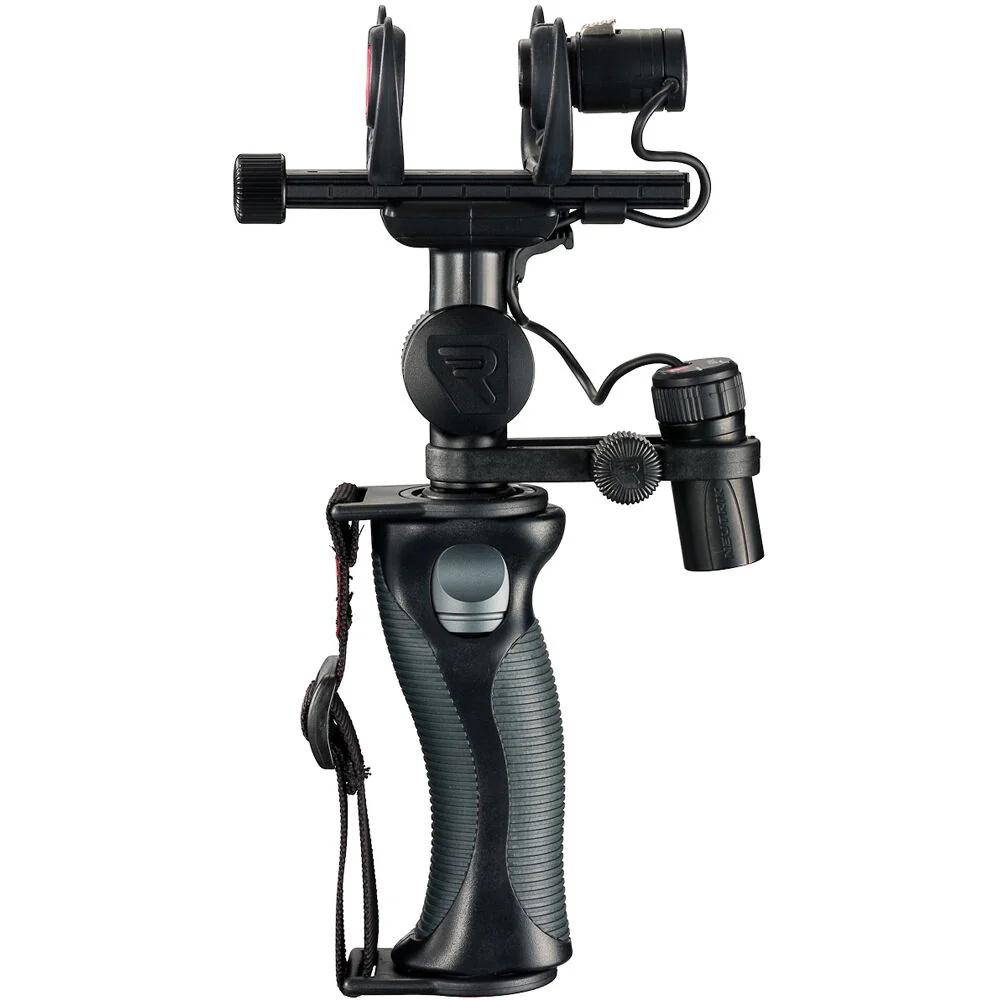

Advanced Lyre Mounts
Rycote has advanced the patented Lyre mount and redesigned them specifically for the Nano Shield kits. While the basic shape might look similar, the material, thickness, center of gravity, and mechanical properties have been engineered to provide a more compliant handling response in the direction the microphone is pointing whilst giving more stability in other directions to prevent mics from "bottoming-out" or moving side-to-side.
No Tools Required
The Lyre mounts and mounting bar on the Nano Shield can be adjusted, repositioned, or swapped out by loosening/tightening the thumbwheel attached to the bar. Likewise, the swivel arm can be repositioned by loosening the friction braking wheel with interchangeable adapters for an integrated PCS tip or 3/8" thread.
RF Filter and Low-Cut XLR
The Nano Shield comes supplied with a low-profile XLR cable that has both an active in-line RF filter and a switchable 80 Hz low-cut filter (requires phantom power).
Ready to Use Out of the Box
The basket design and available layers of shielding allow you to customize the level of wind protection to meet your needs. In addition, the patented mounting bar and Lyre mounts can be repositioned, swapped out, and taken apart without the need for any tools.

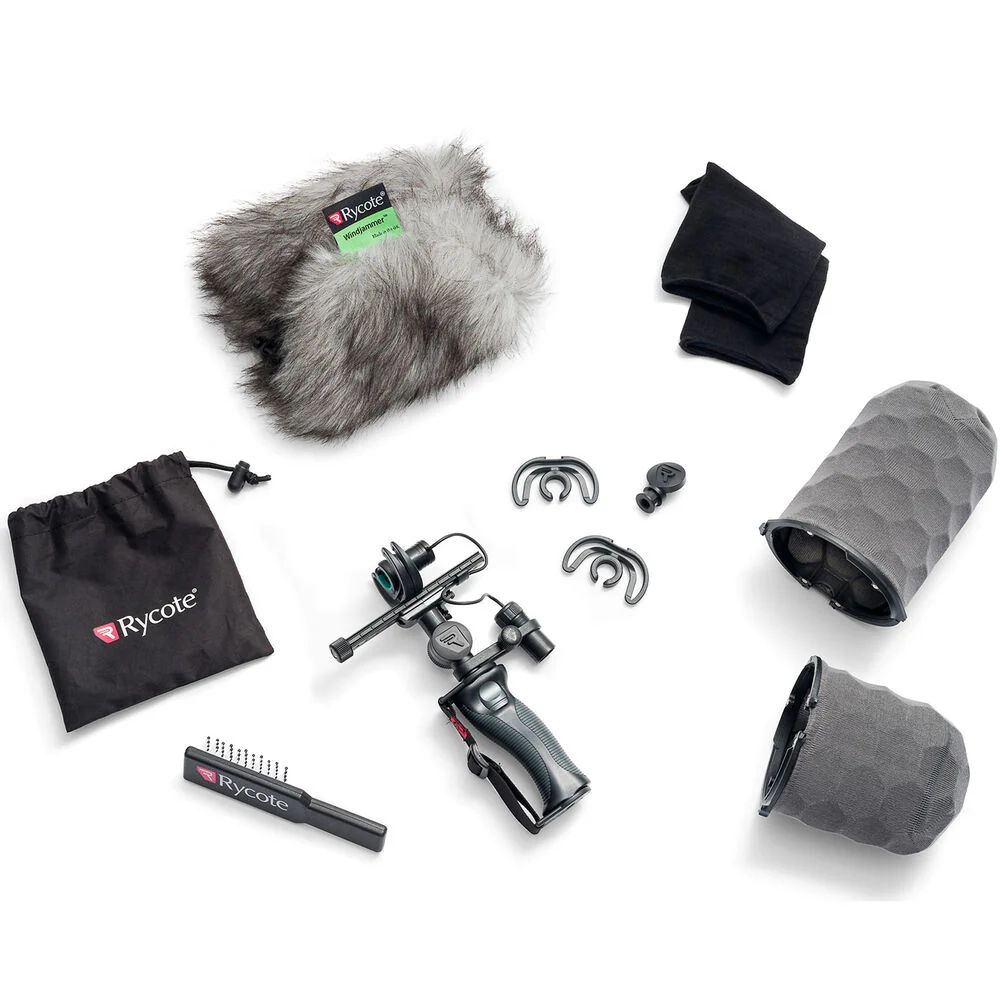

In the Box
- Rycote Nano Shield Windshield Kit NS3-CB for Microphones up to 8" Long
- 2 x Windshield Basket Halves
- Mic Mounting Bar with Cable Clips
- Set of Lyre Mounts
- Swivel Arm Adapter for PCS Connections
- Swivel Arm Adapter for 3/8" Connections
- PCS Ergonomic Handle
- Low-Profile XLR Connection with Integrated Low-Cut Filter
- 360-Degree Adjustable and Reversible XLR Holder

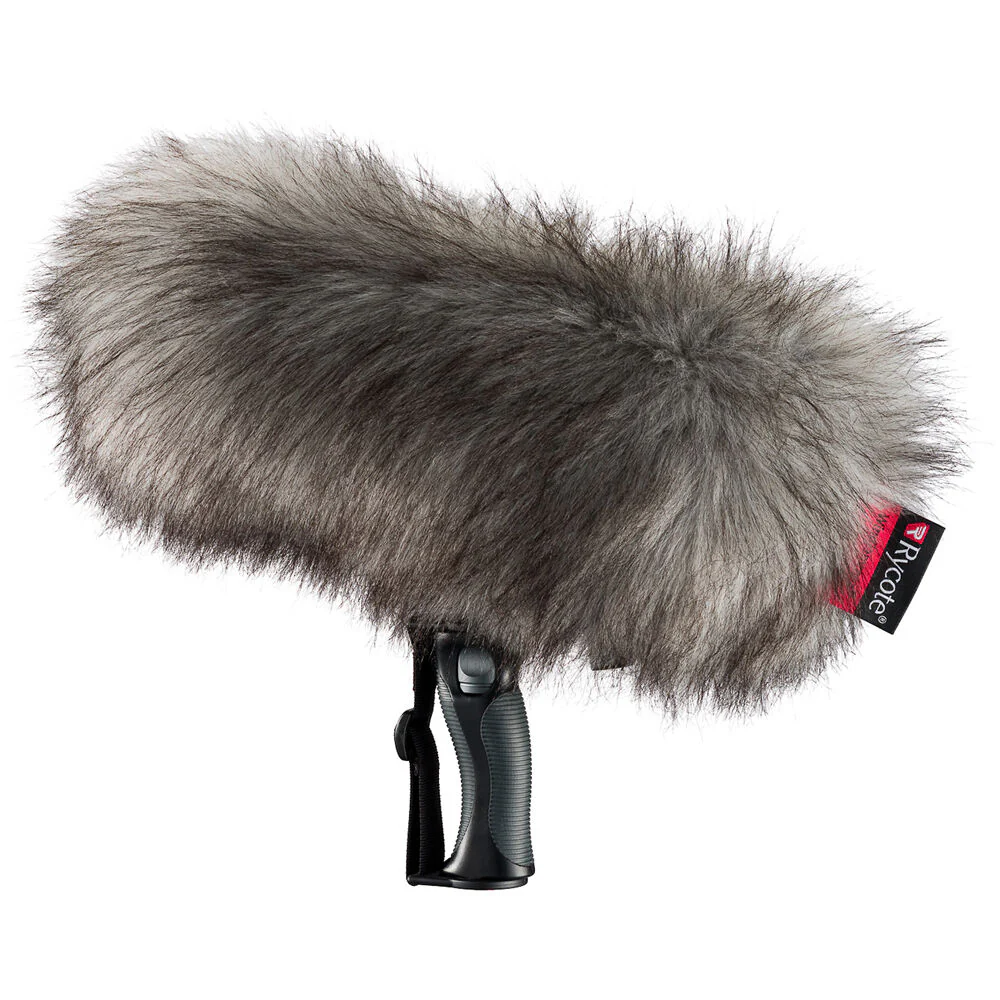

- Windjammer
- 2 x Removable Socks (Black & Gray)
- Protective Case
- Limited 2-Year Warranty
Table of Contents
- Description
- Compatible Microphones
- Setting a New Standard
- Mix-and-Match Basket Design
- Lighter, Smaller, and More Flexible
- Advanced Lyre Mounts
- No Tools Required
- RF Filter and Low-Cut XLR
- Ready to Use Out of the Box
Rycote Nano Shield Windshield Kit NS3-CB - 30... Specs
| Length | 12.2" / 30.9Ā cm |
| Inputs | 1 x 3-Pin XLR Female Right-Angle |
| Outputs | 1 x 3-Pin XLR Male |
Packaging Info
| Package Weight | 2.77 lb |
| Box Dimensions (LxWxH) | 18 x 12.6 x 5" |
