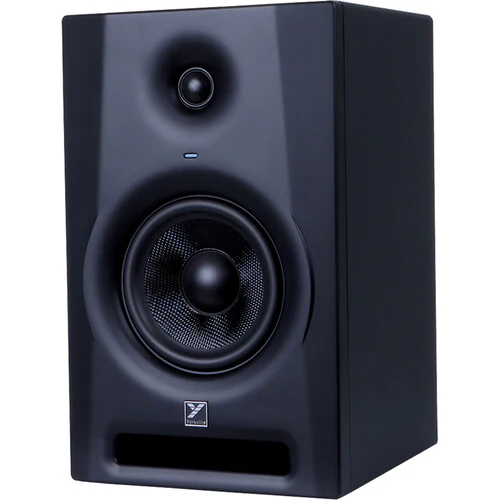

Yorkville Sound YSM6-2 Overview
Audio engineers, musicians, and sound designers in search of a small, high-quality studio monitor that won't break the bank will appreciate the Yorkville Sound YSM6-2, that is designed for accurate sound reproduction. The built-in 75W bi-amplifier delivers 50W to the 6.5" woofer and 25W to the 1" silk dome tweeter, which combine for a frequency response of 45 Hz to 22 kHz and a maximum SPL of 105 dB.

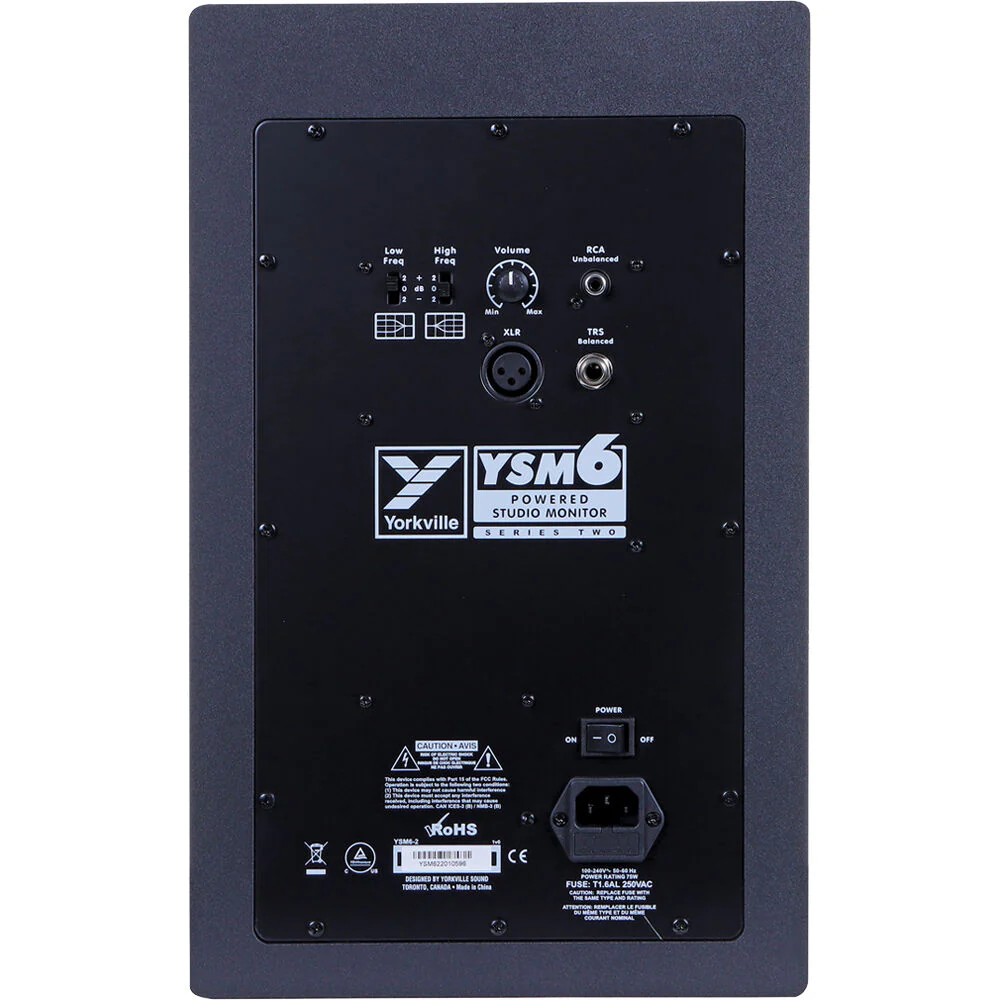

The rear panel features high- and low-frequency contour switches to help the speaker sound its best, no matter where its placed. XLR, 1/4", and RCA inputs provide flexibility when hooking the speaker to your setup. Both the woofer and tweeter have been time aligned to eliminate any phase irregularities usually associated with 2-way systems.
- 75W total (LF: 50W, HF: 25W)
- 6.5" woofer
- 1" silk dome tweeter
- High- and low-frequency adjust controls
- Volume control
- The woofer and tweeter have been perfectly time aligned to eliminate any phase irregularities usually associated with 2-way designs.
In the Box
- Yorkville Sound YSM6-2 Powered 75W 6.5" Studio Monitor (Single, Black)
- Power Cable
- Limited 2-Year Manufacturer Warranty
Additional Resources
Yorkville Sound YSM6-2Specs
| Monitor Type & Configuration |
Active 2-Way
|
| Total Power Output |
75 W
|
| Tweeter |
1x 1" / 25.4 mm Dome
|
| Woofer |
1x 6.5" / 16.5 cm Cone
|
| Frequency Range |
45 Hz to 22 kHz ± 3 dB
|
| Audio I/O |
1x XLR 3-Pin Balanced Input
1x 1/4" TRS Balanced Input 1x RCA Unbalanced Input |
| Digital Audio I/O |
No
|
| Network I/O |
No
|
| Wireless |
No
|
| Number of Included Monitors |
Single Monitor
|
| Enclosure |
Bass-Reflex/Ported
|
| Total Power Output |
75 W
|
| Tweeter |
1x 1" / 25.4 mm Dome
|
| Woofer |
1x 6.5" / 16.5 cm Cone
|
| Amplifiers |
LF: 50 W Class-D
HF: 25 W Class-D |
| Frequency Range |
45 Hz to 22 kHz ± 3 dB
|
| Maximum Sound Pressure Level (SPL) |
105 dB (Continuous)
|
| EQ |
1x LF Shelf: -2 to +2 dB (2 dB Increments)
1x HF Shelf: -2 to +2 dB (2 dB Increments) |
| Filters |
No
|
| Parametric EQ |
No
|
| Crossover Frequency |
2.1 kHz
|
| Phase Adjustment |
No
|
| Audio I/O |
1x XLR 3-Pin Balanced Input
1x 1/4" TRS Balanced Input 1x RCA Unbalanced Input |
| Digital Audio I/O |
No
|
| Network I/O |
No
|
| USB |
No
|
| Wireless |
No
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power Consumption |
75 W
|
| Color |
Black
|
| Monitor Orientation |
Vertical
|
| Enclosure Material |
ABS, MDF
|
| Fan-Cooled |
No
|
| Mounting Points |
No
|
| Dimensions (W x H x D) |
9.5 x 15 x 10" / 24.1 x 38.1 x 25.4 cm
|
| Weight |
15.0 lb / 6.8 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
