$70.21The Story
- Metal Chassis
- 3 XLR Mic Inputs and 1 Output
- Individual Level Controls
- Phantom Power
- Low Cut Filters
- 3.5mm I/O
- Bottom Mounts and Power Supply Included

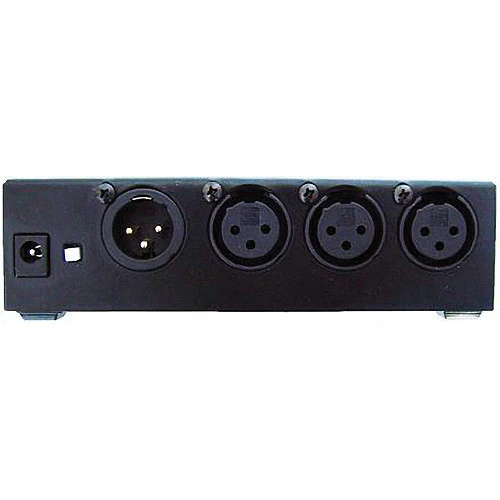

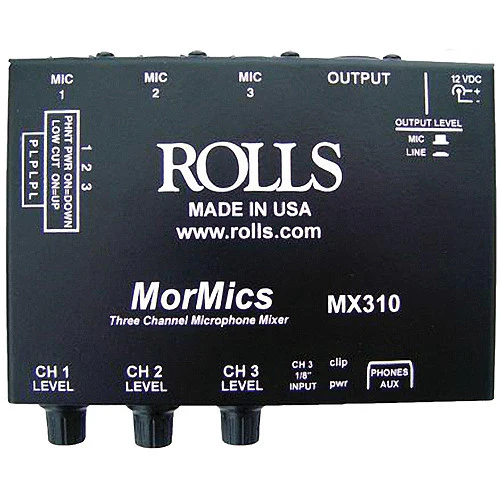

The MX310 MorMics 3-Channel Mic Mixer/Combiner from Rolls is a compact and convenient way to add up to 3 mics to a single mic input. The unit has a durable metal chassis with 3 XLR mono mic inputs. Each input has its own level control, switchable phantom power, and a low cut filter. There is also a mic/line switchable XLR output for connection to a variety of devices.
The mixer also features a 3.5mm stereo aux input, allowing you to connect a CD player, MP3 player, AM/FM tuner, and more. A 3.5mm stereo output provides convenient monitoring via headphones, compact speakers, etc. The mixer has bottom mounts for permanent installations, and the required 12VDC power supply is included for operation.
- Compact and durable metal chassis
- There are 3 XLR mono mic inputs, each with its own level control, switchable phantom power, and a low cut filter
- The mic/line switchable XLR output provides excellent connection versatility
- The 3.5mm stereo aux input allows you to connect a CD player, MP3 player, AM/FM tuner, and more, while the 3.5mm stereo output provides convenient monitoring via headphones, compact speakers, etc
- The mixer has bottom mounts for permanent installations, and the required 12VDC power supply is included for operation
| Connectors | 3 x XLR Mic Inputs 1 x XLR Mic/Line Output 1 x 3.5mm Input 1 x 3.5mm Output |
| Controls | 3 x Level Controls 6 x Phantom/Low Cut Switches 1 x Mic/Line Output Selector |
| Indicators | 1 x Green Power LED 1 x Red Clip LED |
| Bandwidth | 20Hz - 20kHz |
| Input Impedance | 600 Ohms |
| Output Impedance | 600 Ohms |
| Total Harmonic Distortion (THD) | 0.05% Typical |
| Voltage Gain | 50dB Line, 10dB Mic |
| Power Supply Voltage | 16VDC Max (12VDC Power Supply Included) |
| Dimensions (WxDxH) | 5.25 x 3.75 x 1.5" (133 x 95 x 38mm) |
| Weight | 1 lbs (0.45kg) |
| Packaging Info | |
|---|---|
| Package Weight | 2.1 lb |
| Box Dimensions (LxWxH) | 13.9 x 8.8 x 3.9" |
- Installation Mounts
- Power Supply (PS27)
- 1-Year Limited Warranty
