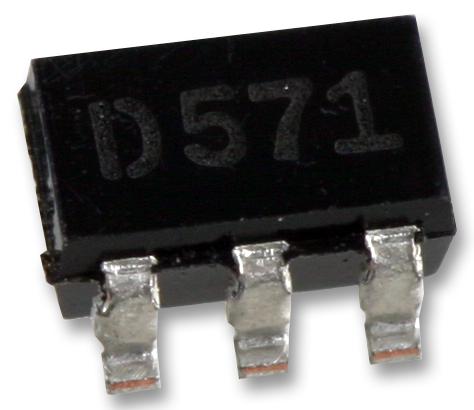

Rohm BD9G102G-LBTR DC/DC Buck Regulator Adjustable 6V to 42V In 750mV 33.6V/500mA Out 1MHz SSOP-6

The BD9G102G-LB is a 42V, 0.5A non-synchronous buck converter with integrated internal high-side 42V Power MOSFET. Operating frequency is 1.0MHz fixed by inner circuit. The components of phase compensation are built in. Additional protection features are included such as Over Current Protection, Thermal Shutdown and Under Voltage Lockout.

• Long Time Support Product for Industrial Applications
• Wide Operating Input Range 6V to 42V
• 45V/800mOhm Internal Power MOSFET
• 1.0MHz Fixed Operating Frequency
• Feedback Pin Voltage 0.75V ± 2.0%
• Accurate EN Threshold 1.8V ± 0.1V
• Current Mode
• Internal Compensation
• Cycle-by-Cycle Over Current Protection(OCP)
• Under Voltage Locked Out(UVLO), Over Voltage Protection(OVP), Thermal Shut Down(TSD)
• 0µA Low Shutdown Supply Current

Applications

Industrial, Power Management

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	ROHM
Part Number	BD9G102G-LBTR
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
