Original: $234.25
-70%$234.25
$70.27The Story
Product Overview

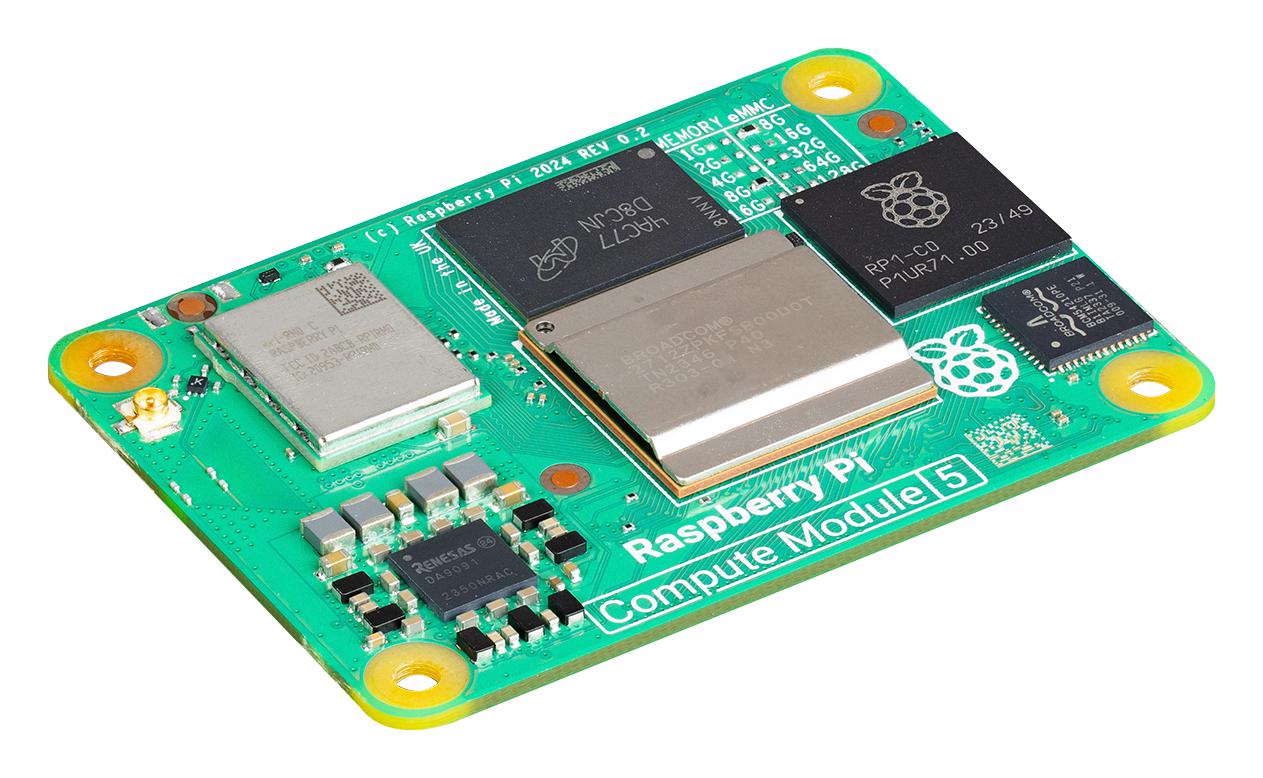

CM5008064 is a Raspberry Pi Compute Module 5. This is a system on module that delivers the power of Raspberry Pi 5 in a form factor ideal for embedded applications. It features up to 30 Ă— GPIO supporting either 1.8V or 3.3V signalling and peripheral options such as 5 Ă— UART, 5 Ă— I2C, 5 Ă— SPI, 1 Ă— SDIO interface, 1 Ă— DPI, 1 Ă— I2S, 4 Ă— PWM ch, 3 Ă— GPCLK O/P.
- 8GB RAM capacity and 64GB eMMC
- Form factor: 55?mm?Ă—?40?mm Ă— 4.7mm module and 4 Ă— M2.5 mounting holes
- Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 (Armv8) SoC at 2.4GHz processor
- Gigabit Ethernet PHY supporting IEEE 1588, 1 Ă— PCIe x1 root complex, Gen 2 (5Gbps)
- 1 Ă— USB 2.0 and 2 Ă— USB 3.0 ports, supporting simultaneous 5Gbps operation
- Video: 2 Ă— HDMI 2.0 ports and 2 Ă— 4-lane MIPI ports
- 4Kp60 HEVC decoder multimedia
- Single +5V PSU input supports USB PD for up to 5A at 5V input power
- Operating temperature range from-20°C to +85°C
Product details
Other details
| Brand | RASPBERRY-PI |
| Part Number | CM5008064 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
