PTZCam View NDI PTZ Controller with NDI|HX Preview and Joystick Control
HomeStore

PTZCam View NDI PTZ Controller with NDI|HX Preview and Joystick Control

PTZCam View NDI PTZ Controller with NDI|HX Preview and Joystick Control

$260.41

Original: $868.04

-70%
PTZCam View NDI PTZ Controller with NDI|HX Preview and Joystick Control—

$868.04

$260.41

The Story

PTZCam PTZC-VIEWNDI Overview

Control your NDI PTZ cameras using NDI|HX2 and IP communication with this handy View NDI PTZ Controller with NDI|HX Preview and Joystick Control from PTZCam. The View NDI features 4D joystick, zoom rocker, and backlit button control with support for NDI|HX2 or later and the VISCA/ONVIF control protocols over IP. It enables you to control the speed of your pan, tilt, zoom, and lock moves, allows you to store up to 255 presets, it has 8-channel external tally support, and it incorporates a 3" display that shows a live preview.

The controller offers seven camera select buttons, knobs for pan/tilt/zoom speed control, iris buttons, and settings to control the finer settings on the PTZ cameras. It also features a key-touch beep feature that can be turned on and off. You can power the camera using a power adapter or via PoE (Power-over-Ethernet) on a supported network to save cable runs.

Note:
Only PTZ cameras with NDI|HX2 or higher are compatible with direct NDI control.
Features
4D pan/tilt joystick, zoom rocker, backlit button control, and 3" live-preview display
One-click button lock
Seven camera shortcut buttons
External 8-channel tally support
Direct control of NDI|HX2 or later cameras
VISCA-over-IP and ONVIF IP communication protocol
Save up to 255 presets
VISCA, Pelco-D, and Pelco-P serial control support
Power-over-Ethernet (PoE) support or power via power adapter
Key-touch beep feature; can be toggled on/off

In the Box

  • PTZCam View NDI PTZ Controller with NDI|HX Preview and Joystick Control
  • Limited 1-Year Manufacturer Warranty

    PTZCam PTZC-VIEWNDI Specs

    Key Specs
    Control I/O
    1x Block 9-Pin
    1x Block 5-Pin
    1x D-Sub 9-Pin (RS-232)
    Video I/O
    1x RJ45 (NDI|HX2)
    Controls
    1x Joystick
    1x Zoom Rocker
    1x Focus Knob
    1x Camera Movement Speed Knob
    1x Gain Knob
    1x Backlit Button
    1x White Balance Button
    1x Auto-Focus Button
    7x Camera Selection Buttons
    PoE Support
    PoE 802.3af
    Power Consumption
    3 W
    Security Lock Support
    No
    General
    Supported Control Protocols
    Pelco-D
    Pelco-P
    RS-232
    RS-422
    RS-485
    VISCA
    Control I/O
    1x Block 9-Pin
    1x Block 5-Pin
    1x D-Sub 9-Pin (RS-232)
    Other I/O
    1x USB-A
    Video I/O
    1x RJ45 (NDI|HX2)
    Controls
    1x Joystick
    1x Zoom Rocker
    1x Focus Knob
    1x Camera Movement Speed Knob
    1x Gain Knob
    1x Backlit Button
    1x White Balance Button
    1x Auto-Focus Button
    7x Camera Selection Buttons
    Presets
    255
    Display
    Display Size
    3"
    Power
    PoE Support
    PoE 802.3af
    Power Connectors
    1x Barrel / Coaxial
    Power Consumption
    3 W
    DC Input Power
    12 VDC at 0.25 A
    Physical
    Security Lock Support
    No
    Dimensions
    17 x 10 x 7" / 43.2 x 25.4 x 17.8 cm
    Weight
    5 lb / 2.3 kg

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

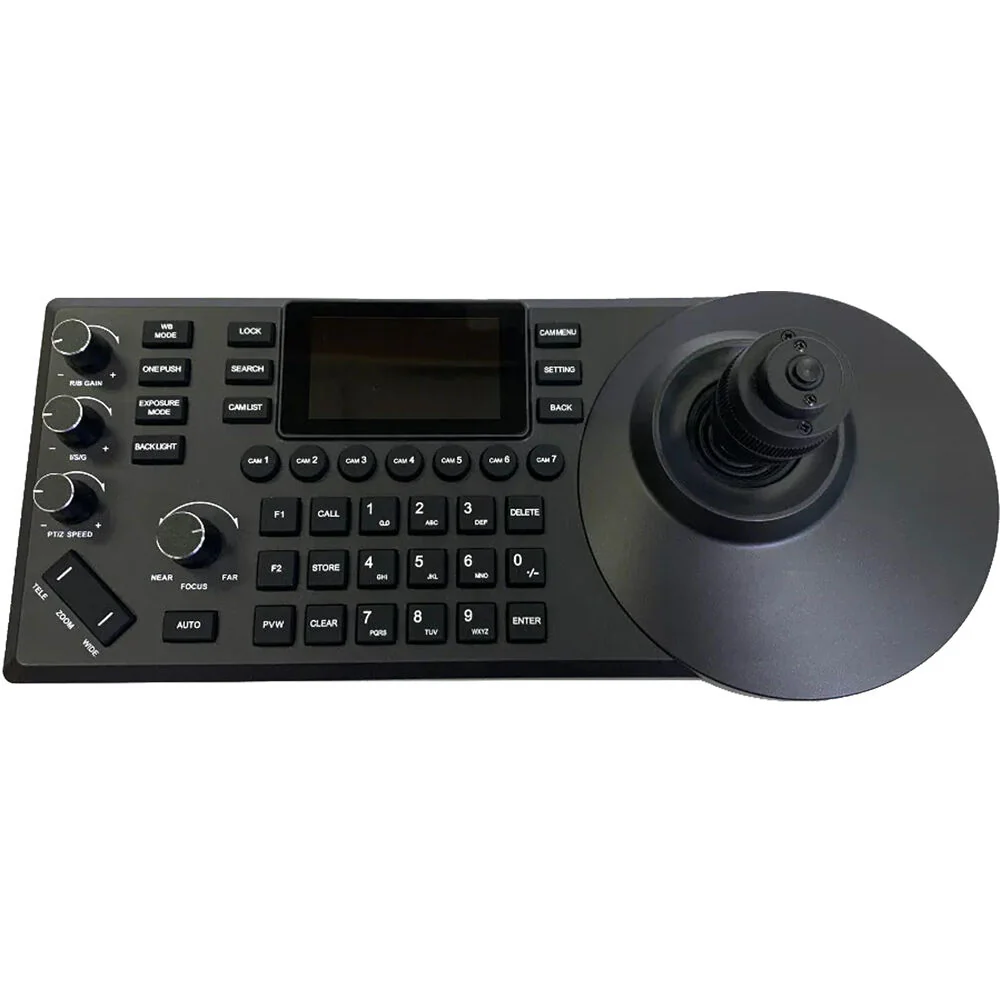

    PTZCam View NDI PTZ Controller with NDI|HX Preview and Joystick Control - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

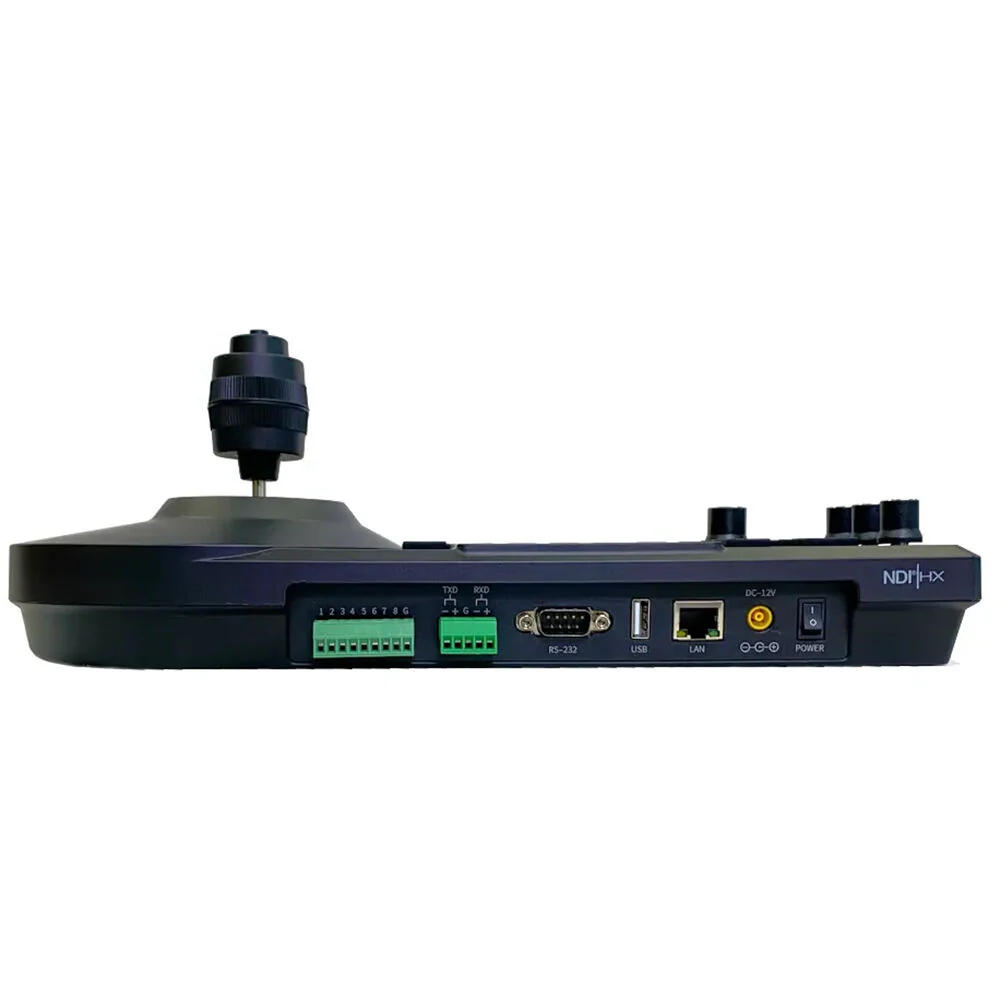

    PTZCam View NDI PTZ Controller with NDI|HX Preview and Joystick Control - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    PTZCam PTZC-VIEWNDI Overview

    Control your NDI PTZ cameras using NDI|HX2 and IP communication with this handy View NDI PTZ Controller with NDI|HX Preview and Joystick Control from PTZCam. The View NDI features 4D joystick, zoom rocker, and backlit button control with support for NDI|HX2 or later and the VISCA/ONVIF control protocols over IP. It enables you to control the speed of your pan, tilt, zoom, and lock moves, allows you to store up to 255 presets, it has 8-channel external tally support, and it incorporates a 3" display that shows a live preview.

    The controller offers seven camera select buttons, knobs for pan/tilt/zoom speed control, iris buttons, and settings to control the finer settings on the PTZ cameras. It also features a key-touch beep feature that can be turned on and off. You can power the camera using a power adapter or via PoE (Power-over-Ethernet) on a supported network to save cable runs.

    Note:
    Only PTZ cameras with NDI|HX2 or higher are compatible with direct NDI control.
    Features
    4D pan/tilt joystick, zoom rocker, backlit button control, and 3" live-preview display
    One-click button lock
    Seven camera shortcut buttons
    External 8-channel tally support
    Direct control of NDI|HX2 or later cameras
    VISCA-over-IP and ONVIF IP communication protocol
    Save up to 255 presets
    VISCA, Pelco-D, and Pelco-P serial control support
    Power-over-Ethernet (PoE) support or power via power adapter
    Key-touch beep feature; can be toggled on/off

    In the Box

    • PTZCam View NDI PTZ Controller with NDI|HX Preview and Joystick Control
    • Limited 1-Year Manufacturer Warranty

      PTZCam PTZC-VIEWNDI Specs

      Key Specs
      Control I/O
      1x Block 9-Pin
      1x Block 5-Pin
      1x D-Sub 9-Pin (RS-232)
      Video I/O
      1x RJ45 (NDI|HX2)
      Controls
      1x Joystick
      1x Zoom Rocker
      1x Focus Knob
      1x Camera Movement Speed Knob
      1x Gain Knob
      1x Backlit Button
      1x White Balance Button
      1x Auto-Focus Button
      7x Camera Selection Buttons
      PoE Support
      PoE 802.3af
      Power Consumption
      3 W
      Security Lock Support
      No
      General
      Supported Control Protocols
      Pelco-D
      Pelco-P
      RS-232
      RS-422
      RS-485
      VISCA
      Control I/O
      1x Block 9-Pin
      1x Block 5-Pin
      1x D-Sub 9-Pin (RS-232)
      Other I/O
      1x USB-A
      Video I/O
      1x RJ45 (NDI|HX2)
      Controls
      1x Joystick
      1x Zoom Rocker
      1x Focus Knob
      1x Camera Movement Speed Knob
      1x Gain Knob
      1x Backlit Button
      1x White Balance Button
      1x Auto-Focus Button
      7x Camera Selection Buttons
      Presets
      255
      Display
      Display Size
      3"
      Power
      PoE Support
      PoE 802.3af
      Power Connectors
      1x Barrel / Coaxial
      Power Consumption
      3 W
      DC Input Power
      12 VDC at 0.25 A
      Physical
      Security Lock Support
      No
      Dimensions
      17 x 10 x 7" / 43.2 x 25.4 x 17.8 cm
      Weight
      5 lb / 2.3 kg

      All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
