Name: ProX FANTEK Spain Compact Front-Loading Lifting Line Array Systems Tower (2-Pack, 16' Max Height, 518 lb Load Capacity)
Brand: Tanotis
SKU: prox-fantek-spain-compact-front-loading-lifting-line-array-systems-tower-2-pack-16-max-height-518-lb-load-capacity-1-2
Availability: InStock

🚚 Free Worldwide Shipping on All Orders!Shop Now

Your Cart (0)

Home Store

ProX FANTEK Spain Compact Front-Loading Lifting Line Array Systems Tower (2-Pack, 16' Max Height, 518 lb Load Capacity)

$4,728.50

Original: $15,761.68

-70%

ProX FANTEK Spain Compact Front-Loading Lifting Line Array Systems Tower (2-Pack, 16' Max Height, 518 lb Load Capacity)—

$15,761.68

$4,728.50

Original: $15,761.68

-70%

ProX FANTEK Spain Compact Front-Loading Lifting Line Array Systems Tower (2-Pack, 16' Max Height, 518 lb Load Capacity)—

$15,761.68

$4,728.50

The Story

ProX XTF-FT5323 X2 Overview

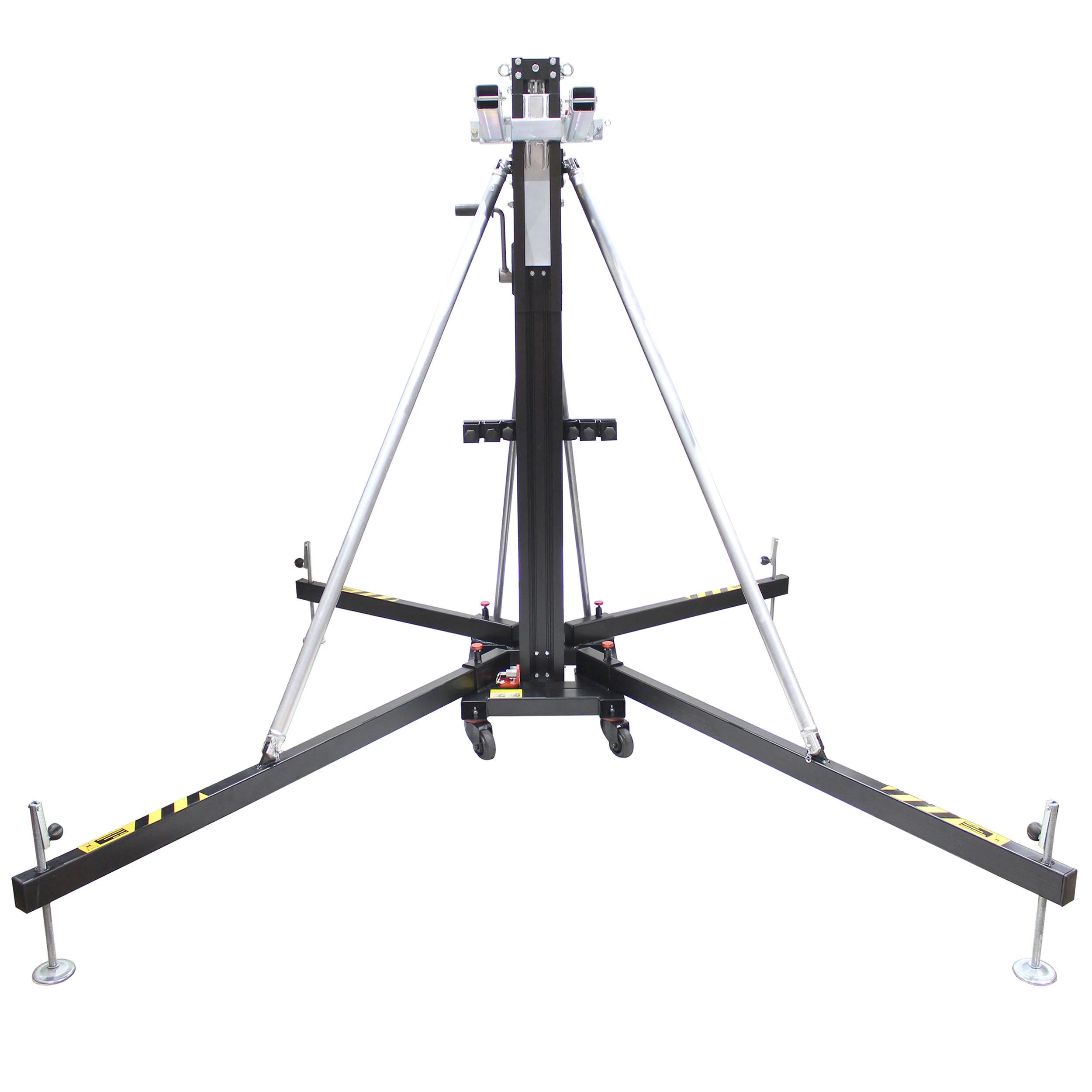

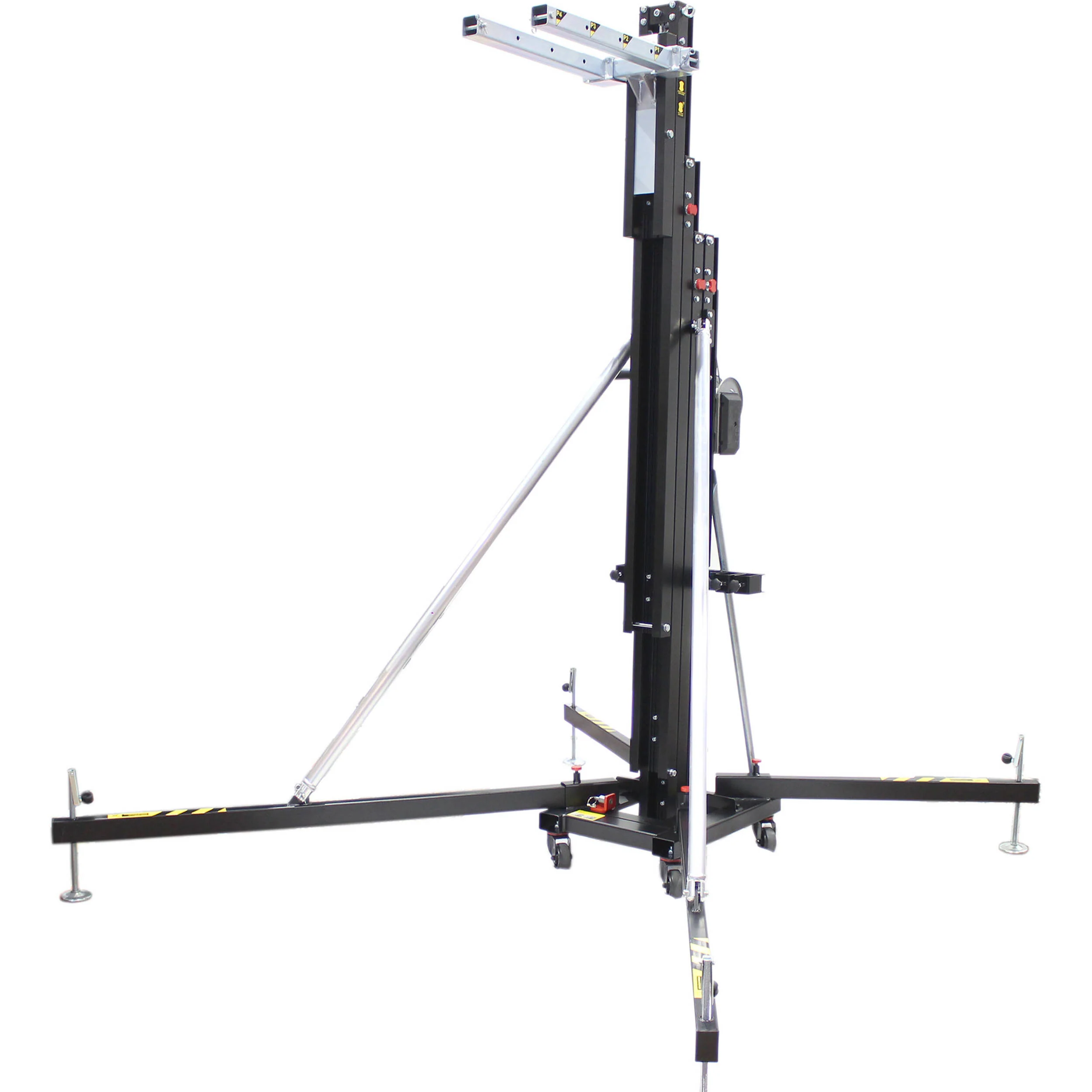

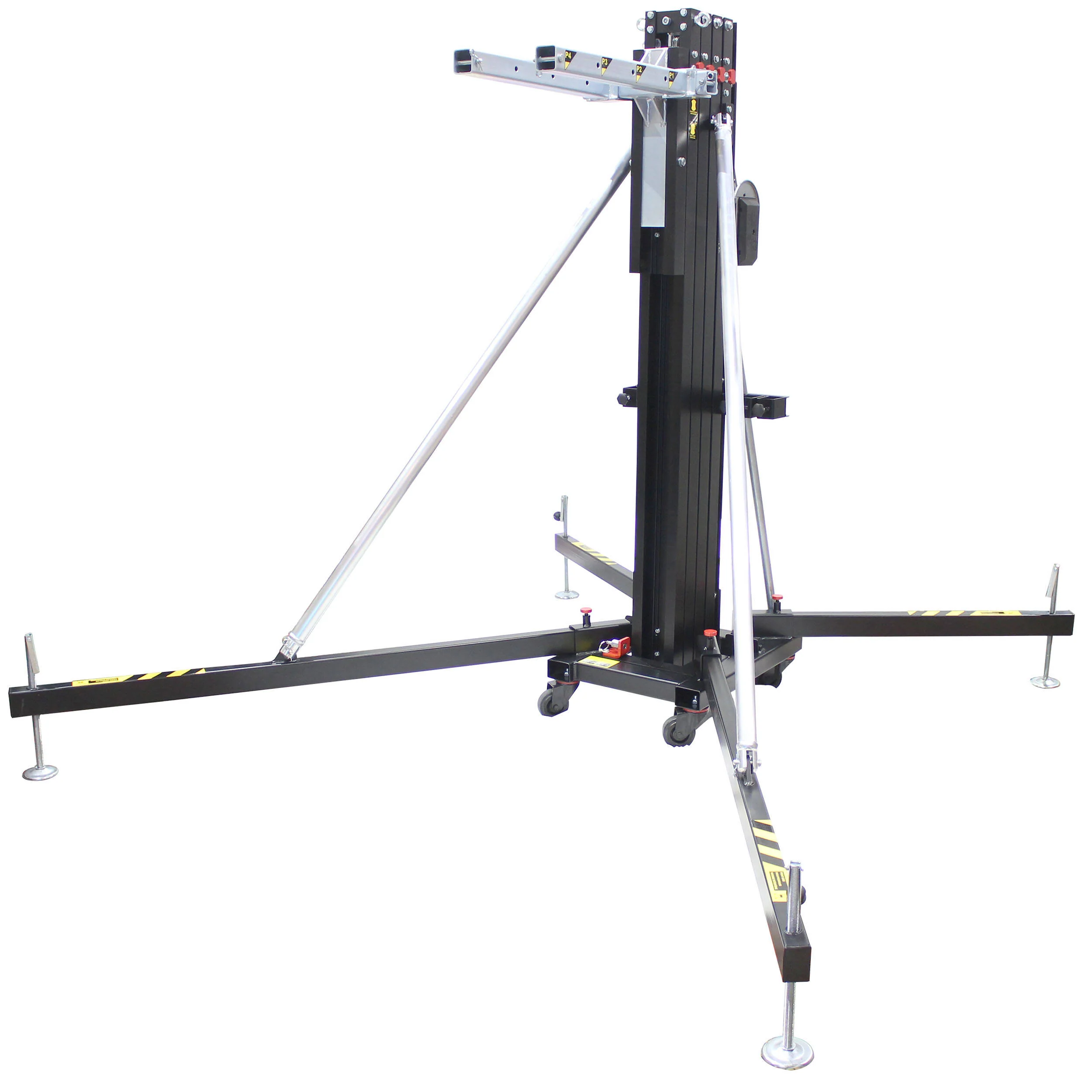

Elevate your line arrays, trussing, or LED screens with the ProX XTF-FT5323 FANTEK Spain Compact Front Loading Lifting Line Array Systems Towers, a complete lifting system that's ideal for touring, rental, and event production (also concerts, events, trade fair stands, stage construction, fitting-out discos, theaters, broadcasting, TV, and more).

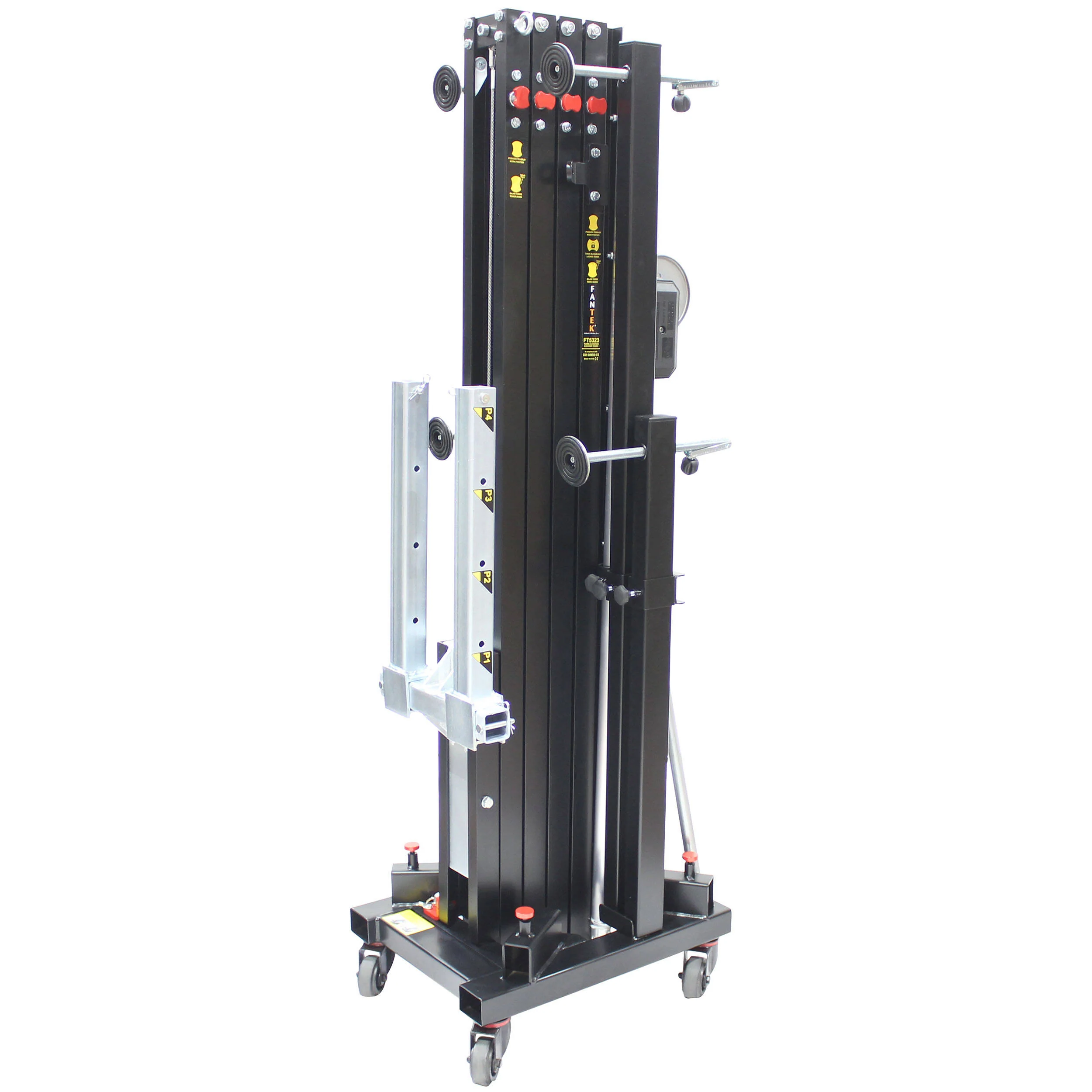

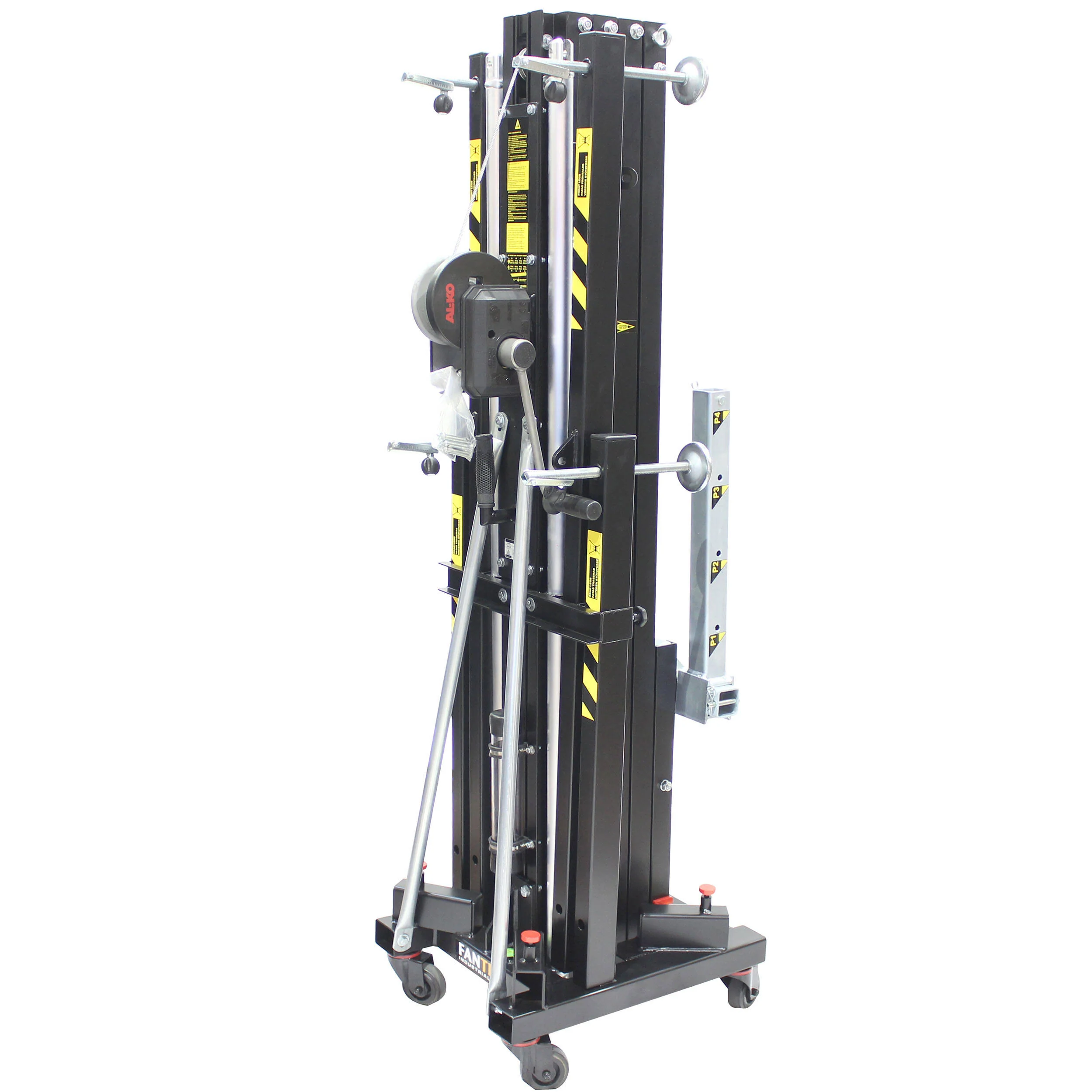

The front-loading tower is specifically designed to reliably lift line-array systems weighing up to 518 lb and with a maximum height of 16.33'. The compact design with castors gives each XTF-FT5323 tower easy handling and maneuverability; and with a folded height of only folded height of 5.62', it also reduces storage space. The system includes an XTF-ATF16PA Line Array Adapter with hanging rings.

At a Glance

Designed to fly line array systems, trussing, and LED screens
Built from quality components to ensure maximum safety
Raise the load from the floor.
CE - DGUV V17/18 Certified Compliant
XT-FT5323 is made by FANTEK in Valencia, Spain.
Minimum Height: 5.62'
Max Height: 16.33'
Max Load: 518 lb
Winch Load: 1003.10 lb
Steel Loading Forks: 19.68"

Dynamic Overlap

Dynamic Overlap stacking trusses (4 Masts) are manufactured with extruded aluminum (Alloy: EN-AW according to 6082 T6) and TIG welded by Certified Welders for maximum safety. They are designed to be compact when folded, reducing storage space and making it easier to handle. FANTEK towers use a reinforced steel base with outriggers that support heavy loads and greater heights. During lifting, the tower telescopic mechanism lift can stop safely at any of the Pin Locking System positions. These pins take the load off of the wire rope.

DYNSYS

DYNSYS is a system designed to guarantee the operational health of the tower, since it accomplishes many functions, all focused on maximizing user safety. Each DYNSYS system is adjusted to control the torque that is applied on the winch. When this is exceeded, the system acts and prevents the lifting process.

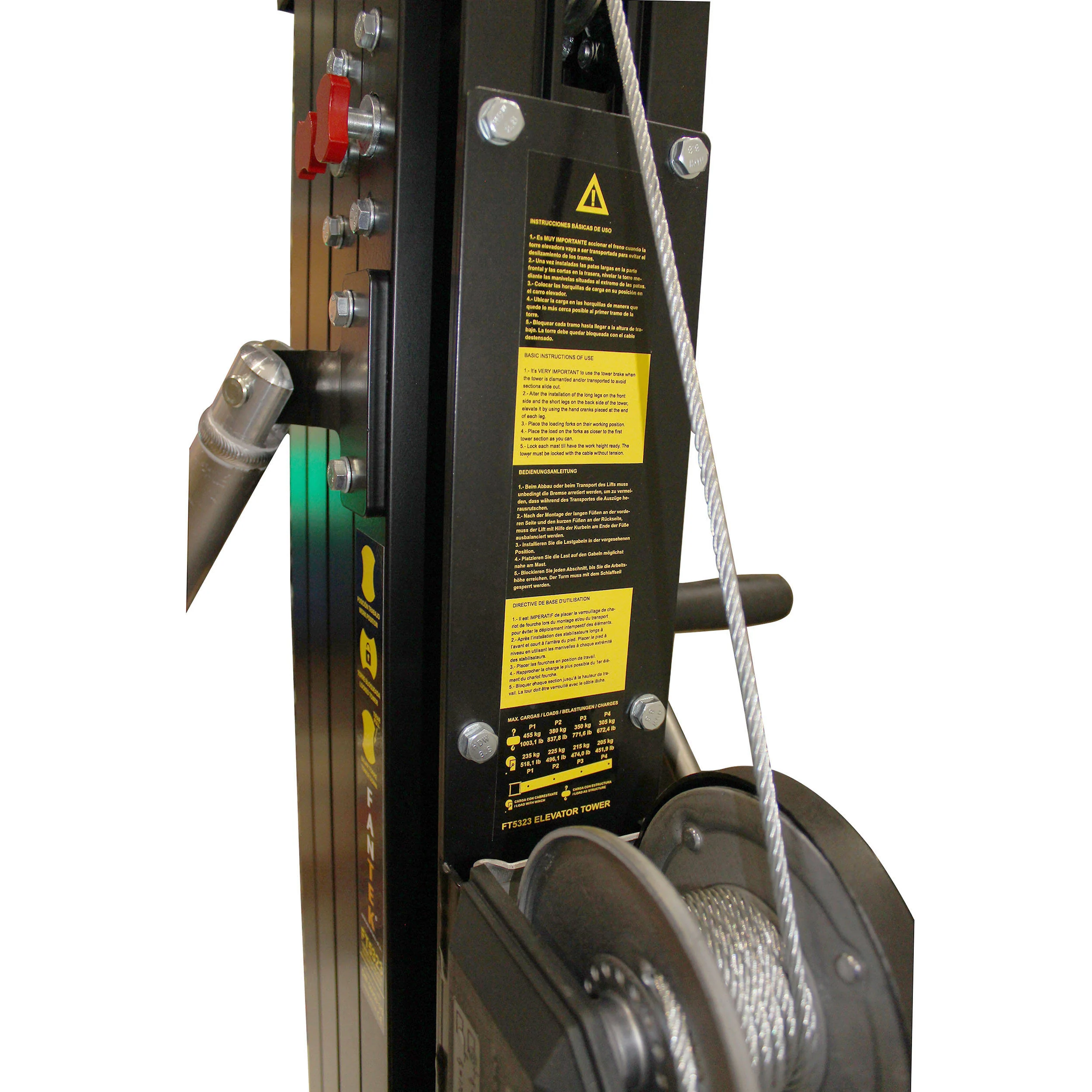

WIREDRIVE

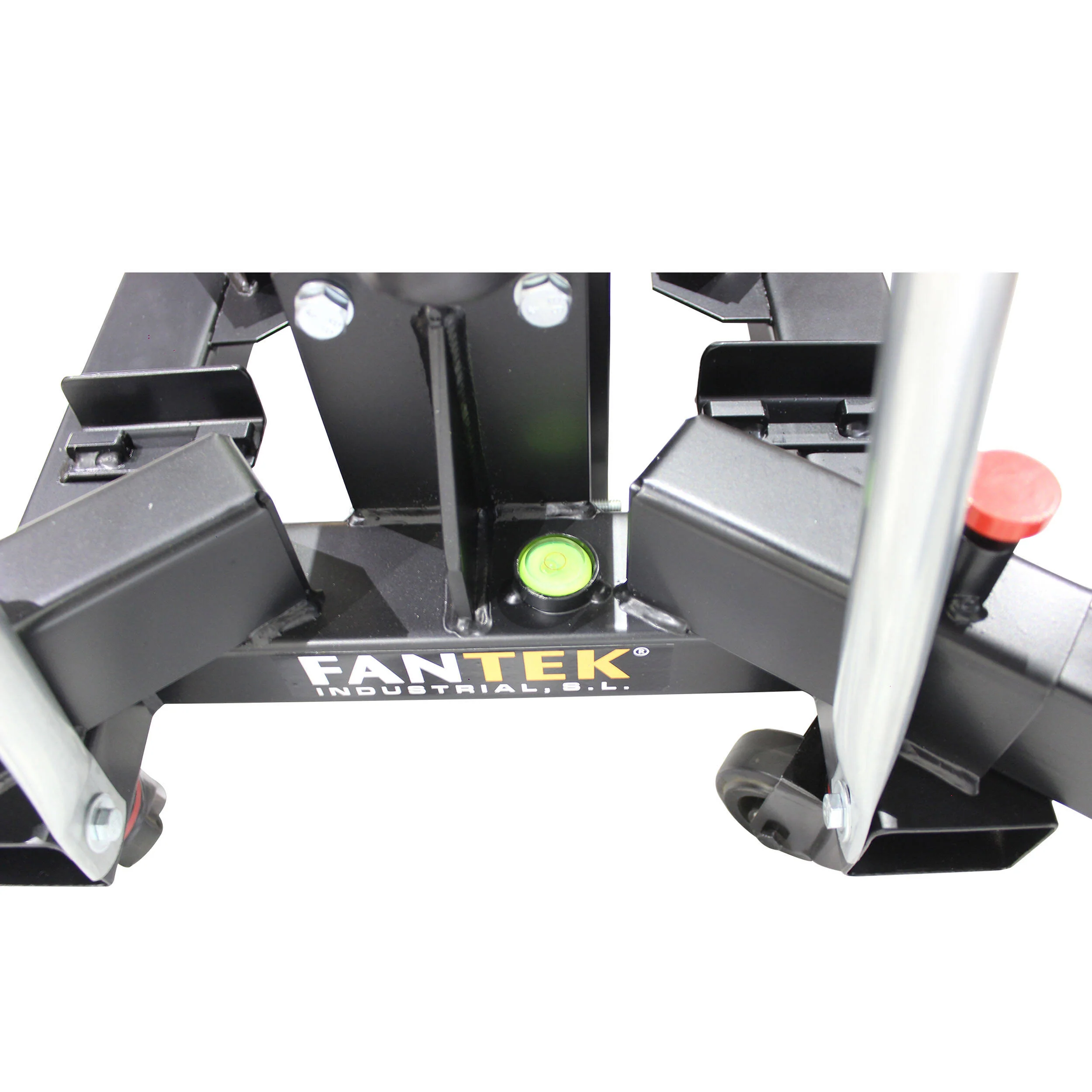

WIREDRIVE is a multidirectional grooved pulley that reduces the wire angle between the winch drum and its entry to the first mast. The steel base provides great stability when the adjustable screw-jacks are well balanced and the bubble level on the base provides accurate leveling.

UPC: 798239007791

Items Included

ProX FANTEK Spain Compact Front-Loading Lifting Line Array Systems Tower (2-Pack, 16' Max Height, 518 lb Load Capacity)
2 x ProX FANTEK Line Array Adapter with Hanging Ring for XTF-FT5323 Lifting Tower
Limited 1-Year Manufacturer Warranty

Additional Resources

No additional resources available

ProX XTF-FT5323 X2 Specs

General

Quantity	2
Type	Speaker Stand
Load Capacity	518 lb / 235 kg
Stand Height	5.62 to 16.33' / 1.71 to 4.98 m
Swivel Adjustment	No
Tilt Angle	No

Physical

Material of Construction	Aluminum, Steel
Dimensions	67 x 21.5 x 17" / 170.2 x 54.6 x 43.2 cm
Weight	188 lb / 85.3 kg

Packaging Info

Package Weight	370 lb
Box Dimensions (LxWxH)	63 x 35 x 23"
