Proton PIO Connecting Box for Proton Cameras (Ethernet)
HomeStore

Proton PIO Connecting Box for Proton Cameras (Ethernet)

Proton PIO Connecting Box for Proton Cameras (Ethernet)

$144.57

Original: $481.91

-70%
Proton PIO Connecting Box for Proton Cameras (Ethernet)—

$481.91

$144.57

The Story

Proton PCI-ACC-PIO-E Overview

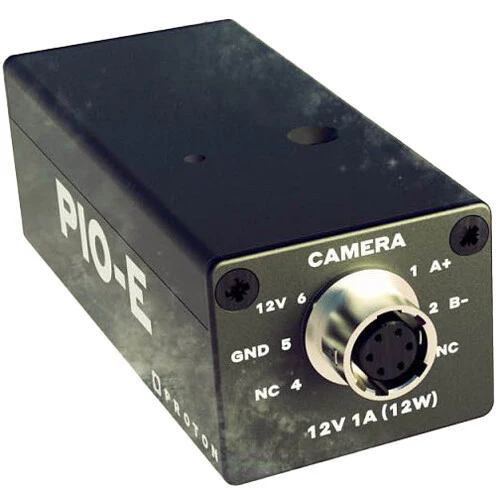

Connect your Proton CAM, FLEX, RAIN, or 4K camera to an Ethernet LAN with this PIO Connecting Box. This tiny box provides a Hirose 6-pin connector to your camera and an RJ45 Ethernet connection for remote camera control, PoE, and bidirectional communication. Remote configuration can also be accomplished via Bluetooth or USB-C.

There are four M2.5 threads around the camera for mounting onto a rig, and it is compatible with an optional 1/4"-20 mounting plate for tripod mounting. Color LED indicators provide status information for power, camera, and Ethernet connections.

Items Included

  • Proton PIO Connecting Box for Proton Cameras (Ethernet)
  • Limited 6-Month Manufacturer Warranty

Additional Resources

No additional resources available

Proton PCI-ACC-PIO-E Specs

General
Compatibility
Proton CAM Compact Camera / FLEX Compact Camera / RAIN Compact Camera / 4K Compact Camera
Inputs/Outputs
USB I/O
1 x USB-C 2.0 Female Input
Other I/O
1 x 6-Pin Hirose Female (HR10A-7R-6S)
1 x RJ45 Ethernet, 10/100 Mb/s (Video, PoE IEEE802.3af, Configuration)
Wireless
Wireless
Bluetooth
Power
Power Source
PoE
DC Input Power
12 VDC at 1 A
Physical
Mounting
4x M2.5 Threads
Color
Black
Dimensions
2.4 x 1.1 x 0.9" / 60 x 27 x 22 mm (Body Only)
2.6 x 1.1 x 0.8" / 66 x 27 x 20 mm (with Hirose Connector)
Weight
2.1 oz / 60 g
Packaging Info
Package Weight
0.105 lb
Box Dimensions (LxWxH)
5.55 x 4.8 x 1.2"

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

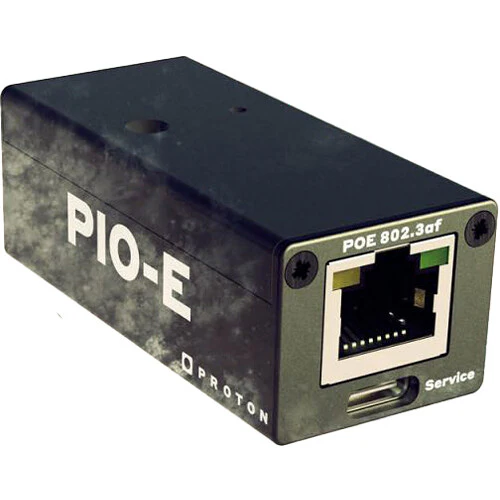

Proton PIO Connecting Box for Proton Cameras (Ethernet) - Image 2
