Proaim VI-GR-00 Overview

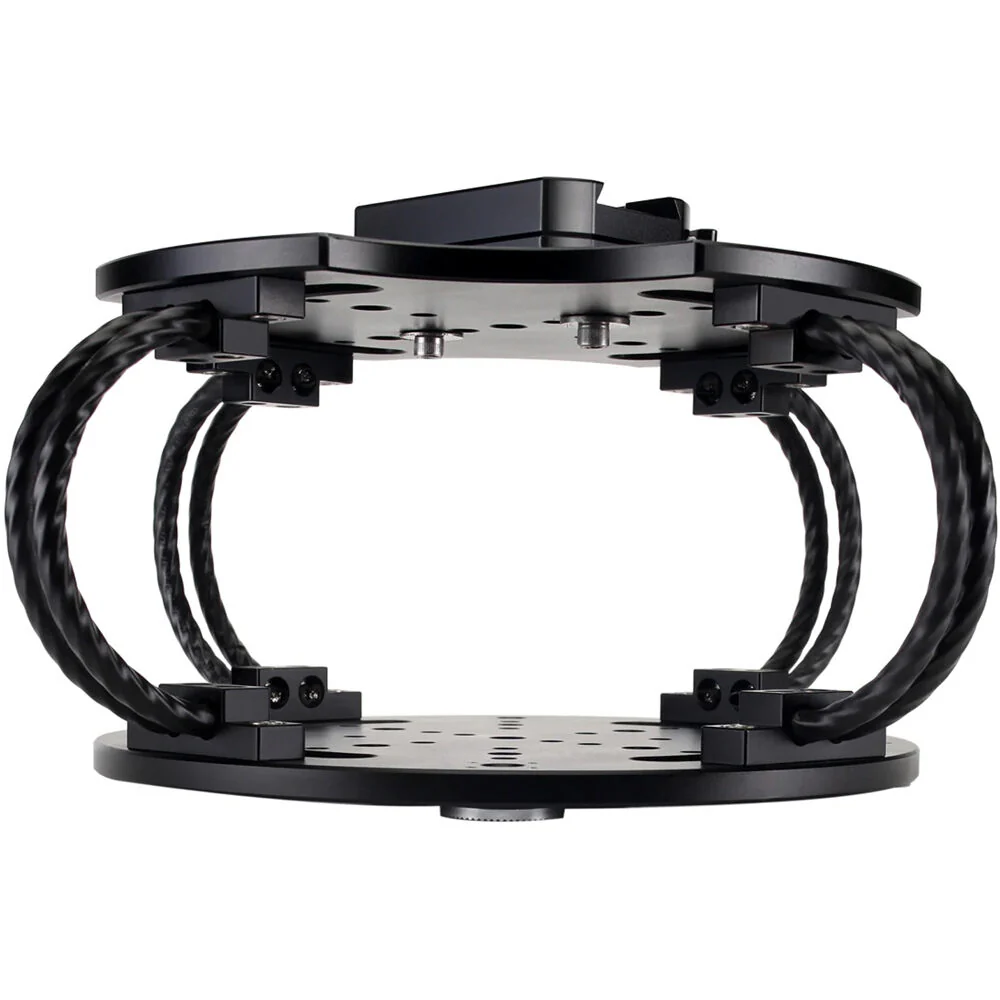

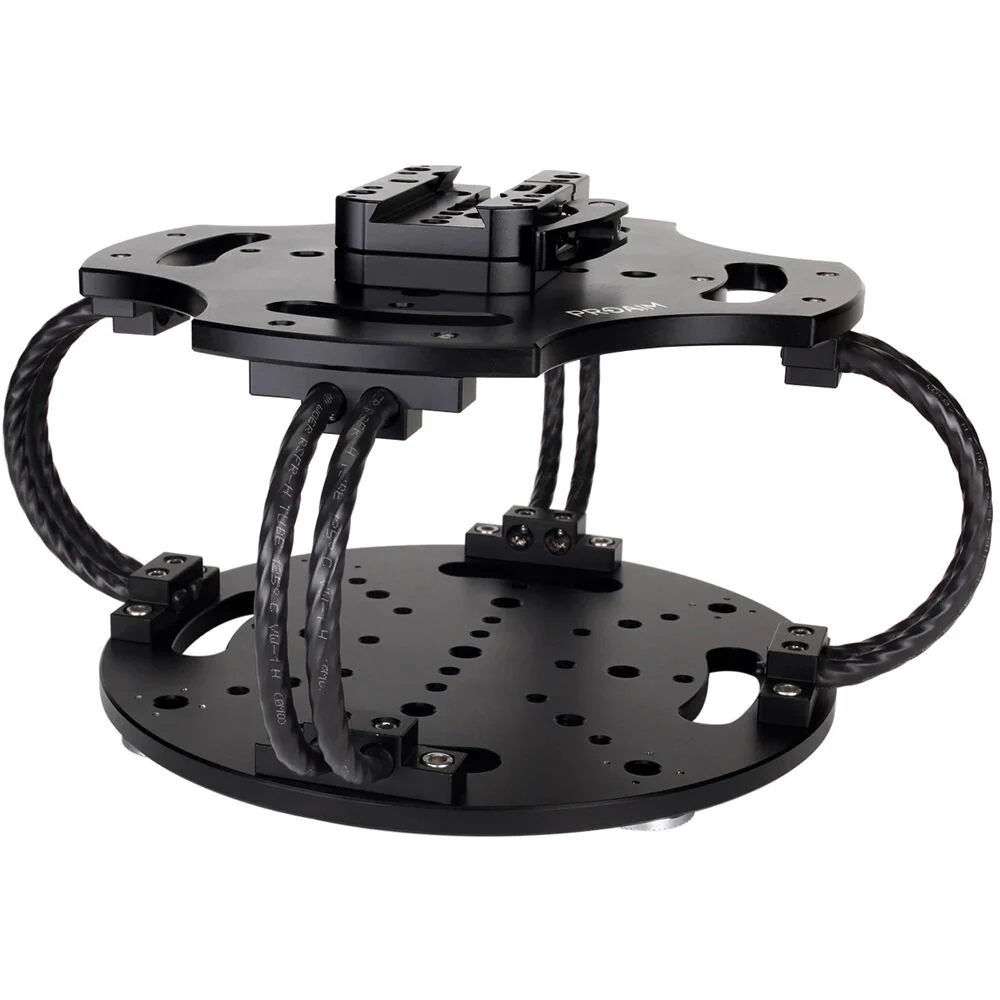

Eliminate vibration when using a camera gimbal rig with this Vibration Isolator Wire Mount from Proaim. The wire-style mount features a top and bottom plate and mounts between your rig and mounting gear to reduce additional vibration if the rig is mounted on a vehicle or in motion.

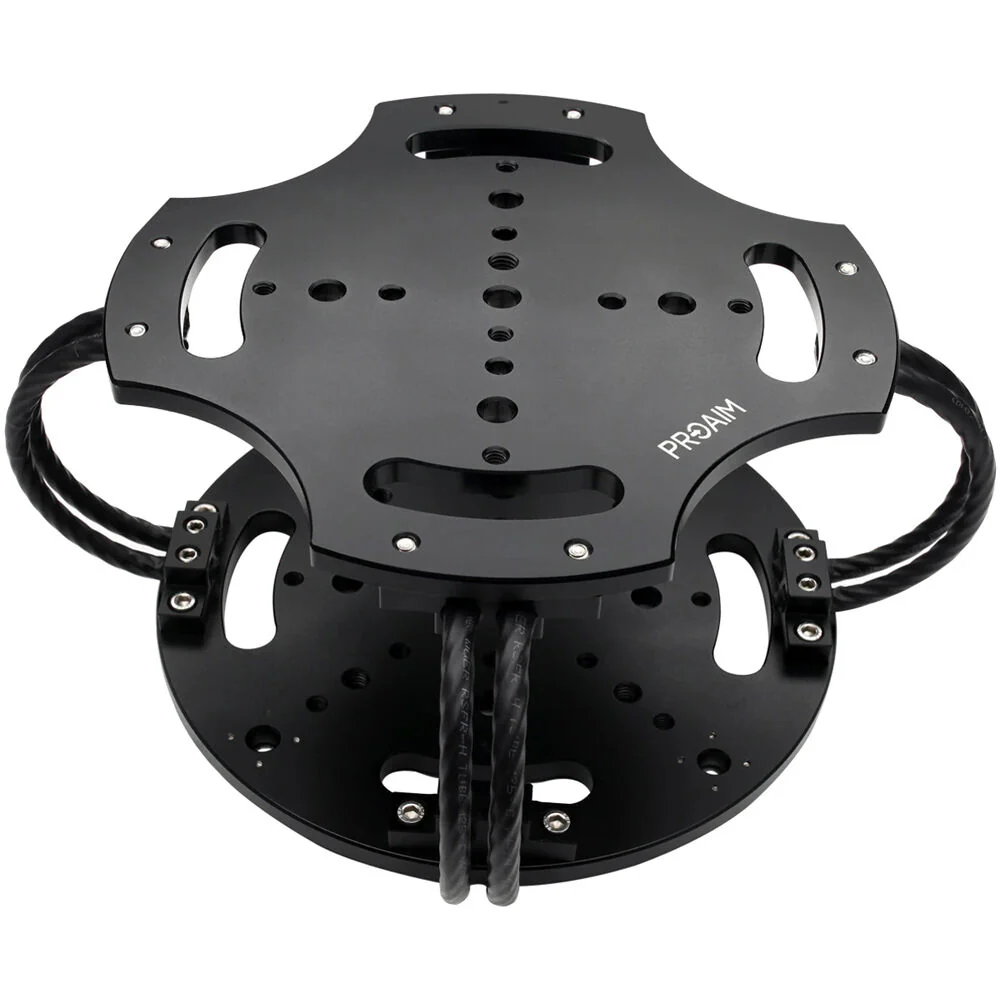

The durable aluminum mount consists of a top plate and a bottom plate that feature multiple 1/4"-20 and 3/8"-16 mounting threads for the gimbal and the mount. A DJI Ronin quick release mount is included to accommodate gimbals such as the DJI Ronin 2 that has a quick release plate. The plates are linked with a strong 5/16" wire to absorb the vibration. If you utilize four wires around the plate, you can support between 8 and 15 lb loads. You can also double up each wire for an eight-wire setup to support loads ranging between 18 and 33 lb.
Compatibility

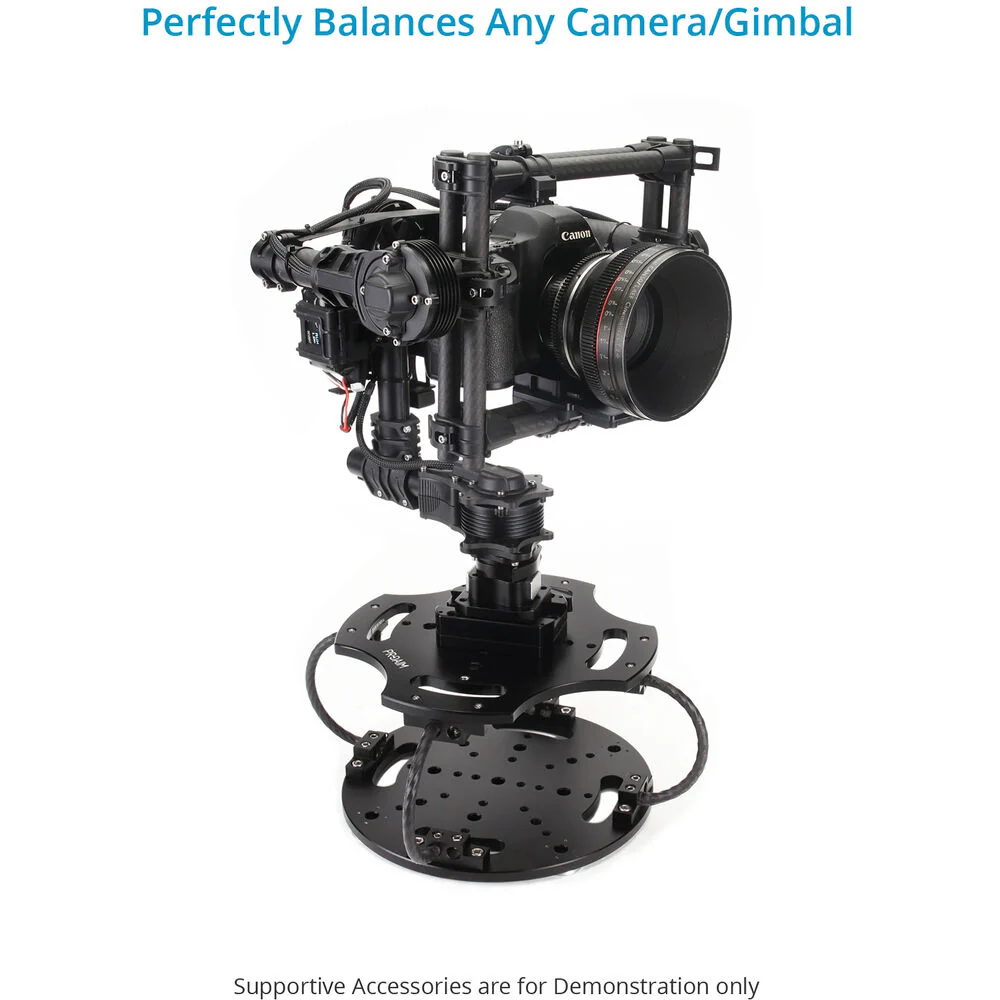

DJI Ronin gimbals such as the Ronin 2 with a quick release plate
In the Box
- Proaim Vibration Isolator Wire Mount for Camera Gimbals
- Top Mounting Plate
- Bottom Mounting Plate

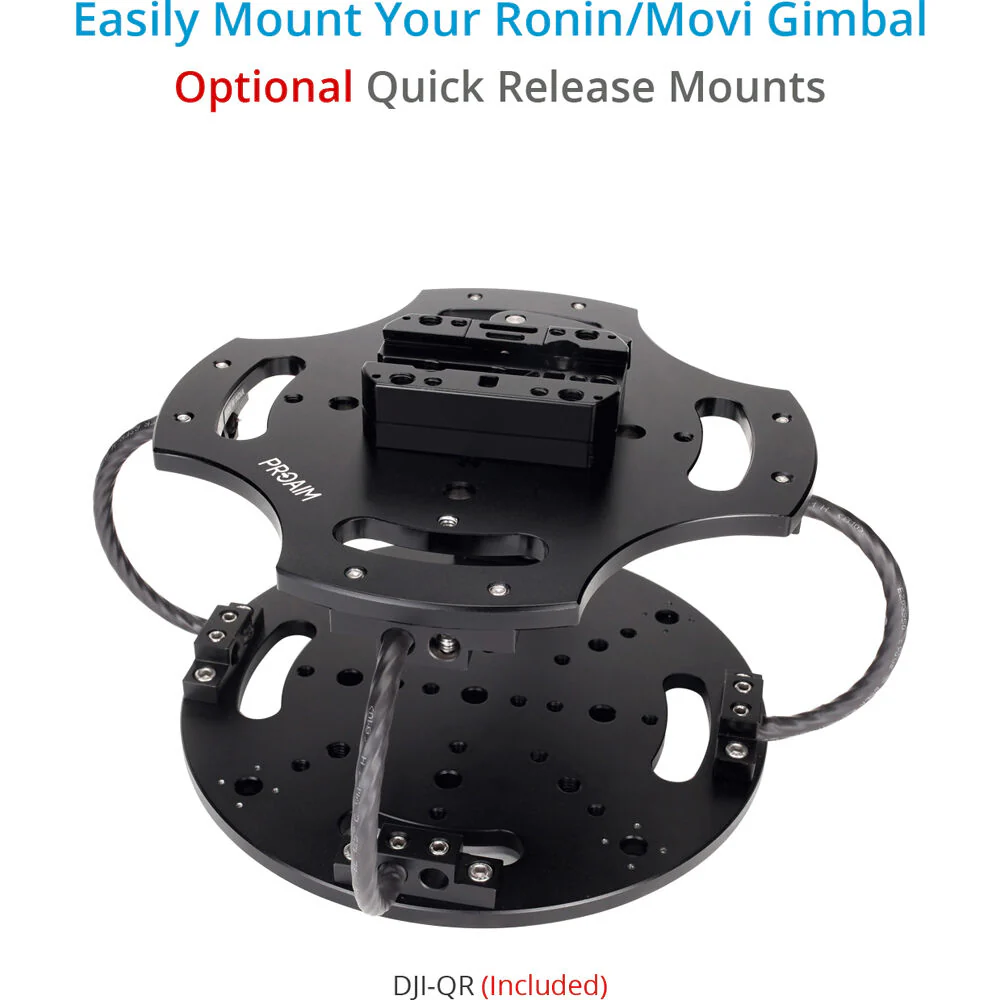

- DJI-QR Mounting Plate
- 8 x Tension Wire
- Allen Wrench
- Limited 1-Year Warranty
Proaim VI-GR-00 Specs
| Construction | Aluminum |

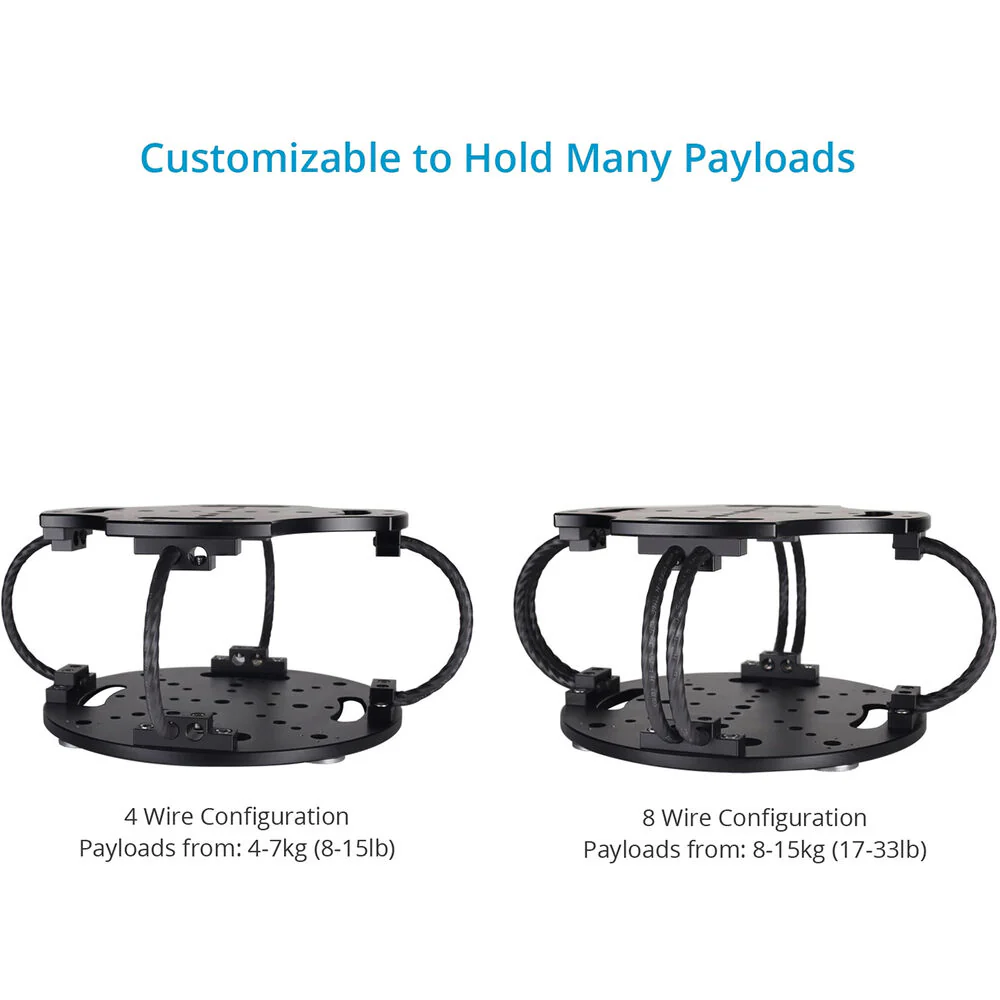

| Load Capacity | 4-Wire: 8 to 15 lb / 4 to 7 kg 8-Wire: 17 to 33 lb / 8 to 15 kg |
| Mounting Threads | Multiple 1/4"-20 and 3/8"-16 |
| Wire Cable Thickness | 5/16" / 7.9 mm |
| Weight | 6.17 lb / 2.8 kg |
| Package Weight | 8.23 lb |
| Box Dimensions (LxWxH) | 13.7 x 12.1 x 8.8" |
