Pinnacle Microphones FAT Top II Ribbon Microphone Deluxe (Black Body / Silver Grille)
HomeStore

Pinnacle Microphones FAT Top II Ribbon Microphone Deluxe (Black Body / Silver Grille)

Pinnacle Microphones FAT Top II Ribbon Microphone Deluxe (Black Body / Silver Grille)

$308.54

Original: $1,028.46

-70%
Pinnacle Microphones FAT Top II Ribbon Microphone Deluxe (Black Body / Silver Grille)—

$1,028.46

$308.54

The Story

Pinnacle Microphones FAT HEAD II Overview

Now featuring the Lundahl LL291 transformer, the black and silver Pinnacle Microphones FAT Top II Ribbon Microphone Deluxe is versatile enough to handle a wide variety of vocal or instrument recordings and live sound applications. The FAT Top II utilizes a hand-tuned ribbon element that incorporates the legendary symmetrical ribbon design in order to achieve a true symmetrical figure-8 polar pattern. Its frequency and sensitivity response deliver pristine audio results and the element's design is very useful when executing a mid-side or Blumlein recording. The FAT Top II ships with a shockmount, leatherette pouch, and aluminum case.

Lundahl LL2913 transformer
Unique polished radian-grille design
Shockmount
Hand-tuned ribbon element
True figure-8 pattern
Balanced audio input signal to both sides of the ribbon assembly
Suited for guitar cabinets, drum overheads, vocal, piano, horns, strings, and more
UPC: 608766970089

In the Box

  • Pinnacle Microphones FAT Top II Ribbon Microphone Deluxe (Black Body / Silver Grille)
  • Aluminum Case
  • Shockmount
  • Carrying Pouch
  • Limited 1-Year Manufacturer Warranty

    Pinnacle Microphones FAT HEAD II Specs

    Microphone
    Primary Applications Studio Recording
    Form Factor Stand/Boom Mount
    Intended Sound Sources Vocals, Speech/Voice Over, Acoustic Guitar, Electric Guitar, Electric Bass, Double Bass, Piano, Drums, Percussion, Overhead, Instrument, Horns, Strings, Choir, Orchestra, Room Ambiance
    Sound Field Mono
    Capsule Ribbon
    Diaphragm 1.75" / 44.45 mm (Ribbon)
    Polar Pattern Figure-8
    Orientation Side Address
    High-Pass Filter Yes
    Gain Adjustment Yes
    Performance
    Frequency Range 30 Hz to 15 kHz ±3 dB
    Maximum SPL 135 dB SPL
    Impedance 200 Ohms
    Load Impedance 1000 Ohms
    Sensitivity -54.4 dB
    Signal-to-Noise Ratio 70 dB
    Equivalent Noise Level 17 dB A-Weighted
    Analog Output 1 x XLR 3-Pin Male (on Mic)
    Output Connectors (Digital) None
    OS Compatibility None
    Physical
    Color Black
    Mounting Shockmount (Included)
    Mounting Thread Size 5/8"-27 Female
    Included Case Hard Case
    Included Filters None
    Dimensions ø: 3 x L: 8.25" / ø: 76.2 x L: 209.55 mm
    Packaging Info
    Package Weight 5.61 lb
    Box Dimensions (LxWxH) 12.1 x 10.4 x 6.5"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    Pinnacle Microphones FAT Top II Ribbon Microphone Deluxe (Black Body / Silver Grille) - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

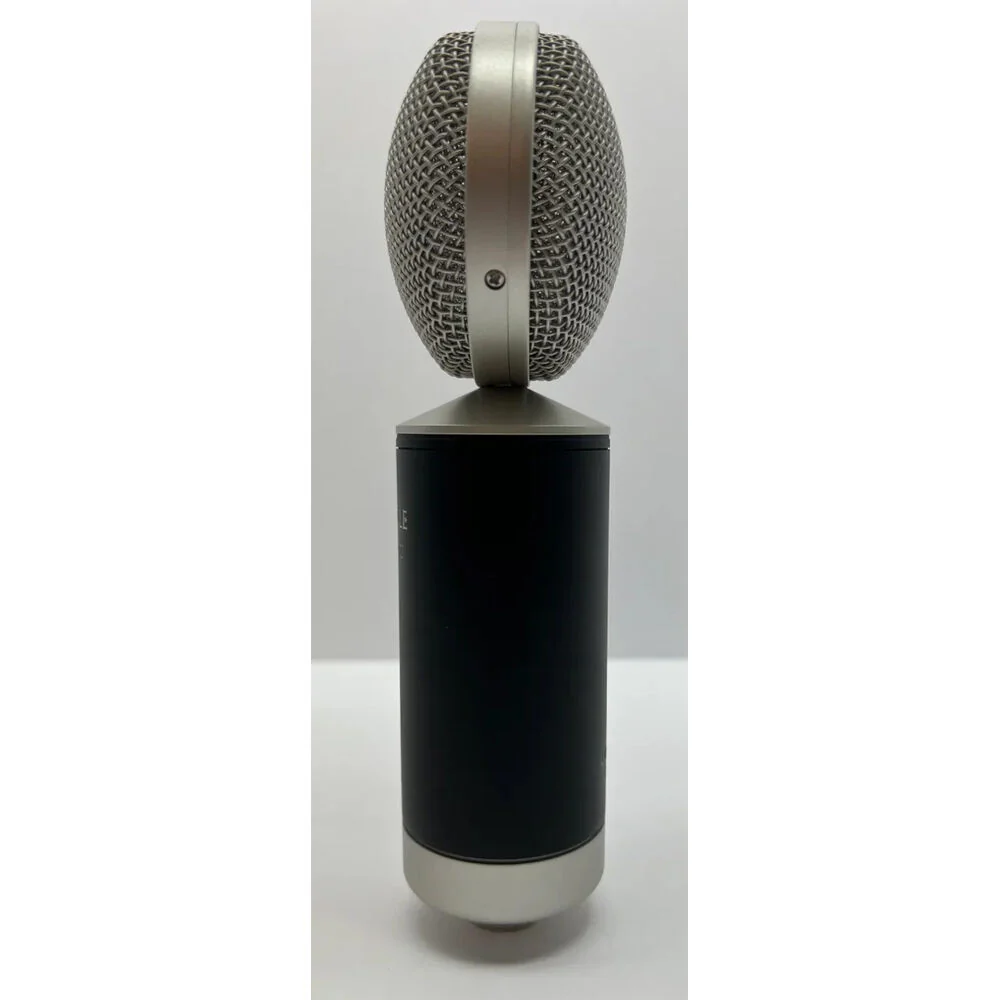

    Pinnacle Microphones FAT Top II Ribbon Microphone Deluxe (Black Body / Silver Grille) - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

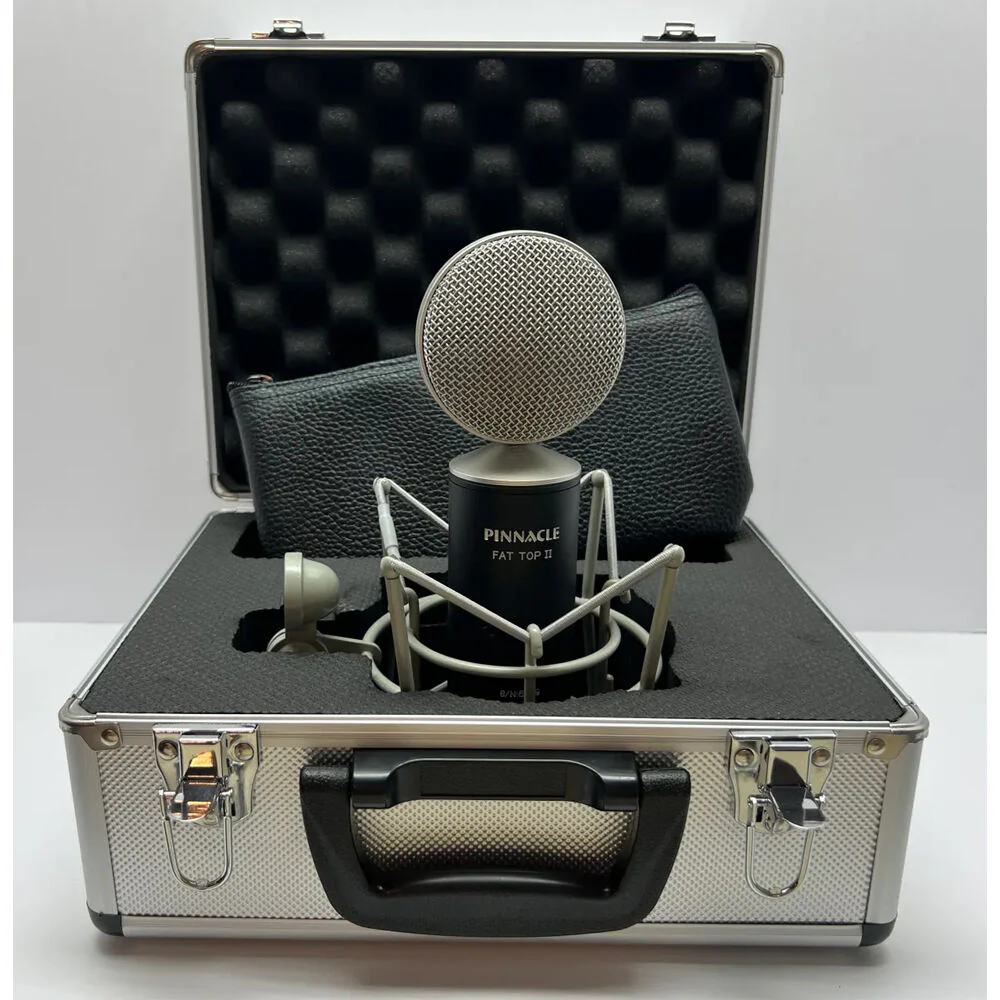

    Pinnacle Microphones FAT Top II Ribbon Microphone Deluxe (Black Body / Silver Grille) - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

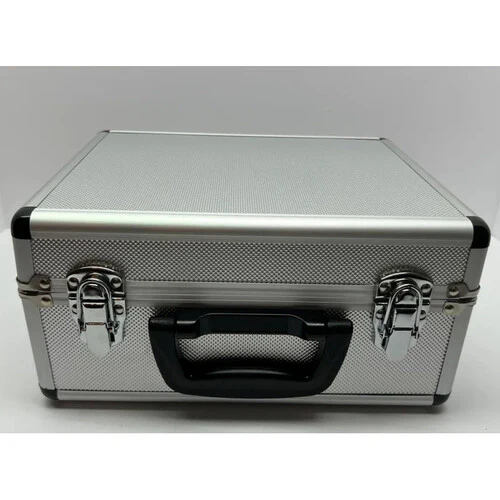

    Pinnacle Microphones FAT Top II Ribbon Microphone Deluxe (Black Body / Silver Grille) - Image 5

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

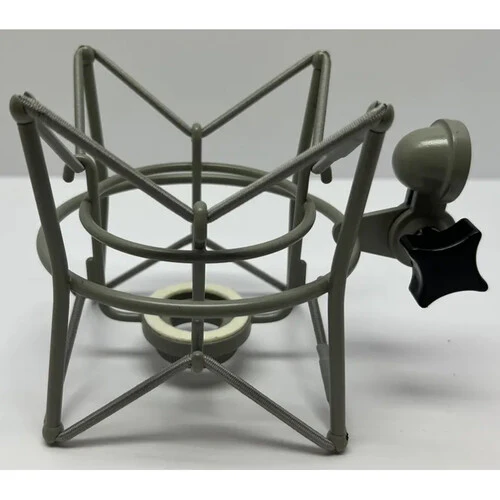

    Pinnacle Microphones FAT Top II Ribbon Microphone Deluxe (Black Body / Silver Grille) - Image 6

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

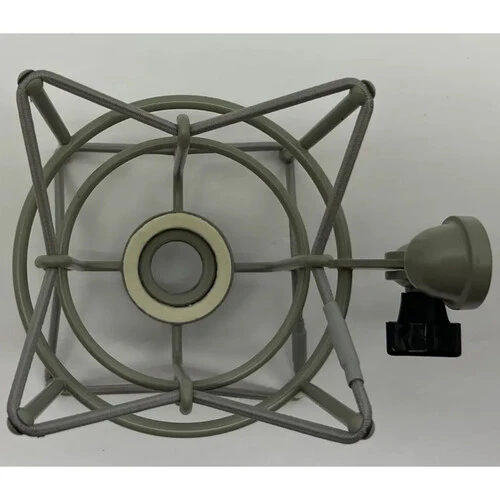

    Pinnacle Microphones FAT Top II Ribbon Microphone Deluxe (Black Body / Silver Grille) - Image 7
